Vertex AI Server
1 / 5

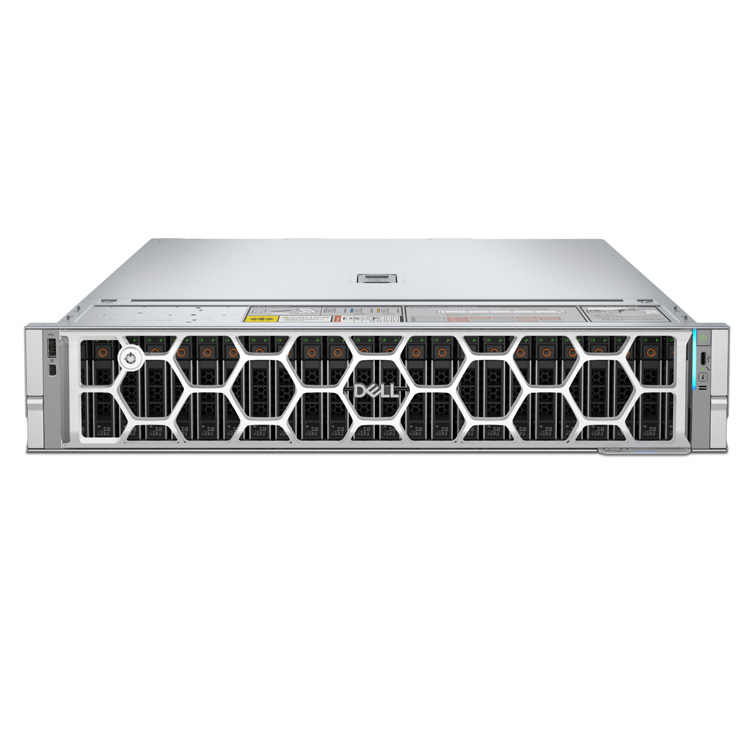

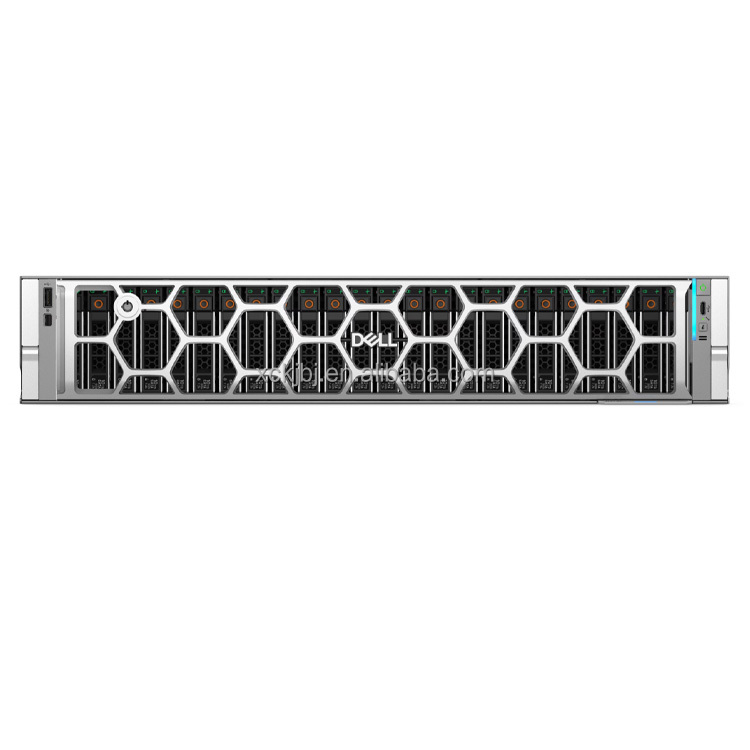

| Model | Poweredge R7725 |
| Processor | Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor |
| Memory | • 24 DDR5 DIMM slots, supports RDIMM 6 TB max*, speeds up to 6000 MT/s • Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Controllers (RAID): PERC H365i*,H965i, H975i* • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) • External HBAs (non-RAID): N/A |
| Drive Bays | Front bays: • 12 x 3.5-inch SAS/SATA* • 8 x 2.5-inch Universal* / 16 x 2.5-inch SAS/SATA* / 24 x 2.5-inch SAS/SATA* • 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID* • 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S* / 40 x EDSFF E3.S* |
| Power Supplies | • Platinum 800W*, 1100W* • Titanium: 800W*, 1100W*, 1500W, 1500W 277Vac & HVDC*, 1800W*, 2400W*, 3200W*, 3200W 277Vac & HVDC* • Telco: 1400W -48VDC* |
| Cooling Options | Air cooling, Direct Liquid Cooling (DLC)* |
| Fans | • Up to six hot plug fans |
| Dimensions | • Height – 86.8 mm (3.42 inches) • Width – 482 mm (18.98 inches) • Depth – 802.4 mm (31.59 inches) with bezel 801.51 mm (31.55 inches) without bezel |
| Form Factor | 2U rack server |
| Embedded Management | • iDRAC 10 • iDRAC Direct • iDRAC RESTful API with Redfish • Racadm CLI |
| Bezel | Optional metal bezel |
| OpenManage Consoles | • OpenManage Enterprise (OME) • OME Power Manager • OME Services • OME Update Manager • OME APEX AIOps Observability • OME Integration for VMware vCenter (with VMware Aria Operations) • OME integration for Microsoft System Center • OpenManage Integration for Windows Admin Center |
| Mobility | N/A |
| Tools | IPMI |
| Integrations and Connections | OpenManage Integrations • RedHat Ansible Collections • Terraform Providers |
| Change Management | • Dell Repository Manager • Dell System Update • Enterprise Catalogs • Server Update Utility (SUU)* |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
| GPU Options | Up to 2 x 400W DW*; Up to 6 x 75W SW* |
| Ports | Front Ports • 1 x USB 2.0 Type-A (optional LCP KVM) • 1 x USB 2.0 Type-C (HOST/BMC Direct) 1 x Mini DisplayPort (optional LCP KVM) Rear Ports • 1 x dedicated BMC Ethernet port • 2 x USB 3.1 Type-A 1 x VGA Internal Port 1 x USB 3.1 Type-A |
| PCIe | Up to eight PCIe slots* (x8 or x16 connector) • Slot 1: 1 x8 Gen5 Full Height* • Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height* or 1 x16 Dual Width Full Length* • Slot 3: 1 x16 Gen5 Full Height or Low Profile* • Slot 4: 1 x16 Gen5 Full Height* or 1 x8 Gen5 Full Height* or 1 x16 OCP3.0 • Slot 5: 1 x8 Gen5 Full Height* • Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height* or 1 x16 Dual Width Full Length* • Slot 8: 1 x16 Gen5 Full Height* or 1 x8 Gen5 Full Height* • Slot 9: 1 x16 Gen5 Full Height or Low Profile* |
| Gen5 PCIe slots | 8* |
| OCP Network options | • 2 x OCP NIC 3.0 card (optional) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE* • Slot 4: 1 x16 Gen5 second OCP 3.0 • Slot 10: 1 x16 Gen5 OCP3.0 |
| Embedded NIC | 1 Gb dedicated BMC Ethernet port |
| PCIe Add-in Card (AIC) NIC | 100 GbE and 400GbE*; NDR VPI (400GbE)*; FC 32 / 64* |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • VMware ESXi |
