With 10 years of distribution experience, we are a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

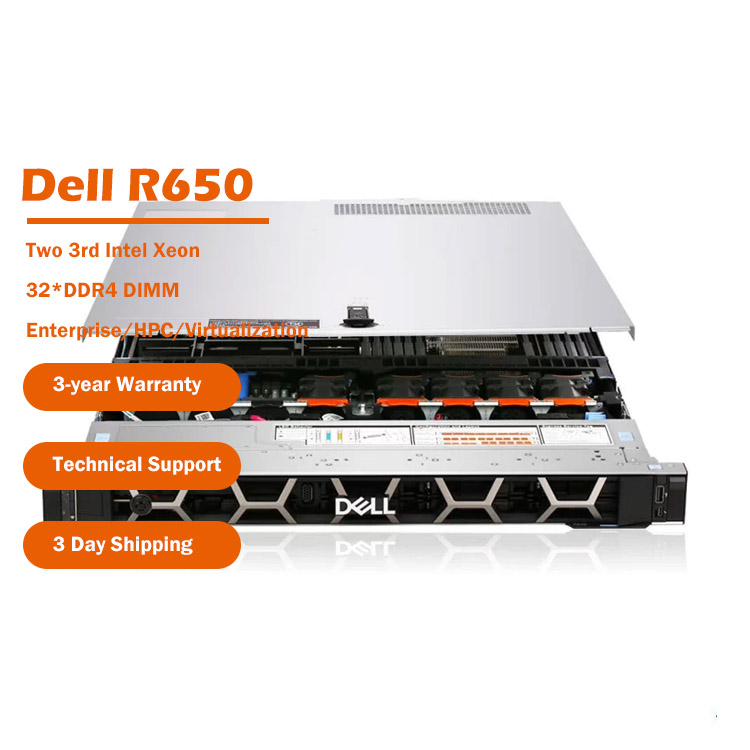

The Dell EMC PowerEdge R650, equipped with the third-generation Intel Xeon Scalable Processor, is an excellent rack mounted server designed to meet application performance and acceleration requirements. The PowerEdge R650 is a dual slot/1U rack mounted server that provides excellent performance for demanding workloads. It supports 8 memory channels per CPU and up to 32 DDR4 DIMMs, with a speed of 3200 MT/s. In addition, to meet actual throughput improvements, the PowerEdge R650 supports PCIe 4.0 and up to 24 NVMe drives, while improving air cooling capabilities and adding optional direct liquid cooling to support higher power and heat dissipation requirements. This will make the PowerEdge R650 an ideal server for data center standardization across a wide range of workloads, including databases and analytics, high-frequency transactions, traditional enterprise IT, virtual desktop infrastructure, and even high-performance HPC or AI/ML environments, as well as GPU support in a dense 1U form factor specification.
| Model | Dell R650 |
| Customized Service | Customers Can Freely Choose Specific Configurations |
| Appearance Specifications | 1U |
| Processor | 2 * Intel ® xeon ® Gold medal 6330 2G, 28C/56T, 11.2GT/s, 42M cache, Turbo, HT (205W) |
| Memory | 2 x 32GB RDIMMs, 3200MT/s, dual row |
| Hard Disk | 2 * 960GB solid state drives SATA hybrid 6Gbps 512 2.5-inch hot swappable AG hard drives, 3 DWPD |
| Disk Array | Front PERC H755 Front Load |
| Power Options | Dual, hot swappable, power fault-tolerant redundancy (1+1), 800W |
| Networking options | 2 x 1 GbE LOM and 1 OCP 3.0 (8 PCIe lanes) (optional) |
| SLOT | Up to 3 PCIe 4.0 low rise slots (all x16 except for 1 optional SNAPI I/O x8 slot), or 2 PCIe 4.0 full height slots |
| Manage | iDRAC9 iDRAC RESTful API (Redfish) iDRAC Direct Quick Sync 2 BLE |
| Front port | 1 dedicated iDRAC Direct micro USB 1 USB 2.0 1 VGA |
| Back port | 1 USB 2.0, 1 serial (optional), 1 USB 3.0, 2 RJ-45, 1 VGA (optional for liquid cooling configuration) |
| Operating System Options | Canonical Ubuntu Server LTS, Microsoft Windows Server (With Hyper-V), RedHat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Warranty | 3 Year |
| CPU | Up to 2 3rd generation Intel Xeon Scalable processors, each equipped with up to 40 cores. Direct contact liquid cooling (DCLC) option: Yes |
| Memory | DIMM speed: up to 3200 MT/s. Memory type: RDIMM, LRDIMM, NVDIMM, Intel Persistent Memory 200 Series (BPS). Memory module slots: 32 DDR4 DIMM slots. Maximum RAM: RDIMM 2 TB, LRDIMM 4 TB, NVDIMM 128 GB |
| Storage | Front tray: Up to 10 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 153 TB; Up to 8 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 122.8 TB; Up to 4 3.5-inch SAS/SATA (HDD/SSD), maximum 64 TB. Rear tray: Up to 2 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 30.7 TB |
| Memory Controller | Internal controller: PERC H745, H345, HBA355I, H755, H755N. External controller: PERC H840, HBA355E. Software RAID: S150 |
| Network | 2 x 1 GbE LOM and 1 OCP 3.0 (8 PCIe lanes) (optional) |
| PCle slot | Up to 3 PCIe 4.0 low rise slots (all x16 except for 1 optional SNAPI I/O x8 slot), or 2 PCIe 4.0 full height slots |
| Integrated port | Front port: 1 dedicated iDRAC Direct micro USB port; 1 USB 2.0 port; 1 VGA port. Rear port: 1 USB 2.0 port; 1 serial port (optional); 1 USB 3.0 port; 2 RJ-45 ports; 1 VGA port (optional for liquid cooling configuration) |
| System management | Embedded/Server Level: iDRAC9; Quick Sync 2 wireless module; IDRAC Service Module |
| Power supply | 800 W Platinum Grade AC/240 HVDC; 1100 W Titanium Grade AC/240 HVDC; 1400 W Platinum Grade AC/240 HVDC. Hot swappable power supply with complete redundancy option |
We are specialized in computer hardware sales and network platform construction and maintenance of IT enterprises. Our main products are Dell, HP, IBM, Lenovo, Huawei, convinced, Youyou mail and other products. We have a sound sales network system, stable commodity supply channels, and an excellent technical support team. Based on this advantage, our business has expanded rapidly, and now we have become a number of well-known enterprises and institutions at home and abroad excellent server system integrator and solution provider. Since our inception, we have established a good customer relationship maintenance system and support system. Committed to the real price of genuine market competition, active open cooperation, establishing strong supplier partnerships. In the competitive market environment, we align with the "Customer first, honest and pragmatic, service first" business philosophy; to strengthen the quality of products and thoughtful service to win trust in society. We wish our professional quality and first-class service can be accepted and introduced by you and your enterprise.
