We have 10 years of distribution experience. As a high-tech enterprise integrating system integration and IT consulting, we provide professional IT services as a core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize solutions freely according to your specific needs!

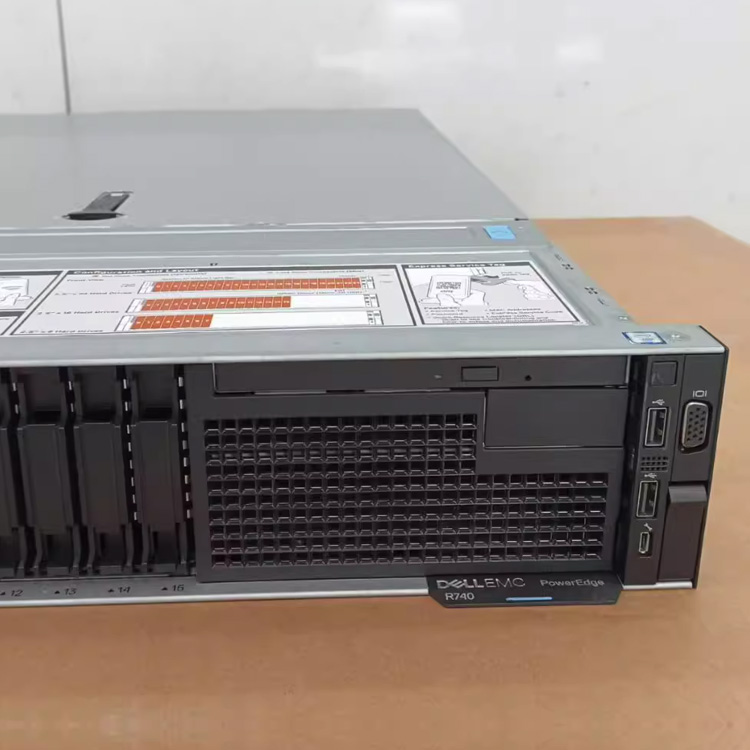

| Model | Poweredge R740 | Poweredge R740XD |
|---|---|---|
| CPU | Up to two second-generation Intel® Xeon® Scalable processors with up to 28 cores per processor | Up to two second-generation Intel® Xeon® Scalable processors with up to 28 cores per processor |
| Memory | 24 DDR4 DIMM slots, supporting RDIMM/LRDIMM, with speeds up to 2933 MT/s and a maximum of 3 TB. Up to 12 NVDIMMs, maximum 192 GB. Up to 12 Intel® Optane™ DC persistent memory PMem, maximum 6.14 TB (maximum 7.68 TB when using PMem+LRDIMM). Only supports registered ECC DDR4 DIMMs. | 24 DDR4 DIMM slots, supporting RDIMM/LRDIMM, with speeds up to 2933 MT/s and a maximum of 3 TB. Up to 12 NVDIMMs, up to 192 GB. Up to 12 Intel® Optane™ DC persistent memory DCPMM, maximum 6.14 TB (maximum 7.68 TB when using DCPMM+LRDIMM). Only supports Registered ECC DDR4 DIMMs. |
| Memory Controller | Internal control: PERC H330, H350, H730P, H740P, HBA330, H750, HBA350. Outside control: H840, HBA355e, 12 Gbps SAS HBA. Software RAID: S140. Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSD 240 GB, 480 GB. Two SD modules. | Internal controller: PERC H730P, H740P, H330, software RAID (SWRAID) 1404. Startup optimized storage subsystem: HWRAID 2 M.2 SSDs, 240 GB or 480 GB. External PERC (RAID): H840. 12 Gbps SAS HBA (non-RAID) External. 12 Gbps SAS HBA (non-RAID) Internal: HBA330. |
| Storage | Front drive bay: up to 16 x 2.5" SAS/SATA (HDD/SSD), up to 122.88 TB, or up to 8 x 3.5" SAS/SATA HDDs, up to 128 TB. Optional DVD-ROM, DVD+RW. | Front end bracket: up to 24 x 2.5-inch SAS/SATA (HDD/SSD), NVMe SSD, up to 184.32 TB, or up to 12 x 3.5-inch SAS/SATA HDDs, up to 168 TB. Middle bracket: up to 4 x 2.5-inch, maximum 30.72 TB SAS/SATA (HDD/SSD), NVMe SSD, maximum 25.6 TB, or up to 4 x 3.5-inch, maximum 56 TB. Backend rack: up to 4 x 2.5-inch, maximum 30.72 TB SAS/SATA (HDD/SSD), NVMe SSD, or up to 2 x 3.5-inch, maximum 28 TB SAS/SATA HDD. |
| Power Supply | Titanium grade 750W, Platinum grade 495W, 750W, 750W 240VDC, 1100W, 1100W 380VDC, 1600W, 2000W, and 2400W; Gold grade 1100W -48VDC. | Titanium grade 750W, Platinum grade 495W, 750W, 750W 240VDC, 1100W, 1100W 380VDC, 1600W, 2000W, and 2400W; Gold grade 1100W -48VDC. |
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, Quick Sync 2 wireless module (optional). | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish. |
| Baffle | Optional LCD screen panel or safety panel. | Optional LCD panel or safety panel. |
| OpenManage™ | OpenManage Enterprise, OpenManage Mobile, OpenManage Power Manager. | OpenManage Enterprise, OpenManage Essentials, OpenManage Mobile, OpenManage Power Center. |
| Integration & Connect | Integrate: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules. Connect: Nagios® Core & Nagios® XI, Micro Focus Operations Manager I, IBM Tivoli Netcool/OMNIbus. | Integrate: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible module. Connect: Nagios® Core and Nagios® XI, Micro Focus Operations Manager, IBM Tivoli Netcool/OMNIbus. |
| Security | TPM 1.2/2.0, TCM 2.0 (optional), Encryption signature firmware, secure boot. | System lockout (requires OpenManage Enterprise), Silicon Root of Trust, Secure Erase. |
| I/O & Ports | Network Subcard Options: 4 x 1 GbE or 2 x 10 GbE + 2 x 1 GbE or 4 x 10 GbE or 2 x 25 GbE. Front ports: 1 dedicated iDRAC Direct Micro USB, 2 USB 2.0, 1 USB 3.0 (optional), 1 VGA. Rear ports: 1 dedicated iDRAC network port, 1 serial port, 2 USB 3.0 ports, 1 VGA port. Graphics card: 2 VGA. Upgrade board options: up to 8 PCIe 3.0 slots, up to 4 x 16 slots. | Network Subcard Options: 4 x 1 GbE or 2 x 10 GbE + 2 x 1 GbE or 4 x 10 GbE or 2 x 25 GbE. Front ports: 1 dedicated iDRAC Direct Micro USB, 2 USB 2.0, 1 USB 3.0 (optional), 1 VGA. Rear ports: 1 dedicated iDRAC network port, 1 serial port, 2 USB 3.0 ports, 1 VGA. Graphics card: 2 VGA. Upgrade board options: up to 8 PCIe third-generation slots and up to 4 x 16 slots. |
| Accelerator Options | Up to three 300 W or six 150 W GPUs, or up to three dual-width or four single-width FPGAs. | Up to three 300 W or six 150 W GPUs, or three dual-width or four single-width FPGAs. GPU and FPGA options are only available on 24 x 2.5-inch drive chassis. |
| Supported OS | Canonical® Ubuntu® Server LTS, Citrix® Hypervisor, Microsoft Windows Server® LTSC with Hyper-V, Oracle® Linux. | Canonical® Ubuntu® Server LTS, Citrix® Hypervisor, Microsoft Windows Server LTSC using Hyper-V, Oracle® Linux. |
Standard enterprise level. Permanent memory NVDIMM-N can improve database performance increase by 10 times.

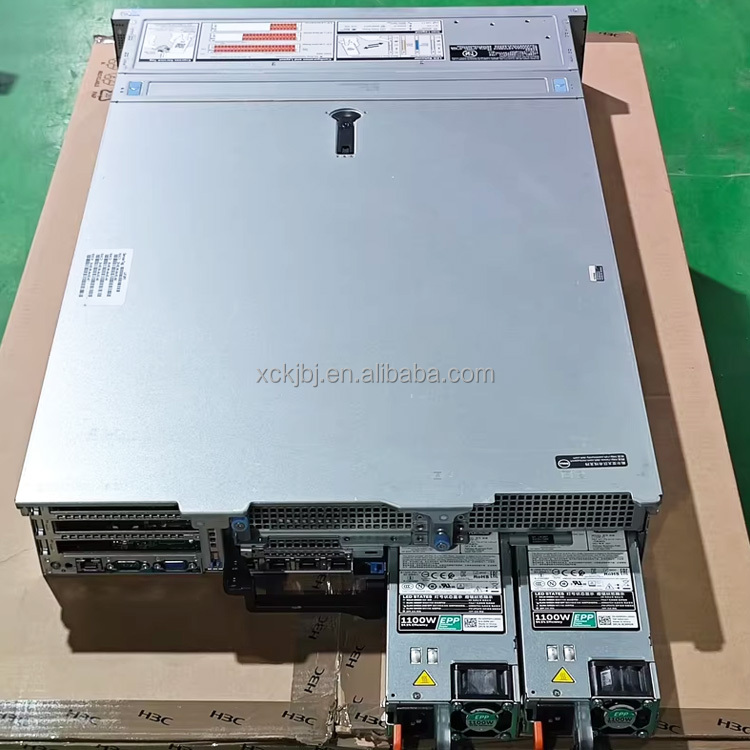

PowerEdge R740xd provides excellent storage scalability and performance balance. The 2U dual platform is highly suitable for software-defined storage, service providers, or users of virtual desktop infrastructure.
1. Is it brand new from the original factory?
Yes, all our products are brand new from the original factory, unless you specifically request second-hand products.
2. Is it in stock?
We maintain a substantial warehouse stock, and you are always welcome to visit and inspect the goods.
3. Can you offer a discount?
As a senior partner of this brand, our discount structure is highly advantageous. We can offer you the best discounts for high-volume orders.
4. How long is the delivery time?
Delivery takes between 1-3 working days following verification of your payment.
5. How long is the warranty period?
Different products feature different warranty periods. If needed, we can extend the warranty coverage up to five years.
6. What is the minimum order quantity (MOQ)?
We accept orders starting from 1 set. Please feel free to send us your inquiry.
