Vertex AI Server
1 / 5
| Model | DELL XE9680 Server |
| Customization Intention | Customers Can Freely Choose Specific Configurations |

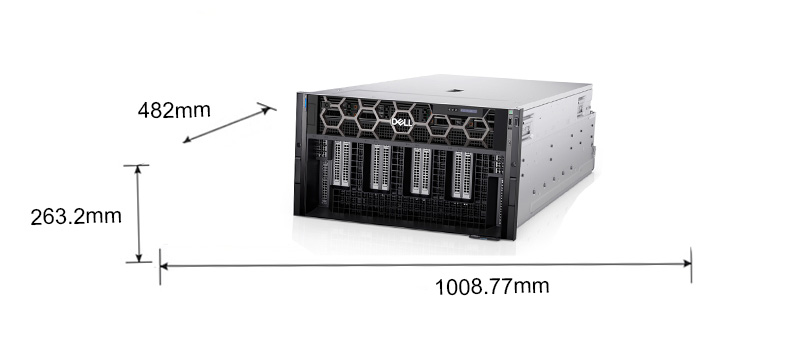

| Form Factor | 6U rack server |
| Processor |
• Two 5th Generation Intel Xeon Scalable processors with up to 64 cores or • Two 4th Generation Intel Xeon Scalable processors with up to 56 cores |
| Memory |
DIMM Speed • For 5th Generation Intel Xeon Scalable processors: Up to 5600 MT/s (1 DPC), Up to 4400 MT/s (2 DPC) • For 4th Generation Intel Xeon Scalable processors: Up to 4800 MT/s (1 DPC), Up to 4400 MT/s (2 DPC) Memory Type • RDIMM Memory module slots • 32 DDR5 DIMM slots (Supports RDIMMs) Maximum RAM • RDIMM 4 TB |
| Storage Controllers | • PERC12 (SAS4/SATA) • Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 2 x M.2 SSDs |
| Drive Bays | Front bays: • 16 x E3.S EDSFF direct from PSB (x4 Gen5) • 8 x U.2 SAS/SATA with fPERC • 8 x U.2 NVME direct from PSB |
| Power supply device | • 3200 W AC Titanium (available only in the US & Canada) • 3000 W AC Titanium (Multi-rated, supports only XE9680-Gaudi3 config) • 2800 W AC Titanium |
| Cooling options | Air cooling |

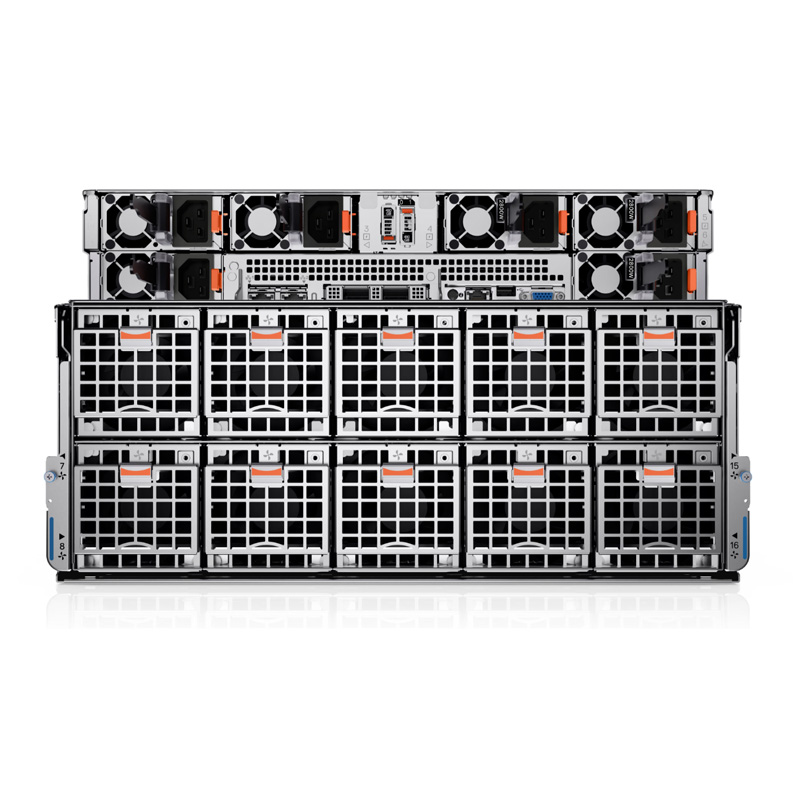

| Fan | • High performance (HPR) Gold fans • Six HPR fans on mid tray and Ten HPR GPU fans on the rear of the system (twelve rear GPU fans with Intel Gaudi3) |
| Embedded management | • iDRAC9 • iDRAC Direct • iDRAC RESTful with Redfish • iDRAC Service Manual |
| Barrier | Optional LCD bezel or security bezel |
| OpenManage software | • CloudIQ for PowerEdge plug-in • OpenManage Enterprise • OpenManage Power Manager plug-in • OpenManage Service plug-in • OpenManage Update Manager plug-in |
| Mobility | Not supported |
| OpenManage Integrations | • BMC TrueSight • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers |
| Safety | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China |
| Embedded NIC | 2 x 1 GbE LOM cards (optional) |
| Embedded OSFP | 6 x 800 Gb (available only with Intel Gaudi3) |
| Networking Options | OCP x8 Mezz 3.0 |
| GPU Options | • 8x NVIDIA HGX H100 80GB 700W SXM5 GPUs or • 8x NVIDIA HGX H200 141GB 700W SXM5 GPUs or • 8x NVIDIA HGX H20 96GB 500W SXM5 GPUs or • 8x NVIDIA HGX A100 80GB 500W SXM4 GPUs or • 8x AMD INSTINCT MI300X 192GB 750W OAM GPUs or • 8x Intel Gaudi3 128GB 900W OAM GPUs |
| Port |
Front port • 1 x USB 2.0 • 1 x iDRAC Direct (Micro-AB USB) port • 1 x VGA Rear port • 1 x USB 2.0 • 1 x iDRAC Direct Ethernet port • 1 x USB 3.0 • 1 x VGA |
| PCLs | 10 Gen5 PCIe slots • 8 x16 Gen5 (x16 PCIe) Full-height, Half-length • 2 x16 Gen5 (x16 PCIe) Full-height, Half-length for SmartNIC/DPU |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS (Supported GPUs: A100, H100, H200, H20, MI300X, Gaudi3) • Red Hat Enterprise Linux (Supported GPUs: A100, H100, H200, H20, MI300X, Gaudi3) • SUSE Linux Enterprise Server |
Rapidly develop, train and deploy large machine learning models with this high-performance application server designed for HPC super computing clusters and the largest data sets for AI, used for large scale natural language processing, recommendation engines and neural network applications.

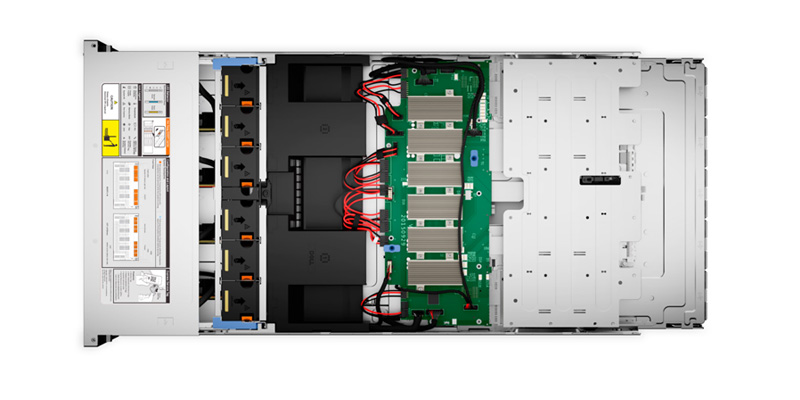

Drive fastest-time-to-value and no-compromise AI acceleration with Intel CPUs, NVIDIA GPUs and next generation technology for memory, storage and expansion to achieve the highest performance.
Deploy and enable AI business-wide and for all your AI initiatives with powerful features and capabilities, using the latest technology.
The Dell PowerEdge XE9680 can facilitate the transformation of multiple industry operations through generative AI. Imagine a retail scenario where artificial intelligence can quickly generate realistic images of various product configurations or color options based on customer preferences, or where construction companies create visualizations of new buildings for planning and sales demonstrations. The possibility is fascinating. The Dell PowerEdge XE9680 seamlessly integrates functionality, efficiency, and versatility. It is a high-performance server that can easily handle demanding artificial intelligence workloads. Although it is specifically designed to meet artificial intelligence workloads, its functionality makes it potentially useful for other applications.
