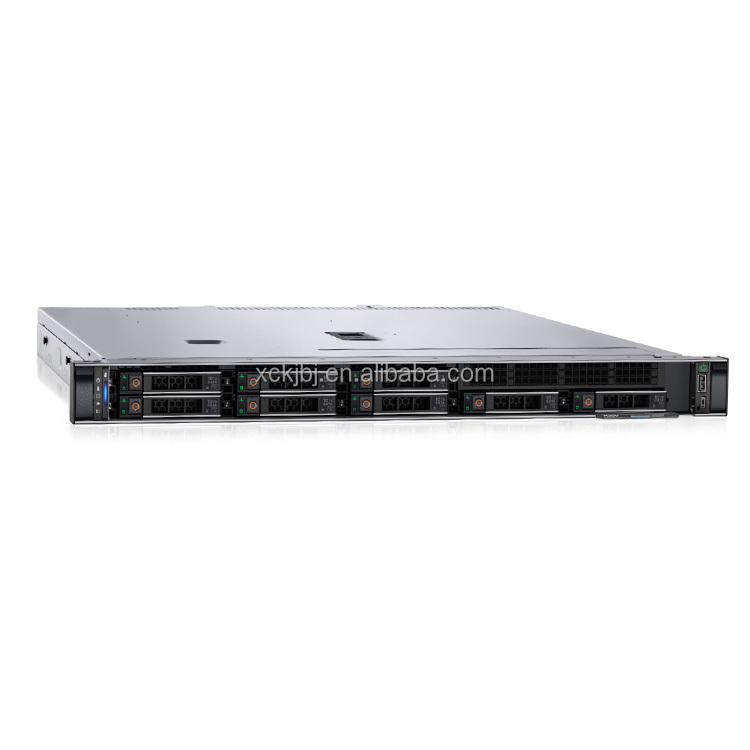

| Model | D ELL R350 |
| Processor | One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores |
| Memory | Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s. |
| Storage controllers | Internal controllers (RAID): PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150 Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs External HBAs (non-RAID): HBA355e |

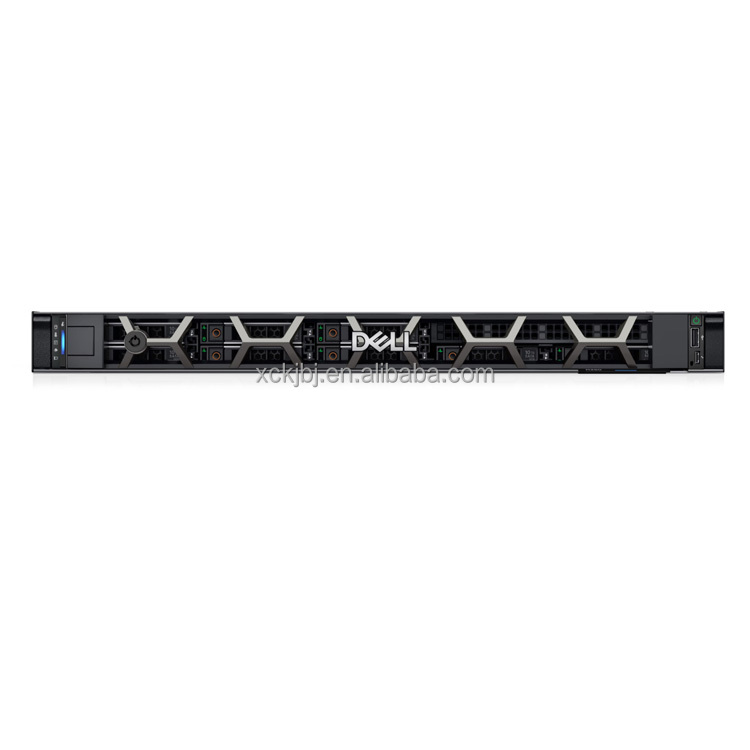

| Drive Bays | Front bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) Max 80TB for 4 HDD configurations |
| Power Supplies | 600 W Platinum 100-240 V AC or 240 V DC redundant, hot swap 700 W Titanium 100-240 V AC or 240 V DC redundant, hot swap |
| Cooling options | Air cooling |
| Fans | Up to four fans with full redundancy |
| Dimensions | Height – 42.8 mm (1.69 inches) Width – 482 mm (18.98 inches) Depth – 585.3 mm (23.04 inches) without bezel 598.94 mm (23.58 inches) with bezel |
| Form Factor | 1U rack server |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integrations and Connections |
OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional |
| Embedded NIC | 2 x 1 GbE LOM |
| Network Options | NA |
| Ports |

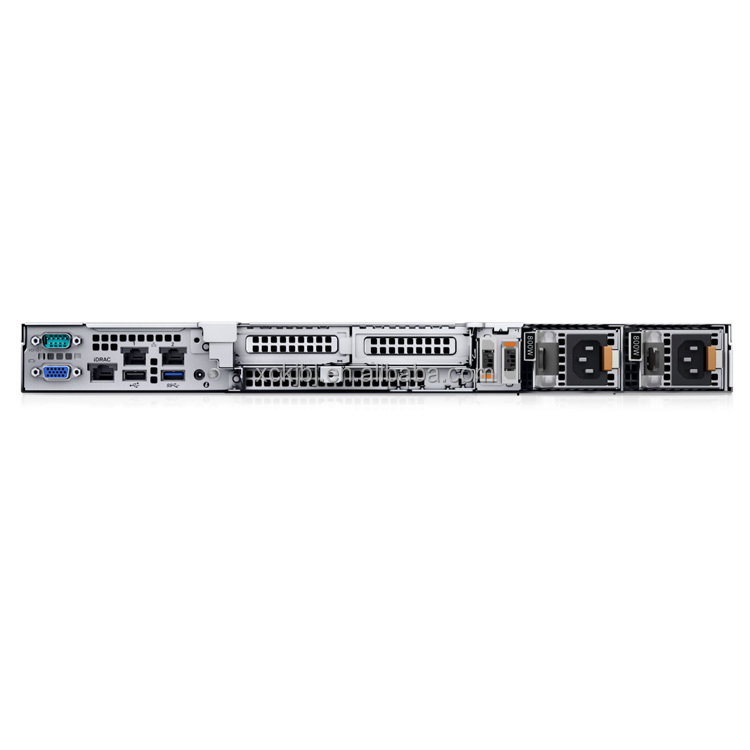

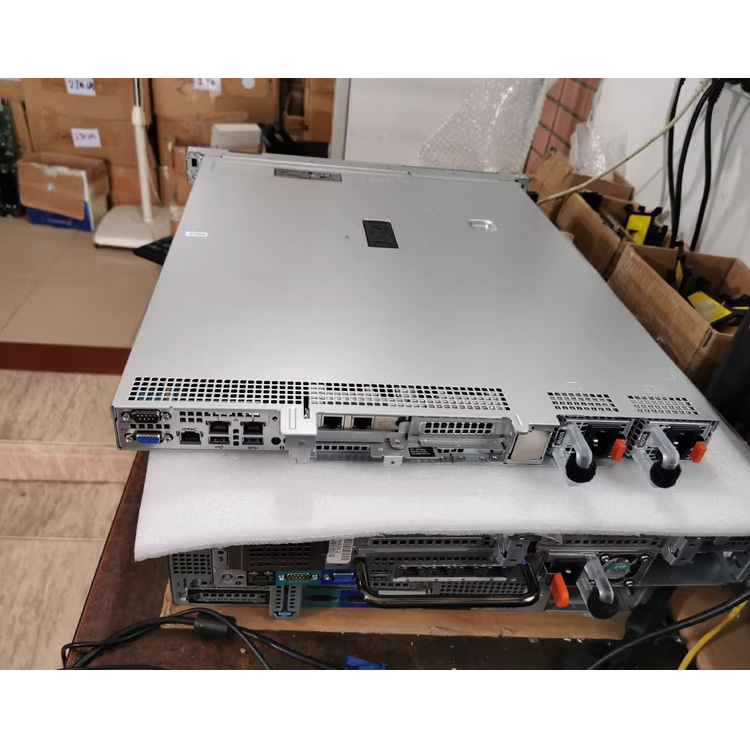

Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0 Rear Ports: 1 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA Internal Ports: 1 x USB 3.0 (optional) |
| PCIe | 3 PCIe slots: 1x8 Gen4 (x16 connector) low profile, half length 1x8 Gen4 (x8 connector) low profile, half length 1x4 Gen4 (x8 connector) for dedicated PERC only |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS VMware ESXi Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux For specifications and interoperability details |
