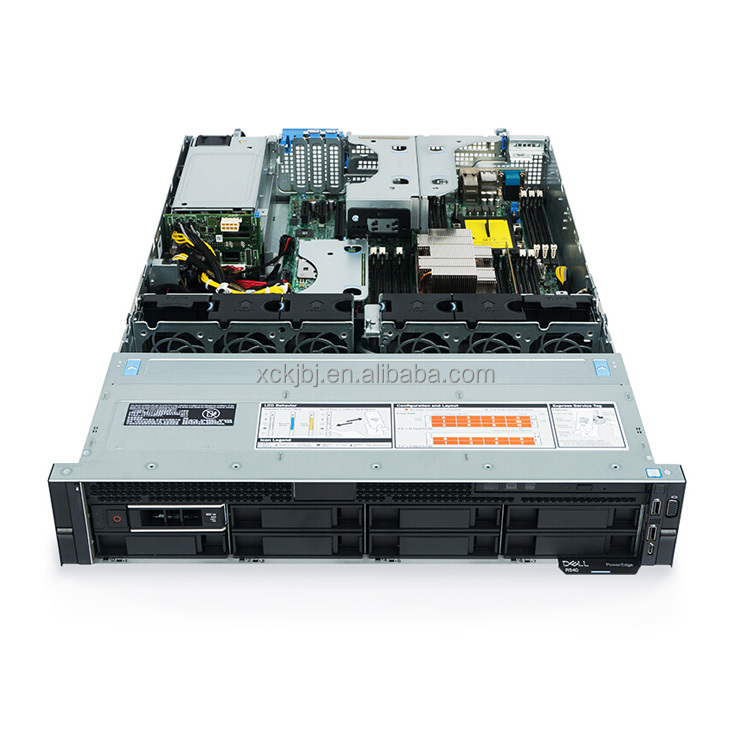

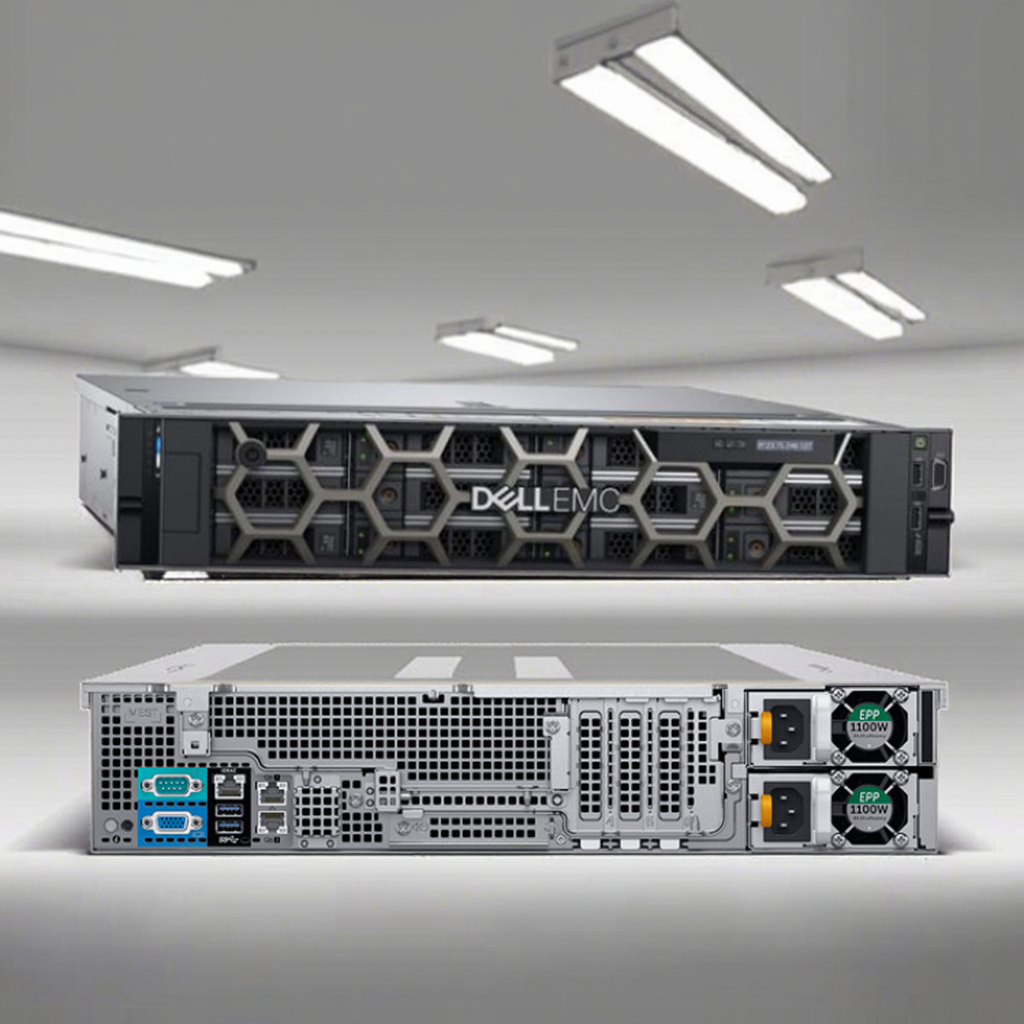

| Model | POWEREDGE R540 | |
| Form Factor | 2U | |
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 20 cores per processor | |
| Memory | 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max | |
| Storage controllers Internal Boot |
• Internal controllers: PERC H750, H350, H740P, H730P, H330 • External controllers: HBA355e, H840, 12Gb/s Ext SAS HBA • Software RAID: S140 • SAS Host Bus Adapters: HBA350i, HBA330 • Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB or 480GB • Internal Dual SD Module |
|
| Drive bays |
• Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 192TB • Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 32TB Optional • DVD-ROM, DVD+RW |
|
| Power supplies | • Platinum 495W, 750W, 750W 240V HVDC3, 1100W, 1100W 380V HVDC3 Hot plug power supplies with full redundancy option | |
| Fans | Up to six fans | |
| Dimensions |
Height: 86.8mm (3.41”) Width*: 434mm (17.08”) Depth*: 703.76mm (27.71”) Weight: 29.68kg (65.43lbs.) *Dimensions do not include bezel. |
|
| Embedded management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • Quick Sync 2 BLE/wireless module |
|
| Bezel | Optional LCD bezel or security bezel | |
| Consoles & Mobile |
OpenManage Enterprise OpenManage Mobile OpenManage Power Manager |
|
| Integrations and Connections | OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules | Nagios® Core and Nagios® XI, IBM Tivoli® Netcool/OMNIbus Micro Focus Operations Manager I |
| Tools |
• DellEMC Repository Manager • Dell EMC Update Package • Dell EMC System Update • Dell EMC Server Update Utility |
• iDRAC Service Module • OpenManage Server Administrator • OpenManage Storage Services |
| Security | TPM 1.2/2.0, TCM 2.0 optional Cryptographically signed firmware Silicon Root of Trust | |
| I/O & Ports |
• Network options: 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2 x 10GbE SFP+ or 2 x 10GbE BaseT • Front ports: 1 x Dedicated iDRAC Direct USB, 1 x USB 2.0, 1 x Video • Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video • With Optional Riser: Non-rear storage config: 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots • Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser) |
|
| PCIe |
2 x PCIe Gen4 slots + PCIe Gen • 2 x16 Gen4 (x16 connector) low profile, half length • 1 x4 Gen3 (x8 connector) low profile, half length |
|
| Supported operating systems |
• Canonical® Ubuntu® Server LTS • Citrix® Hypervisor • Microsoft Windows Server® LTSC with Hyper-V • Red Hat® Enterprise Linux SUSE® Linux • Enterprise Server • VMware® ESXi |
|
The PowerEdge R540 has versatility and flexibility, providing power for different applications. R540 adopts an ideal value optimization design, which can optimize resources and expand. Balancing scalability and cost-effectiveness to meet the demands of modern data centers. One-click application adjustment can automatically optimize performance, with up to 14 3.5-inch drives available. The actuator can meet future expansion needs.
• Utilize Intel® Xeon® Scalable processors to expand computing resources, with a 27% increase in the number of processing cores and a 50% increase in bandwidth compared to the previous generation Xeon processors.
• Utilize one-click adjustment to automatically optimize application performance.
• Up to 14 3.5-inch drives can achieve flexible storage.
• Utilize the M.2 SSD optimized for startup to release storage.
