| Model | Poweredge R7715 |
| Processor | One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor* |
| Memory | • 24 DDR5 DIMM slots, supports RDIMM 6 TB max*, speeds up to 5200 MT/s • Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Controllers (RAID): PERC H365i*, H965i, H975i* • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) • External HBAs (non-RAID): N/A |
| Drive Bays | Front bays: • 2 x U.2* • 12 x 3.5-inch SAS/SATA* • 8 x 2.5 Universal* / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA* • 16 x 2.5-inch SAS/SATA SSD + 8 x U.2 NVMe drives • 8 x EDSFF E3.S* / 16 x EDSFF E3.S / 32 x EDSFF E3.S* / 40 x EDSFF E3.S* |
| Power Supplies* | • Platinum 800W*, 1100W* • Titanium: 800W*, 1100W*, 1500W, 1500W 277Vac & HVDC*, 1800W*, 2400W*, 3200W*, 3200W 277Vac & HVDC* • Telco: 1400W -48VDC* |
| Cooling Options* | Air cooling, Direct Liquid Cooling (DLC)* |
| Fans | • Up to six hot plug fans |
| Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482.0 mm (18.97 inches) • Depth – 802.4 mm (31.59 inches) with bezel 801.51 mm (31.55 inches) without bezel |
| Form Factor | 2U rack server |
| Embedded Management | • iDRAC 10 • iDRAC Direct • iDRAC RESTful API with Redfish • Racadm CLI |
| Bezel | Optional metal bezel |
| OpenManage Consoles | • OpenManage Enterprise (OME) • OME Power Manager • OME Services • OME Update Manager • OME APEX AIOps Observability • OME Integration for VMware vCenter (with VMware Aria Operations) • OpenManage Integration for Microsoft System Center • OpenManage Integration for Windows Admin Center |
| Mobility | N/A |
| Tools | IPMI |
| OpenManage Integrations | • RedHat Ansible Collections • Terraform Providers |
| Change Management | • Dell Repository Manager • Dell System Update • Enterprise Catalogs • Server Update Utility (SUU)* |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
| GPU Options | Up to 3x 400W* DW; Up to 6x 75W SW* |
| Ports | Front Ports • 1 x USB 2.0 Type-A (optional LCP KVM) • 1 x USB 2.0 Type-C (HOST/BMC Direct) 1 x Mini DisplayPort (optional LCP KVM) Rear Ports • 1 x 1 Gb Dedicated BMC Ethernet port • 2 x USB 3.1 Type-A 1 x VGA Internal Port 1 x USB 3.1 Type-A |
| PCIe | Up to eight PCIe slots* (x16 connectors) • Slot 1: 1 x16 Gen5 Full Height* • Slot 2: 1 x16 Gen5 Full Height* or 1 x16 Dual Width Full Length* • Slot 3: 1 x16 Gen5 Full Height* or Low Profile* • Slot 4: 1 x16 Gen5 Full Height* or 1 x16 Dual Width Full Length* or 1 x16 OCP3.0 • Slot 5: 1 x16 Gen5 Full Height* • Slot 7: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length* • Slot 8: 1 x16 Gen5 Full Height* • Slot 9: 1 x16 Gen5 Full Height or Low Profile* |
| Gen5 PCIe slots: | Up to 8* |
| OCP network options | 2 x OCP NIC 3.0 card (optional) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE* • Slot 4: 1 x16 Gen5 OCP3.0 • Slot 10: 1 x16 Gen5 OCP3.0 |
| Embedded NIC | • 1 Gb dedicated BMC Ethernet port |
| PCIe Add-in Card (AIC) NIC | • 100 GbE and 400GbE*; NDR VPI (400GbE)*; FC 32 / 64* |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • RedHat Enterprise Linux • VMware ESXi For specifications and interoperability details, see Dell.com/OSsupport. |

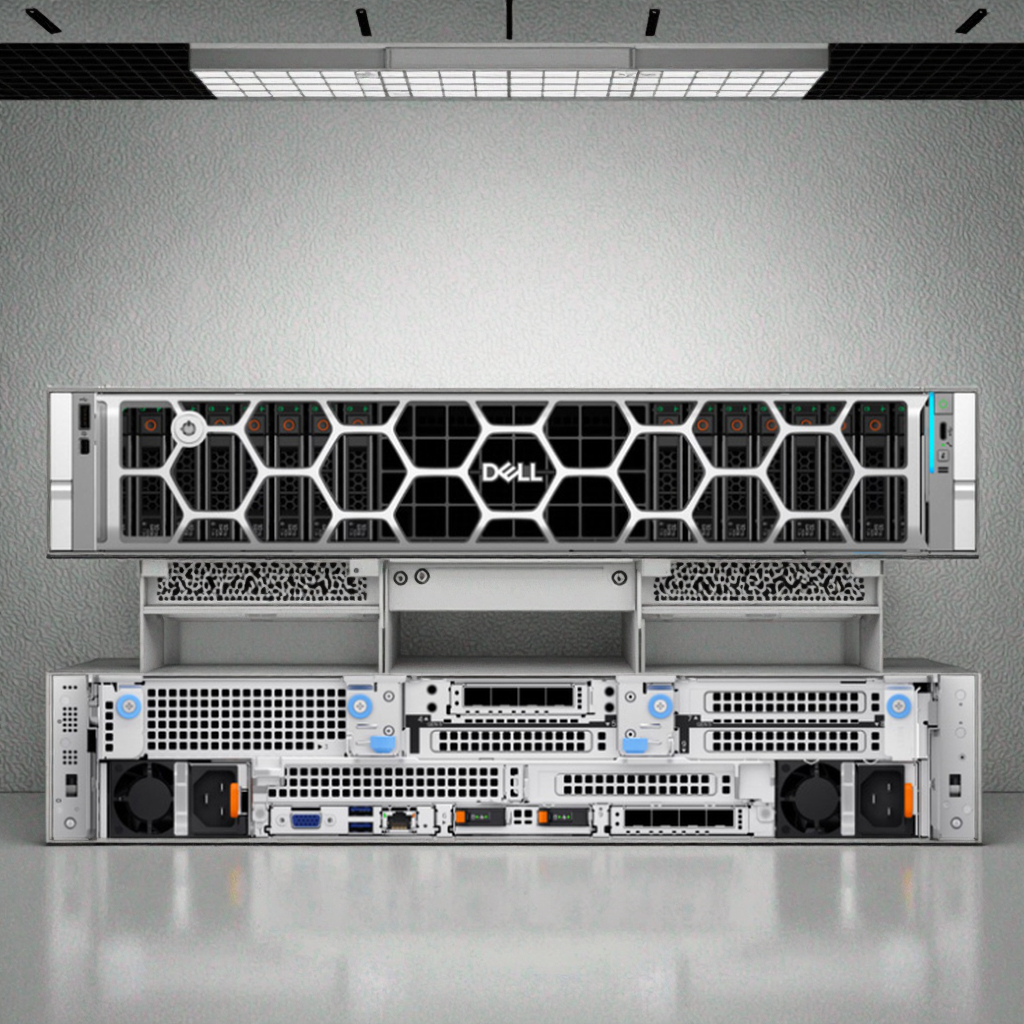

The PowerEdge R7715 server is an optimized single path solution designed to help various applications achieve high performance, flexibility, and efficiency. It is equipped with the Fifth generation AMD EPYC™ A processor that provides dynamically scalable advanced features to meet the performance requirements of demanding applications.
By partnering with AMD, we can provide customers with powerful 2U servers to handle various multi-core workloads. Compared to its predecessor, the 5th generation AMD EPYC in PowerEdge R7715™ processor performance has been doubled. With the support of dual OCP and DDR5 memory, it efficiently meets I/O and richer storage requirements in a single channel design.
The PowerEdge R7715 offers multiple configuration options with excellent flexibility to meet different customer needs. Supports up to 8 PCIe slots in a spacious 2U form factor, making it easy to adapt to different workload requirements. For enterprises that require multifunctional servers that can be expanded according to changing needs, this is an ideal product.
