The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

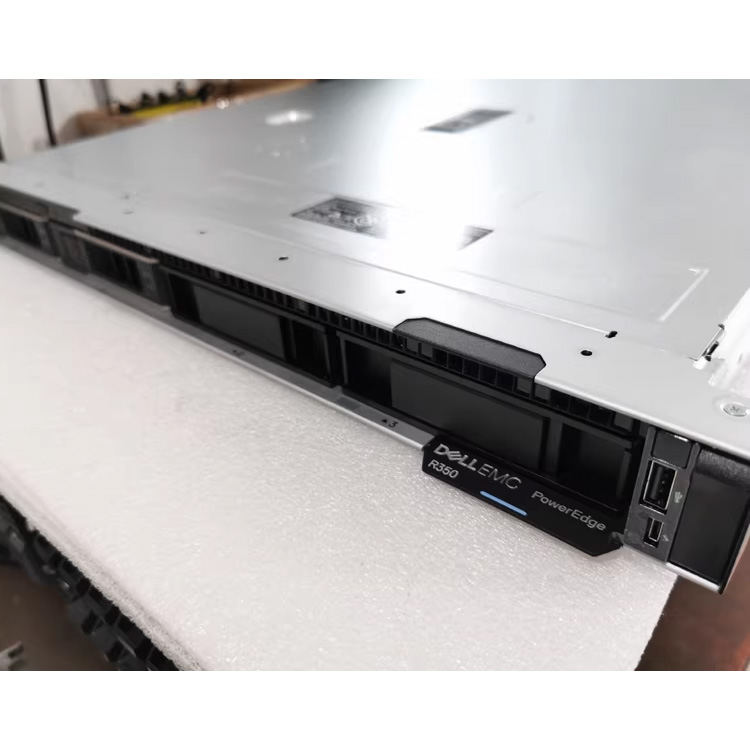

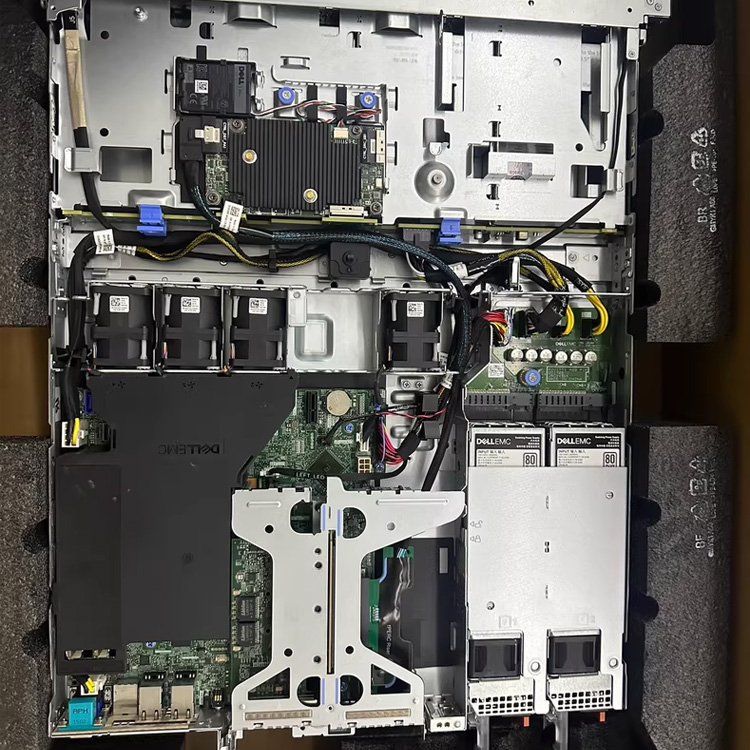

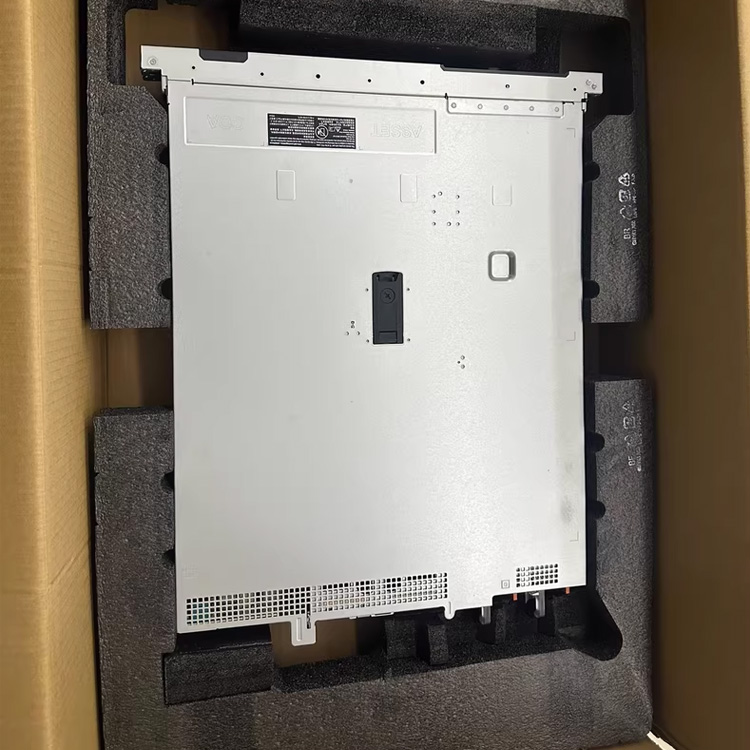

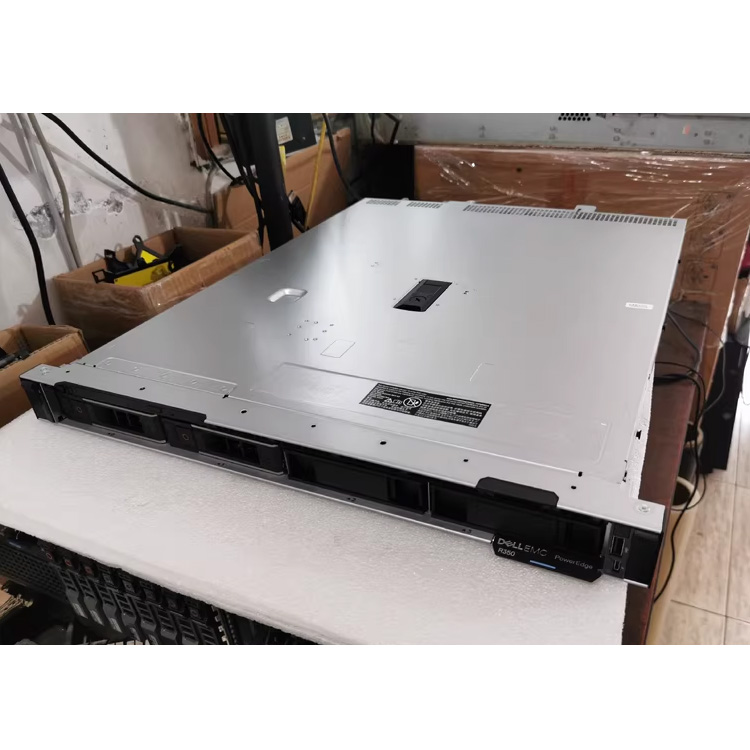

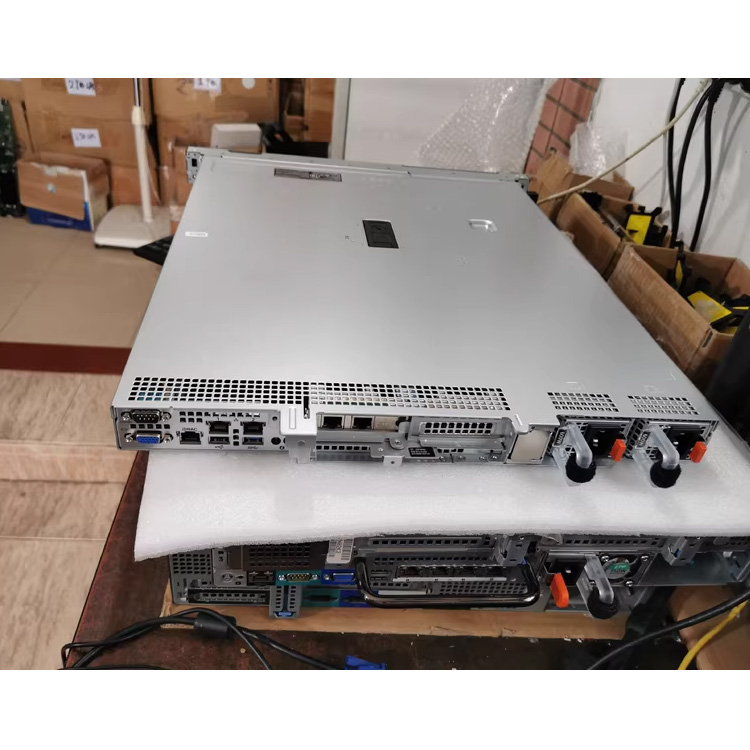

| Model | D ELL R350 |
| Processor | One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores |
| Memory | Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s. |
| Storage controllers | Internal controllers (RAID): PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150 Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs External HBAs (non-RAID): HBA355e |
| Drive Bays | Front bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) Max 80TB for 4 HDD configurations |
| Power Supplies | 600 W Platinum 100-240 V AC or 240 V DC redundant, hot swap 700 W Titanium 100-240 V AC or 240 V DC redundant, hot swap |
| Cooling options | Air cooling |
| Fans | Up to four fans with full redundancy |
| Dimensions | Height – 42.8 mm (1.69 inches) Width – 482 mm (18.98 inches) Depth – 585.3 mm (23.04 inches) without bezel 598.94 mm (23.58 inches) with bezel |
| Form Factor | 1U rack server |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integrations and Connections | OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional |
| Embedded NIC | 2 x 1 GbE LOM |
| Network Options | NA |
| Ports | Front Ports: 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 Rear Ports: 1 x USB 2.0 1 x iDRAC ethernet port 1 x USB 3.0 1 x Serial port 1 x VGA Internal Ports: 1 x USB 3.0 (optional) |
| PCIe | 3 PCIe slots: 1x8 Gen4 (x16 connector) low profile, half length 1x8 Gen4 (x8 connector) low profile, half length 1x4 Gen4 (x8 connector) for dedicated PERC only |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS VMware ESXi Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux For specifications and interoperability details |
