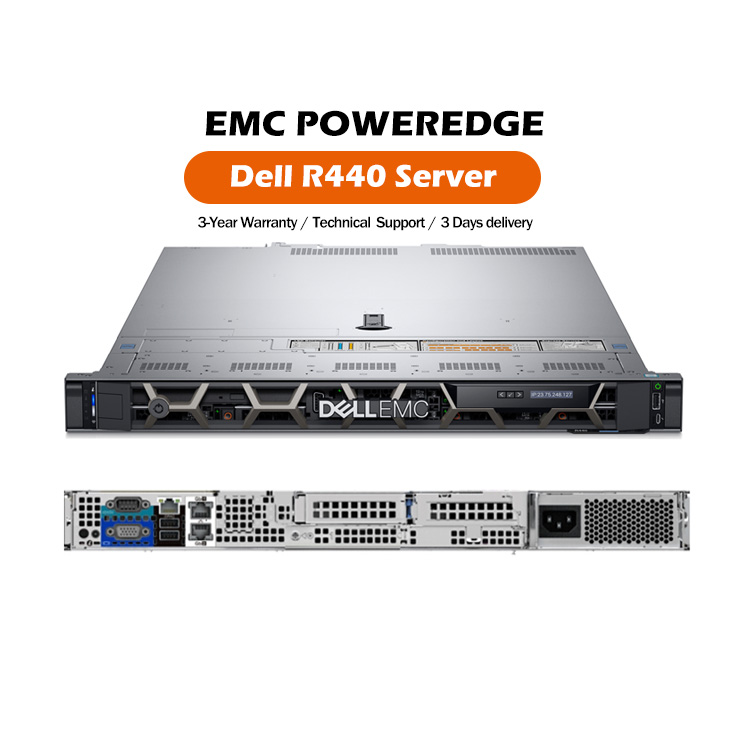

| Model | D ELL R440 |
| Appearance Specifications | 1U |
| Processor | Up to two Intel processors ® xeon ® Scalable processors with up to 22 cores per processor |
| Memory | 16 DDR4 DIMM slots, supporting RDIMM/LRDIMM, with speeds up to 2666 MT/s and a maximum of 1 TG* |
| Memory Controller | Internal controllers: PERC H330, H730p, H740p, HBA330, software RAID (SWRAID) 1404 Startup optimized storage subsystem: HWRAID, 2 M.2 SSDs, 120 GB, 240 GB External PERC (RAID): H840 External HBA (non RAID): 12 Gbps SAS HBA |
| Hard Disk | Front end drive bay: up to 10 2.5-inch SAS/SATA (HDD/SSD), up to 4 NVMe SSDs, up to 48 TB or more Up to 4 3.5-inch SAS/SATA HDDs, up to 56 TB Optional DVD ROMs, DVD+RW |
| Power Options | Gold level 450W, Platinum level 550W |
| Panel | Optional LCD or safety panel |
| Embedded/Server Built in | iDRAC9 with Lifecycle Controller iDRAC Direct iDRAC REST API with Redfish Quick Sync 2 BLE/Wireless Module |
| Console and Mobile | OpenManage Enterprise (upcoming) OpenManage Essentials OpenManage Mobile OpenManage Power Center |
| Integration | OpenManage Integration: Microsoft ® System Center, VMware ® vCenter, BMC Software |
| Connect | OpenManage Connection: Nagios and Nagios XI, HP Operations Manager |
| Tool | Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update Dell EMC Server Update Utility iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services |
| Safety | TPM 1.2/2.0 (optional) Firmware signed with encryption Silicon Trust Root secure boot System Lock System erase |
| I/O and ports | Networking options 2 1GE LOM+(optional) LOM adapter cards 2 1GE or 2 10GE SFP+or 2 10GE BaseT Front end ports: video, 1 USB 2.0, available USB 3.0, dedicated IDRAC direct USB Backend ports: video, serial port, 2 USB 3.0 ports, dedicated iDRAC network port The available expansion card options also include 2 HH/HL or 1 FH/HL |
| Supported operating systems | Canonical® Ubuntu® LTS Citrix® XenServer® Hyper-V Microsoft Windows Server® Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi |
Dell EMC's modern computing platform enables easy scalability and leverages key technologies to fully leverage application performance. PowerEdge R440 is based on scalable Architecture that provides choices and flexibility for optimizing performance and density. Utilize Intel ® xeon ® Scalable processors expand computing resources, with a 27% increase in the number of processing cores and a 50% increase in bandwidth compared to the previous generation Xeon processors. Utilize up to 10 2.5-inch SAS/SATA/SSDs and up to 4 NVMe PCIe SSDs or 4 3.5-inch devices for flexible storage. Utilize the M.2 SSD optimized for startup to release storage.
