Vertex AI Server
1 / 5
| Processor | One Intel Xeon 6 processor with up to 144 cores per processor |
| Memory |
• 16 DDR5 DIMM slots, supports RDIMM 1TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only Note: The installed processor may reduce the operating speed of the DIMM |
| Storage controllers |
• Internal Controllers (RAID): PERC H965i DC-MHS • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, or USB |
| Drive Bays |
Front bays: • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (SSD) max 122.4 TB |
| Power Supplies |
• 800W Platinum 100-240 VAC or 240 HVDC, hot swap redundant • 1500W Titanium 100-240 VAC or 240 HVDC, hot swap redundant |
| Cooling Options | Air cooling |
| Fans | • Up to 4 sets (dual fan module) hot swappable fans |
| Dimensions |
• Height – 42.8 mm (1.69 inches) • Width – 482 mm (19.0 inches) • Depth – 816.92 mm (32.16 inches) with bezel • Depth – 815.14 mm (32.09 inches) without bezel • Depth (Front I/O Configuration) — 829.44 mm (32.09 inches) without bezel Note: Front I/O configuration will not have a bezel. |
| Form Factor | 1U rack server |
| Embedded Management |
• iDRAC10 • iDRAC Direct • iDRAC RESTful API with Redfish |
| Bezel | Optional security bezel |
| Security |
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC10 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified |
| Embedded NIC | N/A |
| GPU Options | Up to 2 x 75 W SW |
| Ports |
Front Ports: • 1 x USB 2.0 Type-C port • 1 x USB 2.0 Type A port (optional) • 1 x Mini-DisplayPort (optional) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated BMC Ethernet port (with front I/O configuration) Rear Ports: • 1 x Dedicated BMC Ethernet port • 2 x USB 3.1 Type A ports • 1 x VGA Internal Ports: • 1 x USB 3.1 Type A port |
| PCIe |
Up to 2 x16 Gen5 PCIe slots • Slot 1 - 1 x16 Gen5 (x16 connector) full height, half length on rear riser • Slot 4 - 1 x16 Gen5 (x16 connector) full height, half length on rear riser |
| Operating System and Hypervisors |
• Canonical Ubuntu Server LTS • Red Hat Enterprise Linux • SUSE Linux Enterprise Server |

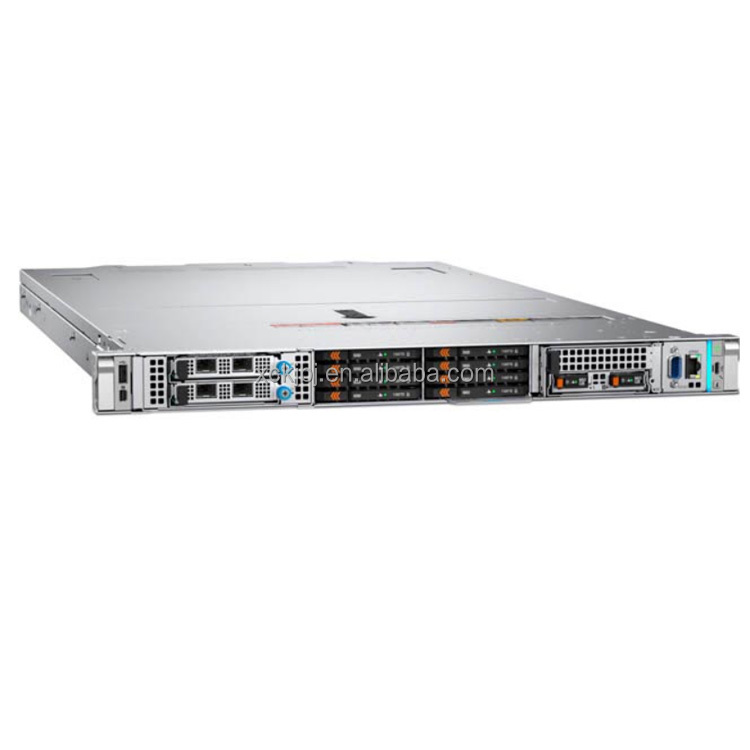

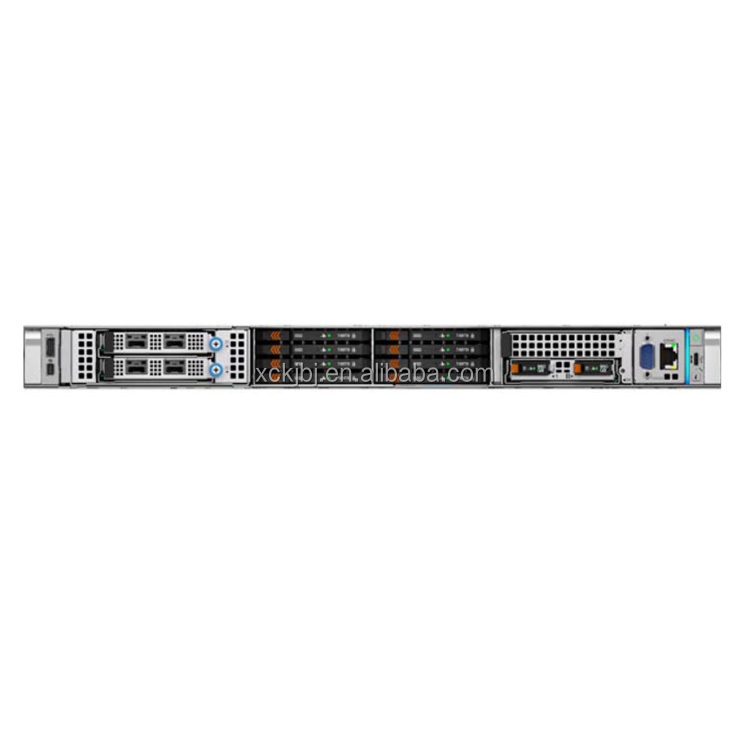

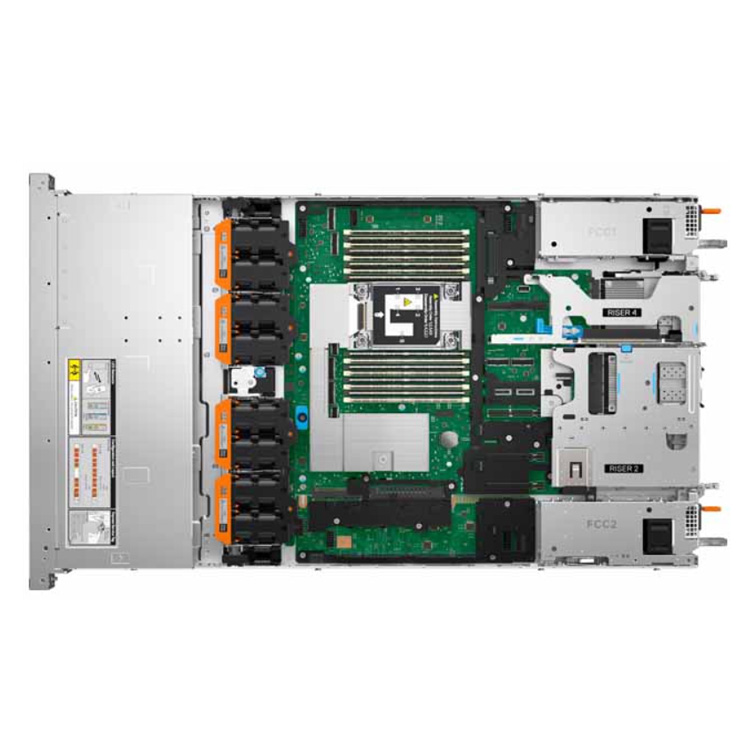

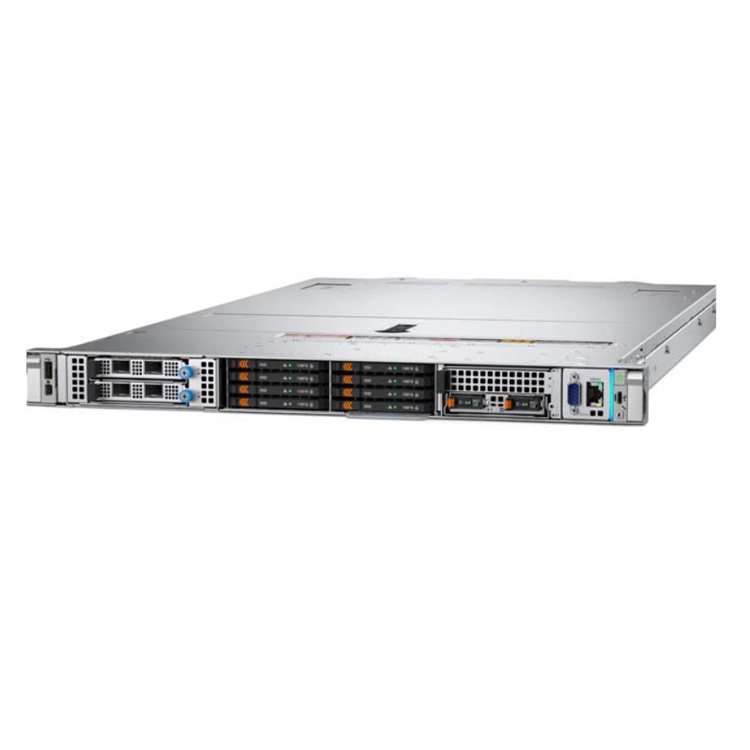

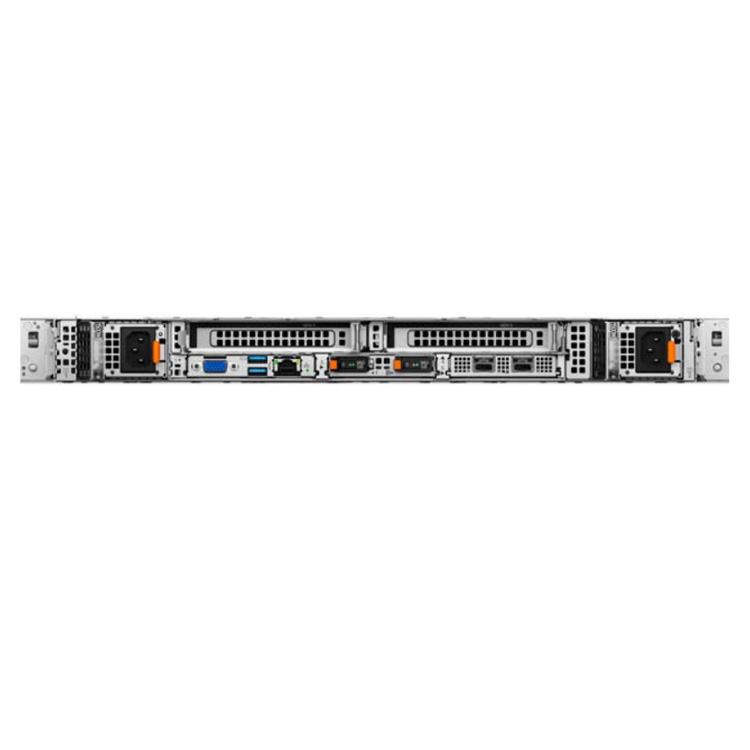

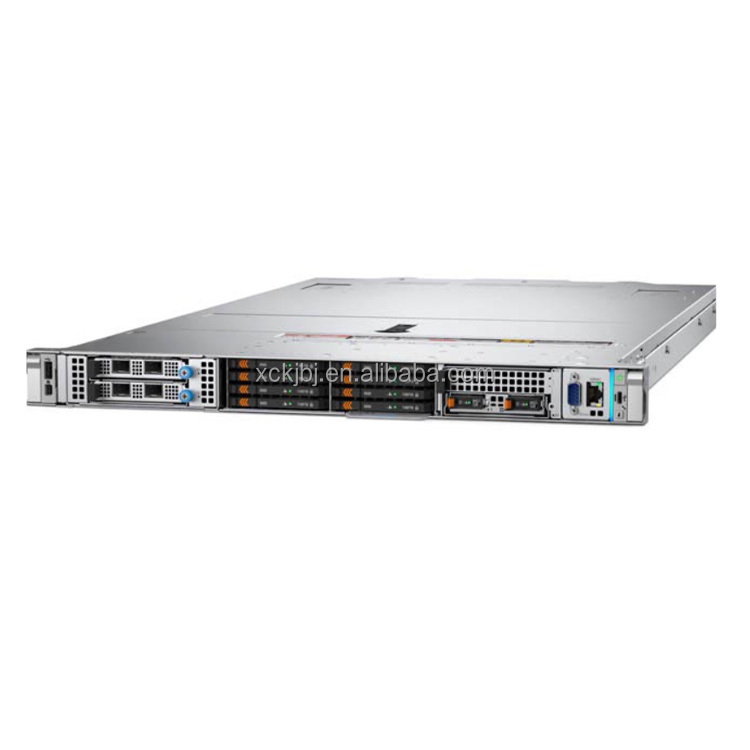

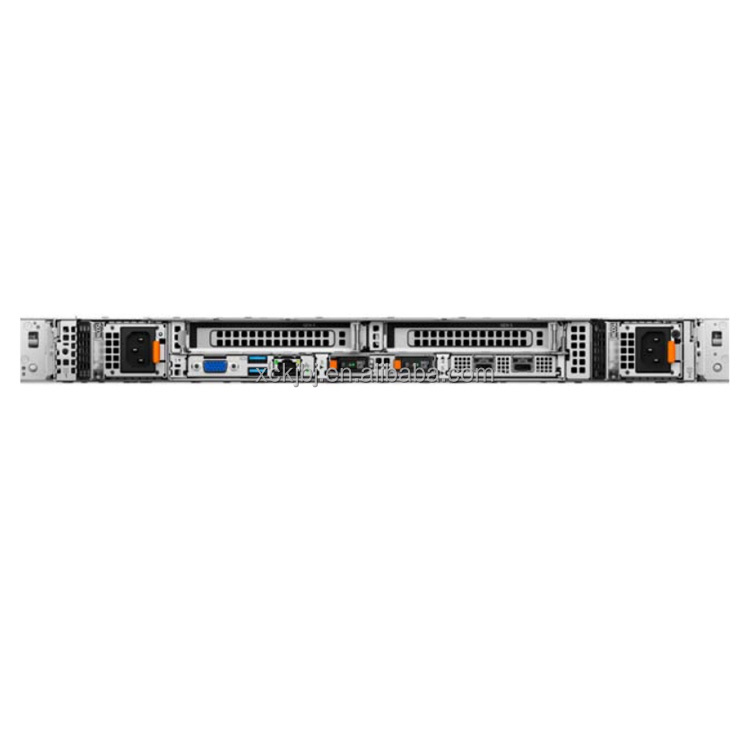

The PowerEdge R470 is a 1U single rack-mounted server designed specifically for high-performance computing, featuring excellent energy efficiency and balanced performance to help you save costs and increase data center productivity. Its advanced design can equip more cores in a single path, maximizing rack utilization and achieving higher performance in a smaller footprint while minimizing energy consumption. This server is an ideal choice for workloads such as cloud level web and application microservices, data services, virtualization, and scale-out databases.
Designed specifically for expanding infrastructure, seamlessly adapting to technological changes while integrating numerous new features to support long-term business growth and innovation. Equipped with Intel Xeon 6 processors that can meet different performance and efficiency requirements, and provide advanced GPU support. Optional front I/O configuration can enhance I/O flexibility and facilitate smooth maintenance in cold aisle environments. Adopting intelligent power supply and Smart Cooling for energy-saving design not only saves costs but also achieves extraordinary performance. Compliant with industry standard Open Design (DC-MHS) requirements, it can be flexibly configured according to different needs.
Yes, all our products are brand new from the original factory, unless you specifically request second-hand products.
Yes, we maintain inventory in our warehouse, and you are always welcome to visit and inspect the goods.
As an authorized partner of these brands, we offer highly competitive pricing. We can offer you our best discount depending on order volume.
Orders are processed and dispatched within 1-3 working days after payment is confirmed.
Different products carry different standard manufacturer warranties. If necessary, we can extend the warranty service up to five years.
We accept orders starting from 1 set. Please feel free to send us your inquiries.
