We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. As a core agent and business partner of Huawei, Lenovo, Dell, and IBM, we look forward to cooperating with you. We can customize solutions freely according to your specific needs!
| Model | Dells Poweredge R770 Server |
| Processor | Two Intel Xeon 6 processors, with up to 144 cores per processor |
| Chipset | N/A |
| Accelerators | Up to four single width 75 W accelerators |
| DIMM speed | Up to 6400 MT/s |
| Memory type | RDIMM |
| Memory module slots | 32 DDR5 DIMM slots |

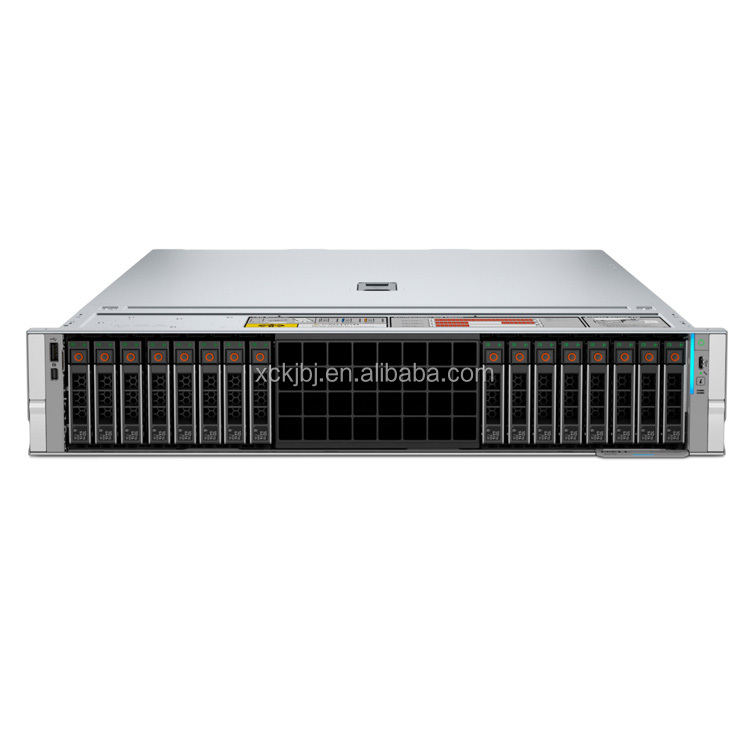

| Front bays |
Up to 8 x EDSFF E3.S NVMe(SSD) Up to 16 x EDSFF E3.S NVMe(SSD) Up to 8 x 2.5-inch NVMe SSDs Up to 16 x 2.5-inch SAS/SATA SSDs |
| Rear bays | N/A |
| Internal controllers | Front PERC H965i |
| External controllers | N/A |
| Software RAID | N/A |
| Internal boot |
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs 480 GB or 960 GB or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs Internal USB |
| System management | iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish |
| Power supply |
1500 W Titanium 100—240 VAC or 240 VDC 1100 W Platinum 100—240 VAC or 240 VDC 800 W Platinum 100—240 VAC or 240 VDC |
| Network options | OCP NIC card 3.0 : Up to 2 slots on the front (for front I/O configuration) or 2 slots on the rear (for rear I/O configuration) |
| Front ports |
1 x USB 2.0 Type C port (supports Host mode) 1 x USB 2.0 (optional) 1 x Mini-DisplayPort (optional) |

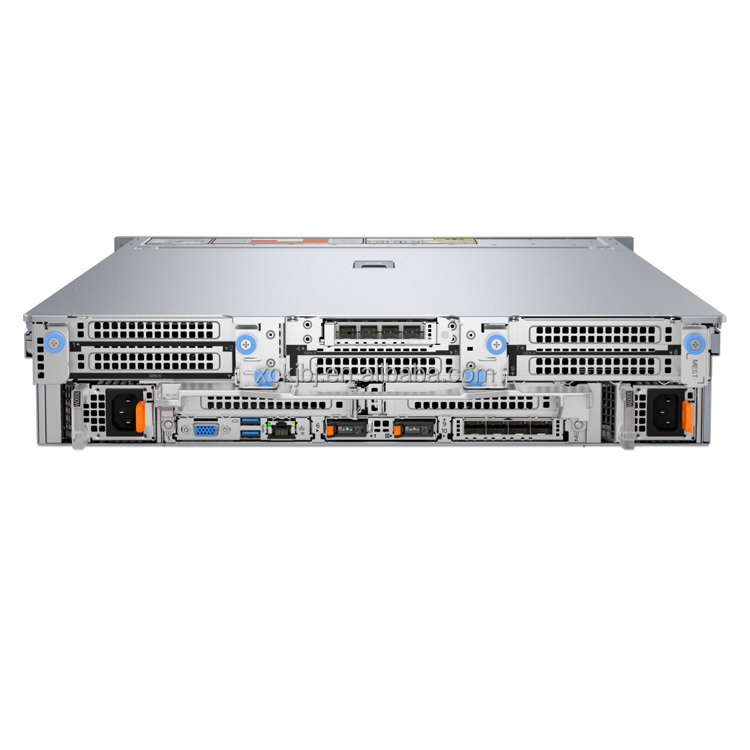

| Rear ports |
1 x DB9 Serial 1 x Dedicated iDRAC Ethernet port 1 x VGA 2 x USB 3.1 |
| Internal ports | 1 x USB 3.1 |
| PCIe | Up to 4 x16 Gen5 PCIe slots |
| Form factor | 2U rack server |
| Height | 86.8 mm (3.41 inches) |
| Width | 482.0 mm (18.97 inches) |
| Depth |

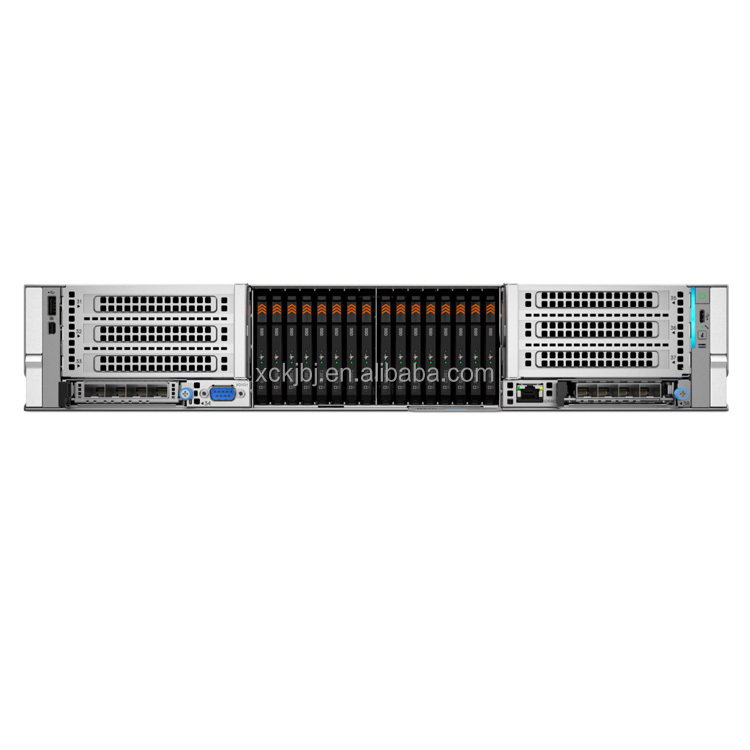

For cold aisle (front I/O configuration): 814.52 mm (32.07 inches) without bezel For hot aisle (rear I/O configuration): 802.40 mm (31.59 inches) with bezel, 801.51 mm (31.56 inches) without bezel |
| Weight | 28.53 kg (62.89 lbs) |

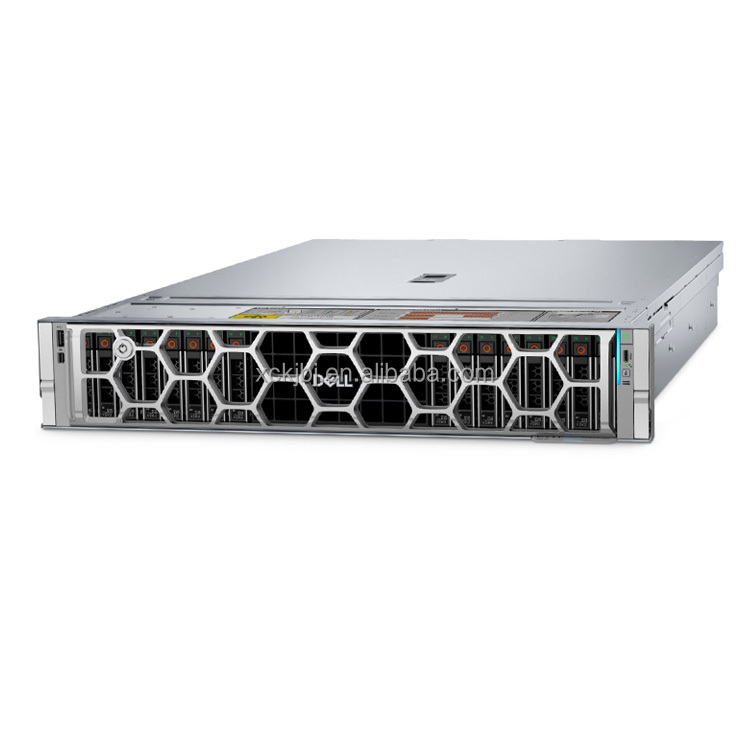

The Dell PowerEdge R770 is a 2U dual rack mounted server designed specifically for high-performance computing, excelling in optimizing energy efficiency and balancing performance. It enhances the productivity of data centers, excelling in advanced computing power, virtualization, artificial intelligence inference, cloud-native applications, ultra-large-scale workloads, and horizontal database scaling.
Built specifically for enterprises and scalable infrastructure, the PowerEdge R770 is equipped with two Intel Xeon 6 processors (E-core and P-core), providing standardized features for easy integration into existing environments. Performance per watt is increased by up to 1.69 times compared to previous models, significantly improving energy efficiency and rack density. GPU support further enhances computing power while reducing long-term operating costs through optimized smart power supply and air cooling technologies.
Ideal for:
