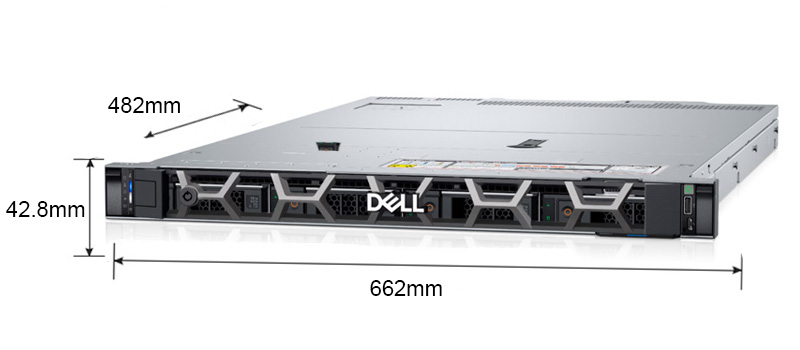

Products Description

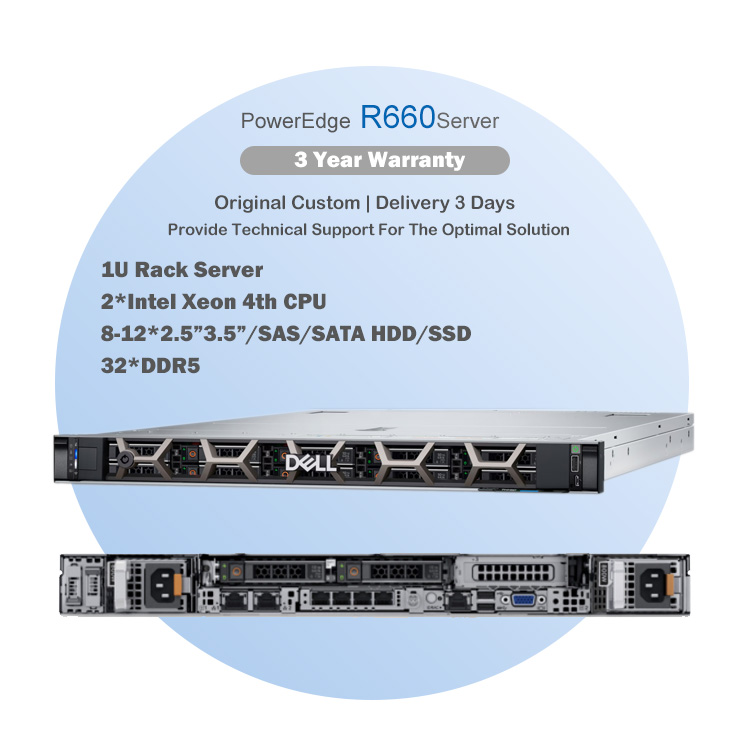

| Model | DELL R660XS |
| Customized Service | Customers Can Freely Choose Specific Configurations |
| Appearance Specifications | 1U |
| Processor | Up to two 4th generation Intel Xeon Scalable Processor |
| Processor Interconnection | Intel Hyperpath Interconnect (UPI) |
| Memory | 16 RDIMM DDR5 with ECC, up to 4800 MT/s |
| Storage Drive | Front bracket: 0 drive bays Up to 4 x 3.5 inches SAS/SATA (HDD/SSD), maximum 80 TB; Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), Maximum 122.88 TB; Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), Maximum 153.6 TB. Back bracket: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), Maximum 15.2 TB |
| Memory Controller | Internal controller: PERC H355, PERC H755, PERC H755N, PERC H965i, HBA355i, HBA465i. Internal guidance: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 M.2 SSDs. USB External PERC (RAID): HBA355e |
| PCIe Slot | Up to 2 PCIe Gen5 slots or up to 3 PCIe Gen4 slots |
| Embedded NIC (LOM) | 2*1GB |

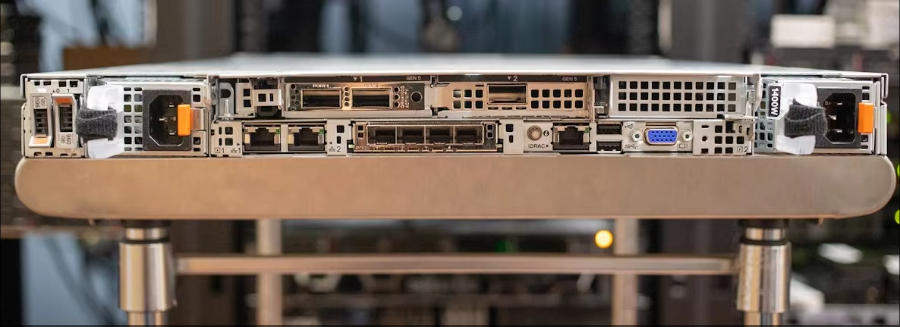

| USB Port | Front: 1 iDRAC Direct (Micro AB USB), 1 USB 2.0, 1 VGA. Rear: 1 dedicated iDRAC Ethernet, 1 USB 2.0, 1 serial (optional), 1 USB 3.0, 1 VGA. Internal: 1 USB 3.0 (optional) |
| Power | 600W/700W/800W/1100W/1400W/1800W Platinum/Titanium Options |
| System Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Open Server Manager, Quick Sync 2 wireless module |
| Usability | Hot swappable drive, Hot swappable redundant cooling, Hot swappable redundant power supply |

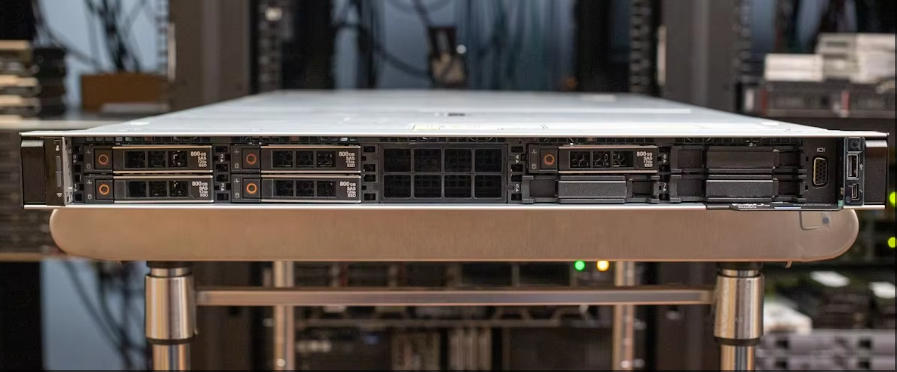

Performance
CPU: Up to two 4th Generation Intel Xeon Scalable processors with up to 32 cores per processor, air-cooled. Support for up to 2 x 250W processors.
Memory: Up to 16 x DDR5 RDIMMs (1TB max). DIMM Speed: Up to 4800 MT/s.
Storage
* Up to 4 x 3.5" SAS/SATA/SATA
* Up to 8 x 2.5" SAS/SATA HDD/SSDs
* Up to 10 x 2.5" SAS/SATA HDD/SSDs or NVMe SSDs
* Rear: 2 x 2.5" SAS / SATA / NVMe w/ NVMe RAID
* Internal: USB and Internal BOSS-N1 (2 x M.2 NVMe) for boot.

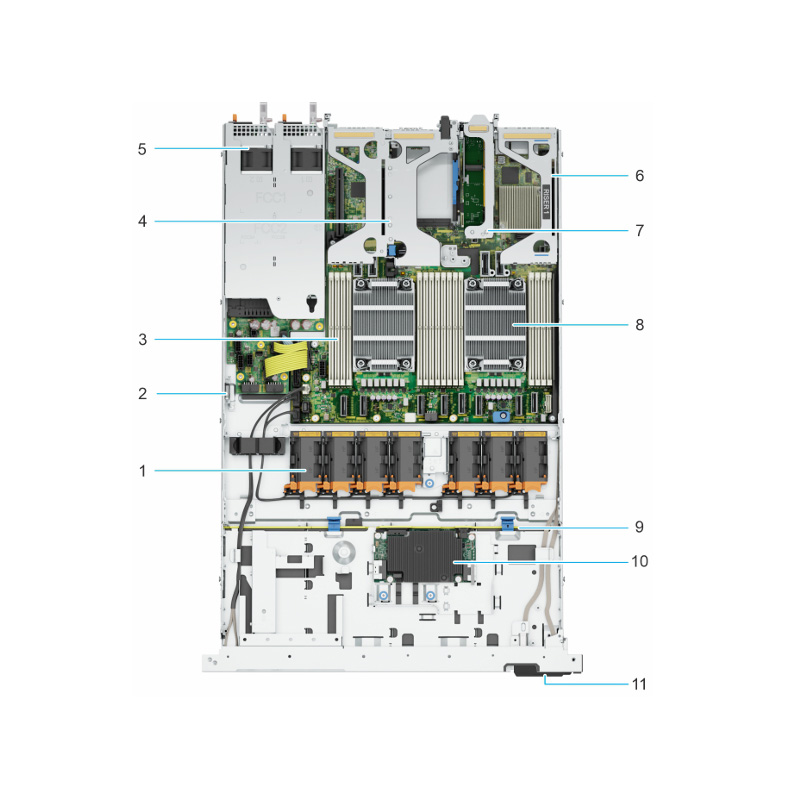

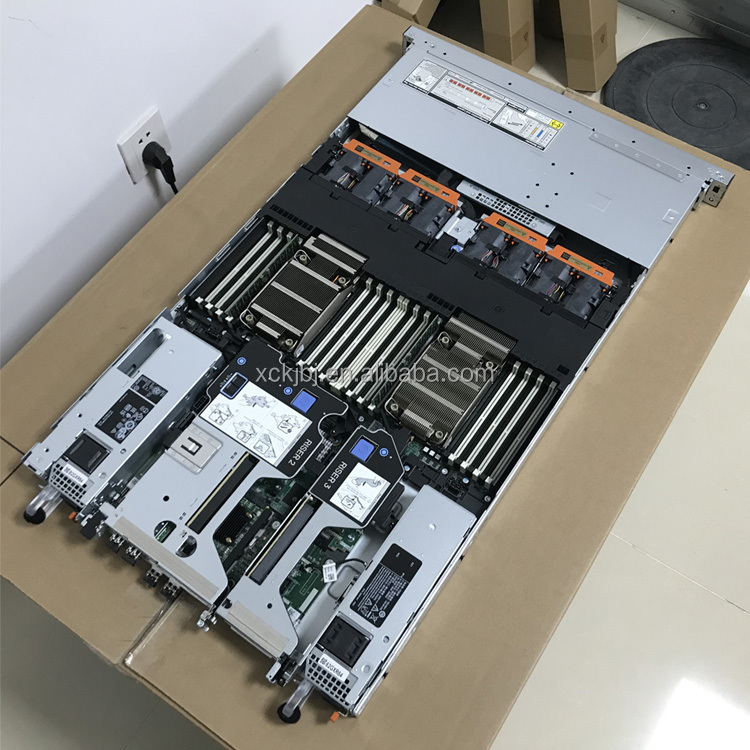

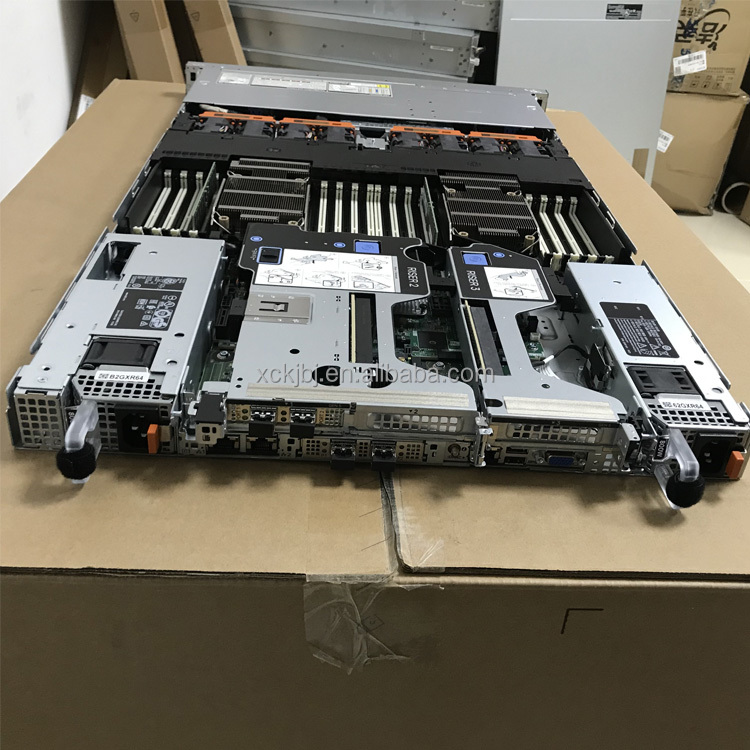

Internal Architecture
1. Fan | 2. Anti theft switch | 3. Memory module slot | 4. Transfer card 2 | 5. PSU1 and PSU2 | 6. Transfer card 1 | 7. BOSS adapter card | 8. Heat sink | 9. Drive backplane | 10. Front PERC | 11. Quick Service Number

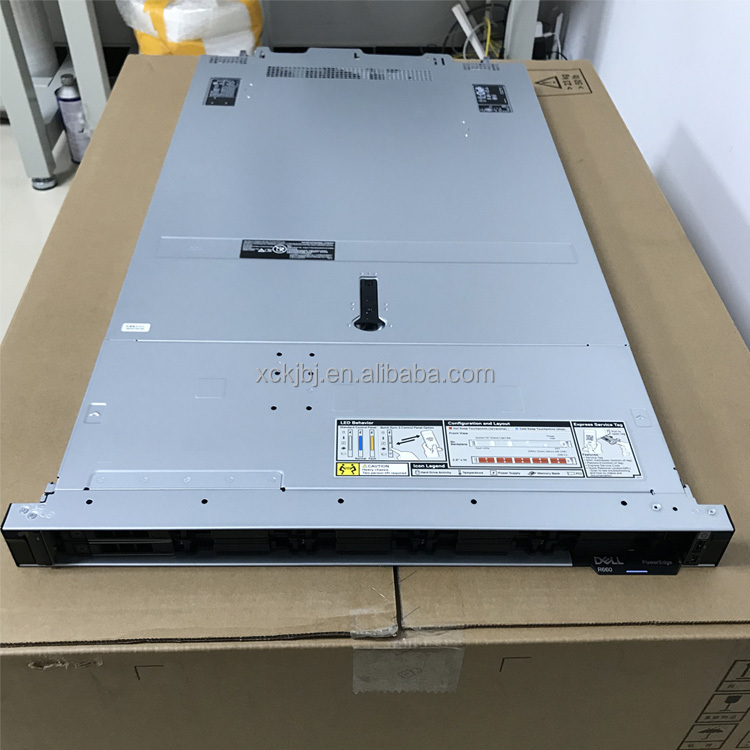

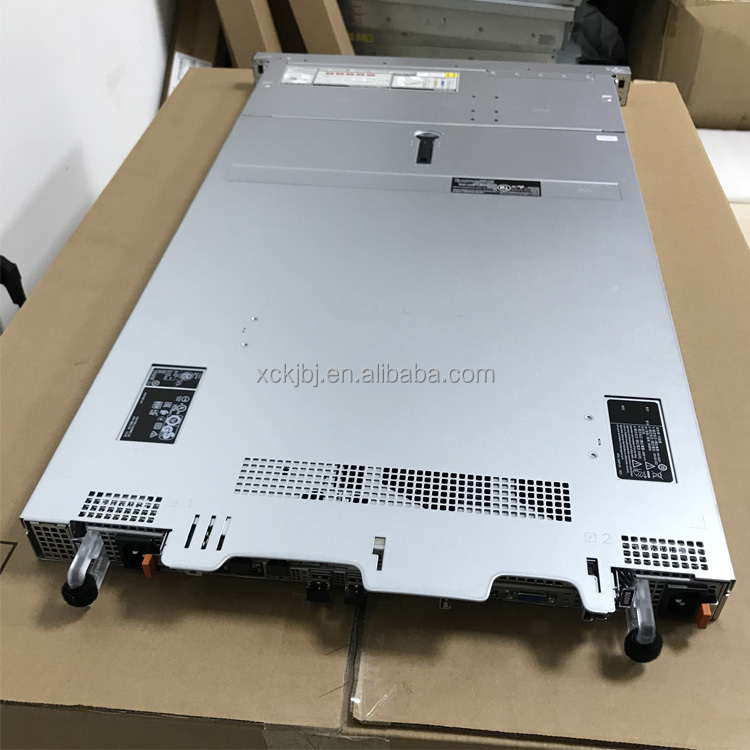

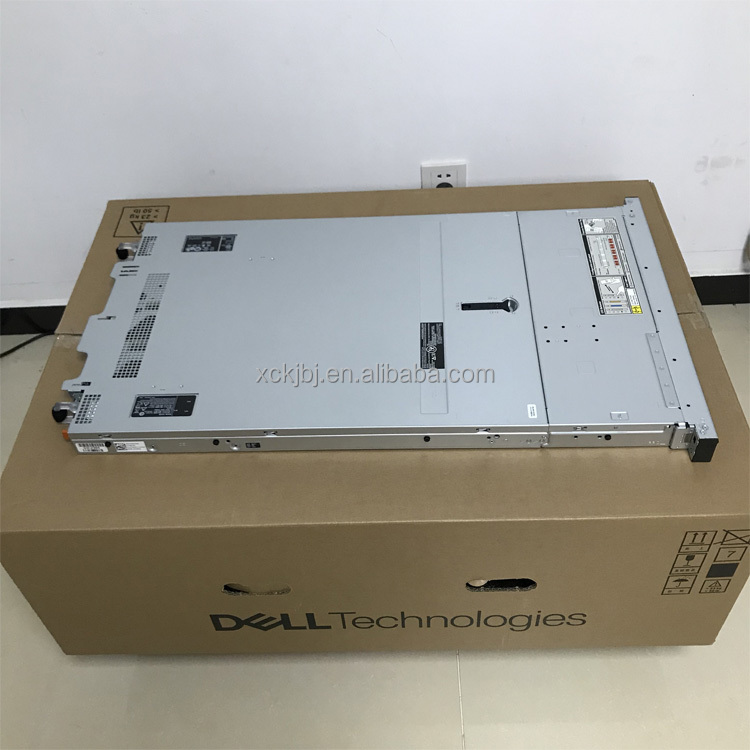

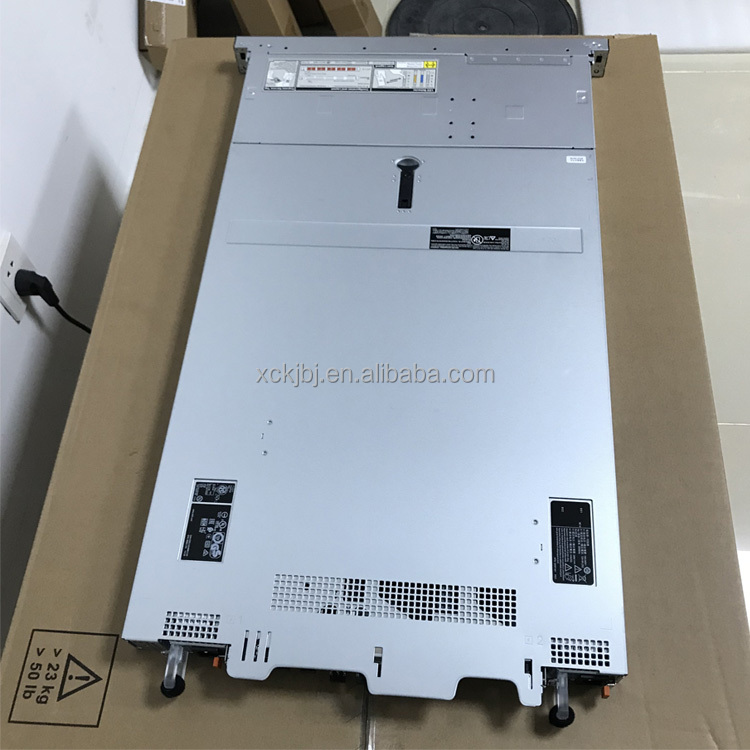

Details Images
