The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Dells Poweredge R770 Server |
| Processor | Two Intel Xeon 6 processors, with up to 144 cores per processor |
| Chipset | N/A |
| Accelerators | Up to four single width 75 W accelerators |
| DIMM speed | Up to 6400 MT/s |
| Memory type | RDIMM |
| Memory module slots | 32 DDR5 DIMM slots |
| Front bays |
Up to 8 x EDSFF E3.S NVMe(SSD) Up to 16 x EDSFF E3.S NVMe(SSD) Up to 8 x 2.5-inch NVMe SSDs Up to 16 x 2.5-inch SAS/SATA SSDs |
| Rear bays | N/A |
| Internal controllers | Front PERC H965i |
| External controllers | N/A |
| Software RAID | N/A |
| Internal boot |
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs 480 GB or 960 GB or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs Internal USB |
| System management | iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish |
| Power supply |
1500 W Titanium 100—240 VAC or 240 VDC 1100 W Platinum 100—240 VAC or 240 VDC 800 W Platinum 100—240 VAC or 240 VDC |
| Network options | OCP NIC card 3.0 : Up to 2 slots on the front (for front I/O configuration) or 2 slots on the rear (for rear I/O configuration) |
| Front ports |
1 x USB 2.0 Type C port (supports Host mode) 1 x USB 2.0 (optional) 1 x Mini-DisplayPort (optional) |
| Rear ports |
1 x DB9 Serial 1 x Dedicated iDRAC Ethernet port 1 x VGA 2 x USB 3.1 |
| Internal ports | 1 x USB 3.1 |
| PCIe | Up to 4 x16 Gen5 PCIe slots |
| Form factor | 2U rack server |
| Height | 86.8 mm (3.41 inches) |
| Width | 482.0 mm (18.97 inches) |
| Depth |
For cold aisle (front I/O configuration): 814.52 mm (32.07 inches) without bezel For hot aisle (rear I/O configuration): 802.40 mm (31.59 inches) with bezel / 801.51 mm (31.56 inches) without bezel |
| Weight | 28.53 kg (62.89 lbs) |

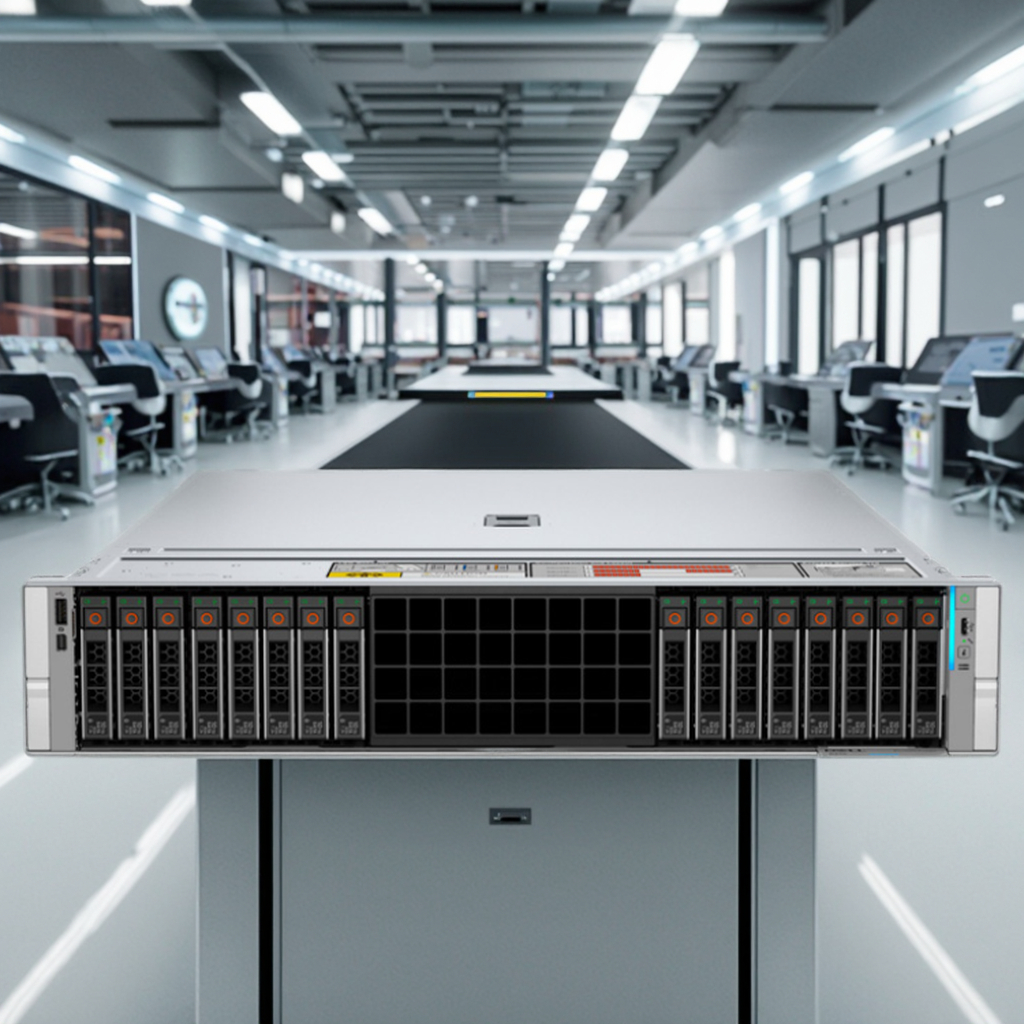

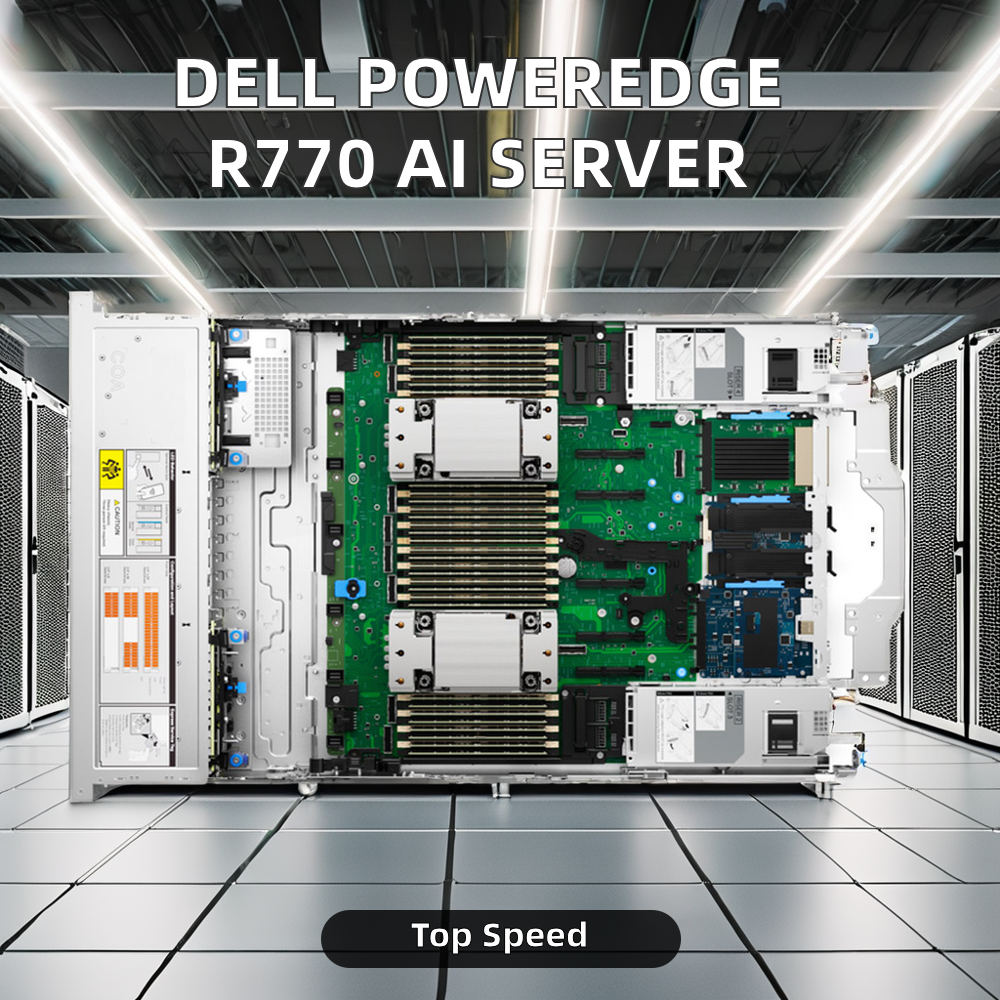

The Dell PowerEdge R770 is a 2U dual rack mounted server designed specifically for high-performance computing, excelling in optimizing energy efficiency and balancing performance. It can enhance the productivity of data centers, excelling in advanced computing power, virtualization, artificial intelligence inference, cloud native applications, ultra large scale workloads, and expanding databases.
Built specifically for enterprises and scalable infrastructure, the PowerEdge R770 is equipped with two Intel Xeon 6 processors with E-core and P-core, providing standardized features that can be easily integrated into existing environments. Compared to previous models, its performance per watt can be increased by up to 1.69 times, improving energy efficiency and increasing rack density. The added GPU support further enhances computing power, ensuring high performance while reducing energy consumption.
These servers offer back I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle has improved serviceability, shortened maintenance time, and increased efficiency, reliability, and uptime. This supports sustainable development goals by optimizing cooling and energy usage, employing smart power supply and cooling system technology optimized for air cooling to reduce long-term operating costs.
We specialize in computer hardware sales, network platform construction, and IT system maintenance. Our main product catalog includes servers, storage, and accessories from leading global brands such as Dell, HP, IBM, Lenovo, and Huawei. Backed by a robust supply chain, global shipping channels, and a certified technical support team, we provide reliable system integration services and customized hardware solutions tailored to corporate infrastructures.
Yes, all our products are brand new from the original factory. We also provide second-hand products if specifically requested.
Yes, we maintain a well-stocked warehouse, and you are always welcome to visit and inspect the goods in person.
As an authorized senior agent of this brand, we provide highly competitive discounts. Bulk or high-volume orders qualify for the best pricing terms.
Usually 1-3 working days after receiving your payment confirmation.
Different products carry different factory warranties. If necessary, we can arrange to extend the warranty period up to five years.
We accept orders starting from just 1 set. Please feel free to send us your inquiry.
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs. Welcome to Inquire!
