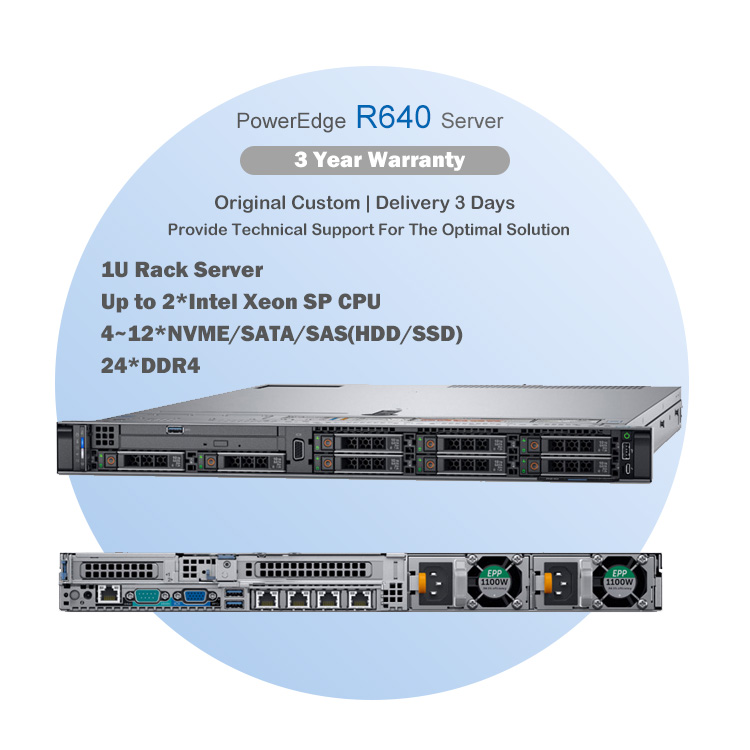

The PowerEdge R640 is an ideal dual platform for high-density horizontal expansion data center computing and storage. With the flexibility of 2.5" or 3.5" hard drives, outstanding performance of NVMe, and embedded intelligent technology, the PowerEdge R640 ensures optimized application performance on a secure platform. Through embedded diagnostics and SupportAssist, R640 can maximize uptime in worry-free environments.
| Model | D ELL R640 |
| Customized Service | Customers Can Freely Choose Specific Configurations |
| Appearance Specifications | 1U |
| Processor | 2nd Generation Intel® Xeon® Scalable Processor |
| Memory | ● 24x DDR4 RDIMM/LR-DIMM 12x NVDIMM + 12 x RDIMM ● 12 x DCPMM + 12 x RDIMM or 12 x LRDIMM |
| Hard Disk | Front drive bays: ● Up to 10 x 2.5-inch with up to 8 NVMe, SAS/SATA/SSD/NVMe, max 76.8TB, or up to 10 NVMe drives max 64TB. Or up to 4 x 3.5” SAS/SATA, max 64TB. Rear drive bays: ● Up to 2 x 2.5-inch SAS/SATA/SSD/NVMe, max 15.36TB. |
| Power Options | ● 495W Platinum ● 750W Platinum ● 750 W Mixed Mode AC Platinum ● 750 W Mixed Mode DC Platinum ● 750W 240HVDC Platinum ● 1100W - 48VDC ● 1100W Platinum ● 1100W 380HVDC Platinum ● 1600W Platinum ● 750W Titanium |
| SLOT | Up to 3 x PCIeGen slots plus a dedicated PERC and rNDC slot |
| Manage | ● Systems management: IPMI 2.0 compliant; Dell OpenManage Enterprise; Dell EMC OpenManage Mobile; Dell EMC OpenManage Power Center ● Remote management: iDRAC9; 8 GB vFlash media (upgrade), 16 GB vFlash media (upgrade) iDRAC Quick Sync ● Dell EMC OpenManage Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat Ansible Modules. ● Dell EMC OpenManage Connections: IBM Tivoli® Netcool/OMNIbus, IBM Tivoli® Network Manager IP Edition, Micro Focus® Operations Manager I, Nagios® Core, Nagios® XI |
| Operating System Options | ● Canonical® Ubuntu® Server LTS ● Citrix® Hypervisor ● Microsoft® Windows Server® LTSC with Hyper-V ● Oracle® Linux ● Red Hat® Enterprise Linux |
| Warranty | 3 Year |
