| Model | Dell R750 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U Rack Server |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 40 cores per processor |
| Memory | 16g 32g 64g 128g |
| Operating System | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| DIMM Speed | Up to 2933MT/s |
| Memory Type | RDIMM LRDIMM NVDIMM DCPMM (Intel Optane DC persistent memory) |
| Memory Module Slots | 32 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only) Supports registered ECC DDR4 DIMMs only |
| Maximum RAM | RDIMM 1.53TB LRDIMM 3TB NVDIMM 192GB DCPMM 6.14TB (7.68TB with LRDIMM) |
| Embedded / At-the-Server | iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
| Consoles | OpenManage Enterprise OpenManage Power Center |
| Mobility | OpenManage Mobile |
| Tools | Dell EMC RACADM CLI Dell EMC Repository Manager Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services |
| OpenManage Integrations | BMC Truesight Microsoft System Center RedHat Ansible Modules VMware vCenter |
| OpenManage Connections | IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager I Nagios Core Nagios XI |
| Network Options | 4 x 1GbE 2 x 10GbE + 2 x 1GbE 4 x 10GbE 2 x 25GbE |
| Front Ports | 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA |
| Rear Ports | 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA |
| Storage Controllers | Internal Controllers: PERC H330, H730P, H740P, H755, H745, H755N, HBA330 External Controllers (RAID): H840, 12 Gbps SAS HBA Software RAID: S140 Internal Boot: Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB Internal Dual SD Module |
| Accelerators | Up to three 300W or six 150W GPUs Up to three double-wide FPGAs or four single-wide FPGAs GPU and FPGA options available only on 24 x 2.5” drive chassis. Up to two GPUs are supported on NVMe configurations |
| Front Bays | Up to 24 x 2.5” SAS/SSD/NVMe, max 184TB Up to 12 x 3.5” SAS, max 192TB |
| Mid Bay | Up to 4 x 3.5” SAS, max 64TB Up to 4 x 2.5” SAS/SSD, max 30.72TB |
| Rear Bays | Up to 4 x 2.5” SAS/SSD, max 30.72TB Up to 2 x 3.5” SAS, max 32TB |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires OpenManage Enterprise) TPM 1.2/2.0, TCM 2.0 optional |
| Power Supplies | 495W Platinum 750W Platinum 750W Titanium 750W 240VDC 1100W Platinum 1100W 380VDC 1600W Platinum 2000W Platinum 2400W Platinum 1100W -48VDC Gold Hot plug power supplies with full redundancy option Up to 6 hot plugs fans with full redundancy |
| PCIe | 8 x Gen3 slots (4 x 16) |
| Video Card | 1 x VGA |

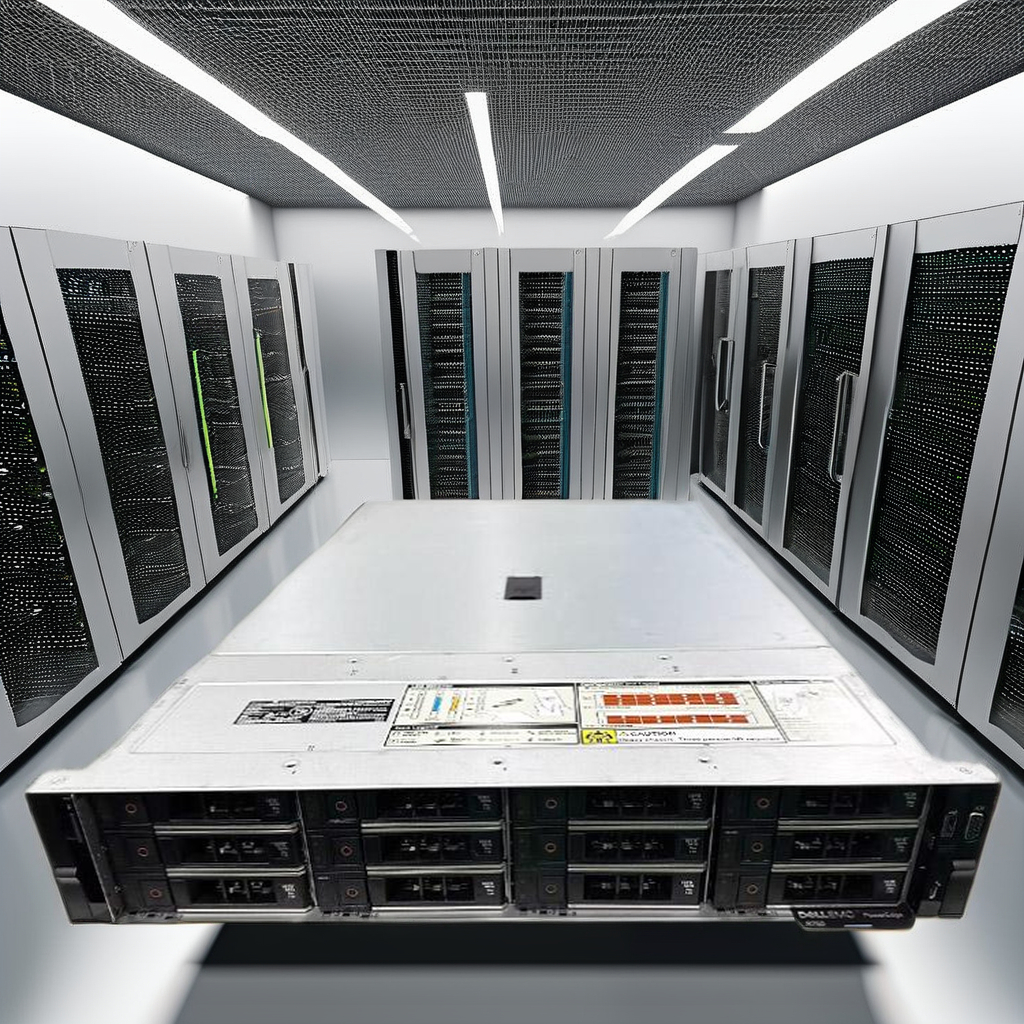

Dell EMC PowerEdge R750 equipped with third-generation Intel® Xeon® Scalable processor is an excellent rack mounted server that can meet the needs of applications Performance and acceleration requirements. The PowerEdge R750 is a dual slot/2U rack mounted server that provides excellent performance for demanding workloads. It supports 8 memory channels per CPU and up to 32 DDR4 DIMMs, with a speed of 3200 MT/s. In addition, in order to meet the actual throughput requirements, the PowerEdge R750 supports PCIe 4.0 and up to 24 NVMe drives, and has improved air cooling and optional direct heat dissipation capabilities to support continuously increasing demand for electricity and heat dissipation. This will make the PowerEdge R750 an ideal service for data center standardization across a wide range of workloads, including databases and analytics, high-performance computing (HPC), traditional enterprise IT, virtual desktop infrastructure, as well as the need for high-performance, extensive storage, and GPUs supported AI/ML environments.
