Vertex AI Server
1 / 5

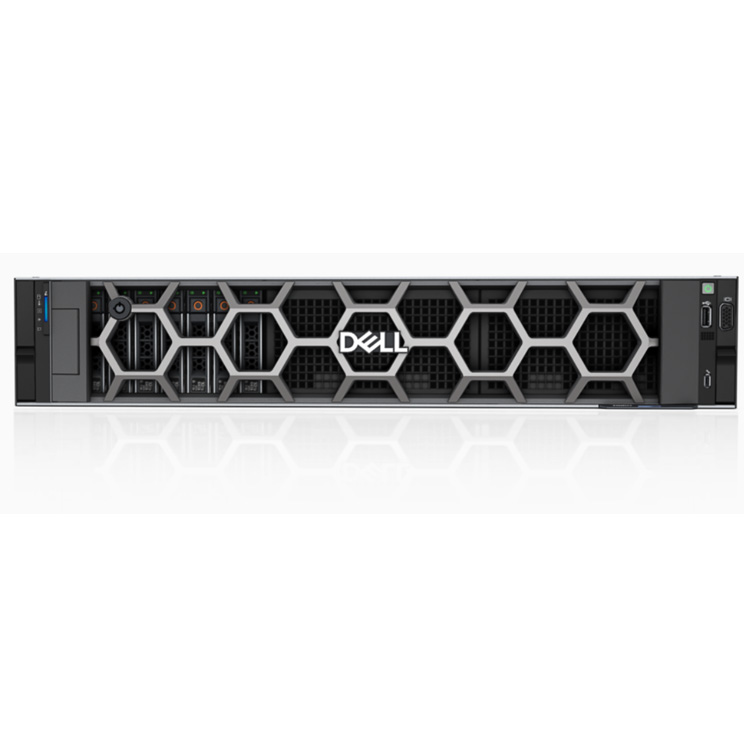

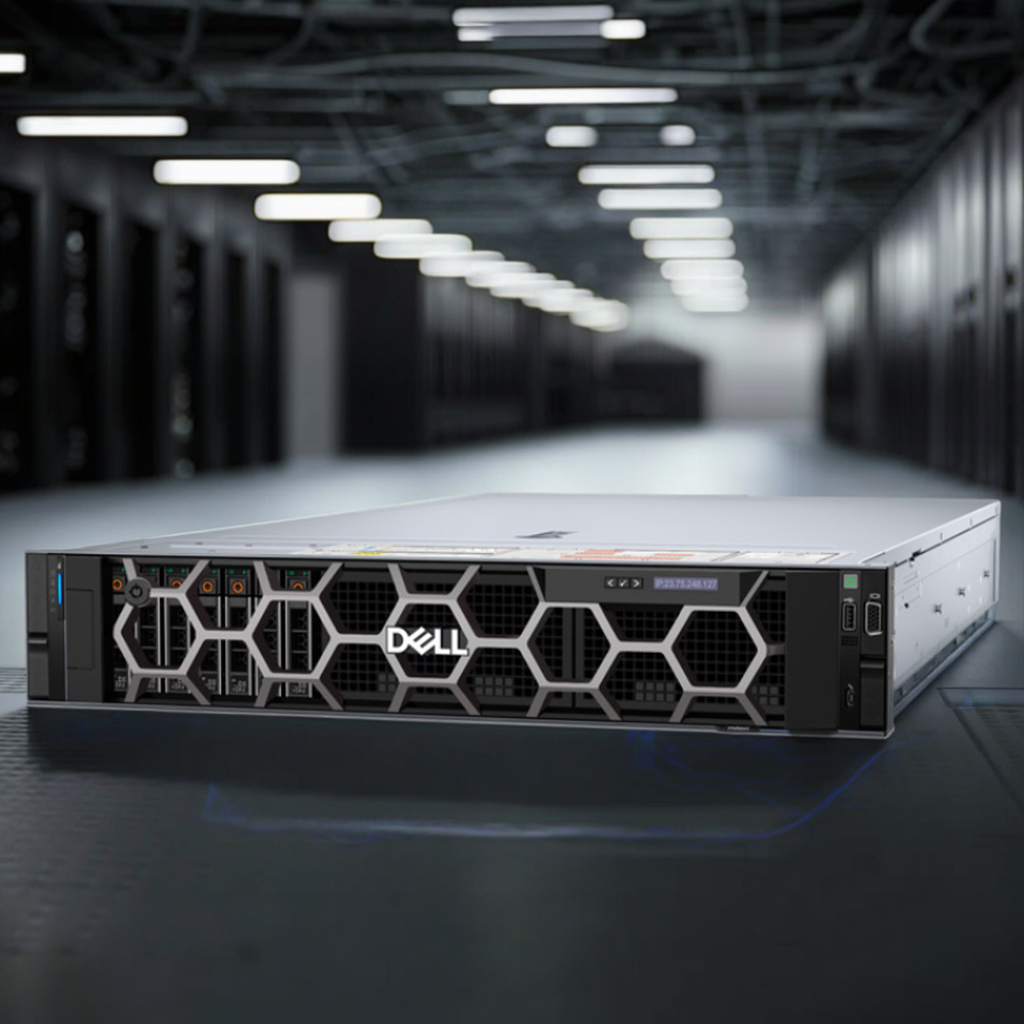

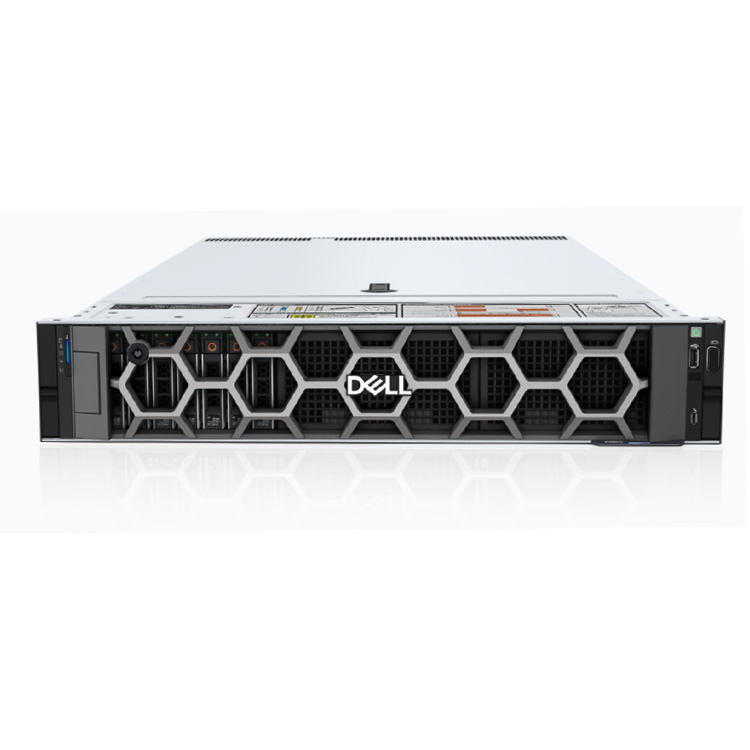

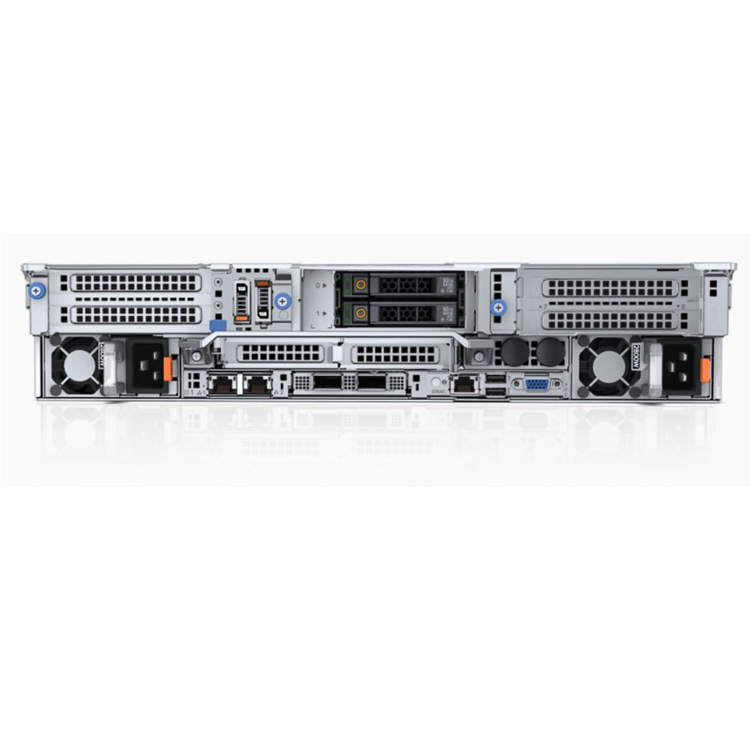

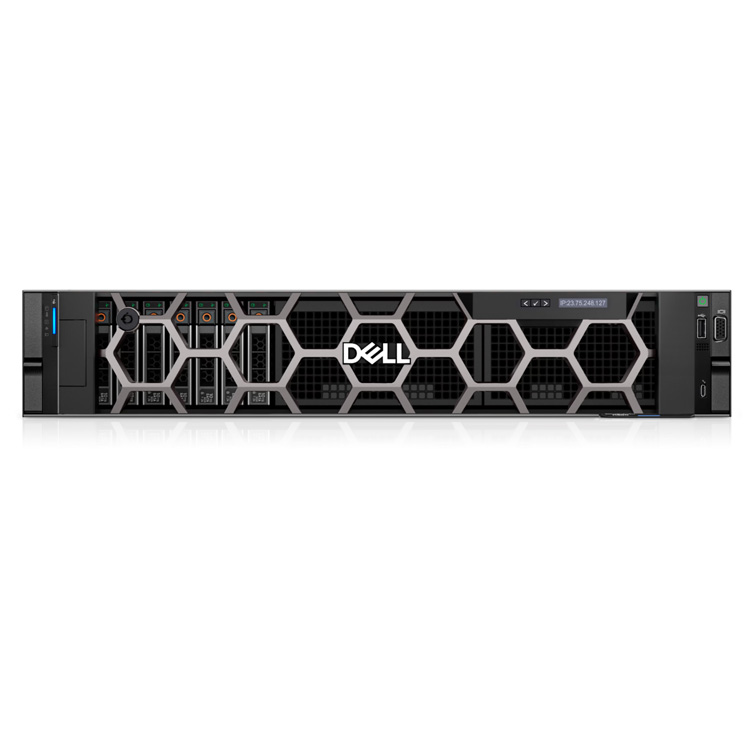

| Model | Dell PowerEdge R860 |
| Processor | Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel® QuickAssist Technology |
| Memory | 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s; Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | Internal: PERC H965i, PERC H755, PERC H355, HBA355i, HBA465i; External: PERC H965e; Boot: Boss-N1 NVMe SSDs; Software RAID: S160 |
| Drive Bays | Front: Up to 24 x 2.5-inch SAS/SATA/NVMe (Max 368.34 TB) or 8 x EDSFF E3.S Gen5 NVMe. Rear: Up to 2 x 2.5-inch SAS/SATA or 4 x EDSFF E3.S Gen5 NVMe. |
| Power Supplies | 1100W, 1400W, 1800W, 2400W, 2800W (Titanium/Platinum) hot swap redundant options |
| Cooling | Air cooling; Optional Direct Liquid Cooling (DLC) |
| Form Factor | 2U rack server |
| Dimensions | Height: 86.8 mm | Width: 482 mm | Depth: 883.2 mm (with bezel) |
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, Quick Sync 2 wireless module |
| Security | Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, TPM 2.0 FIPS |
This four-way 2U server with air-cooled design can accelerate the processing of a series of applications. By utilizing the all-new 4th generation Intel® Xeon® Scalable processors, it allows you to integrate core operations into fewer and more powerful servers, achieving faster results from core operations.
