Vertex AI Server
1 / 5
We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | Dells Poweredge R770 Server |
| Processor | Two Intel Xeon 6 processors, with up to 144 cores per processor |
| Chipset | N/A |
| Accelerators | Up to four single width 75 W accelerators |
| DIMM speed | Up to 6400 MT/s |
| Memory type | RDIMM |
| Memory module slots | 32 DDR5 DIMM slots |
| Front bays |
Up to 8 x EDSFF E3.S NVMe(SSD) Up to 16 x EDSFF E3.S NVMe(SSD) Up to 8 x 2.5-inch NVMe SSDs Up to 16 x 2.5-inch SAS/SATA SSDs |
| Rear bays | N/A |
| Internal controllers | Front PERC H965i |
| External controllers | N/A |
| Software RAID | N/A |
| Internal boot |
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs 480 GB or 960 GB or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs Internal USB |
| System management | iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish |
| Power supply |
1500 W Titanium 100—240 VAC or 240 VDC 1100 W Platinum 100—240 VAC or 240 VDC 800 W Platinum 100—240 VAC or 240 VDC |
| Network options | OCP NIC card 3.0 : Up to 2 slots on the front (for front I/O configuration) or 2 slots on the rear (for rear I/O configuration) |
| Front ports |
1 x USB 2.0 Type C port (supports Host mode) 1 x USB 2.0 (optional) 1 x Mini-DisplayPort (optional) |
| Rear ports |
1 x DB9 Serial 1 x Dedicated iDRAC Ethernet port 1 x VGA 2 x USB 3.1 |
| Internal ports | 1 x USB 3.1 |
| PCIe | Up to 4 x16 Gen5 PCIe slots |
| Form factor | 2U rack server |
| Height | 86.8 mm (3.41 inches) |
| Width | 482.0 mm (18.97 inches) |
| Depth |
For cold aisle (front I/O configuration): 814.52 mm (32.07 inches) without bezel For hot aisle (rear I/O configuration): 802.40 mm (31.59 inches) with bezel, 801.51 mm (31.56 inches) without bezel |
| Weight | 28.53 kg (62.89 lbs) |

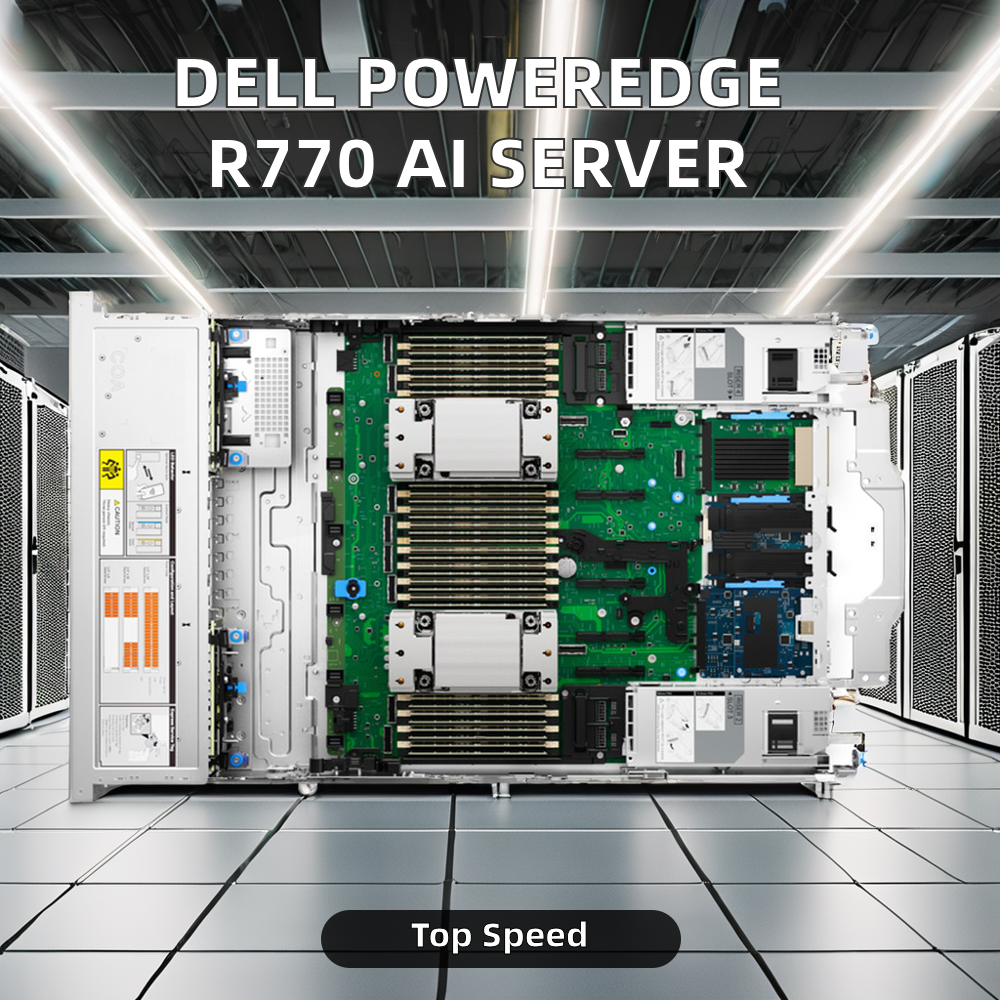

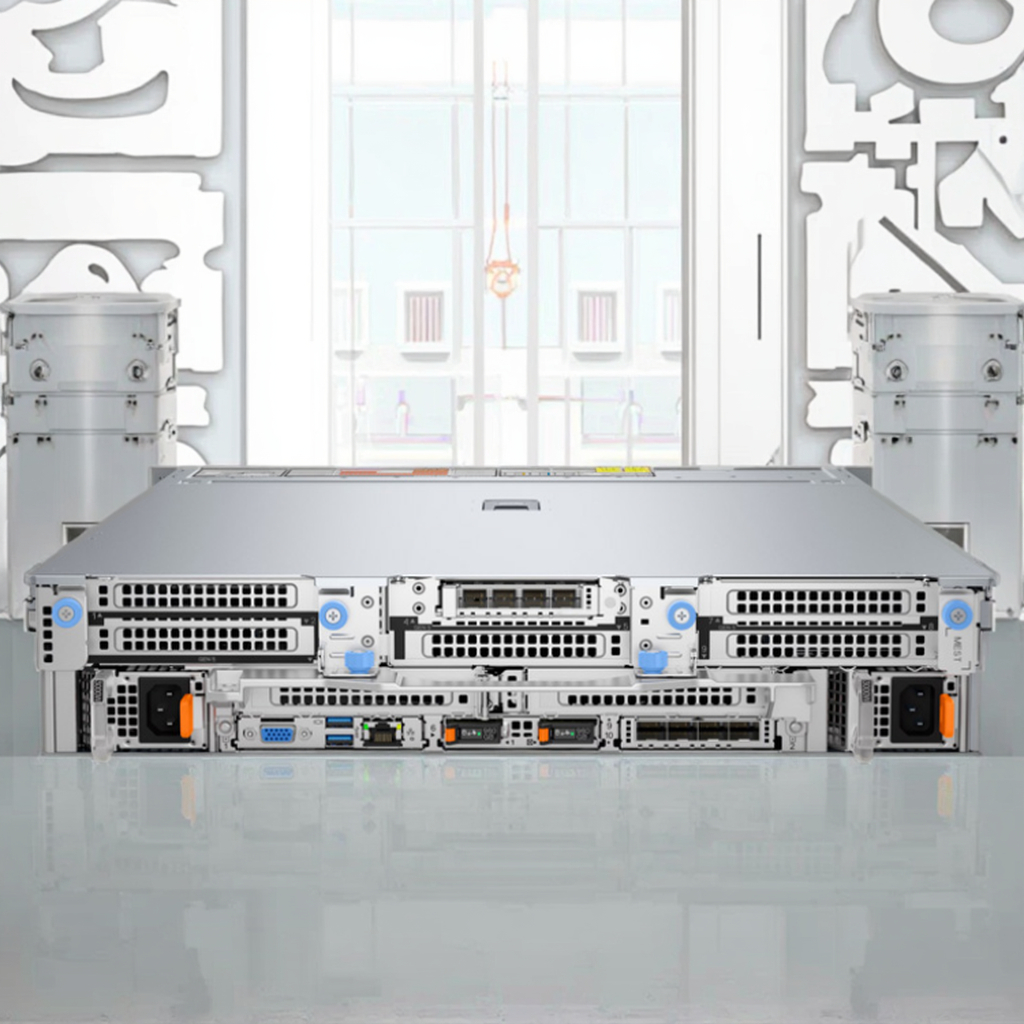

The Dell PowerEdge R770 is a 2U dual rack mounted server designed specifically for high-performance computing, excelling in optimizing energy efficiency and balancing performance. It excels in advanced computing power, virtualization, artificial intelligence inference, cloud native applications, ultra large scale workloads, and horizontal database expansion.
Equipped with two Intel® Xeon® 6 processors, it provides standardized features that can be easily integrated into existing environments. Compared to previous models, its performance per watt can be increased by up to 1.69 times. The added GPU support further enhances computing power, ensuring high performance while reducing energy consumption. These servers offer back I/O hot aisle and front I/O cold aisle configurations.
Ideal application scenarios:
We are specialized in computer hardware sales, network platform construction, and IT system maintenance. Our main products are Dell, HP, IBM, Lenovo, Huawei, and other enterprise systems. We have a robust sales network system, stable supply channels, and an excellent technical support team. Based on this advantage, our business has expanded rapidly, and we have become a premier server system integrator and solution provider for numerous enterprises and institutions.
Since inception, we have established a reliable customer relationship maintenance and support system. We are committed to offering competitive pricing, active open cooperation, and establishing strong supplier partnerships across multiple regions to ensure readiness. Operating under the business philosophy of "Customer first, honest and pragmatic, service first," we focus on product quality and thoughtful service to earn lasting trust. We look forward to delivering our professional quality and first-class services to your enterprise.
Yes, all our products are brand new from the original factory.
Yes, we maintain a robust inventory, and you are welcome to inspect the goods.
Our pricing structure is highly competitive. For volume orders, we can offer custom discount rates.
Orders are processed swiftly, typically dispatched within 1-3 working days following payment verification.
Warranty periods differ per product type. Coverage options can be extended up to five years upon request.
We welcome initial and trial orders, with a minimum order quantity of 1 set.
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs. Welcome to Inquire!
