The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

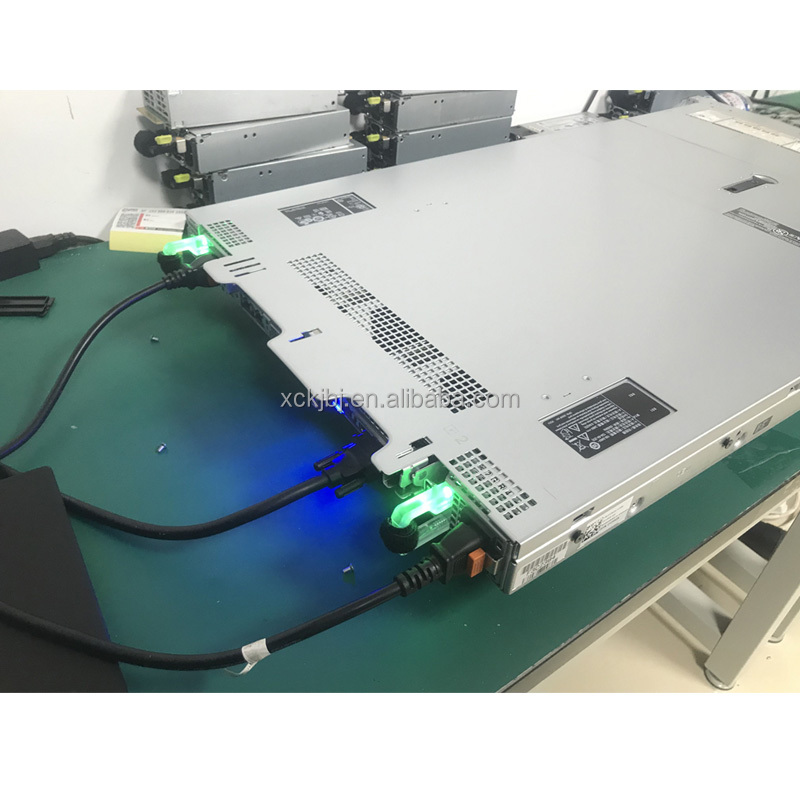

| Model | Dell R660 |
| CPU | Up to two fourth generation Intel Xeon scalable processors, up to 56 cores, and optional Intel® QuickAssist technology. |
| Memory | 32 DDR5 DIMM slots, supporting up to 8 TB of RDIMM and speeds up to 4800 MT/s • Only supports stored ECC DDR5 DIMMs |
| Memory Controller | • Internal controller (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drive or USB External HBA (non RAID): HBA355e • Software RAID: S160 |
| Drive Bay | Front tray: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 153.6 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 122.88 TB Rear rack: Up to 2 2.5-inch SAS/SATA/NVMe, up to 30.72 TB |
| Power supply device | 1800 W titanium grade 200-240 VAC or 240 HVDC, hot swappable, fully redundant 1400 W Platinum 100-240 VAC or 240 HVDC, hot swappable, fully redundant 1100 W titanium grade 100-240 VAC or 240 HVDC, hot swappable, fully redundant 1100 W LVDC-48 to -60 VDC, hot swappable, fully redundant 800 W Platinum 100-240 VAC or 240 HVDC, hot swappable, fully redundant 700 W titanium grade 200-240 VAC or 240 HVDC, hot swappable, fully redundant |
| Cooling options | • Air cooling • Optional Direct Liquid Cooling (DLC) |
| Fan | Standard (STD) Fan/High Performance (VHP) Gold Medal Fan Up to four sets (dual fan modules) of hot swappable fans |
| Embedded management | • iDRAC9 • iDRAC Direct IDRAC RESTful API with Redfish • iDRAC Service Module Quick Sync 2 wireless module |
| Baffle | Optional LCD screen panel or safety panel |
| OpenManage | • OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service Plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plugins • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
| Mobility | OpenManage Mobile |
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform • VMware vCenter and vRealize Operations Manager |
| Safety | Encryption signature firmware Static data encryption (SED with local or external key management) • Safe startup • Secure erasure Security component verification (hardware integrity check) • Silicon wafer trust root System lockout (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certification, TPM 2.0 China NationZ |
| Embedded NIC | 2 1 GbE LOM cards (optional) |
| Networking options | 1 OCP 3.0 card (optional) |
| GPU Options | Up to 2 * x 75 W SW |
| Port | Front port 1 x iDRAC Direct (Micro AB USB) port • 1 USB 2.0 • 1 VGA internal port • 1 USB 3.0 (optional) Rear port • 1 dedicated iDRAC Ethernet port • 1 USB 2.0 • 1 USB 3.0 • 1 serial (optional) 1 VGA (optional for direct liquid cooling configuration) |
| Operating system and virtual machine management program | • Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |

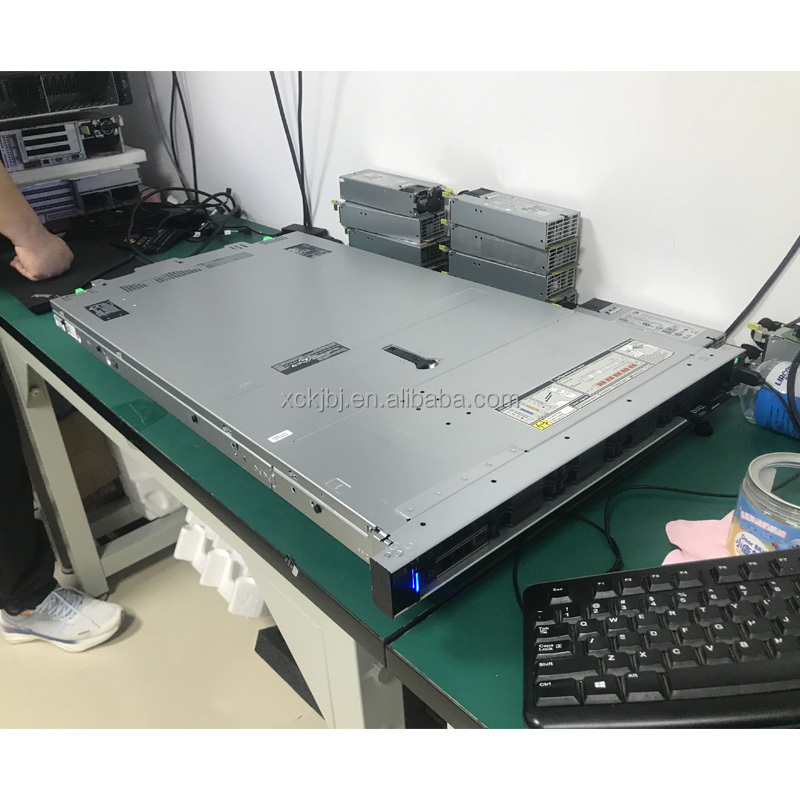

Dell PowerEdge R660 in Specially Built Network. Network resilience provides powerful performance in mainstream servers.
Add up to two next-generation Intel® Xeon® Scalable processors with up to 56 cores for faster and more accurate processing performance. With up to 32 DDR5 RDIMMs (up to 4400 MT/s (2DPC) or 4800 MT/s (1DPC), up to 16 DDR5 RDIMM) accelerate workloads in memory. Supports GPUs, including 2 * single width GPUs, suitable for workloads that require acceleration.
We specialize in computer hardware sales and network platform construction and maintenance of IT enterprises. Our main products are Dell, HP, IBM, Lenovo, Huawei, convinced, Youyou mail and other products. We have a sound sales network system, stable commodity supply channels, and an excellent technical support team. Based on this advantage, our business has expanded rapidly, and we have now become a server system integrator and solution provider for numerous well-known enterprises and institutions. Since inception, we have established a good customer relationship maintenance system and support system. Committed to the real price of genuine market competition and active open cooperation, we establish strong supplier partnerships for readiness. In the competitive market environment, we align with the "Customer first, honest and pragmatic, service first" business philosophy to strengthen the quality of products and thoughtful service to win trust. We wish our professional quality and first-class service can be accepted and introduced by you and your enterprise.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
1-3 working days after your payment.
Our different products have different warranty, if necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
Yes, we can send to your domestic freight forwarder.
