Vertex AI Server
1 / 5
| Model | D ELL R750 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U Rack Server |
| Processor | Up to two 3nd Generation Intel Xeon Scalable processors with up to 40 cores per processor |
| Memory | 16g 32g 64g 128g |
| Operating System | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| DIMM Speed | Up to 2933MT/s |
| Memory Type | RDIMM LRDIMM NVDIMM DCPMM (Intel Optane DC persistent memory) |
| Memory Module Slots | 32 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only) Supports registered ECC DDR4 DIMMs only |
| Maximum RAM | RDIMM 1.53TB LRDIMM 3TB NVDIMM 192GB DCPMM 6.14TB (7.68TB with LRDIMM) |
| Embedded / At-the-Server | iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
| Consoles | OpenManage Enterprise OpenManage Power Center |
| Mobility | OpenManage Mobile |
| Tools | Dells EMC RACADM CLI Dell EMC Repository Manager Dell EMC System Update Dells EMC Server Update Utility Dell EMC Update Catalogs iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services |
| OpenManage Integrations | BMC Truesight Microsoft System Center RedHat Ansible Modules VMware vCenter |
| OpenManage Connections | IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager I Nagios Core Nagios XI |
| Network Options | 4 x 1GbE 2 x 10GbE + 2 x 1bGE 4 x 10GbE 2 x 25GbE |
| Front Ports | 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA |

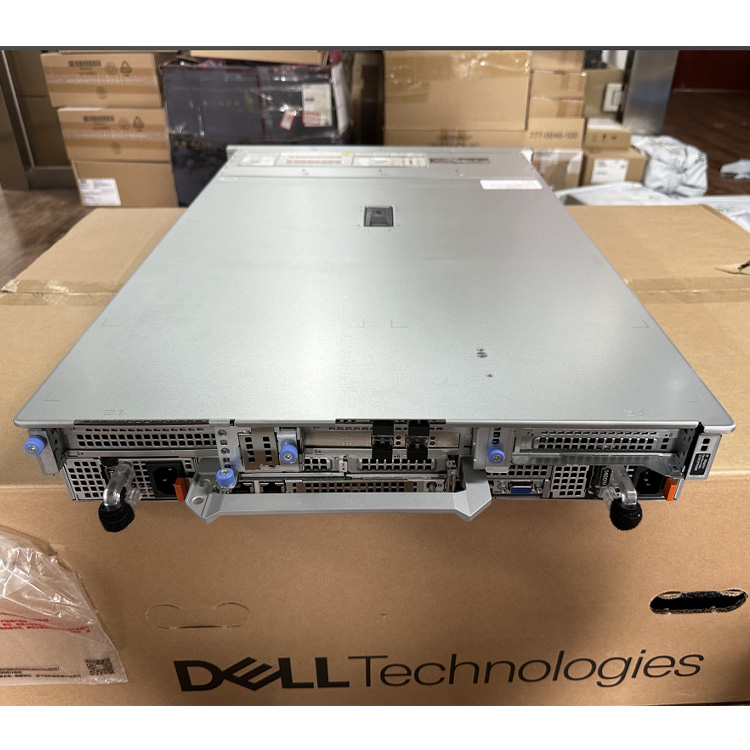

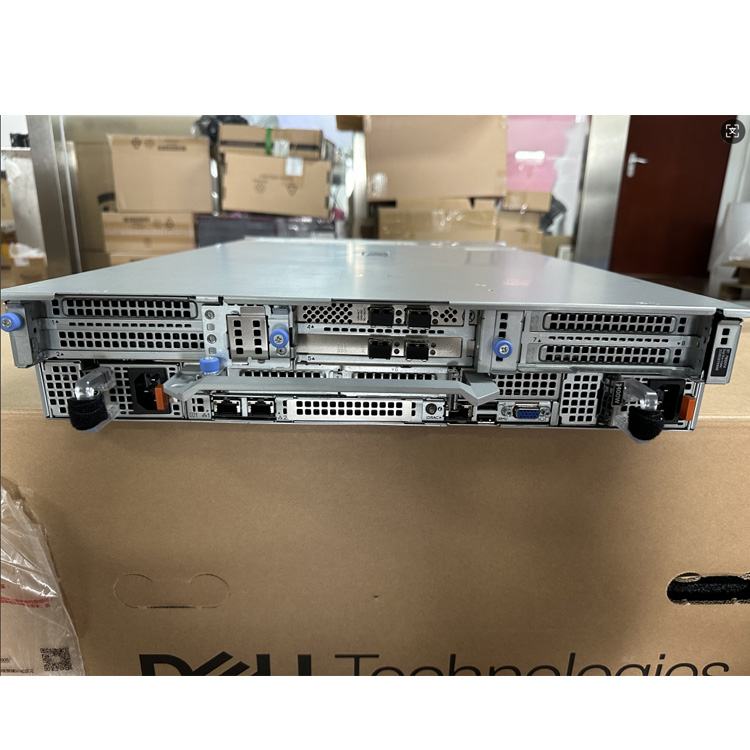

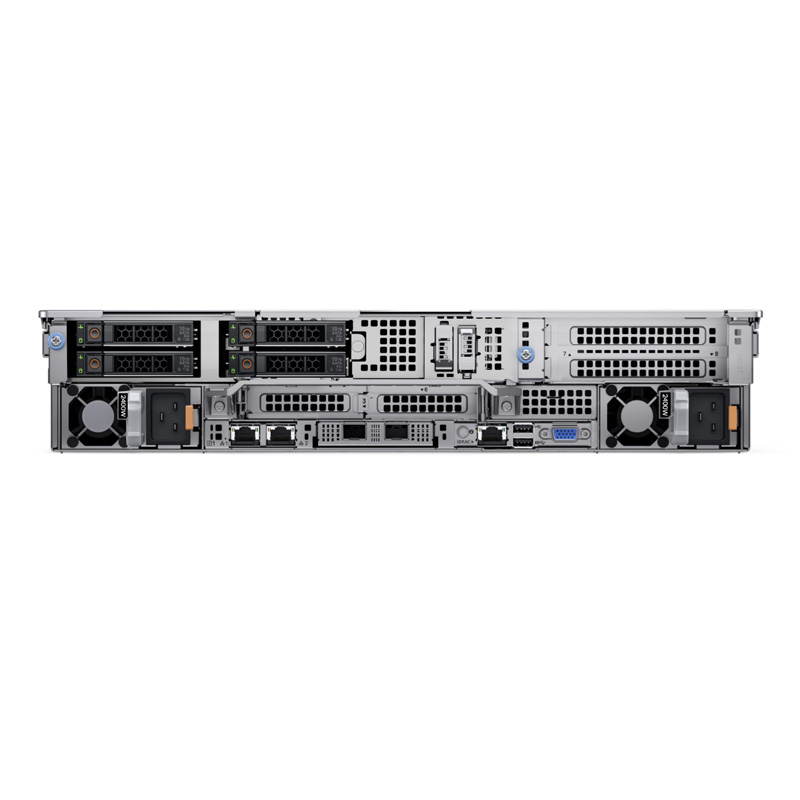

| Rear Ports | 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA |
| Storage Controllers | Internal Controllers: PERC H330, H730P, H740P, H755, H745, H755N, HBA330 External Controllers (RAID): H840, 12 Gbps SAS HBA Software RAID: S140 Internal Boot: Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB Internal Dual SD Module |
| Accelerators | Up to three 300W or six 150W GPUs Up to three double-wide FPGAs or four single-wide FPGAs GPU and FPGA options available only on 24 x 2.5” drive chassis. Up to two GPUs are supported on NVMe configurations |

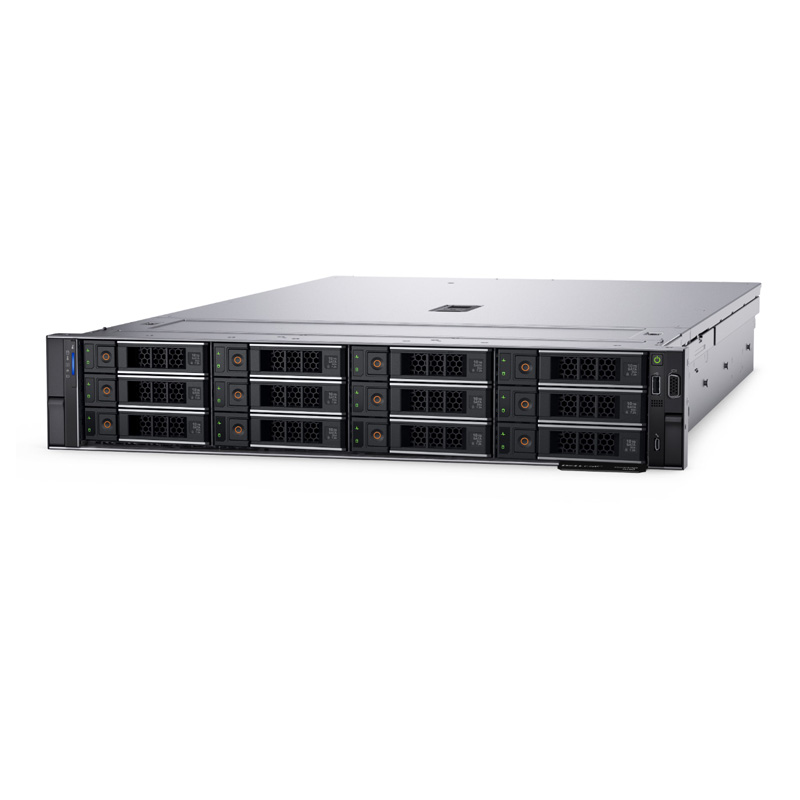

| Front Bays | Up to 24 x 2.5” SAS/SSD/NVMe, max 184TB Up to 12 x 3.5” SAS, max 192TB |
| Mid Bay | Up to 4 x 3.5” SAS, max 64TB Up to 4 x 2.5” SAS/SSD, max 30.72TB |
| Rear Bays | Up to 4 x 2.5” SAS/SSD, max 30.72TB Up to 2 x 3.5” SAS, max 32TB |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires OpenManage Enterprise) TPM 1.2/2.0, TCM 2.0 optional |
| Power Supplies | 495W Platinum 750W Platinum 750W Titanium 750W 240VDC 1100W Platinum 1100W 380VDC 1600W Platinum 2000W Platinum 2400W Platinum 1100W -48VDC Gold Hot plug power supplies with full redundancy option Up to 6 hot plugs fans with full redundancy |
| PCIe | 8 x Gen3 slots (4 x 16) |
| Video Card | 1 x VGA |
