Vertex AI Server
1 / 5

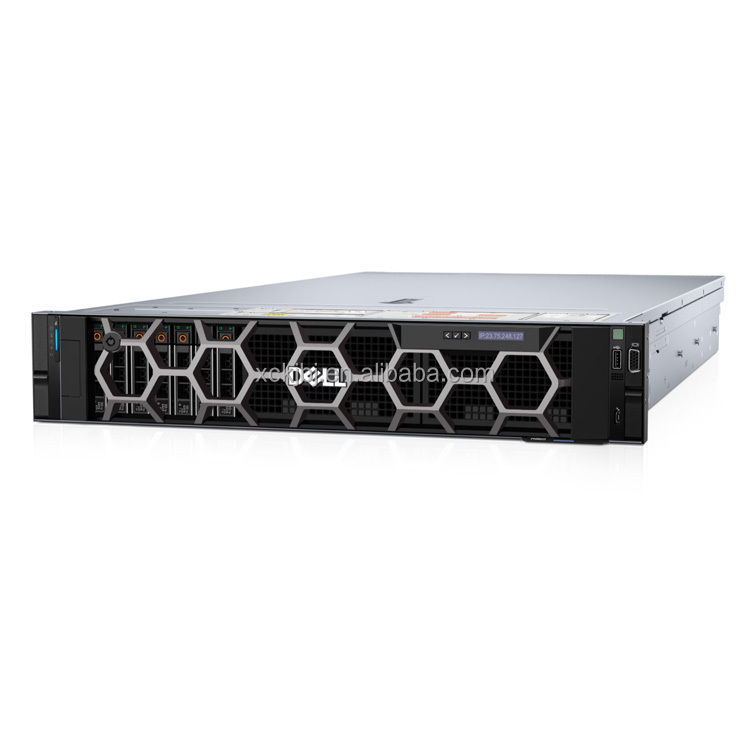

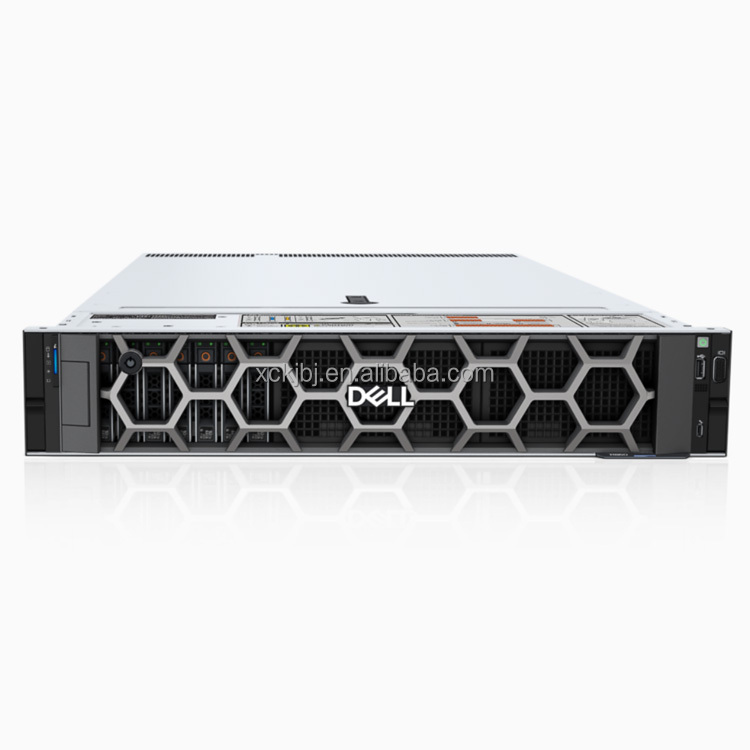

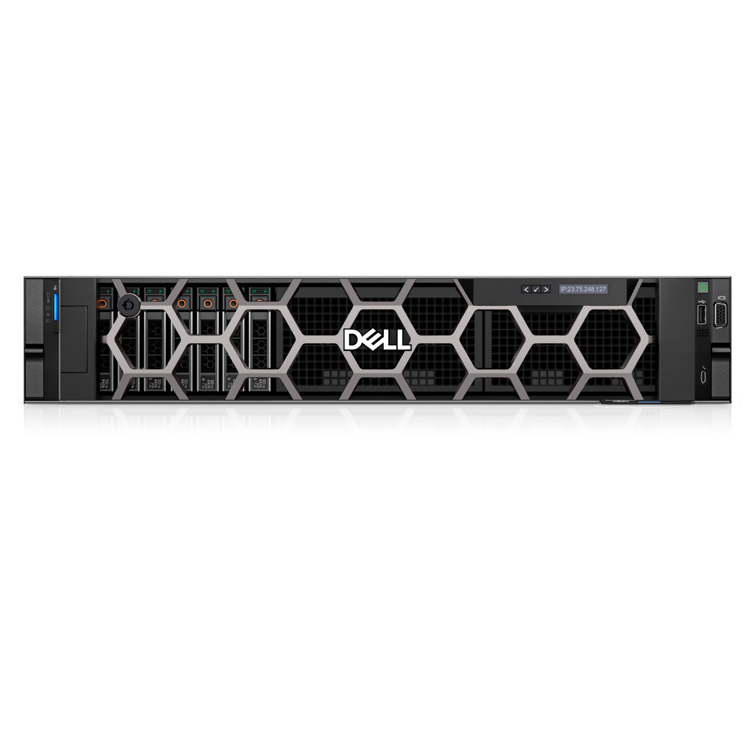

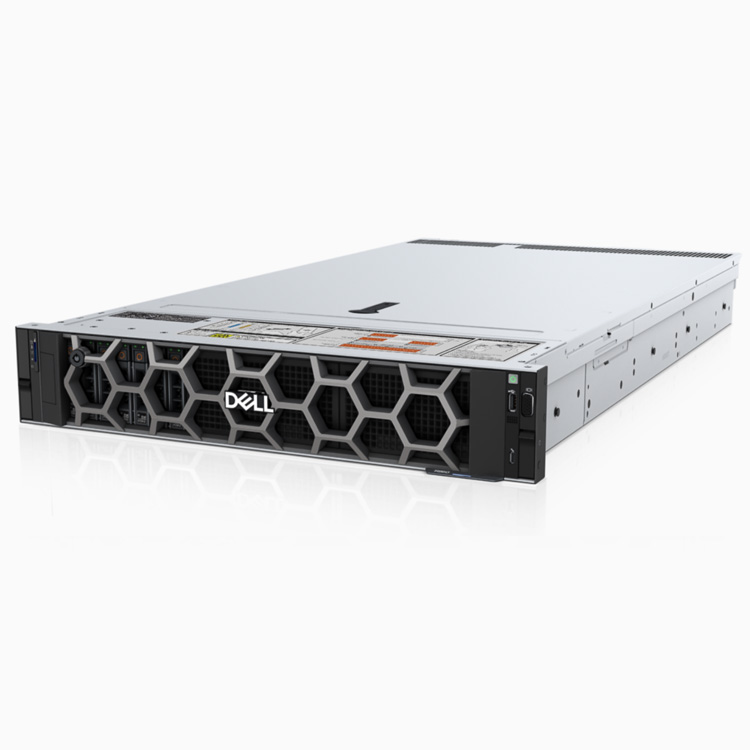

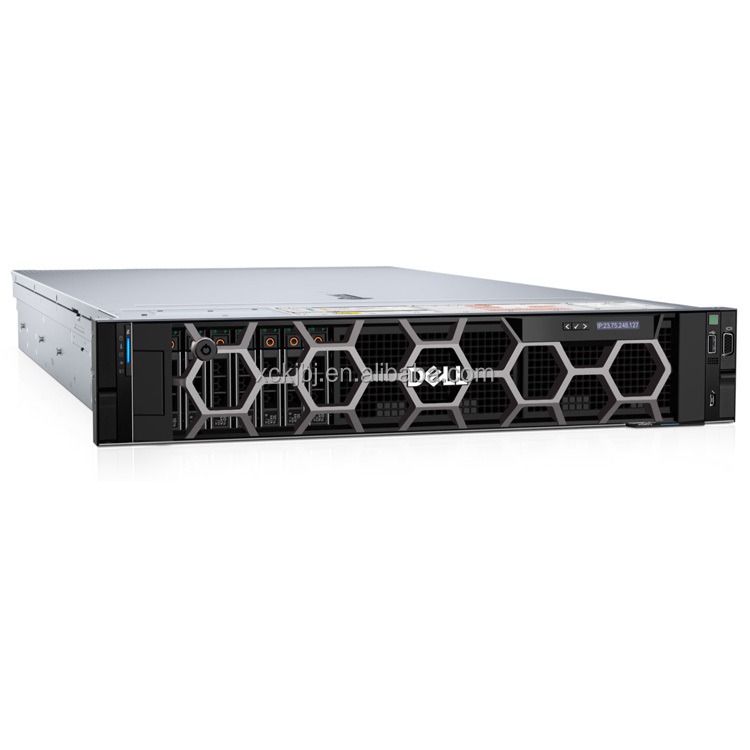

| Model | R840 server |
| Customization Intention | Support customization |
| Form Factor | 2U |
| Processor Type | Up to four second-generation Intel® Xeon® Scalable processors with up to 28 cores per processor |
| Memory | 48 DDR4 DIMM slots, supporting RDIMM/LRDIMM, with speeds up to 2933 MT/s and a maximum of 6 TB. Up to 12 NVDIMMs, maximum 384 GB. Up to 24 Intel® Optane™ Persistent Memory PMem, maximum 12.28 TB (maximum 15.36 TB when using PMem+LRDIMM). Only supports registered ECC DDR4 DIMMs. |
| Storage Controller | Internal controllers: PERC H330, H730P, H740P, HBA330. External controller: H840, 12 Gbps SAS HBA. Software RAID: S140. |
| Drive Bay | Front drive tray: up to 8 2.5" SAS/SATA (HDD/SSD), up to 61.44 TB or up to 24 2.5" SAS/SATA HDD/SSD, up to 12 NVMe PCIe SSDs, maximum 184.32 TB, or up to 24 NVMe PCIe SSDs, maximum 153 TB. Rear drive bay: up to 2 2.5" SAS/SATA (HDD/SSD), maximum 15.36 TB. |
| Power | Gold level: 1100 W-48 VDC, Platinum level: 750 W, 750 W 240 VDC, 1100 W, 1100 W 240 VDC, 1600 W, 2000 W, 2400 W. |
| Embedded management | iDRAC9, iDRAC Direct |
| OpenManage™ software | OpenManage Enterprise |
| Integration and connect | Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules. |

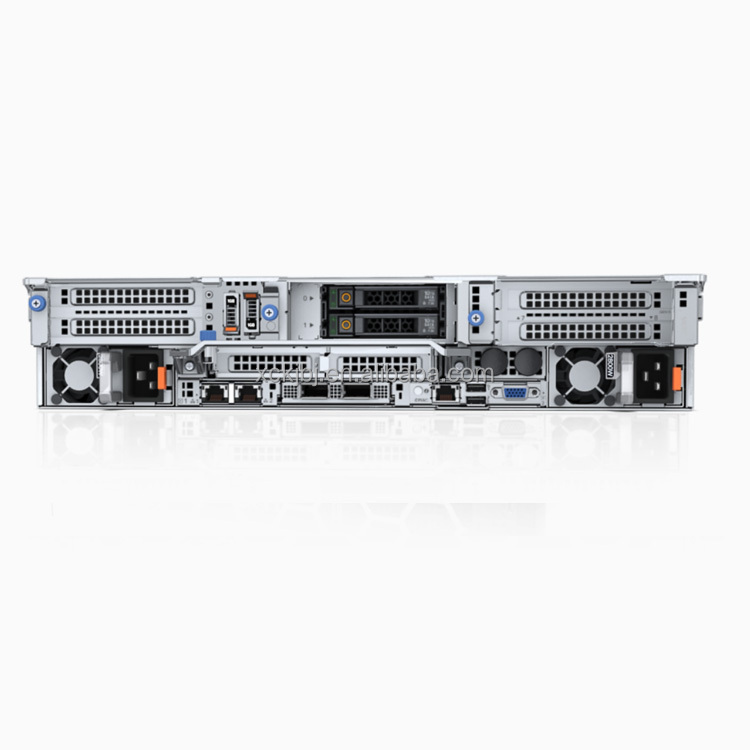

| I/O and ports | Network Subcard Options: 4 x 1 GbE, 4 x 10 GbE, 2 x 10 GbE + 2 x 1 GbE, or 2 x 25 GbE. Front port: 1 x dedicated iDRAC with direct Micro USB, 1 x USB 2.0, 1 x VGA. (Optional 1 x USB 3.0 only available in 8-drive configuration). |
| GPU | Up to 2 dual width GPUs or up to 2 full height FPGAs. |
| Size | 86.8mm * 434mm * 835.9mm |
R840 can provide consistent high-performance results for data intensive applications and data analytics workloads. With the powerful second-generation Intel® Xeon® Scalable processor and up to 112 cores, R840 can quickly convert analysis into insights, thereby accelerating business development. Create the optimal configuration of resources (NVMe, SSD, HDD, and GPU) to solve demanding workloads - all in a 2U chassis.
Improve performance and minimize latency to the greatest extent possible:
We are specialized in computer hardware sales and network platform construction and maintenance of IT enterprises. Our main products are Dell, HP, IBM, Lenovo, Huawei, convinced, Youyou mail and other products. We have a sound sales network system, stable commodity supply channels, and an excellent technical support team. Based on this advantage, our business has expanded rapidly, and we have become a server system integrator and solution provider for a number of well-known enterprises and institutions. Since our inception, we have established a good customer relationship maintenance system and support system. Committed to the real price of genuine market competition, active open cooperation, we have established strong supplier partnerships. In the competitive market environment, we align with the "Customer first, honest and pragmatic, service first" business philosophy, strengthening the quality of products and providing thoughtful service to win trust. We wish our professional quality and first-class service can be accepted by you and your enterprise.
Yes, all our products are brand new from the original factory, in addition to second-hand products you specifically want.
We have a warehouse, and you are always welcome to visit and inspect the goods.
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
1-3 working days after your payment.
Our different products have different warranties. If necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
