Vertex AI Server
1 / 5
| Model | D ELL R340 |
| Processor | 1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron® |
| Memory | 4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC |
| Storage controllers / Internal boot | Internal controllers: PERC H730P, H330, HBA330 Software RAID: PERC S140 External controllers: 12Gbps SAS HBA Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only) Internal Dual SD Module 3: 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB) |
| Drive bays | Up to 8 x 2.5 hot-plug SATA, SAS (optional) or SSD Up to 4 x 3.5 hot-plug SATA, SAS (optional) or SSD |
| Power supplies | Single or dual 350W (Platinum) or 550W (Platinum) hot-plug redundant power supplies |
| Dimensions | Form factor: Rack (1U) |
| Embedded management | iDRAC9 iDRAC Direct |
| Bezel | Optional security bezel |
| OpenManage™ Software | OpenManage Enterprise OpenManage Power Manager OpenManage Mobile |
| Integrations and connections | Integrations: Microsoft® System Center VMware® vCenter™ BMC Truesight (available from BMC) Red Hat Ansible Connections: Nagios Core & Nagios XI Micro Focus Operations Manager i (OMi) IBM Tivoli Netcool/OMNIbus |
| Tools | iDRAC Service Module iDRAC RESTful API with Redfish OpenManage Server Administrator Dell EMC Repository Manager Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs Dell EMC RACADM CLI IPMI Tool |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust Secure Boot System Lockdown (requires iDRAC Enterprise or Datacenter) System Erase |

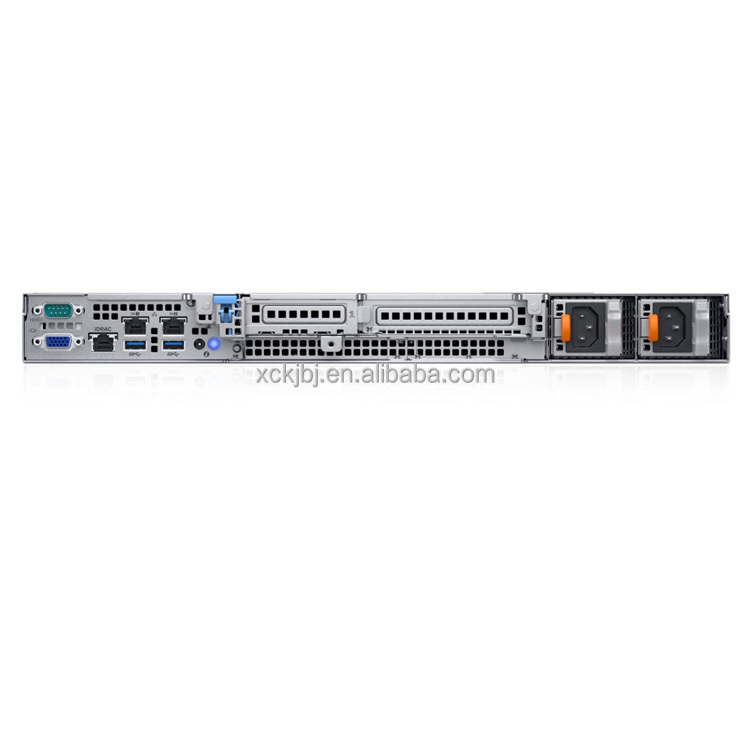

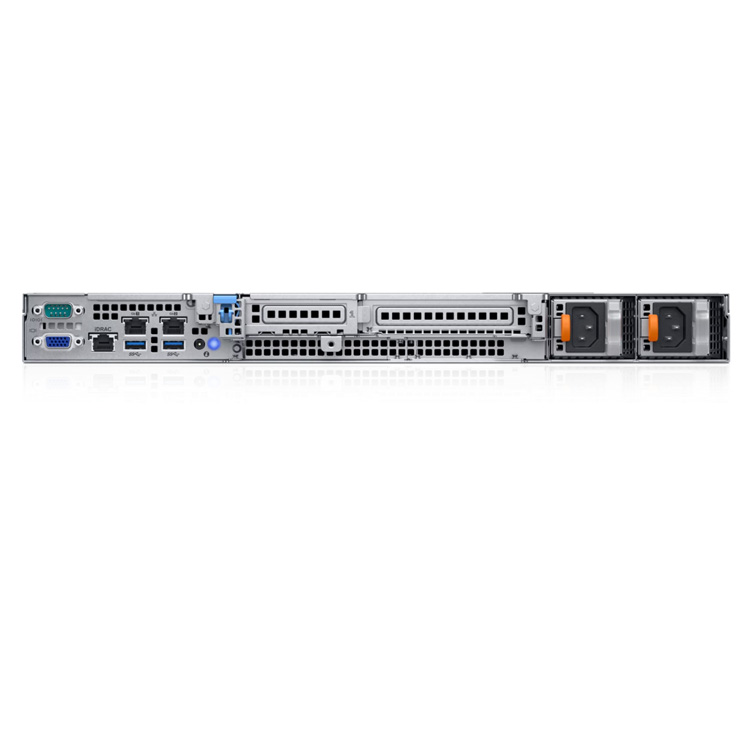

| I/O & Ports | Networking Options: 2 x 1GbE LOM Network Interface Controller (NIC) ports Front ports: 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port Rear ports: 2 x USB 3.0, VGA, serial connector 2 x PCIe Gen 3.0 slots: One x8 slot low-profile, half-length with x4 slot width One x16 slot low-profile/full-height, half-length with x8 bandwith |
| Supported operating systems | Citrix® XenServer® Microsoft® Windows Server® with Hyper-V (2016 and 2019) Red Hat® Enterprise Linux Ubuntu® Server LTS SUSE® Linux Enterprise Server VMware® ESXi For specifications and interoperability details, |
