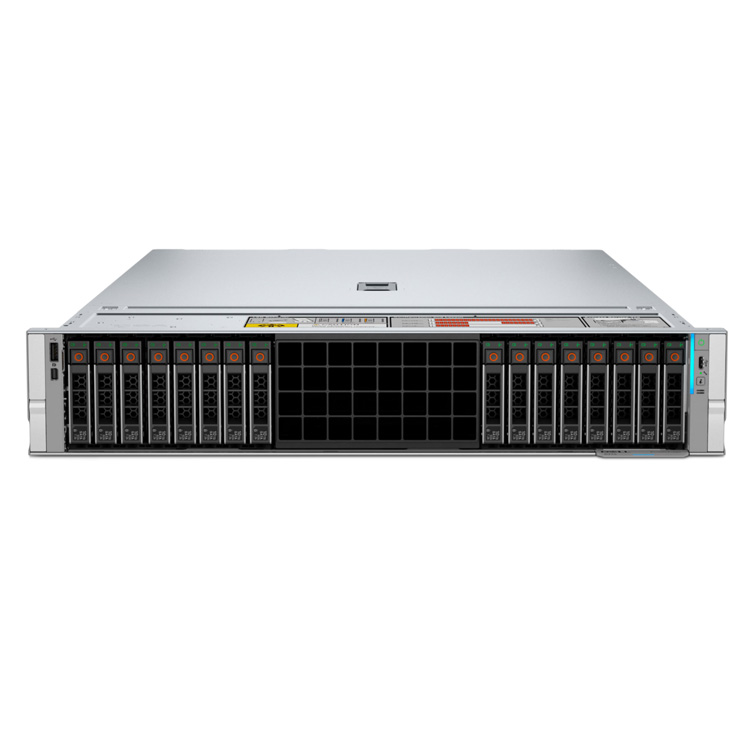

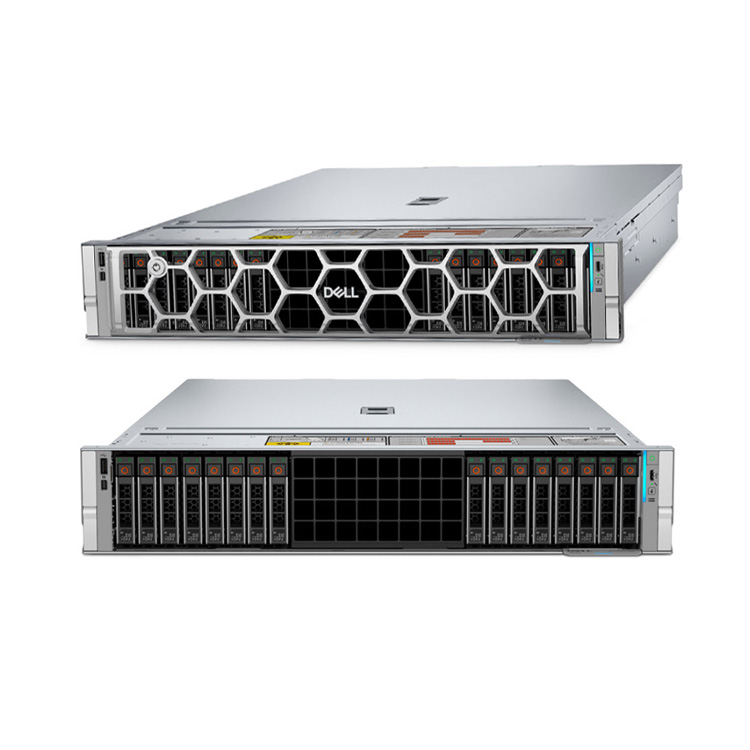

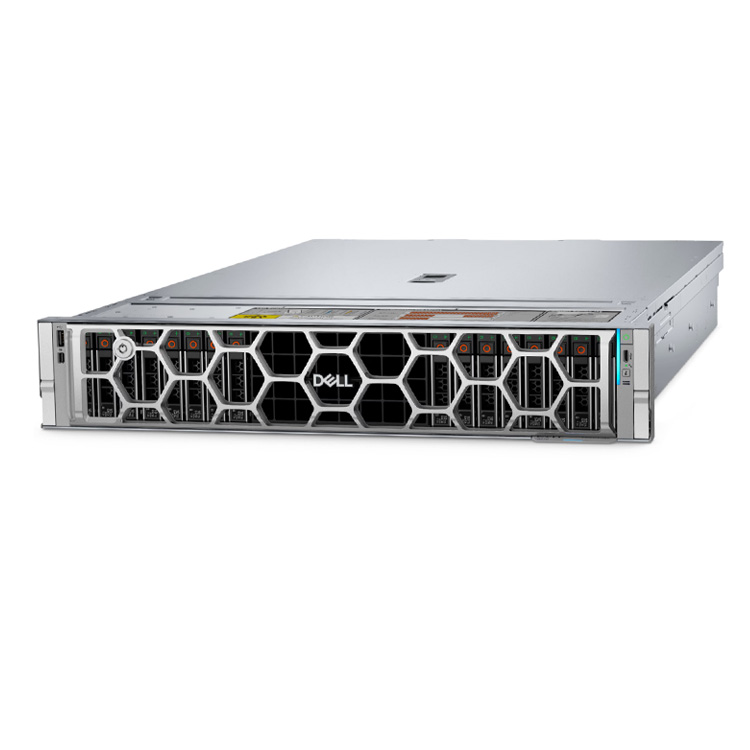

| Model | Dells Poweredge R770 Server |
| Processor | Two Intel Xeon 6 processors, with up to 144 cores per processor |
| Chipset | N/A |
| Accelerators | Up to four single width 75 W accelerators |
| DIMM speed | Up to 6400 MT/s |
| Memory type | RDIMM |
| Memory module slots | 32 DDR5 DIMM slots |
| Front bays |
Up to 8 x EDSFF E3.S NVMe(SSD) Up to 16 x EDSFF E3.S NVMe(SSD) Up to 8 x 2.5-inch NVMe SSDs Up to 16 x 2.5-inch SAS/SATA SSDs |
| Rear bays | N/A |
| Internal controllers | Front PERC H965i |
| External controllers | N/A |
| Software RAID | N/A |
| Internal boot |
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs 480 GB or 960 GB or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs Internal USB |
| System management | iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish |
| Power supply |
1500 W Titanium 100—240 VAC or 240 VDC 1100 W Platinum 100—240 VAC or 240 VDC 800 W Platinum 100—240 VAC or 240 VDC |
| Network options | OCP NIC card 3.0 : Up to 2 slots on the front (for front I/O configuration) or 2 slots on the rear (for rear I/O configuration) |
| Front ports |
1 x USB 2.0 Type C port (supports Host mode) 1 x USB 2.0 (optional) 1 x Mini-DisplayPort (optional) |
| Rear ports |
1 x DB9 Serial 1 x Dedicated iDRAC Ethernet port 1 x VGA 2 x USB 3.1 |
| Internal ports | 1 x USB 3.1 |
| PCIe | Up to 4 x16 Gen5 PCIe slots |
| Form factor | 2U rack server |
| Height | 86.8 mm (3.41 inches) |
| Width | 482.0 mm (18.97 inches) |
| Depth |
For cold aisle (front I/O configuration): 814.52 mm (32.07 inches) without bezel For hot aisle (rear I/O configuration): 802.40 mm (31.59 inches) with bezel / 801.51 mm (31.56 inches) without bezel |
| Weight | 28.53 kg (62.89 lbs) |
The Dell PowerEdge R770 is a 2U dual rack mounted server designed specifically for high-performance computing, excelling in optimizing energy efficiency and balancing performance. It can enhance the productivity of data centers. It excels in advanced computing power and virtualization, artificial intelligence inference, cloud native applications, ultra large scale workloads, and horizontal expansion of databases.
Built specifically for enterprises and scalable infrastructure, the PowerEdge R770 is equipped with two Intel Xeon 6 processors with E-core and P-core configurations, providing standardized features that can be easily integrated into existing environments. Compared to previous models, its performance per watt can be increased by up to 1.69 times, improving energy efficiency and increasing rack density. The added GPU support further enhances computing power, ensuring high performance while reducing energy consumption.

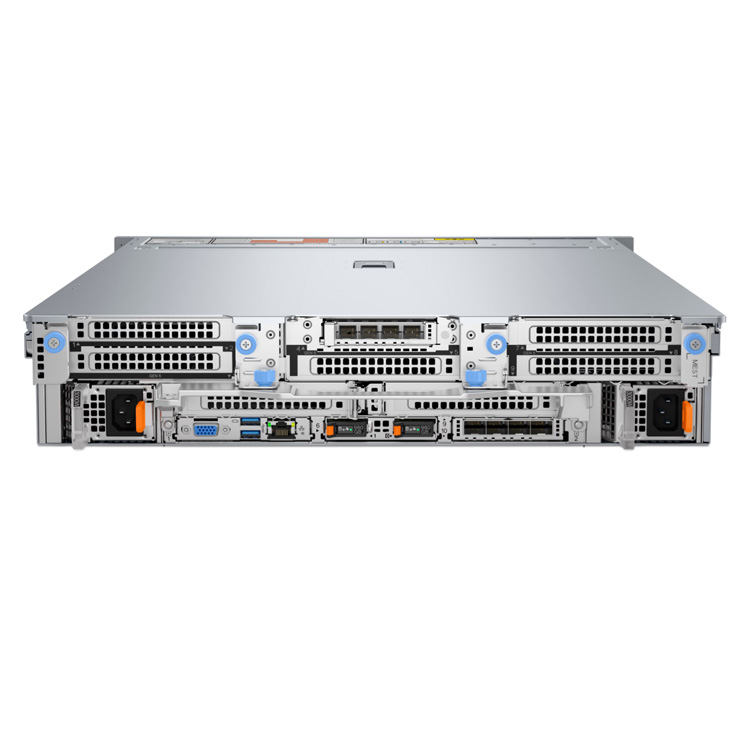

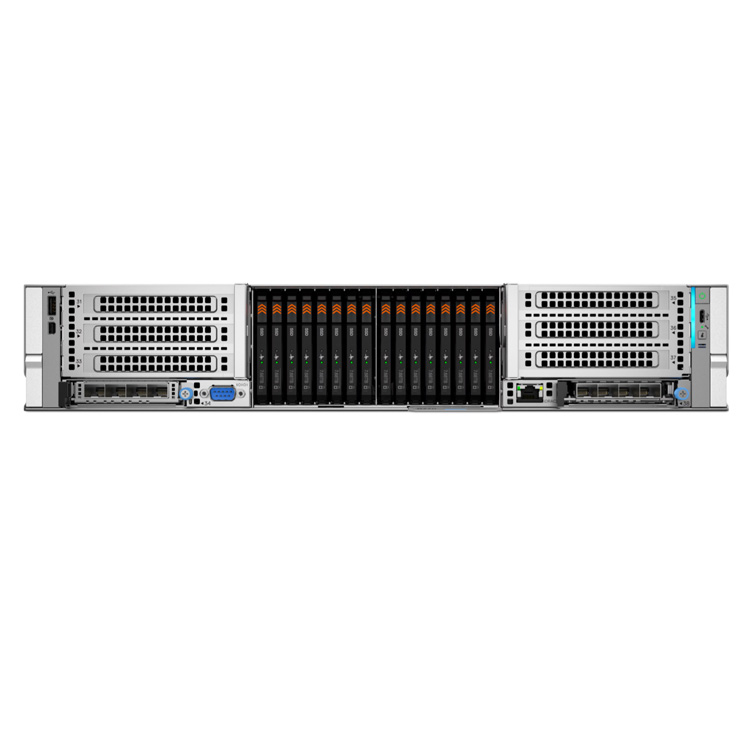

These servers offer back I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle has improved serviceability, shortened maintenance time, and increased efficiency. Efficiency, reliability, and uptime support your sustainable development goals by optimizing cooling and energy usage. It also uses Dell's smart power supply and cooling system. This technology has been optimized for air cooling, which can significantly reduce energy consumption and help save operating costs in the long run.
