Vertex AI Server
1 / 5
| System Model | ASR401-S24RE |
| Processor | Supports 1 AMD EPYC 7003 series, compatible with AMD EPYC 7002 & 7001 series |
| Chipset | / |
| Memory | 16 DDR4 slots, support 2400/2666/2933MHz DDR4 memory |
| Storage Controller | 1 M.2 (PCIe x 4) port, 2 MiniSAS HD ports |

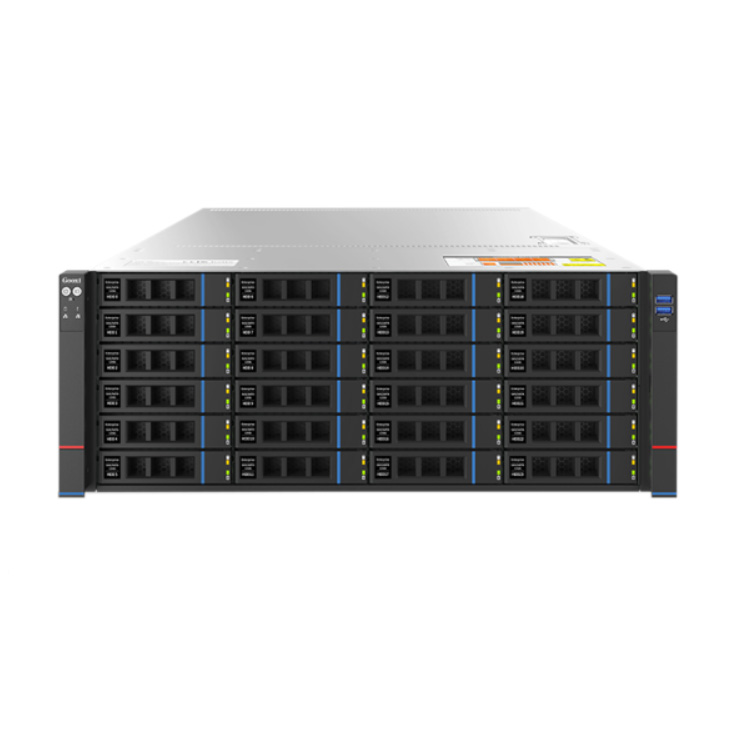

| Storage | Front: 24x 3.5"/2.5" SAS/SATA hot-swap hard drives; Rear: Optional 2x 2.5" SAS/SATA/NVMe hot-swap hard drives |
| Network | 2x 1GbE (RJ45) onboard |

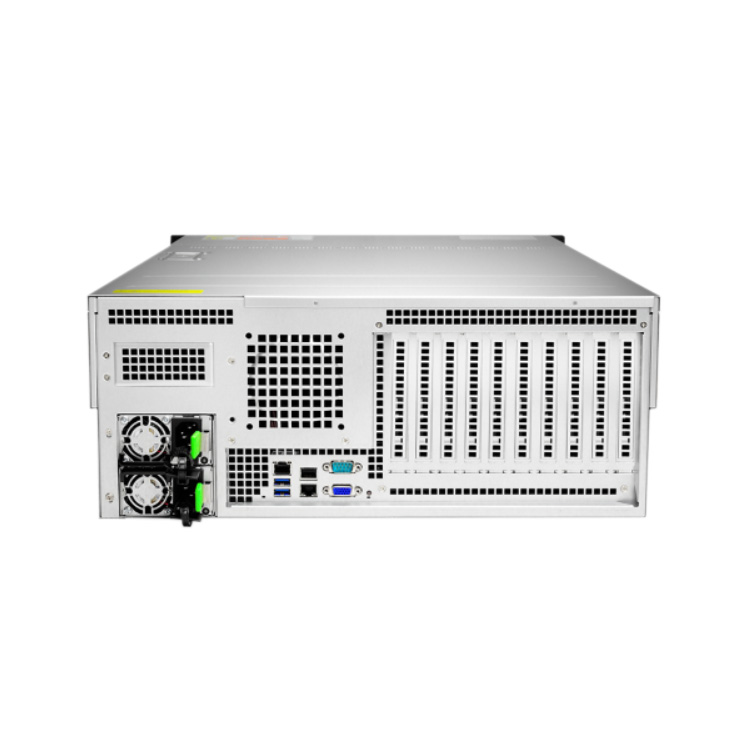

| I/O Ports | Front: 2 USB3.0; Rear: 1 VGA, 1 COM port, 2 USB3.0, 1 management network port, 2 RJ45 network ports |
| PCIe Expansion | Supports 6 PCIe x8 and 4 PCIe x16 |
| Power Supply | Support 550W, 800W, 1300W, 1600W, 2200W redundant power (adapt according to the actual power) |
| Fan | Standard 8x 8038 hot-swap fans |
| Management | 1 dedicated RJ45 management network port, IPMI2.0 |
| Security | Support TPM module |
| Operating System | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu |
| Server Size | 695 x 433.4 x 176.5mm (D x W x H) |
| Working Temperature | Operating: 5ºC - 35ºC (indoor); Storage: -40ºC - 70ºC |
AMD single channel universal rack mounted server, using AMD's third-generation processor platform, supports 16 DDR4 memory, 10 PCIe expansion slots, compatible with up to 5 dual width full-length high-performance GPUs. High performance, flexible configuration, suitable for virtualization, cloud computing, big data processing, high-performance computing, distributed storage, enterprise market or telecommunications business applications and other needs.
