| Model | R740 server |
| Customization Intention | Support customization |
| Form Factor | 2U |
| Processor main frequency | 2.3GHz |
| Processor Type | Xeon Gold 6140, Intel xeon 6140 |
| Products Status | Stock |
| Memory | 24 DDR4 DIMM slots, Max 3TB 16GB DDR4, 2133/2400/2666/2933/3200MT/s 32GB DDR4, 2133/2400/2666/2933/3200MT/s 64GB DDR4, 2133/2400/2666/2933/3200MT/s |
| Drive bays | 8/16 x 2.5” hot-plug SAS/SATA (HDD) or 8 x 3.5” hot-plug SAS/SATA (HDD) |
| Storage controllers | Internal Controllers: PERC H330, H730P, H740P |
| Power supplies | 495W Platinum 750W Platinum 1100W Platinum |
| Embedded management | iDRAC9 |
| I/O & Ports | 4 x 1GbE + 2 x 10GbE + 2 x 1GbE + 4 x 10GbE + 2 x 25GbE |
| Weight | 28.6kg (63.0lbs) |
| Warranty | 3 years |
| Operating System | Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |

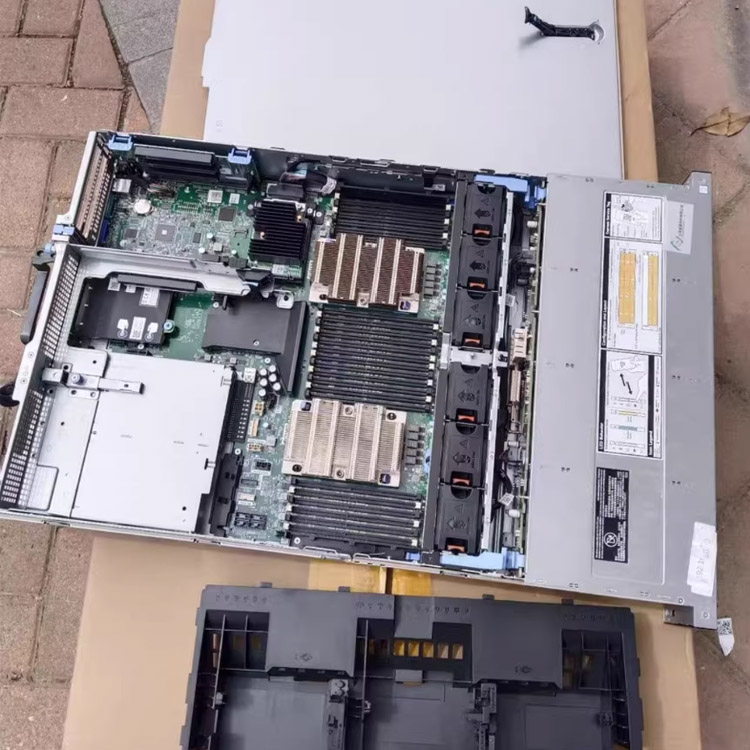

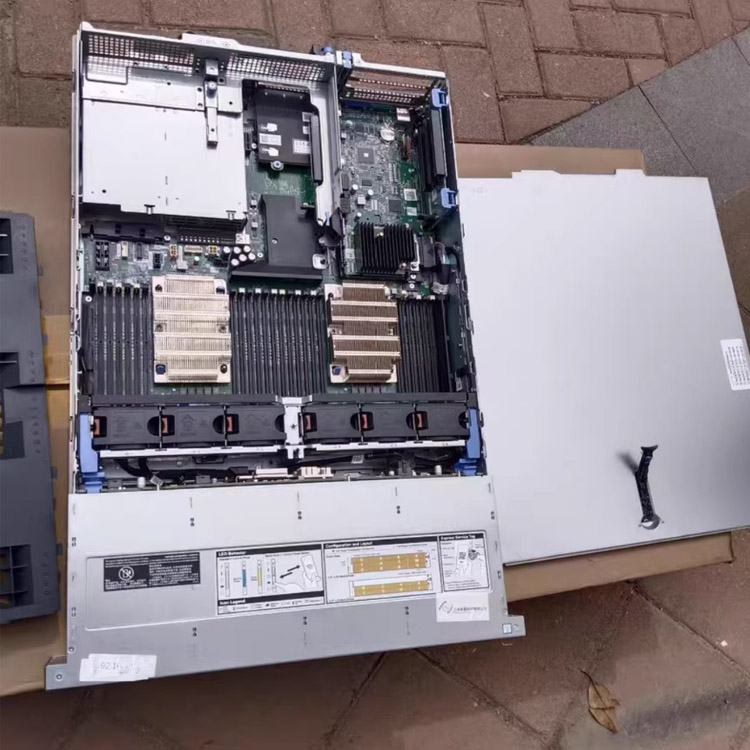

1. Drive backplane | 2. Backplane expansion card | 3. Cooling fans in the cooling fan components (6 pieces) | 4. Memory module | 5. CPU2 processor and heat sink module slot (with dust cover) | 6. Expansion card upgrade board 3 | 7. Network sub card | 8. Expansion card upgrade board 2 | 9. System board | 10. Expansion card upgrade board 1 | 11. Integrated storage controller card | 12. CPU1 processor and heat sink module
