The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | FusionServer 1288H V7 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 1U rack server |
| Processor | 1/2 fourth/fifth generation Intel® xeon® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors |
| Chipset | Emmitsburg PCH |
| Memory | 32 DDR5 memory slots available for flexible selection, up to 5600MT/s |
| Local Storage | Supports multiple different hard drive configurations, and the hard drive supports hot swapping: Can be configured with 4 3.5-inch SAS/SATA/SSD hard drives; Can be configured with 8-12 2.5-inch SAS/SATA/SSD hard drives; 32 E1.S hard drives can be configured* |
| RAID support | Optional configuration supports RAID 0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions. |
| Networking | Support multiple network expansion capabilities. Support OCP 3.0 network cards - 2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0. |
| PCIe | Supports 5 PCIe expansion slots, including 2 dedicated FLEX IO expansion slots for OCP3.0 network cards and 3 standard PCIe expansion slots, with 1 supporting PCIe 5.0. |
| Fan | 8 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power supply | Optional 900W/1200W/1500W/2000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy |
| Manage |
iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. iBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating System | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems |
| Security features | Support power on password, administrator password TPM 2.0, safety panel, safety start, and lid opening detection |
| Operation temperature | 5°C to 45°C (41°F to 113°F) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CE, UL, FCC, CCC, RoHS, etc. |
| Installation package | L-shaped slide, extendable slide, and rail support |
| Size | 43.5mm × 447mm × 798mm |

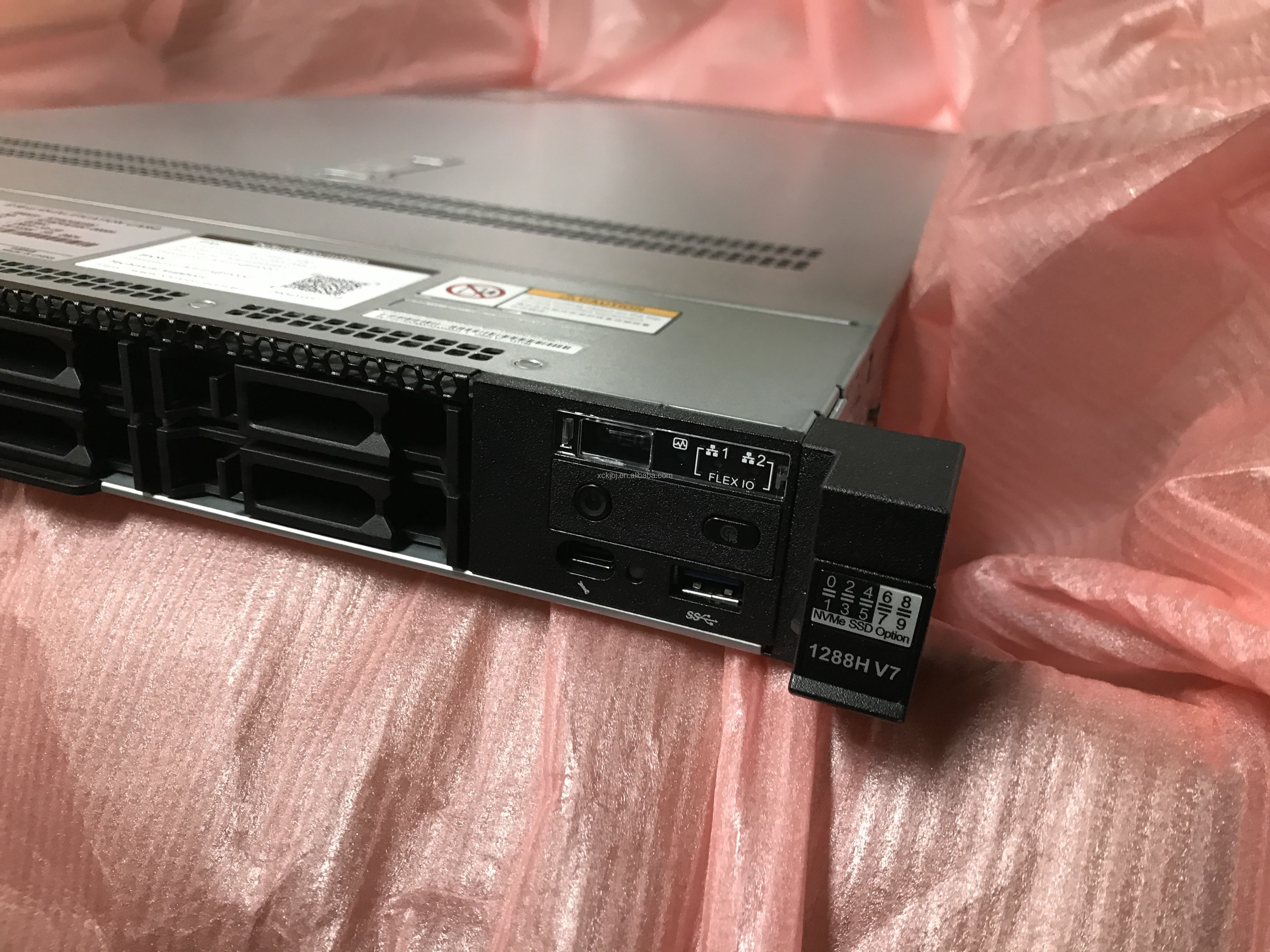

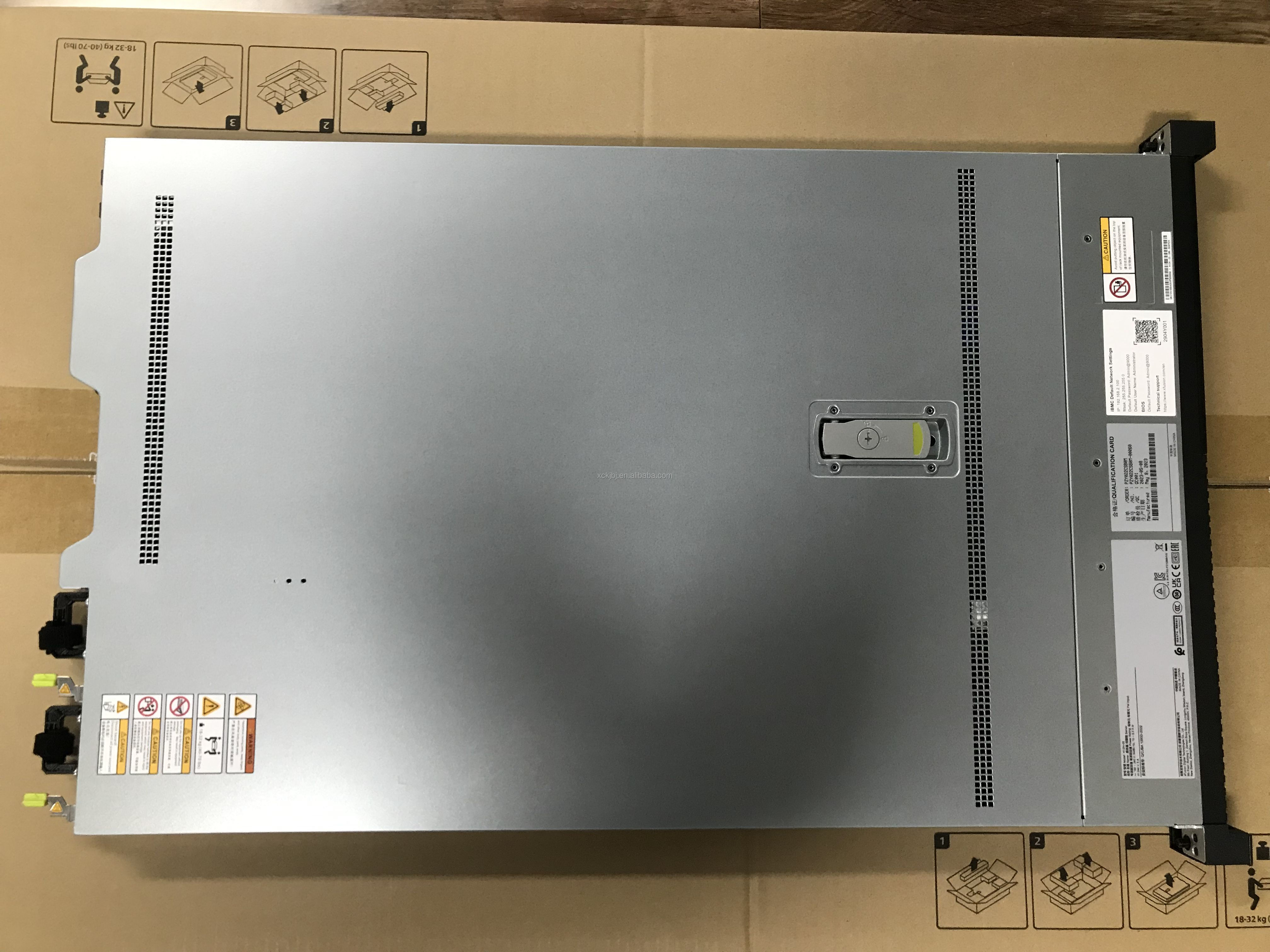

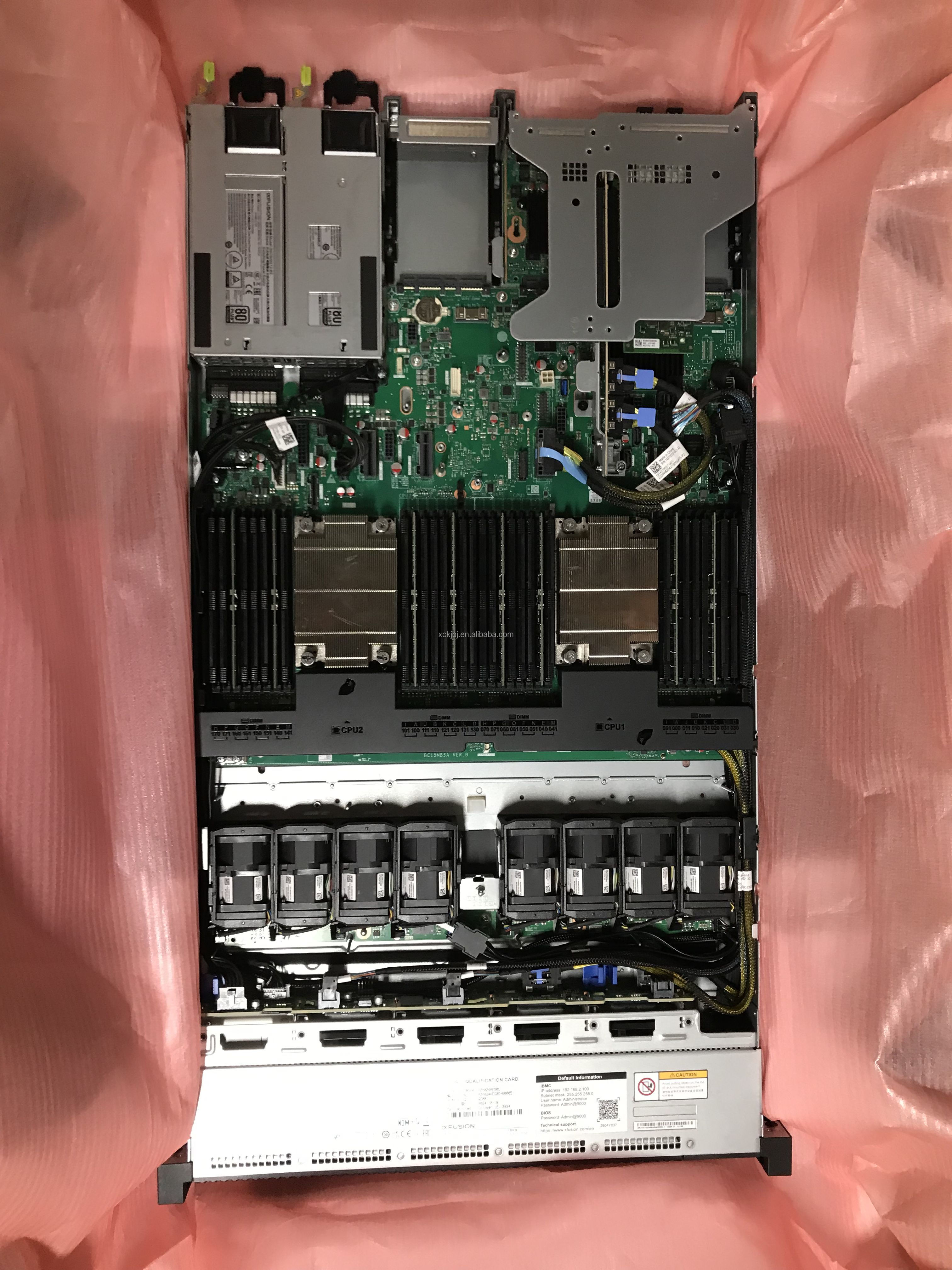

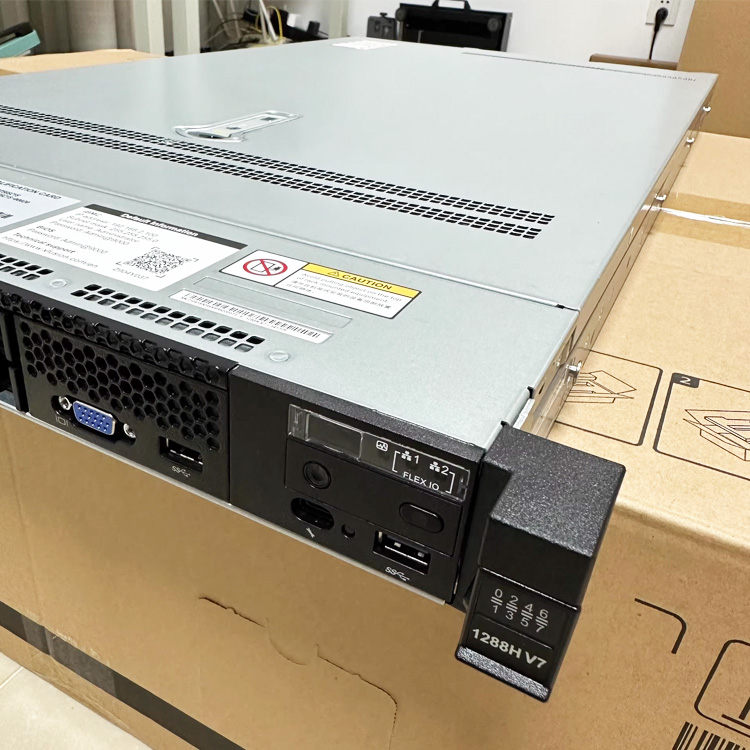

FusionServer 1288H V7 is a new generation of 1U 2-socket rack servers designed for Internet IDC (Internet Data Center), cloud computing, enterprise markets, and telecom applications.
It is perfectly suited for core IT business, cloud computing, virtualization, high-performance computing, and other complex workloads, featuring low energy consumption, strong scalability, high reliability, and ease of management and deployment.
