Cheap Xfusion FusionServer 2288H V5/V6/V7 2U 2-Socket Xeon CPU 2.5/3.5 Inch Rack Mount Server in Stock 3-Year Warranty

Product Description

We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting, and professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
Support Server
Support Server
Products Description
Model FusionServer 2288H V7
Customization Intention Customers Can Freely Choose Specific Configurations
Form Factor 2U rack server
Processor 1/2 fourth/fifth generation Intel ® xeon ® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors
Chipset Emmitsburg PCH
Memory 32 DDR5 memory slots are flexible and optional, up to 5600MT/s, supporting CXL expansion of memory. Up to 16 DDR5 memory slots can be expanded, and the maximum number of memory slots can reach 48*
Local Storage Supports multiple different hard drive configurations, and the hard drive supports hot swapping:
- Can be configured with 8-35 2.5-inch SAS/SATA/SSD hard drives
- Can be configured with 12-18 3.5-inch SAS/SATA hard drives
- Configurable 4/8/16/24 NVMe SSD drives
- Supports up to 45 2.5-inch hard drives or 28 full NVMe SSD
- Support Flash storage
- Supports dual M.2 SSDs, hard RAID, and hot swappable
RAID support Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions
Networking Support multiple network expansion capabilities Support OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0
PCLs Up to 19 PCIe expansion slots* 2 OCP3.0 dedicated FLEX IO expansion slots, supporting 17 standard PCIe expansion slots, including 8 PCIe 5.0 slots
GPU acceleration card Supports 4 dual width GPU acceleration cards or 14 single width GPU acceleration cards*
Fan 4 hot swappable counter rotating fans, supporting N+1 redundancy
Power supply Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy
Manage BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features
BMC supports standard interfaces such as Red, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity
FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle
Operating system Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems
Security features Support power on password, administrator password TPM 2.0, safety features such as safety panel, safety start, and lid opening detection
Operation temperature 5ºC~50ºC (41ºF~122ºF) (compliant with ASHRAE Class A1/A2/A3/A4)
Product Certification CE, UL, CCC, FCC, VCCI, RoHS etc.
Installation package Support L-shaped slide, extendable slide, and rail support
Size 86.1mm × 447mm × 798mm
FusionServer 2288H V7
FusionServer 2288H V7
FusionServer 2288H V7 (hereinafter referred to as 2288H V7) is a new generation of 2U 2-socket rack servers with a wide range of applications, designed to meet the needs of SDS, VDI, CDN, virtualization, big data, databases, cloud scenarios, AI inference, small businesses, OA, web application business applications, and other complex workloads. The 2288H V7 has the advantages of low energy consumption, strong scalability, high reliability, easy management, and easy deployment.
Applicable to: SDS / VDI / CDN / Virtualization / Big Data / Database / Cloud Scene / AI Reasoning / Small Business / OA / Web Application

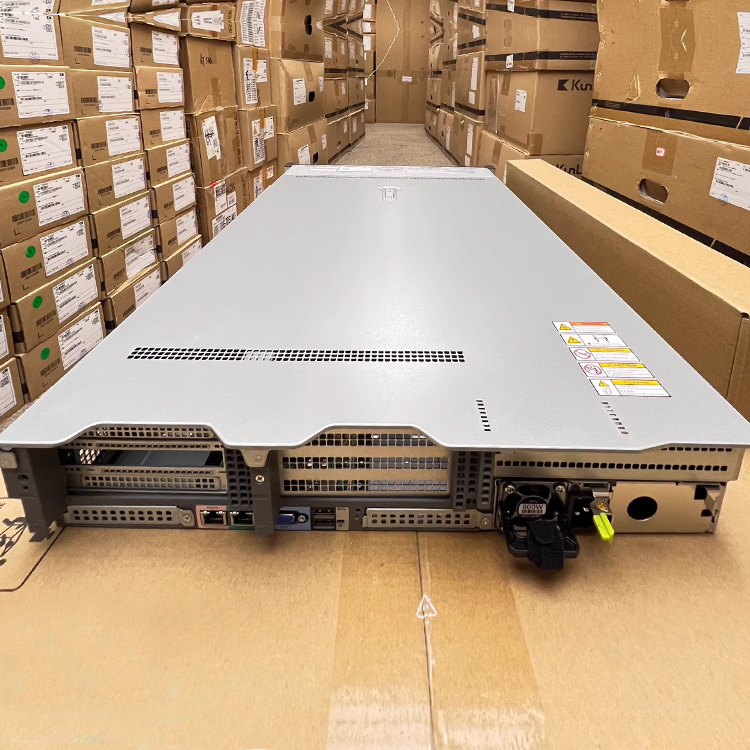

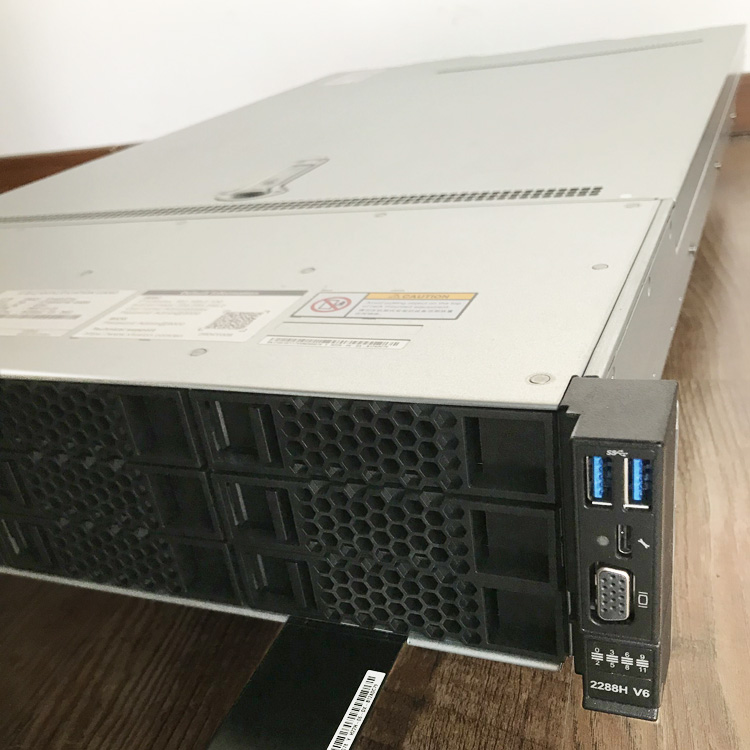

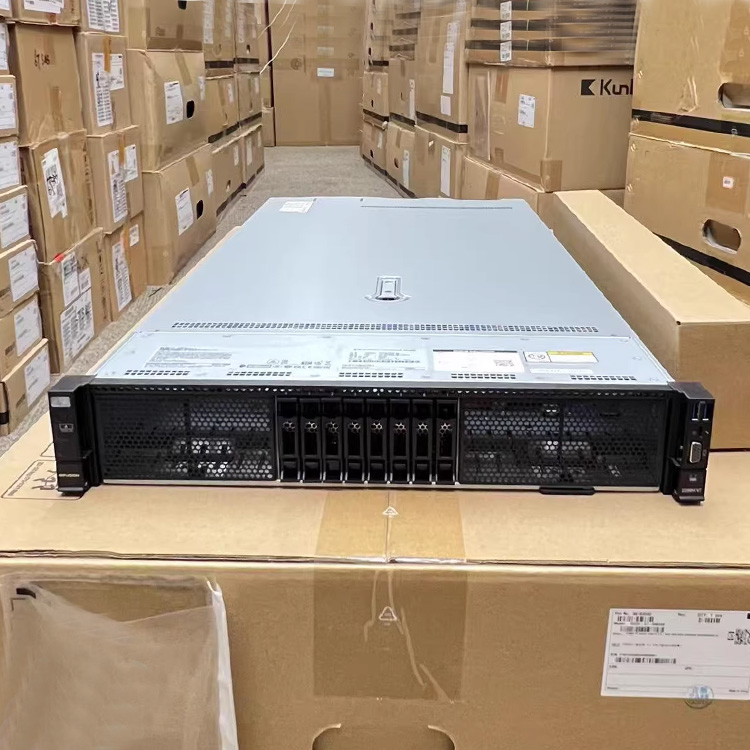

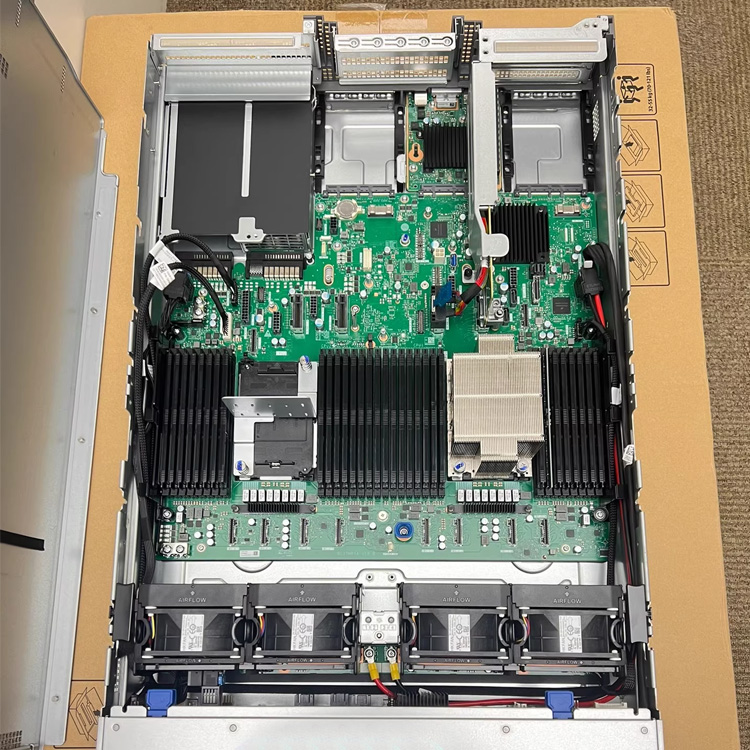

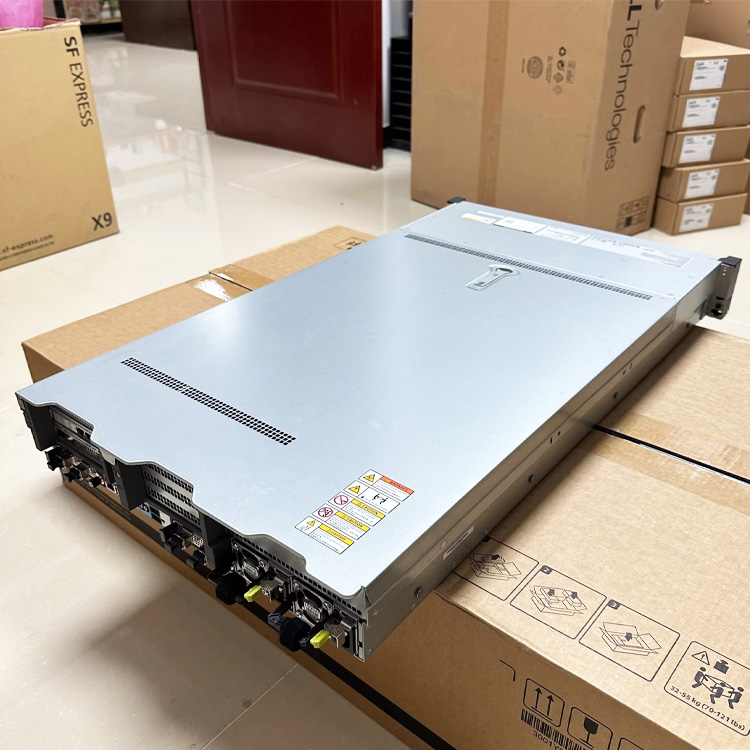

Details Images
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Company Profile
We are specialized in computer hardware sales, network platform construction, and maintenance of IT solutions. Our main products cover Dell, HP, IBM, Lenovo, Huawei, and other industry-leading brands. We have a robust sales network system, stable commodity supply channels, and an excellent technical support team. Based on these advantages, our business has expanded rapidly, making us an outstanding server system integrator and solution provider for numerous enterprises and institutions. Since our inception, we have established a strong customer relationship maintenance and support system. We are committed to fair market competition, active open cooperation, and strong supplier partnerships across various regions. In a competitive market, we adhere to the business philosophy of "Customer First, Honest and Pragmatic, Service First" to gain social trust. We wish our professional quality and first-class service can support your enterprise's goals.
Company Showcase 1
Company Showcase 2
Company Showcase 3
Buyer Reviews
Buyer Reviews
Our Advantages
Advantage 1
Advantage 2
Frequently Asked Questions
Q Is it brand new from the original factory?
Yes, all our products are brand new from the original factory.
Q How long is the delivery time?
Typically 1-3 working days after your payment is confirmed.
Q How long is the warranty period?
Our products come with different warranty options. If necessary, we can extend the warranty service up to five years.
Q What is the minimum order quantity?
We accept orders from 1 set. Please feel free to inquire.
Q What are your payment methods?
We accept T/T, Western Union, and secure online platform payments.
Q Can it be sent to our freight forwarder?
Yes, we can send the goods to your domestic freight forwarder for free.
