The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, it consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dells and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

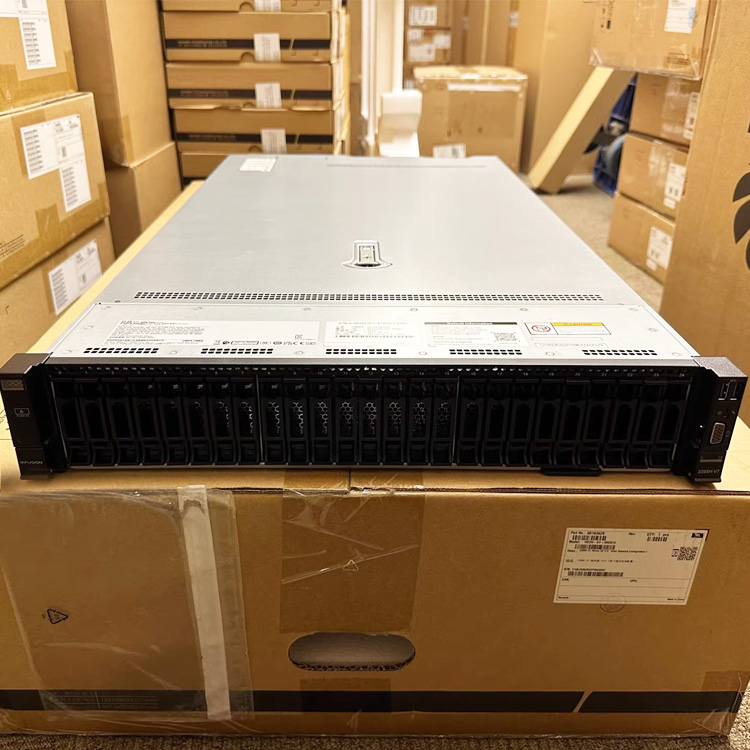

| Model | FusionServer 2288H V7 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 fourth/fifth generation Intel ® xeon ® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors |
| Chipset | Emmitsburg PCH |
| Memory | 32 DDR5 memory slots are flexible and optional, up to 5600MT/s, supporting CXL expansion of memory. Up to 16 DDR5 memory slots can be expanded, and the maximum number of memory slots can reach 48* |
| Local Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping: - Can be configured with 8-35 2.5-inch SAS/SATA/SSD hard drives - Can be configured with 12-18 3.5-inch SAS/SATA hard drives - Configurable 4/8/16/24 NVMe SSD drives - Supports up to 45 2.5-inch hard drives or 28 full NVMe SSD - Support Flash storage - Supports dual M.2 SSDs, hard RAID, and hot swappable |
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Support multiple network expansion capabilities Support OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0 |
| PCLs | Up to 19 PCIe expansion slots* 2 OCP3.0 dedicated FLEX IO expansion slots, supporting 17 standard PCIe expansion slots, including 8 PCIe 5.0 slots |
| GPU acceleration card | Supports 4 dual width GPU acceleration cards or 14 single width GPU acceleration cards* |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power supply | Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy |
| Manage |
BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. BMC supports standard interfaces such as Red, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating system | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems |
| Security features | Support power on password, administrator password TPM 2.0, Safety features such as safety panel, safety start, and lid opening detection |
| Operation temperature | 5ºC ~ 50ºC (41ºF ~ 122ºF) (compliant with ASHRAE Class A1/A2/A3/A4) |
| Product Certification | CE, UL, CCC, FCC, VCCI, RoHS etc. |
| Installation package | Support L-shaped slide, extendable slide, and rail support |
| Size | 86.1mm × 447mm × 798mm |
