| Model | ThinkSystem DE6000H |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor |

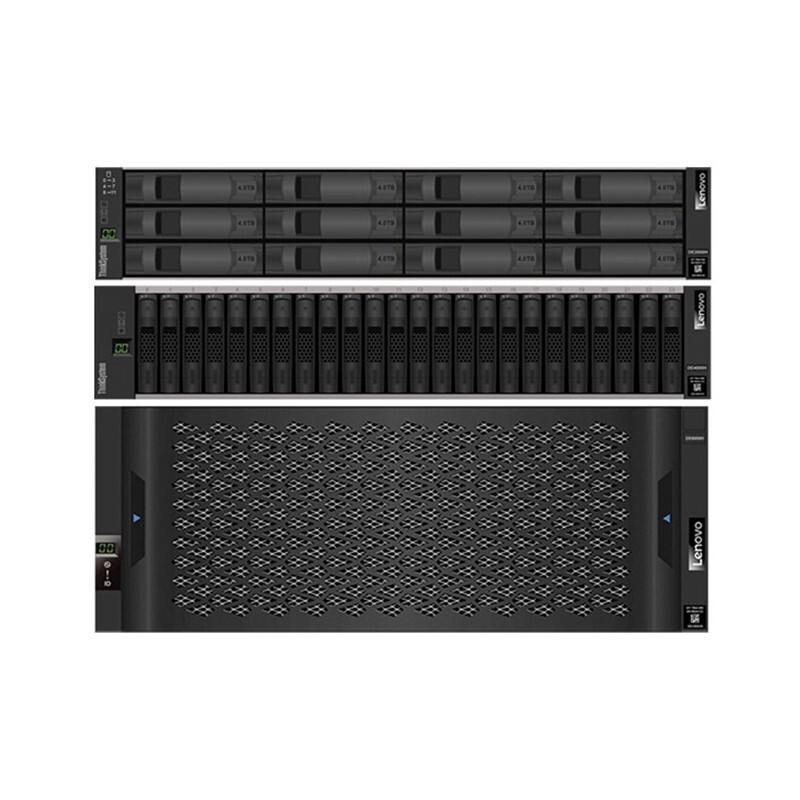

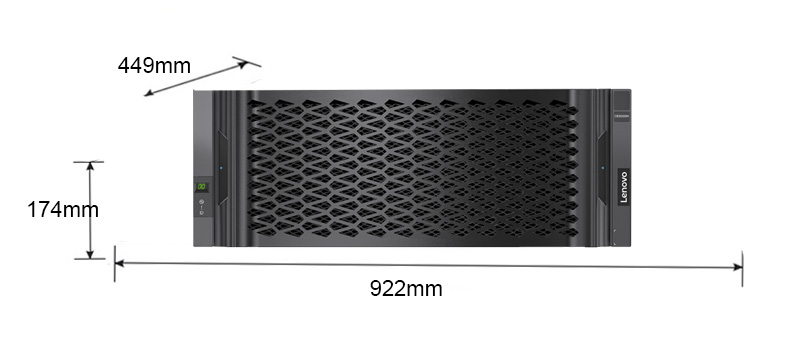

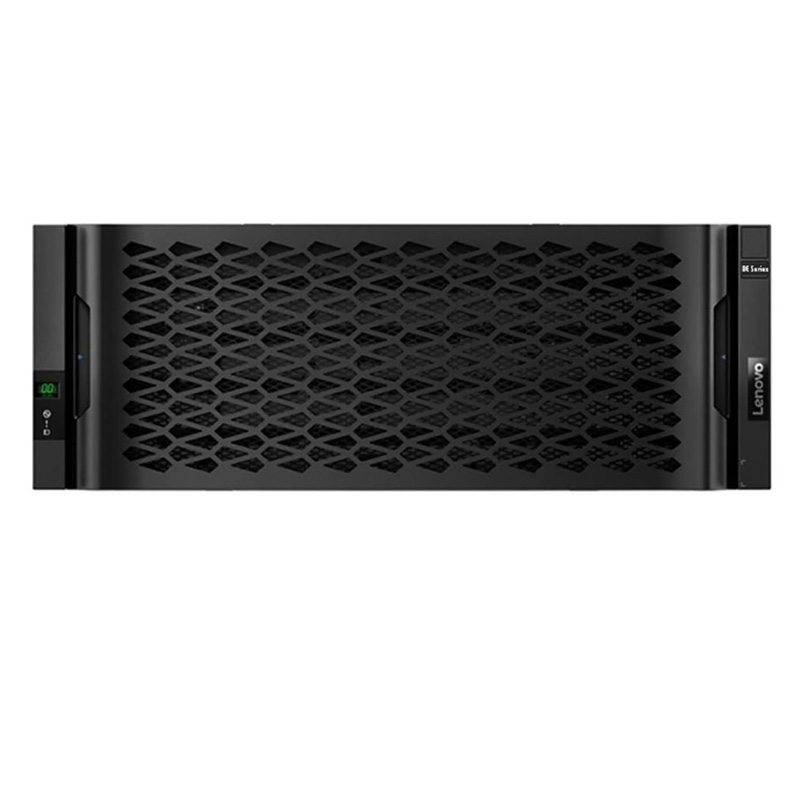

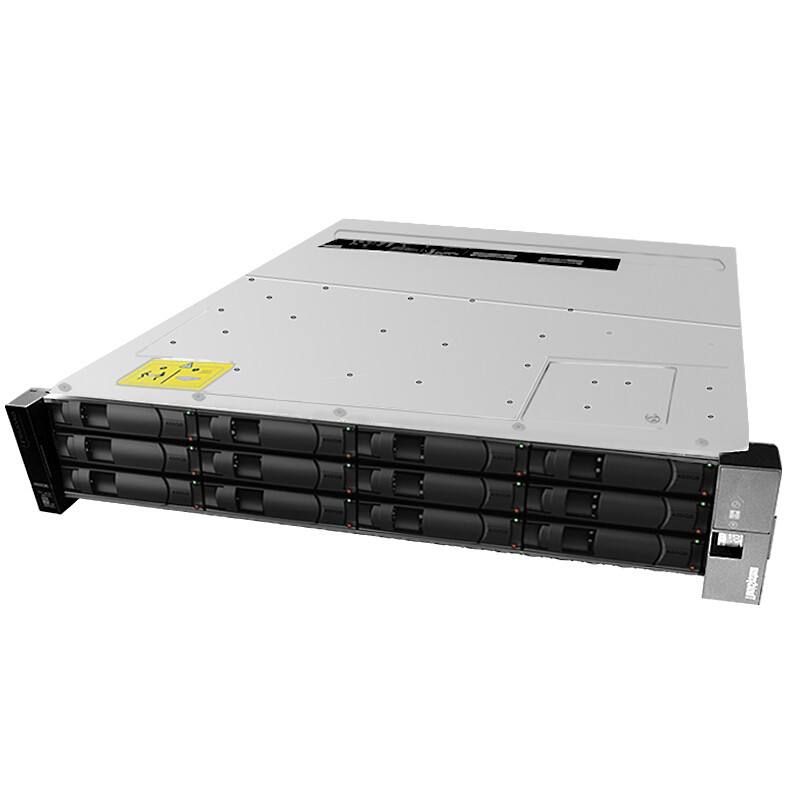

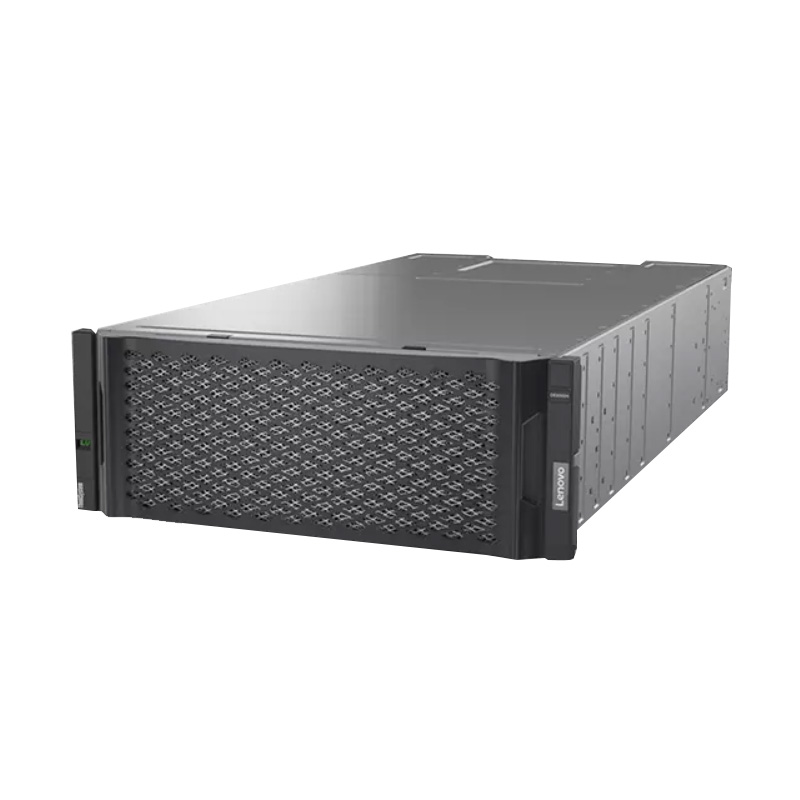

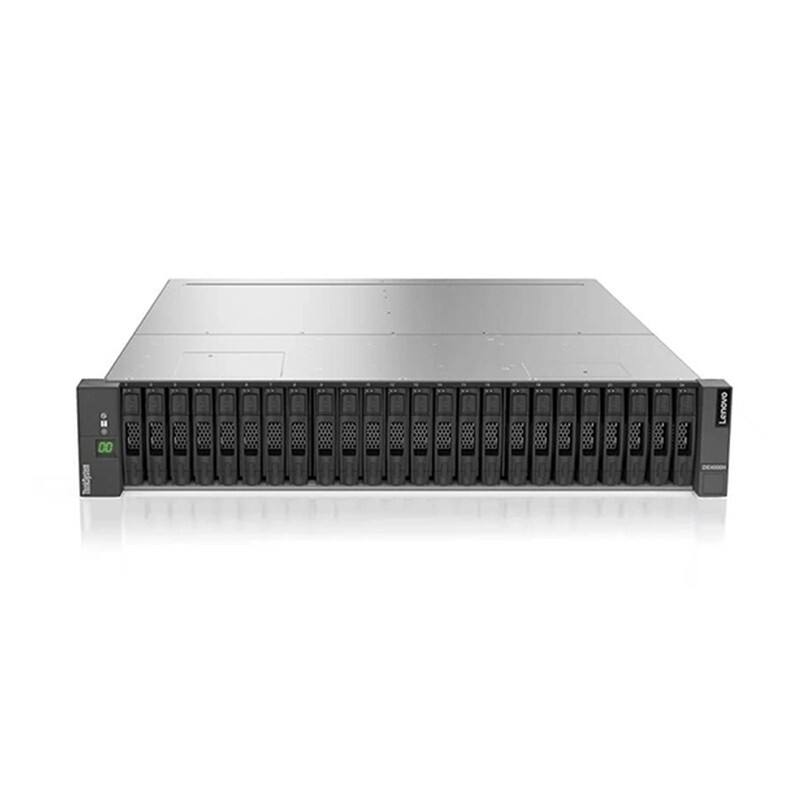

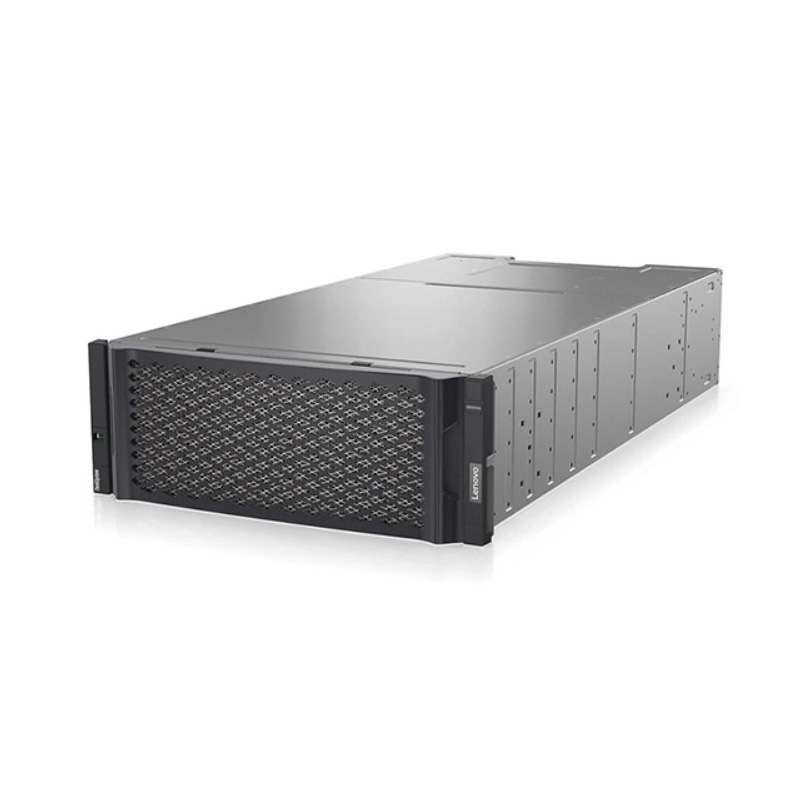

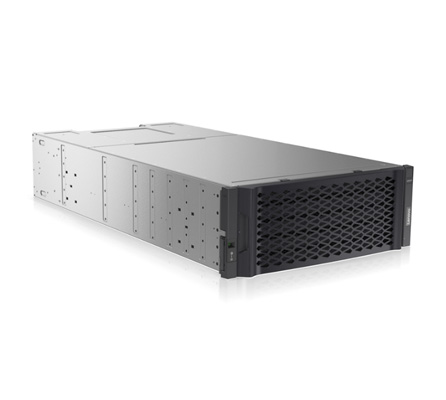

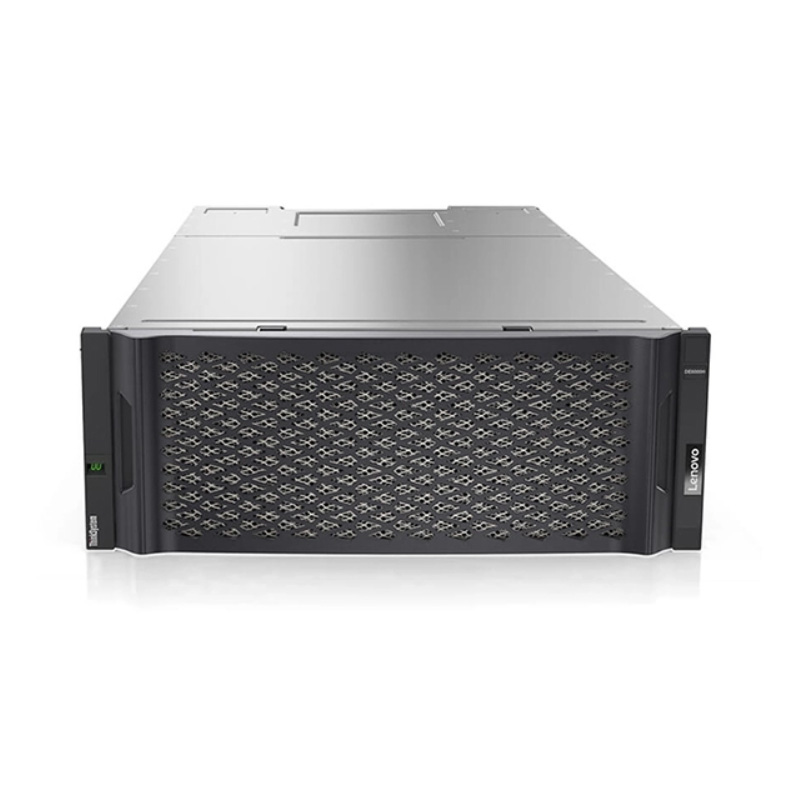

* DE6000H 2U24 SFF controller enclosure: 2U rack mount. * DE6000H 4U60 LFF controller enclosure: 4U rack mount. * Expansion enclosures available in 2U24 SFF, 2U12 LFF, and 4U60 LFF. |
| Controller configuration | Dual active-active controller configuration with automatic load balancing. |
| RAID levels | RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools. |
| Controller system memory | 32 GB or 128 GB per system (16 GB or 64 GB per controller). Cache mirroring and Flash-backed cache protection. |
| Drive technology | 12 Gb SAS and NL SAS HDDs, SAS SSDs. Intermix supported. |
| Storage capacity | Base configuration: 4.2 PB. Optional upgrade: Up to 8.4 PB (480x 18 TB SAS HDDs). |

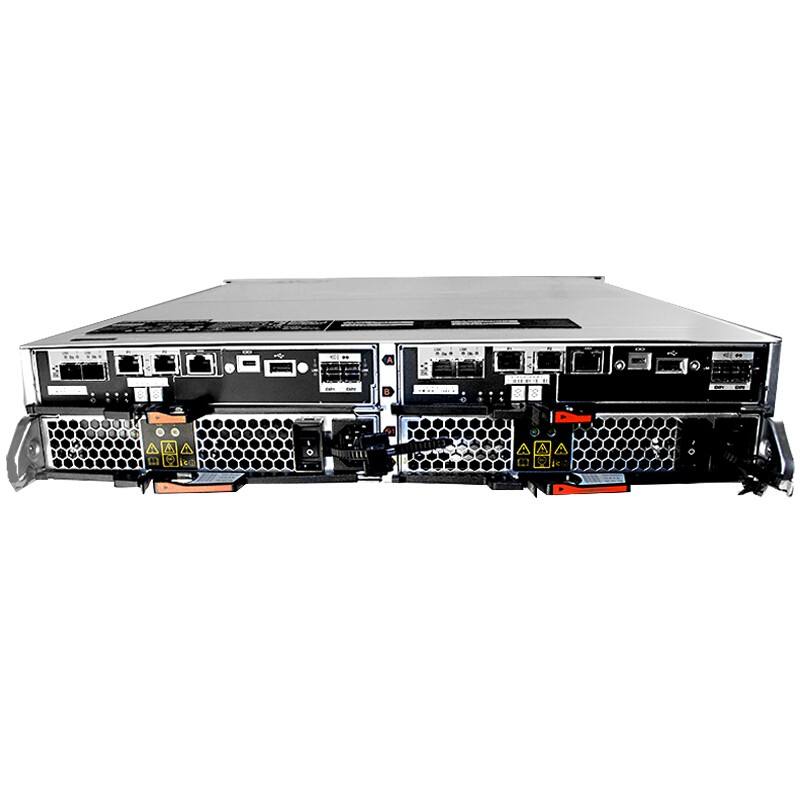

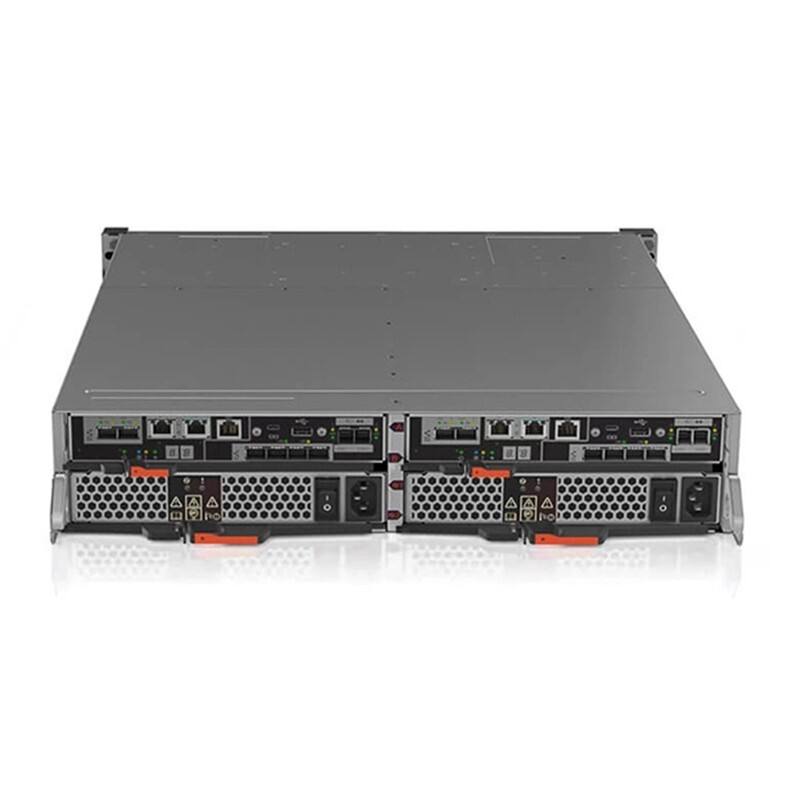

| Host connectivity | 8x 12 Gb SAS, 8x 10/25 Gb iSCSI, 8x 8/16/32 Gb FC, or 4x 25/40/100 Gb NVMe/RoCE QSFP28 ports. |
| Performance | Up to 1,000,000 random read IOPS; Up to 21 GBps sequential read throughput. |

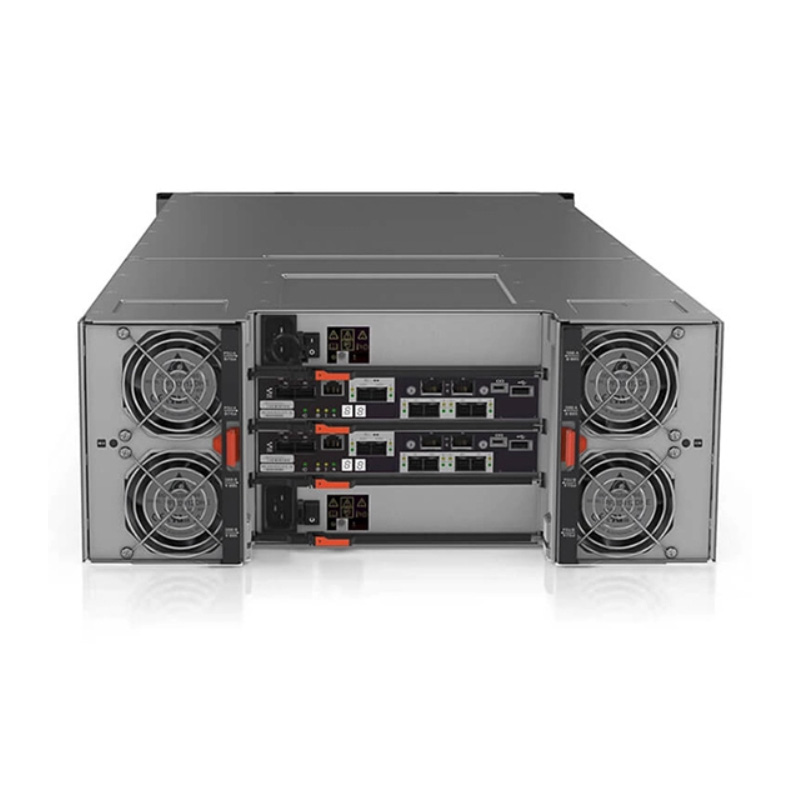

| Power supply | Two redundant hot-swap 913 W or 2325 W Platinum AC power supplies. |

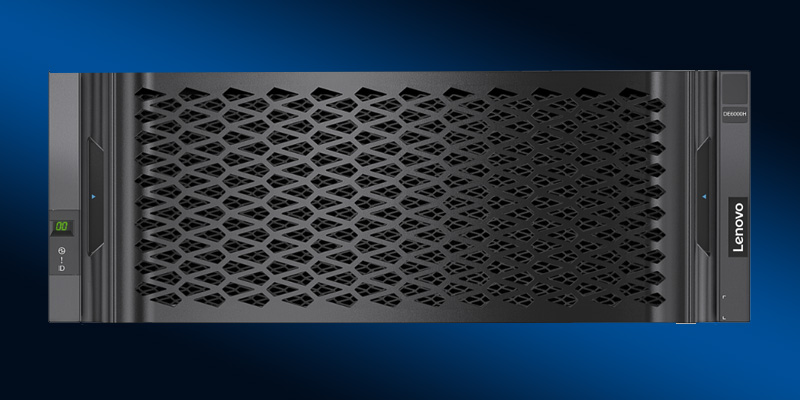

ThinkSystem DE6000H: A scalable, hybrid mid-range storage system designed for high performance, simplicity, capacity, and security. It is perfect for big data analytics, video surveillance, technical computing, and backup/recovery workloads.
