Vertex AI Server
1 / 5

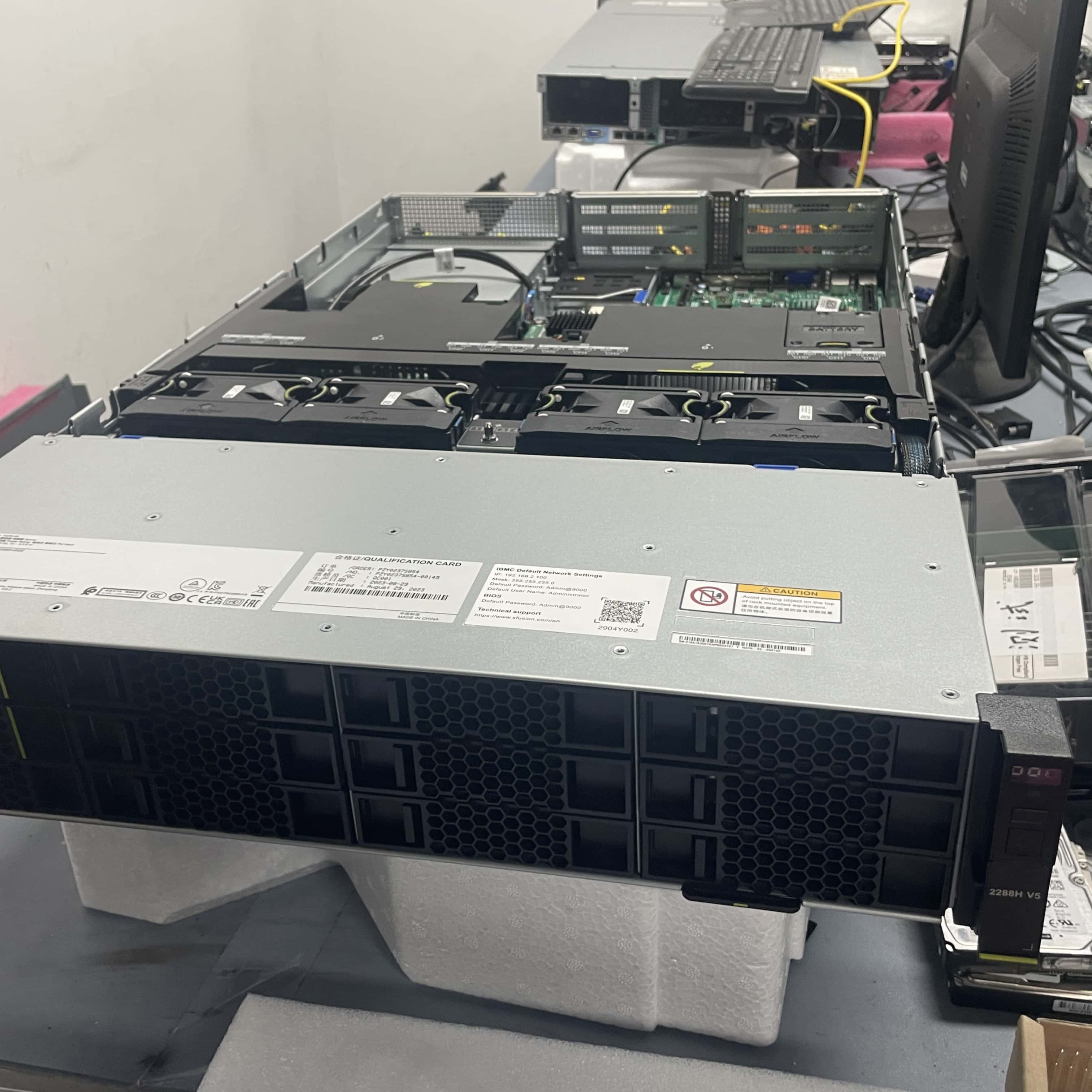

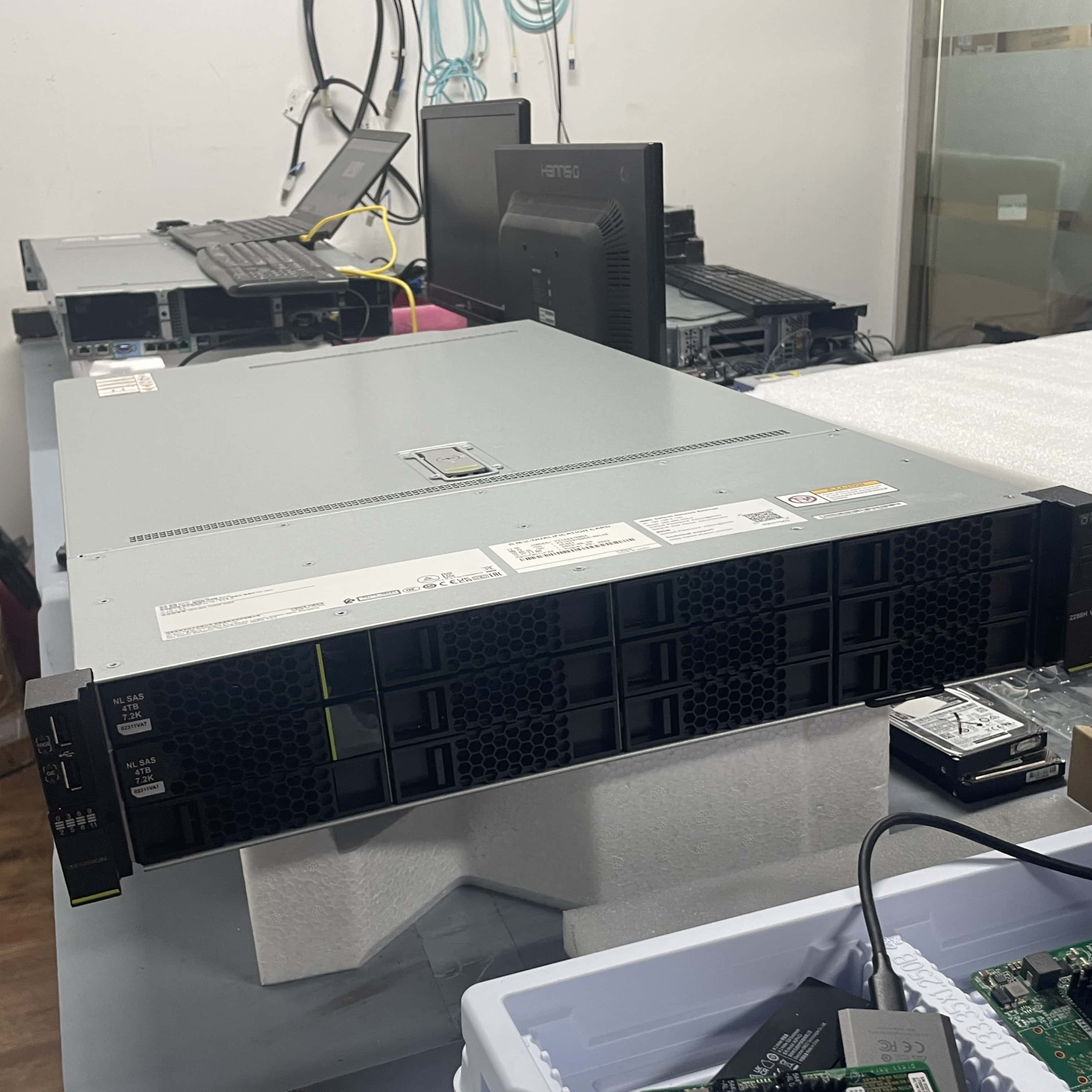

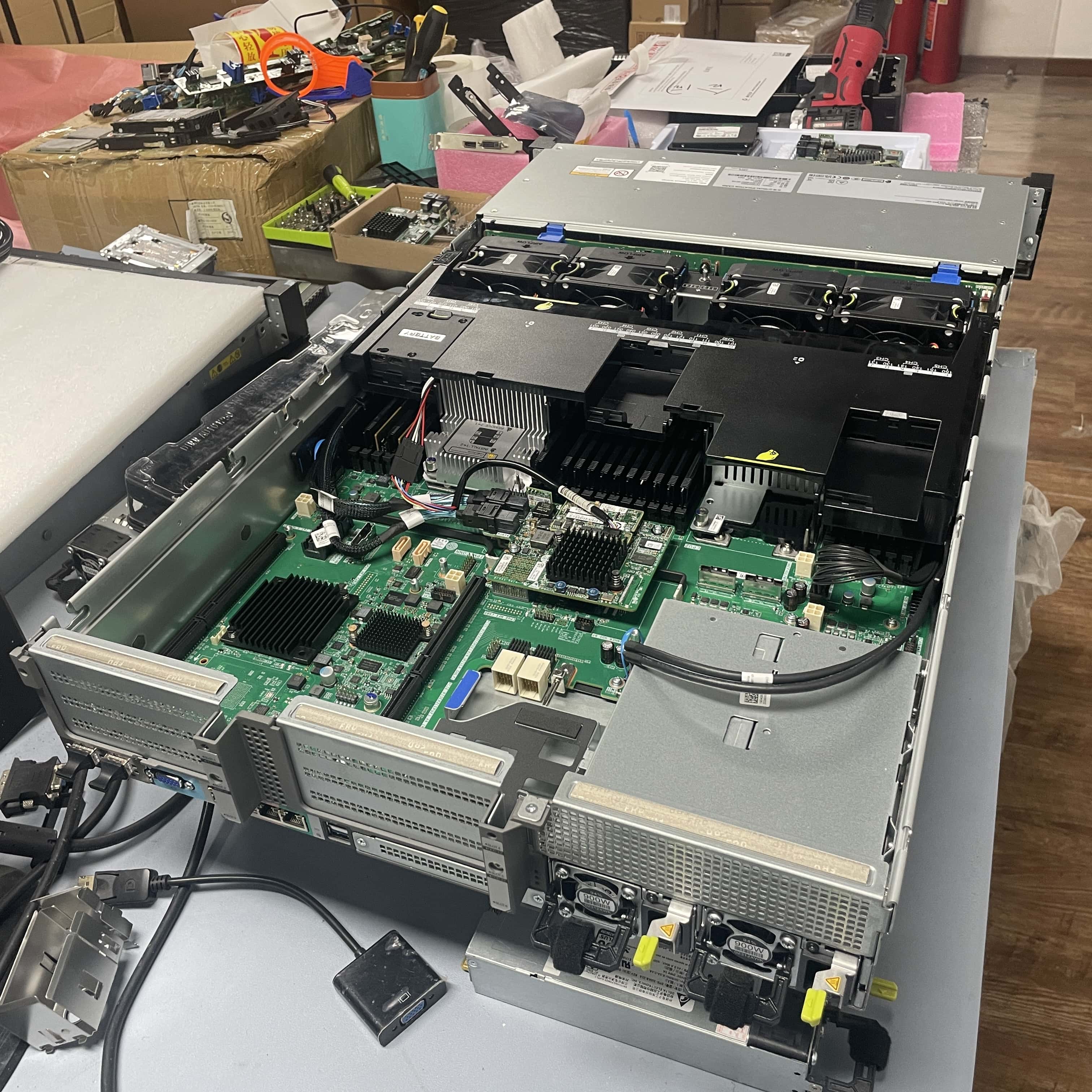

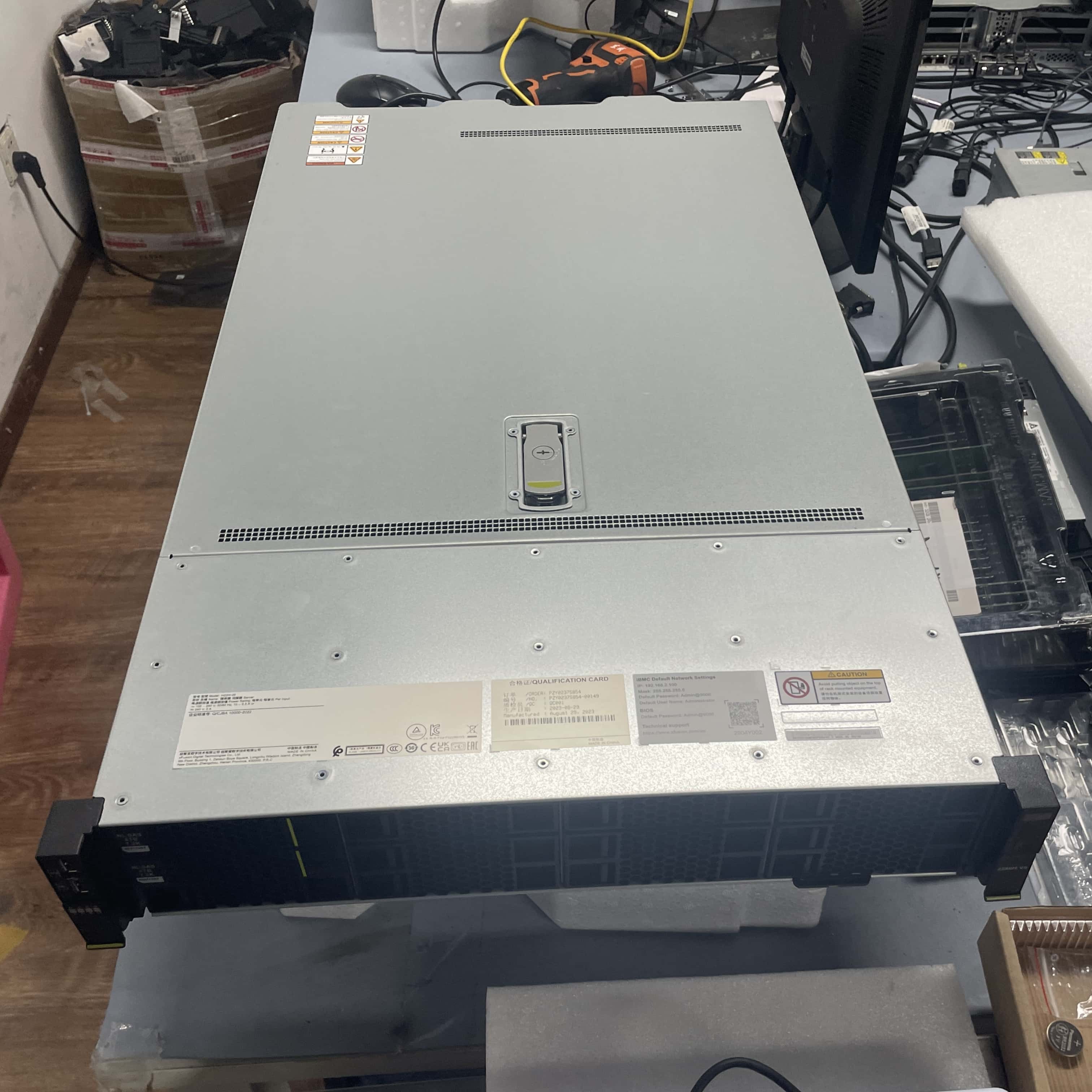

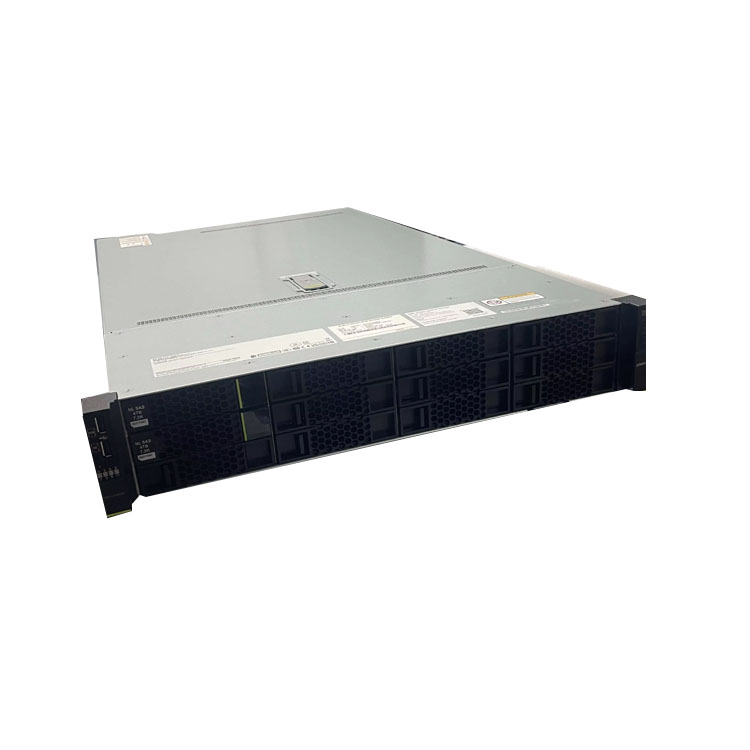

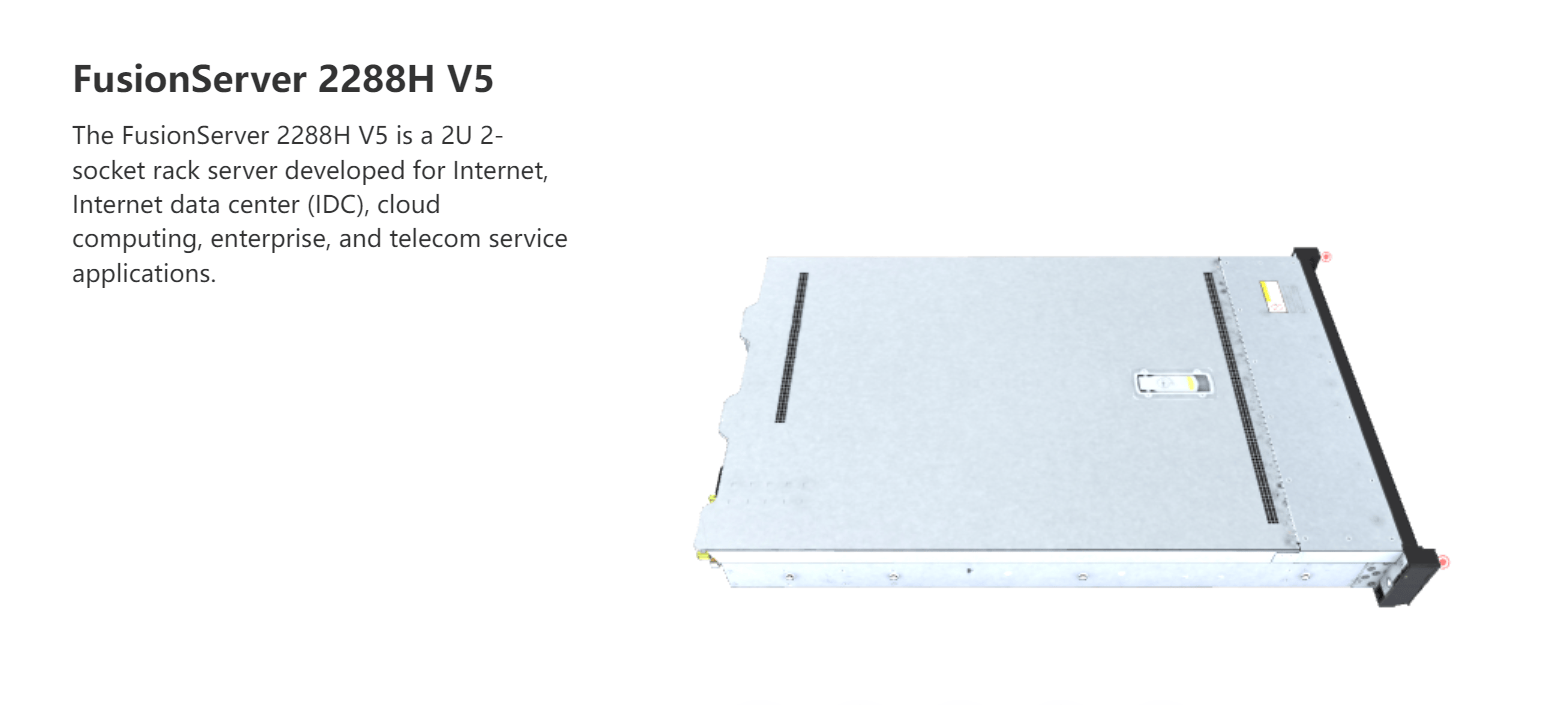

| Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors | 1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Internal Storage | Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SATA SSDs, hot swappable, hardware RAID |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports | LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Accelerator Card | Up to 7 single-width half-height half-length accelerator cards Up to 2 dual-width full-height full-length accelerator cards |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy. Options: 550W/900W/1500W AC Platinum/Titanium, 1500W 380V HVDC, 1200W -48V to -60V DC PSUs |
| Management | BMC integrates one dedicated GE port for fault diagnosis, automated O&M, and hardware security. Supports Redfish, SNMP, IPMI 2.0. Optional FusionDirector for advanced life-cycle management. |
| Operating Temp | 5ºC to 45ºC (41ºF to 113ºF), ASHRAE A3 and A4 compliant |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Dimensions | 3.5-inch drives: 86.1 x 447 x 748 mm 2.5-inch drives: 86.1 x 447 x 708 mm |
