We have 10 years of distribution experience. As a high-tech enterprise integrating system integration, IT consulting, and professional IT services, we are a key business partner of leading brands including Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize solutions freely according to your needs!
| Specification | FusionServer 2288H V5 | FusionServer 2288H V6 | FusionServer 2288H V7 |
|---|---|---|---|
| Form Factor | 2U | 2U | 2U |
| Processor |
• 1/2 of the first generation Intel Xeon Scalable processors 3100/4100/5100/6100/8100 series, up to 205W, supporting Lanchijin processors. • 1/2 second-generation Intel Xeon Scalable processors 3200/4200/5200/6200/8200 series, up to 205W, supporting Lanchijin processors. |
1/2 of third-generation Intel Xeon Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, supporting Lanchijin processors. | 1/2 fourth/fifth generation Intel Xeon Scalable processor, with a maximum support of 385W per processor, supporting Lanchijin processors. |
| Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel Optane Persistent memory 100 series, up to 2666MT/s. | 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel Optane Persistent memory 200 series, up to 3200MT/s. | 32 DDR5 memory slots are flexible and optional, up to 5600MT/s, supporting CXL expansion of memory. Up to 16 DDR5 memory slots can be expanded, and the maximum number of memory slots can reach 48. |
| Local Storage |
Supports multiple different hard drive configurations, with support for hot swapping: • Configurable with 8 x 2.5-inch SAS/SATA/SSD hard drives. • Configurable with 12/16/20 x 3.5-inch SAS/SATA hard drives. • Configurable with 4/8/12/24/28 NVMe SSD hard drives. • Configurable with 31 x 2.5-inch SAS/SATA/SSD hard drives. • Configurable with 2 x M.2 SATA SSD hard drives, supporting hardware RAID. |
Supports multiple different hard drive configurations, with support for hot swapping: • Configurable with 8 x 2.5-inch SAS/SATA/SSD hard drives. • Configurable with 12-20 x 3.5-inch SAS/SATA hard drives. • Configurable with 4/8/16/24 NVMe SSD drives. • Supports up to 45 x 2.5-inch hard drives or 34 full NVMe SSD. • Configurable with 2 x M.2 SSD hard drives. |
Supports multiple hard drive configurations, with support for hot swapping: • Configurable with 8-35 x 2.5-inch SAS/SATA/SSD hard drives. • Configurable with 12-18 x 3.5-inch SAS/SATA hard drives. • Configurable with 4/8/16/24 NVMe SSD drives. • Supports up to 45 x 2.5-inch hard drives or 28 full NVMe SSD. • Flash storage: Supports dual M.2 SSDs, hardware RAID, and hot-swapping. |
| RAID Support | Optional configuration supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web remote configuration. | Optional configuration supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web remote configuration. | Optional configuration supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web remote configuration. |
| Networking | Onboard network card: 2 x 10GE interfaces and 2 x GE interfaces. Flexible card insertion: optional 2 * GE, 4 * GE, 2 * 10GE, 2 * 25GE, or 1/2 56G FDR IB interfaces. | Supports multiple network expansion capabilities, supports OCP 3.0 network cards. Two FLEX IO card slots each support 2 OCP 3.0 network cards, supporting on-demand selection. Supports hot swapping. | Supports multiple network expansion capabilities. Supports OCP 3.0 network cards. Two FLEX IO card slots each support 2 OCP 3.0 network cards, selected as needed. Supports hot plugging and PCIe 5.0. |
| PCIe Slots | Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card. | 14 PCIe 4.0 expansion slots, supporting multiple applications. | Up to 19 PCIe expansion slots. 2 OCP 3.0 dedicated FLEX IO expansion slots, supporting 17 standard PCIe expansion slots, including 8 PCIe 5.0 slots. |
| GPU | - | - | Supports 4 dual-width GPU acceleration cards or 14 single-width GPU acceleration cards. |
| Heterogeneous Acceleration | Up to 7 single-slot half-height half-length cards; Up to 2 dual-slot full-height full-length cards. | Supports 4 x 300W full-height full-length dual-width GPU acceleration cards, or 11 half-height half-length single-width GPU acceleration cards, or 8 full-height full-length single-width GPU acceleration cards. | - |
| Fan | 4 hot-swappable counter-rotating fans, supporting N+1 redundancy. | 4 hot-swappable counter-rotating fans, supporting N+1 redundancy. | 4 hot-swappable counter-rotating fans, supporting N+1 redundancy. |
| Power Supply | Configurable with two redundant hot-swappable power supplies (1+1 redundancy). Options: 550W AC Platinum, 900W AC Platinum/Titanium, 1500W AC Platinum, 1500W 380V High Voltage DC, or 1200W -48V to -60V DC. | Configurable with two redundant hot-swappable power supplies (1+1 redundancy). Options include: 900W AC Platinum/Titanium, 1500W AC Platinum, 1000W AC, 1500W AC, 1500W 380V High Voltage DC, 1200W -48V to -60V DC, 3000W AC Titanium, 2500W AC, 2900W AC, 3000W AC, or 2000W AC Platinum. | Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot-swappable power supply, supporting 1+1 redundancy. |
| Management | BMC chip integrates dedicated management GE network port, providing fault diagnosis, automated O&M, and hardware security reinforcement. BMC supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM. Optional FusionDirector management software. | BMC chip integrates dedicated management GE network port, providing fault diagnosis, automated O&M, and hardware security reinforcement. BMC supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM. Optional FusionDirector management software. | BMC chip integrates dedicated management GE network port, providing fault diagnosis, O&M, and security. BMC supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM. Optional FusionDirector management software. |
| Operating Temperature & OS | 5°C to 45°C (41°F to 113°F) (compliant with ASHRAE A3 and A4 standards). | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more. | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more. |
| Product Certification | CE, UL, FCC, CCC, RoHS etc. | CE, UL, CCC, FCC, VCCI, RoHS etc. | CE, UL, CCC, FCC, VCCI, RoHS etc. |
| Installation Support | L-shaped slide, extendable slide, and rail support. | Supports L-shaped slide, extendable slide, and rail support. | Supports L-shaped slide, extendable slide, and rail support. |
| Dimensions | 86.1mm × 447mm × 748mm | 86.1mm × 447mm × 790mm | 86.1mm × 447mm × 798mm |

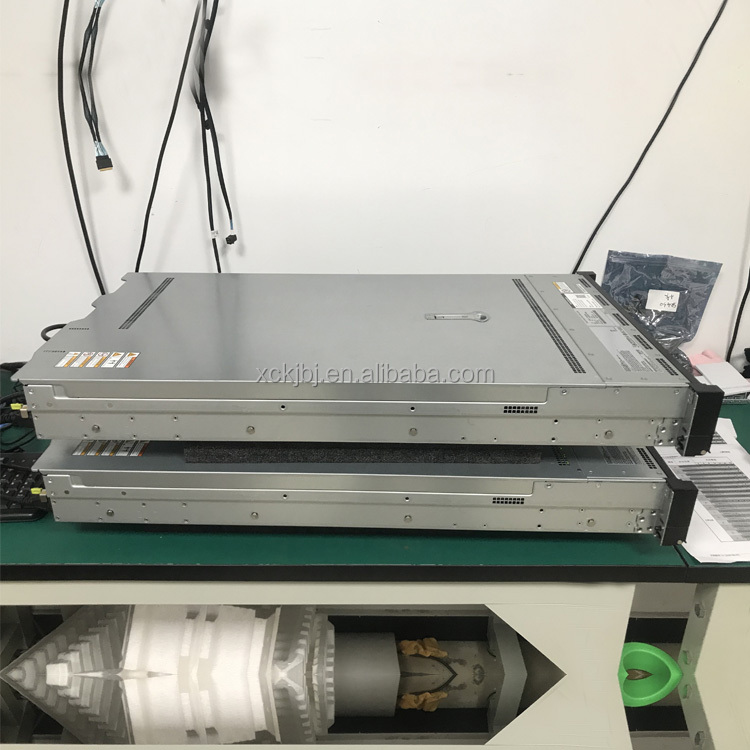

FusionServer 2288H V5 is a 2U rack server with flexible configuration, equipped with 24 DDR4 memory expansion slots and 10 PCIe expansion slots, as well as up to 20 x 3.5 inches or 31 x 2.5 inches of local storage resources (configurable with 4/8/12/24/28 NVMe SSD hard drives). Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns. Suitable for cloud computing virtualization, databases, big data, and other workloads.

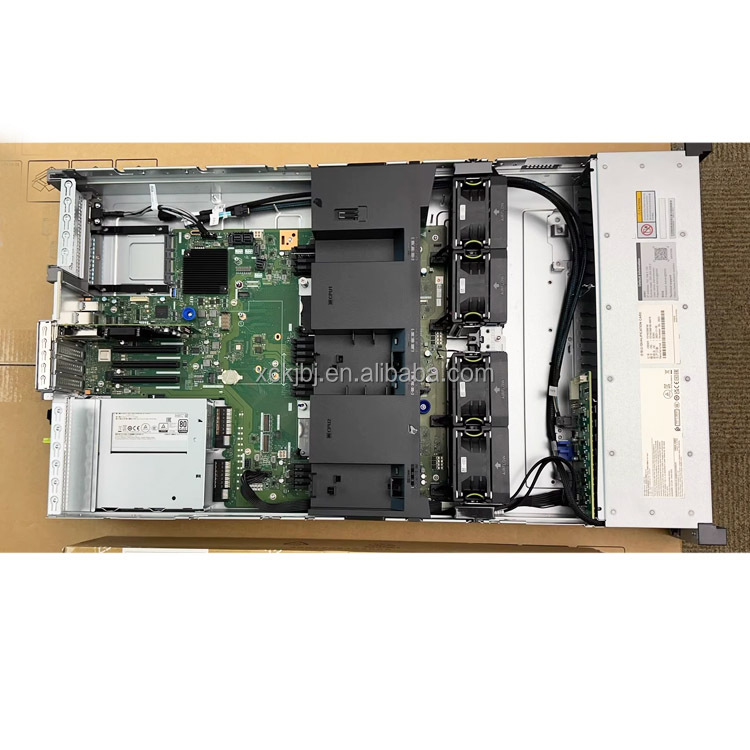

FusionServer 2288H V6 is a 2U rack-mounted server with flexible configuration that can be widely used for workloads such as cloud computing, virtualization, databases, and big data. The 2288H V6 can be configured with 2 Intel Xeon Scalable processors, 16/32 DDR4 memory, 14 PCIe expansion slots, and supports large-capacity local storage resources. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector software, it can effectively reduce operating costs and improve returns.

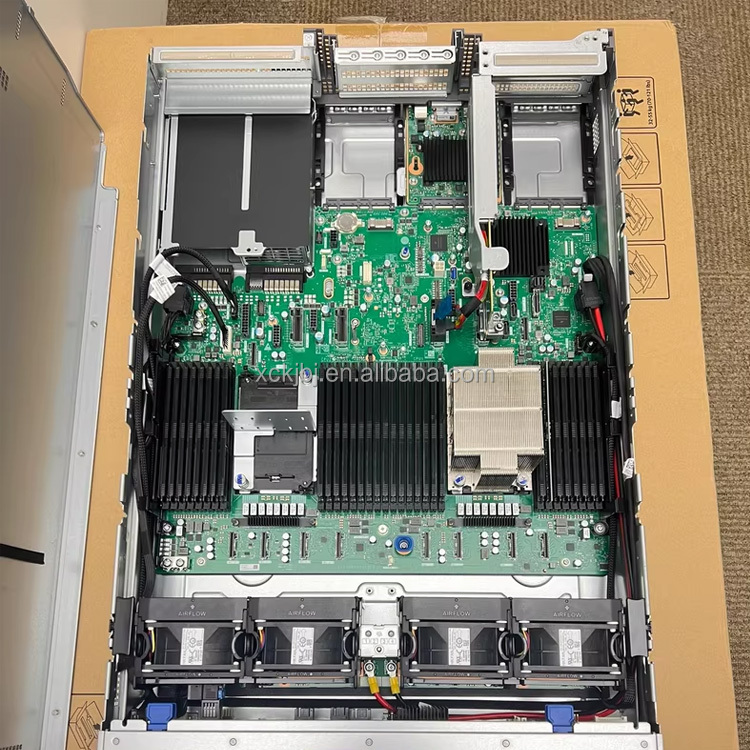

FusionServer 2288H V7 is a new generation of 2U rack servers designed to meet the needs of SDS, VDI, CDN, virtualization, big data, databases, cloud scenarios, AI inference, small businesses, OA, and web application business applications. The 2288H V7 features low energy consumption, strong scalability, high reliability, easy management, and easy deployment to handle complex workloads.
