Vertex AI Server
1 / 5
The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

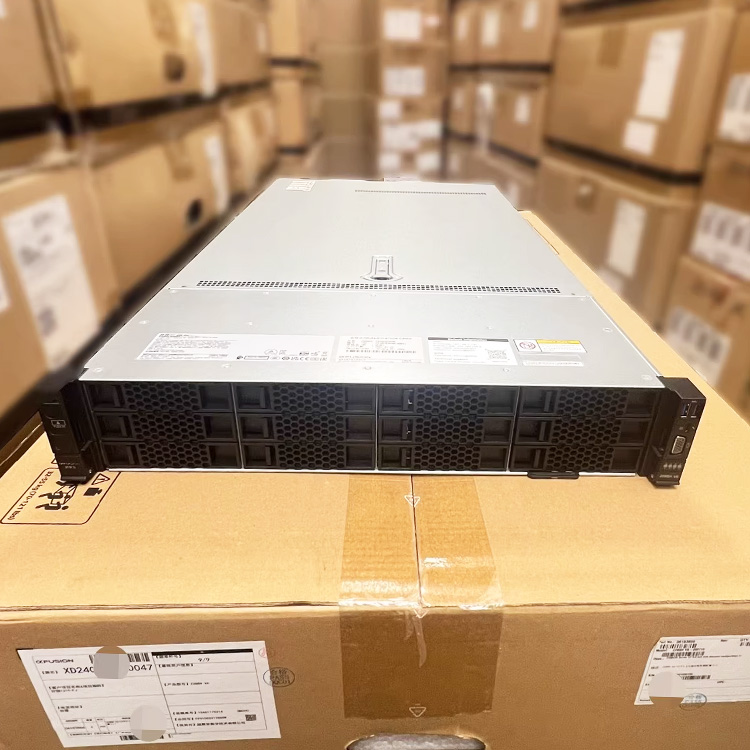

| Model | FusionServer 2288H V6 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 of third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors |
| Chipset | Intel C621A |
| Memory | 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel® Optane™ Persistent memory 200 series, up to 3200MT/s |
| Local Storage | Supports multiple hard drive configurations (hot swapping): • Configured with 8 2.5-inch SAS/SATA/SSD • Configured with 12-20 3.5-inch SAS/SATA • Configurable 4/8/16/24 NVMe SSD • Supports up to 45 2.5-inch hard drives or 34 full NVMe SSD • 2 M.2 SSD hard drives |
| RAID Support | Optional configuration supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc.; supports Cache supercapacitor protection, RAID level migration, disk roaming, and self-diagnosis. |
| Networking | Supports multiple network expansion, supports OCP 3.0 network cards - 2 FLEX IO card slots each supporting 2 OCP 3.0 cards, supports hot swapping. |
| PCIe Slots | 14 PCIe 4.0 expansion slots |
| GPU Acceleration | Support 4 300W full height, full length, dual width GPU cards / 11 half height single width cards / 8 full height single width cards. |
| Power Supply | Redundant hot swappable power supplies (1+1): 900W/1500W/2000W/3000W AC Platinum/Titanium, or High Voltage DC options. |
| Management | BMC chip integrates dedicated management GE network port; supports Redfish, SNMP, IPMI 2.0; remote management via HTML5/VNC KVM; Optional FusionDirector software. |
| OS Support | Windows Server, SUSE Linux, VMware ESXi, Red Hat, CentOS, Oracle Linux, Ubuntu, Debian, openEuler. |
| Dimensions | 86.1mm × 447mm × 790mm |
As a specialized computer hardware sales and network platform integrator, we provide stable commodity supply channels and excellent technical support. We are a trusted server system integrator for numerous enterprises, committed to genuine products, market-competitive pricing, and active cooperation across major regions.
