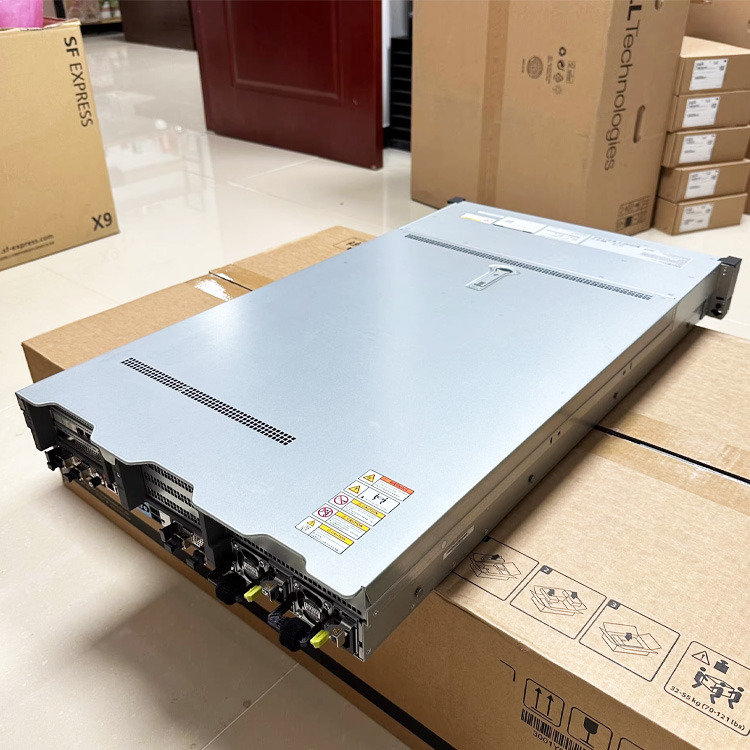

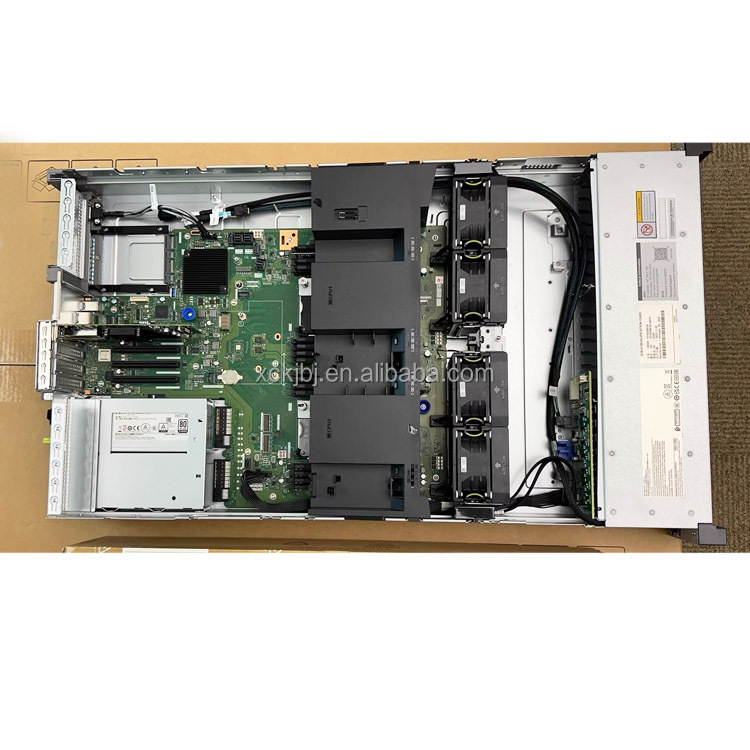

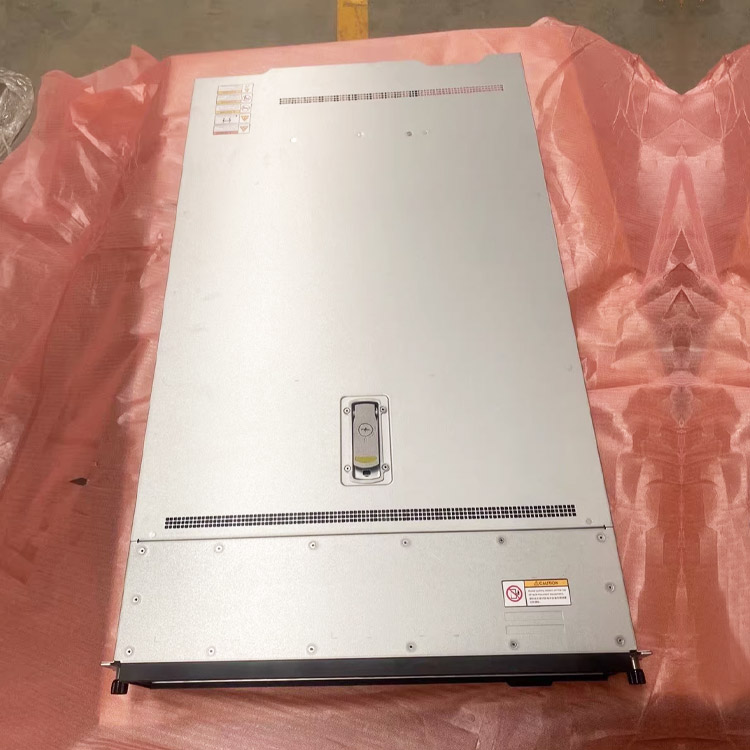

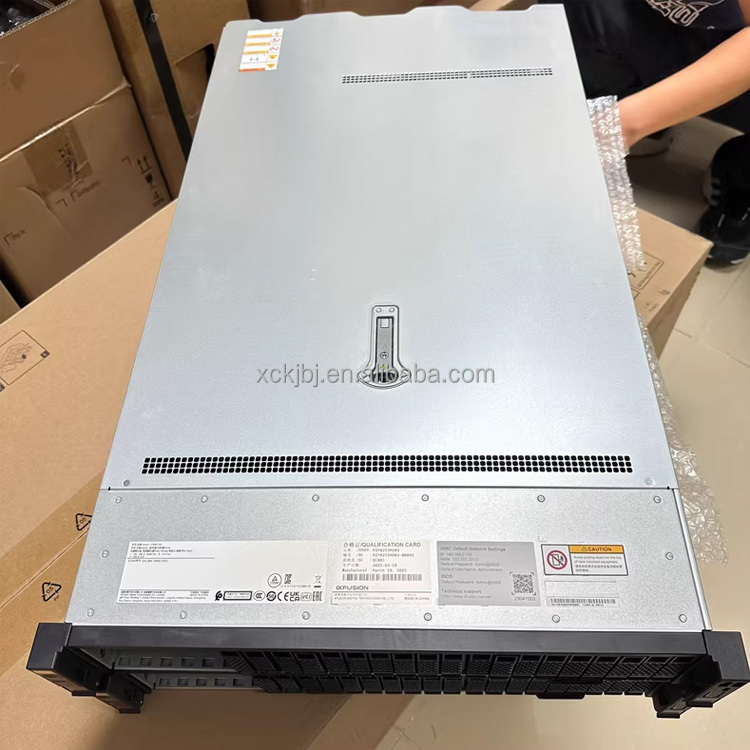

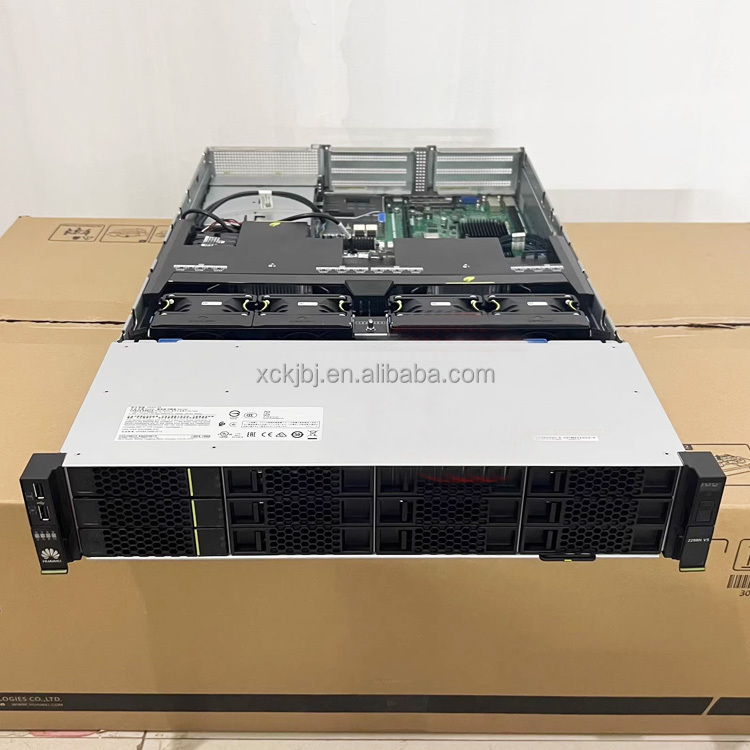

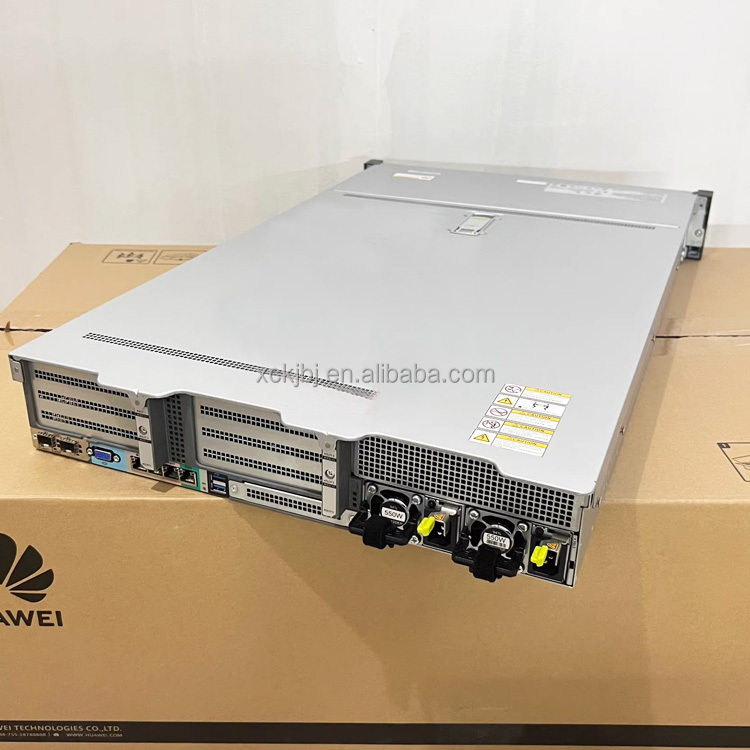

| Model | FusionServer 2288H V6 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 of third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors |
| Chipset | Intel C621A |
| Memory | 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel Persistent memory 200 series, up to 3200MT/s |
| Local Storage |

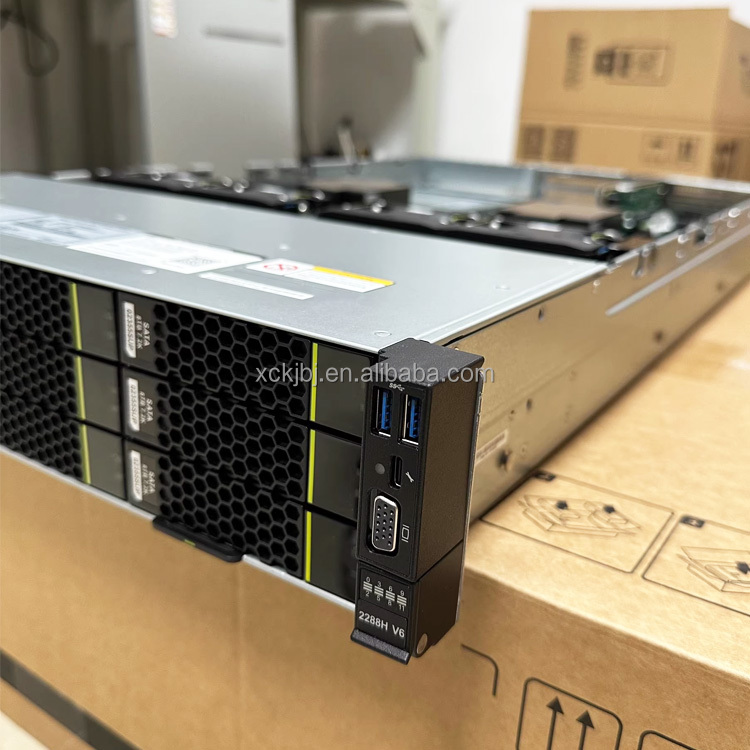

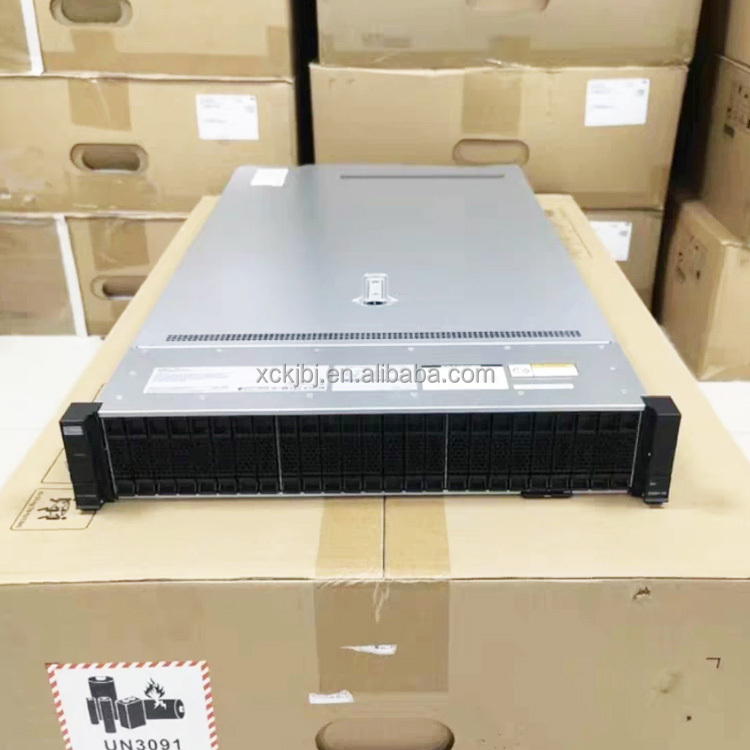

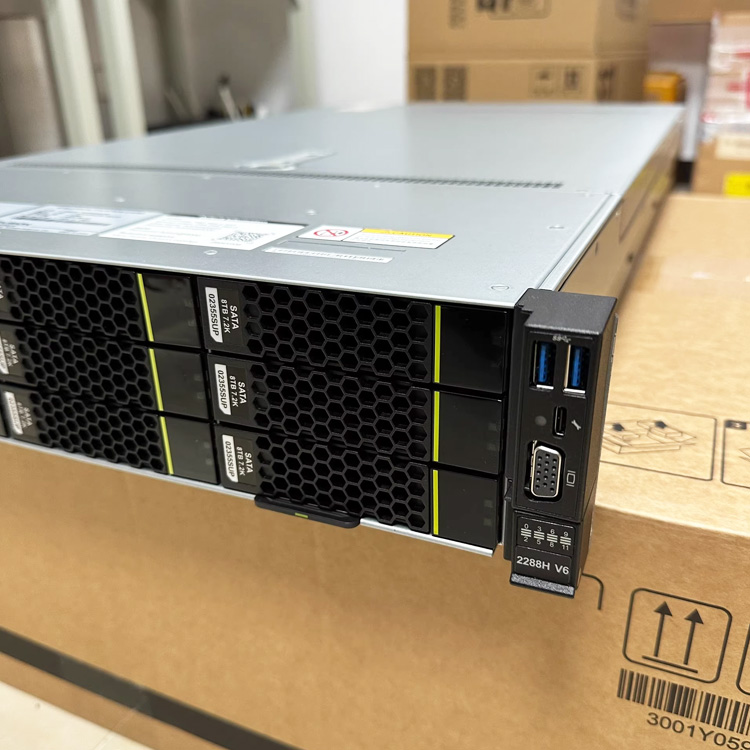

Supports multiple different hard drive configurations, and the hard drive supports hot swapping: • Can be configured with 8 2.5-inch SAS/SATA/SSD hard drives • Can be configured with 12-20 3.5-inch SAS/SATA hard drives • Configurable 4/8/16/24 NVMe SSD drives • Supports up to 45 2.5-inch hard drives or 34 full NVMe SSD • Can configure 2 M.2 SSD hard drives |
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Supports multiple network expansion capabilities, supports OCP 3.0 network cards - 2 FLEX IO card slots each support 2 OCP 3.0 network cards, and supports on-demand selection. Supports hot swapping |
| PCIe Slots | 14 PCIe 4.0 expansion slots, supporting multiple applications |
| Heterogeneous acceleration card | Support 4 300W full height, full length, dual width GPU acceleration cards / 11 half height, half length, single width GPU acceleration cards / 8 full height, full length, single width GPU acceleration cards |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power Supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. Optional specifications: • 900W AC Platinum/Titanium Power Supply (Input: 100V AC~240V AC or 192V DC~288V DC) • 1500W AC Platinum Power Supply • 1000W (input: 100V AC~127V AC) / 1500W (Input: 200V AC~240V AC or 192V DC~288V DC) • 1500W 380V High Voltage DC Power Supply (Input: 260V DC~400V DC) • 1200W -48V~-60V DC power supply • 3000W AC titanium power supply • 2500W (input: 200V AC~220VAC) • 2900W (input: 220V AC~230V AC) • 3000W (input: 230V AC~240V AC) • 2000W AC Platinum Power Supply • 1800W (Input: 200V AC~220V AC or 192V DC~200V DC) • 2000W (Input: 220V AC~240V AC or 200V DC~288V DC) |
| Management |
BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating System | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems |
| Security Features | Support power on password, administrator password, TPM 2.0, safety panel, safety start, and lid opening detection |
| Operation Temperature | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE Class A1/A2/A3/A4) |
| Product Certification | CE, UL, CCC, FCC, VCCI, RoHS etc. |
| Installation Package | Support L-shaped slide, extendable slide, and rail support |
| Size | 86.1mm × 447mm × 790mm |
