Vertex AI Server
1 / 5
The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | FusionServer 2288H V5 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor |
• 1/2 of the first generation Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W, capable of supporting Lanchijin processors • 1/2 second-generation Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W, capable of supporting Lanchijin processors |
| Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel® Optane™ Persistent Memory 100 series, up to 2666MT/s |
| Local Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping: • Can be configured with 8 x 2.5-inch SAS/SATA/SSD hard drives • Configurable 12/16/20 x 3.5-inch SAS/SATA hard drives • Configurable 4/8/12/24/28 NVMe SSD hard drives • 31 x 2.5-inch SAS/SATA/SSD hard drives can be configured • Can be configured with 2 M.2 SATA SSD hard drives, supporting hardware RAID |
| RAID Support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking |
Onboard network card: 2 x 10GE interfaces and 2 x GE interfaces Flexible card insertion: optional 2 * GE or 4 * GE or 2 * 10GE or 2 * 25GE or 1/2 56G FDR IB interface |
| PCIe Slots | Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card |
| Heterogeneous Acceleration Card |
• Up to 7 single slot half height and half length cards • Up to 2 dual slot full height and full length cards |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power Supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows: • 550W AC Platinum Power Supply • 900W AC Platinum/Titanium Power Supply • 1500W AC Platinum Power Supply • 1500W 380V High Voltage DC Power Supply • 1200W -48V~-60V DC Power Supply |
| Management |
• BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features • BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support CD free deployment and Agentless features to simplify management complexity • FusionDirector management software is optional, providing advanced management features such as stateless computing, OS batch deployment, and firmware automatic upgrade, achieving intelligent and automated management throughout the entire lifecycle |
| Operation Temperature | 5°C to 45°C (41°F to 113°F) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CE, UL, FCC, CCC, RoHS, etc. |
| Installation Package | L-shaped slide, extendable slide, and rail support |
| Size | 86.1mm × 447mm × 748mm |

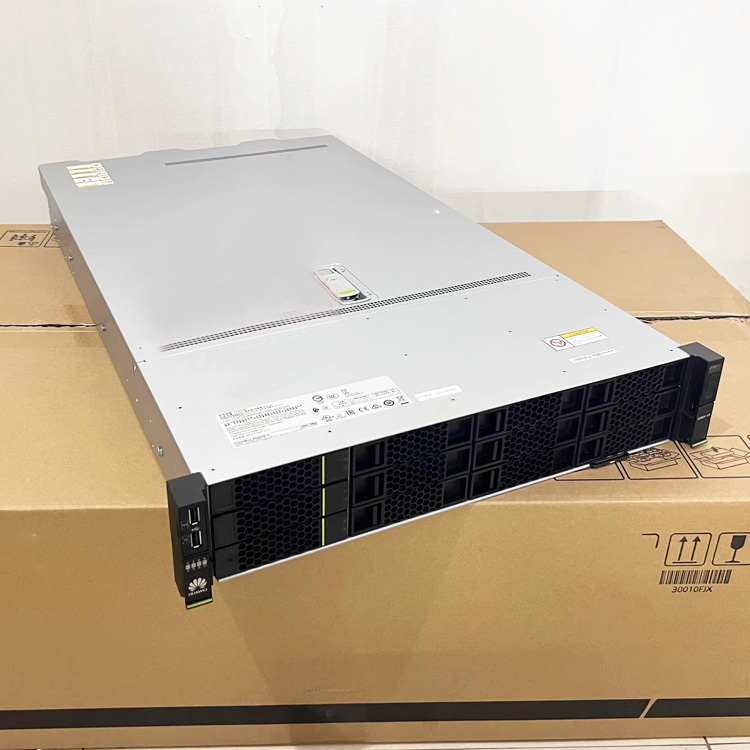

FusionServer 2288H V5 is a 2U rack server with flexible configuration, equipped with 24 DDR4 memory expansion slots and 10 PCIe expansion slots, as well as up to 20 x 3.5 inches or 31 x 2.5 inches of local storage resources (configurable with 4/8/12/24/28 NVMe SSD hard drives).
Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns. Suitable for cloud computing virtualization, databases, big data, and other workloads.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
We have local warehouse facilities, and you are always welcome to visit and inspect the goods.
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
1-3 working days after your payment.
Our different products have different warranty, if necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
