| Model | FusionServer 1288H V5 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 1U rack server |
| Processor |
● 1/2 of the first generation Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W, capable of supporting Lanchijin processors ● 1/2 second-generation Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W, capable of supporting Lanchijin processors |
| Memory | 24*DDR4 memory slots, up to 2933MT/s, up to 12*Intel® Optane™ Persistent Memory 100 series, up to 2666MT/s |
| Local Storage |
Multiple different hard drive configurations, hard drives support hot swapping: ● Can be configured with 10 2.5-inch hard drives (6-8 NVMe SSD drives and 2-4 SAS/SATA drives, total number of hard drives ≤ 10) ● Can be configured with 10 2.5-inch SAS/SATA/SSD hard drives (2-4 NVMe SSD hard drives and 6-8 SAS/SATA hard drives, total number of hard drives ≤ 10) ● Can be configured with 10 2.5-inch SAS/SATA/SSD hard drives ● Can be configured with 8 2.5-inch SAS/SATA/SSD hard drives ● Can be configured with 4 3.5-inch SAS/SATA/SSD hard drives ● Can be configured with 2 M.2 SSDs |
| RAID support | Optional configuration supports RAID 0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self-diagnosis, web remote settings and other functions |
| Networking |

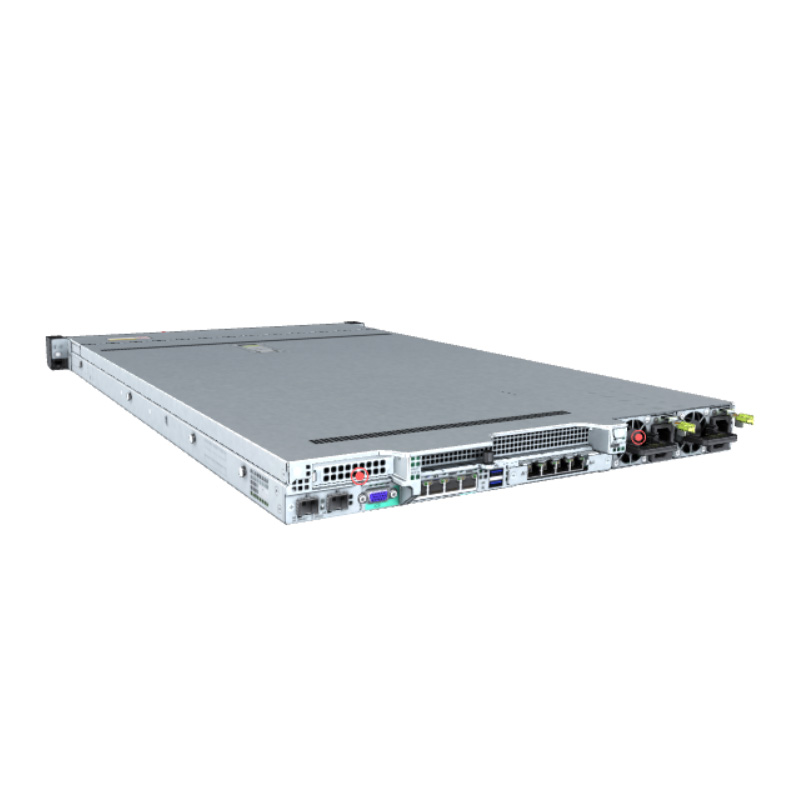

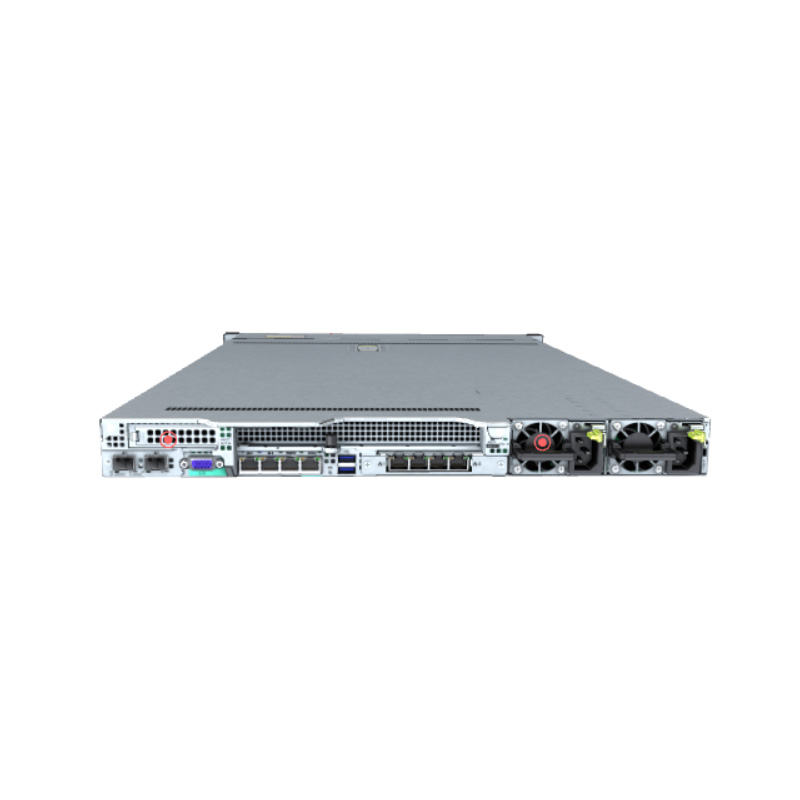

Onboard network card: 2 10GE interfaces and 2 GE interfaces Flexible card insertion: optional 2 * GE or 4 * GE or 2 * 10GE or 2 * 25GE or 1/2 56G FDR IB interface |
| PCIe | Up to 5 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card |
| Fan | 7 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. Optional specifications: ● 550W AC Platinum Power Supply ● 900W AC Platinum/Titanium Power Supply ● 1500W AC Platinum Power Supply ● 1500W 380V High Voltage DC Power Supply ● 1200W -48V~-60V DC power supply |
| Management |
● BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features ● BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support CD free deployment and Agentless features to simplify management complexity ● FusionDirector management software is optional, providing advanced management features such as stateless computing, OS batch deployment, and firmware automatic upgrade, achieving intelligent and automated management throughout the entire lifecycle |
| Operating Temp | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CE, UL, FCC, CCC, RoHS etc. |
| Installation package | L-shaped slide, extendable slide, and rail support |

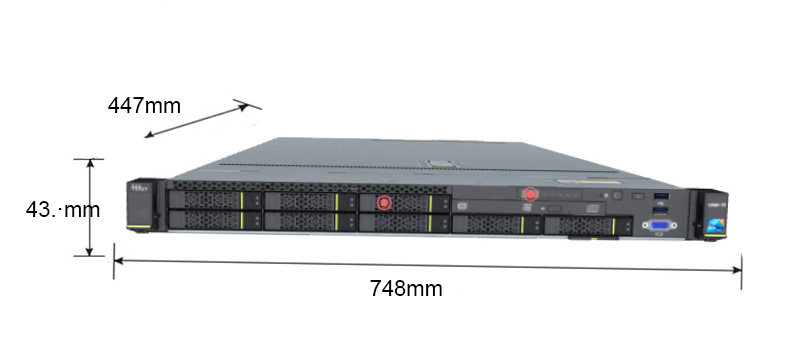

| Size | 43mm × 447mm × 748mm |

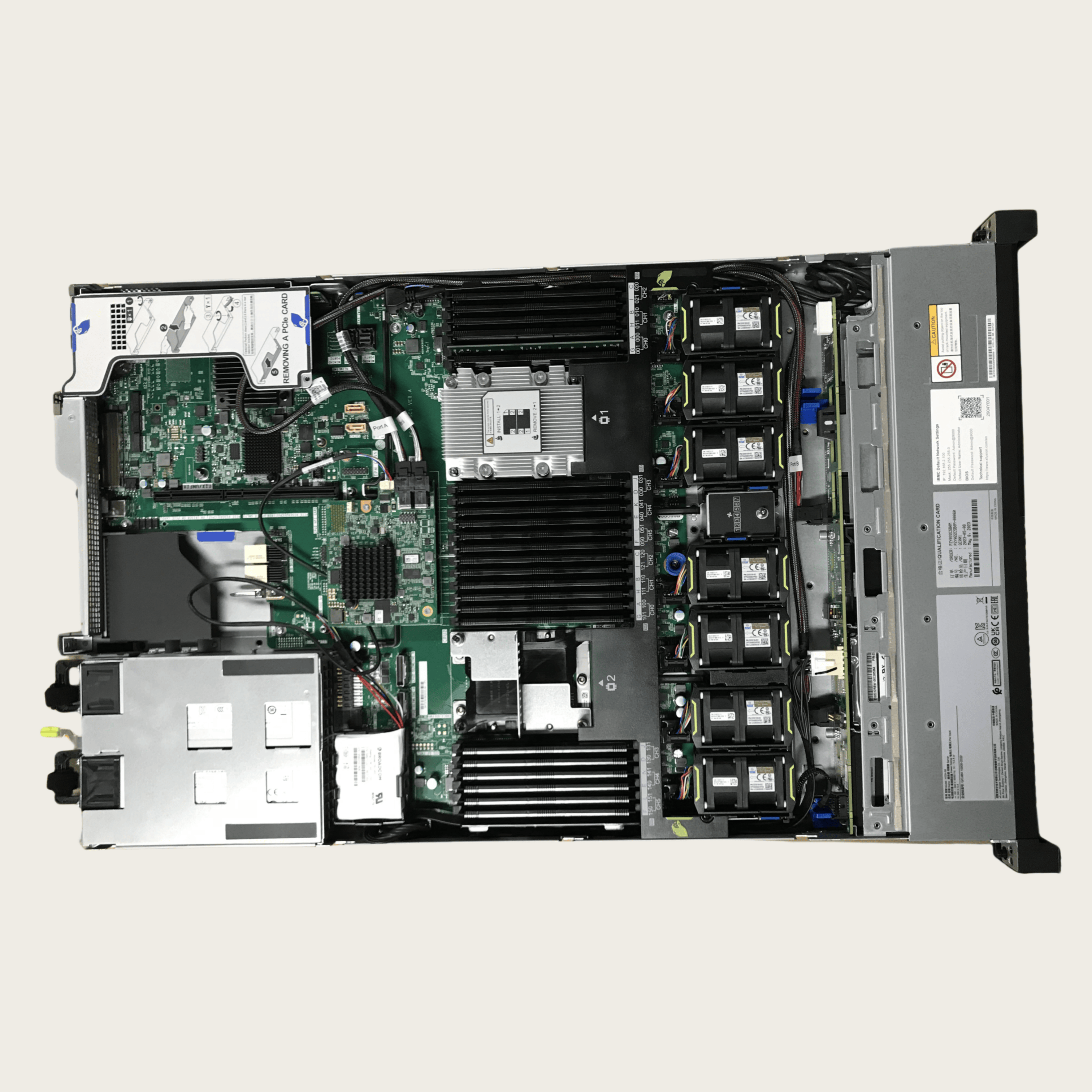

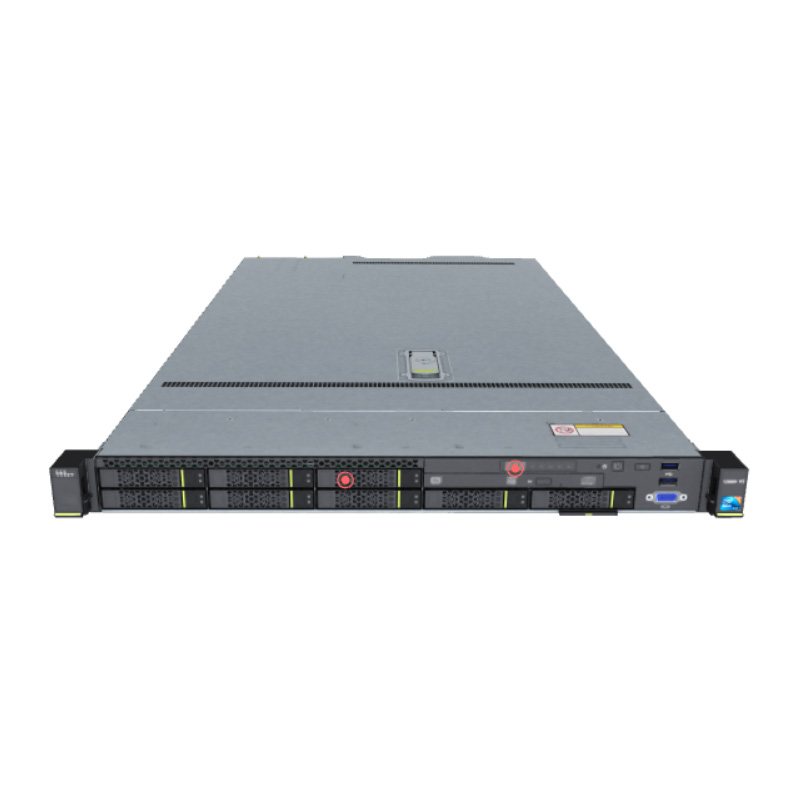

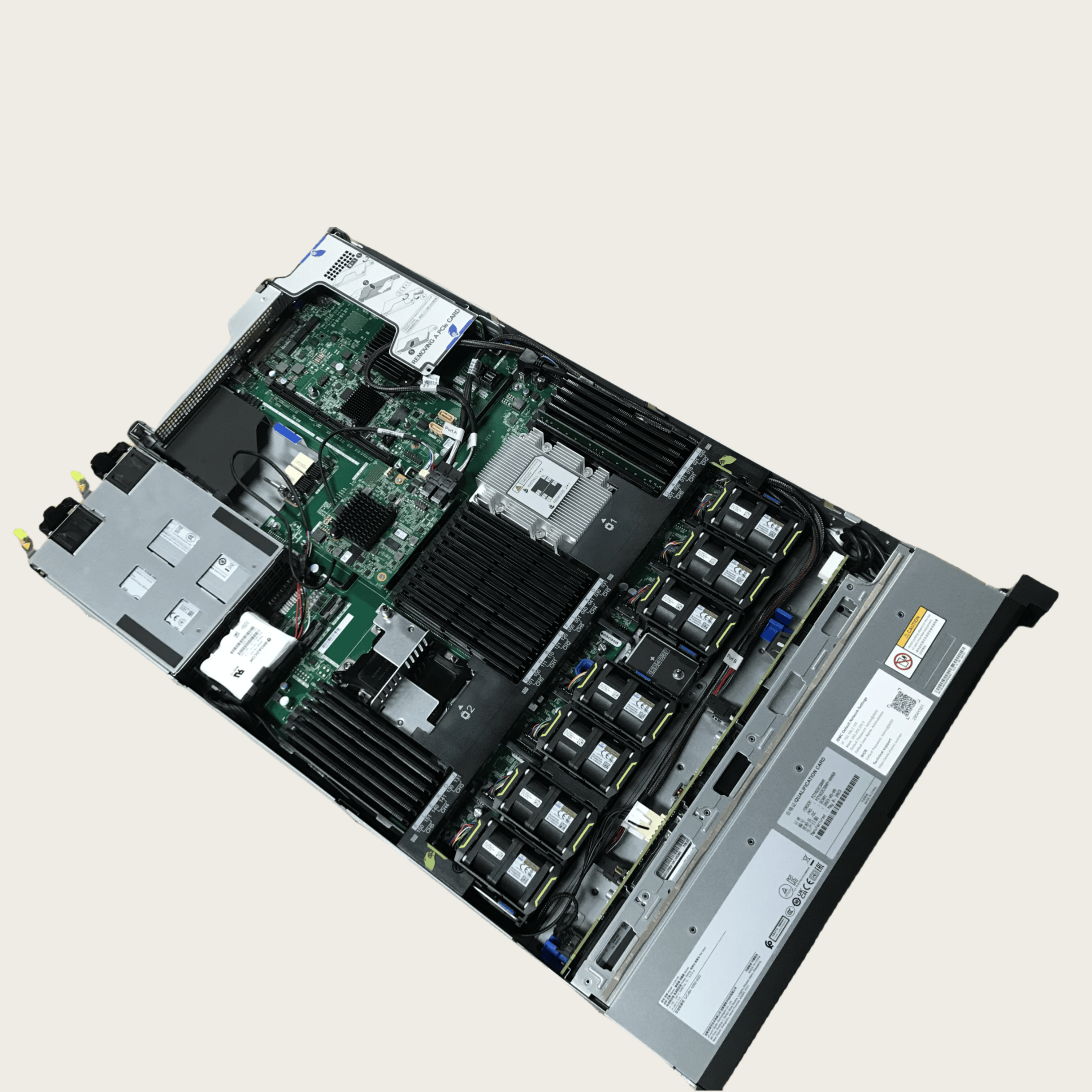

FusionServer 1288H V5 is a 1U, 2-socket rack server suitable for high-density deployment of workloads such as cloud computing virtualization, high-performance computing (HPC), and big data processing, dramatically improving data center space utilization.
Configures up to two Intel® Xeon® Scalable processors, 24 DDR4 memory modules, and flexible local storage options (up to 4 x 3.5-inch or 10 x 2.5-inch drives, customizable with 4/8 NVMe SSDs) in a compact 1U footprint.
Integrates patented technologies like DEMT intelligent power management and FDM intelligent fault management, alongside optional FusionDirector software, lowering operating costs and maximizing ROI.
Up to 2 Intel® Xeon® Scalable processors in a 1U space. Supports 24 DDR4 memory modules and scalable high-speed storage configurations.
Uses DEMT intelligent energy-saving strategies: component sleep, power phase switching, and PID speed regulation. Supports multiple efficient power supplies (Titanium/Platinum).
Full lifecycle intelligent O&M with FDM fault diagnosis (93% accuracy). Standard open APIs enable seamless integration with third-party software.
Yes, all our products are brand new from the original factory (excluding second-hand options specifically requested).
Yes, we maintain a well-stocked warehouse, and you are always welcome to inspect the goods.
As a senior agent of this brand, our discount structure is highly competitive. We offer scale discounts for volume orders.
Orders are processed and dispatched within 1-3 working days after payment confirmation.
We offer standard product warranties depending on the hardware config. If necessary, warranties can be extended to 5 years.
We accept orders starting from 1 unit. Please feel free to inquire for customized configurations.
