| Model | FusionServer 1288H V5 | FusionServer 1288H V6 | FusionServer 1288H V7 |
|---|---|---|---|
| Form Factor | 1U | 1U | 1U |
| Processor | 1/2 of the first generation Intel® Xeon® Scalable processing of 3100/4100/5100/6100/8100 series, up to 205W, supporting Lanchijin processors; 1/2 second-generation Intel® Xeon® Scalable processing for 3200/4200/5200/6200/8200 series, up to 205W, capable of supporting Lanchijin processors | 1/2 of third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors | 1/2 fourth/fifth generation Intel® Xeon® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors |
| Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel® Optane™ Persistent memory 100 series, up to 2666MT/s | 32 DDR4 memory slots, up to 3200MT/s, up to 16 Intel memory slots® Optane™ Persistent memory 200 series, up to 3200MT/s | 32 DDR5 memory slots available for flexible selection, up to 5600MT/s |
| Local Storage | Multiple different hard drive configurations, hard drives support hot swapping: Can be configured with 10 2.5-inch hard drives (6-8 NVMe SSD drives and 2-4 SAS/SATA drives, total number of hard drives ≤ 10) Can be configured with 10 2.5-inch SAS/SATA/SSD hard drives (2-4 NVMe SSD hard drives and 6-8 SAS/SATA hard drives, total number of hard drives ≤ 10) Can be configured with 10 2.5-inch SAS/SATA/SSD hard drives Can be configured with 8 2.5-inch SAS/SATA/SSD hard drives Can be configured with 4 3.5-inch SAS/SATA/SSD hard drives • Can be configured with 2 M.2 SSDs | Supports multiple different hard drive configurations, and the hard drive supports hot swapping: Can be configured with 8-12 2.5-inch SAS/SATA/SSD hard drives Can be configured with 10 2.5-inch hard drives (6-10 NVMe SSD hard drives and 0-4 SAS/SATA hard drives, total number of hard drives ≤ 10) Can be configured with 10 2.5-inch SAS/SATA/SSD hard drives (2-4 NVMe SSD hard drives and 6-8 SAS/SATA hard drives, total number of hard drives ≤ 10) Can be configured with 4 3.5-inch SAS/SATA/SSD hard drives • Can be configured with 2 M.2 SSDs | Supports multiple different hard drive configurations, and the hard drive supports hot swapping: Can be configured with 4 3.5-inch SAS/SATA/SSD hard drives Can be configured with 8-12 2.5-inch SAS/SATA/SSD hard drives 32 E1.S hard drives can be configured* |
| RAID support | Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self-diagnosis, web remote settings and other functions | Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self-diagnosis, web remote settings and other functions | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self-diagnosis, web remote settings and other functions |
| Networking | Onboard network card: 2 10GE interfaces and 2 GE interfaces Flexible card insertion: optional 2 * GE or 4 * GE or 2 * 10GE or 2 * 25GE or 1/2 56G FDR IB interface | Support multiple network expansion capabilities. Supports OCP 3.0 network cards - 2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed. Support notification based hot swapping | Support multiple network expansion capabilities. Support OCP 3.0 network cards - 2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0 |
| PCIe Expansion | Up to 5 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card | Supports 6 PCIe expansion slots, including 1 PCIe expansion card dedicated to RAID cards, 2 FLEX IO expansion slots dedicated to OCP3.0 network cards, and 3 standard PCIe 4.0 expansion slots | Supports 5 PCIe expansion slots, including 2 dedicated FLEX IO expansion slots for OCP3.0 network cards and 3 standard PCIe expansion slots, with 1 supporting PCIe 5.0 |
| Fan | 7 hot swappable counter rotating fans, supporting N+1 redundancy | 7 hot swappable counter rotating fans, supporting N+1 redundancy | 8 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power | Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows: 550W AC Platinum Power Supply, 900W AC Platinum/Titanium Power Supply, 1500W AC Platinum Power Supply, 1500W 380V High Voltage DC Power Supply, 1200W -48V~-60V DC power supply | Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows: 900W AC Platinum/Titanium Power Supply (Input: 100V AC~240V AC or 192V DC~288V DC), 1500W AC Platinum Power Supply 1000W (input: 100V AC~127V AC), 1500W (Input: 200V AC~240V AC or 192V DC~288V DC), 1500W 380V High Voltage DC Power Supply (Input: 260V DC~400V DC), 1200W -48V~-60V DC power supply (input: -38.4V DC~-72V DC), 2000W AC Platinum Power Supply 1800W (Input: 200V AC~220V AC or 192V DC~200V DC), 2000W (Input: 220V AC~240V AC or 200V DC~288V DC) | Optional 900W/1200W/1500W/2000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy |
| Management | BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support CD-free deployment and Agentless features to simplify management complexity. FusionDirector management software is optional, providing advanced management features such as stateless computing, OS batch deployment, and firmware automatic upgrade, achieving intelligent and automated management throughout the entire lifecycle. | BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support CD-free deployment and Agentless features to simplify management complexity. FusionDirector management software is optional, providing advanced management features such as stateless computing, OS batch deployment, and firmware automatic upgrade, achieving intelligent and automated management throughout the entire lifecycle. | iBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. iBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating Temp | 5°C ~ 45°C (41°F ~ 113°F) | 5°C ~ 45°C (41°F ~ 113°F) | 5°C ~ 45°C (41°F ~ 113°F) |
| Product Certification | CE, UL, FCC, CCC, RoHS, etc. | CE, UL, FCC, CCC, RoHS, etc. | CE, UL, FCC, CCC, RoHS, etc. |
| Installation Package | L-shaped slide, extendable slide, and rail support | Support L-shaped slide, extendable slide, and rail support | L-shaped slide, extendable slide, and rail support |
| Size | 3.5-inch hard drive chassis: 43mm × 447mm × 748mm 2.5-inch hard drive chassis: 43mm × 447mm × 708mm |
3.5-inch hard drive chassis: 43.5mm × 447mm × 790mm 2.5-inch hard drive chassis: 43.5mm × 447mm × 790mm |
3.5-inch hard drive chassis: 43mm × 447mm × 798mm 2.5-inch hard drive chassis: 43mm × 447mm × 798mm |

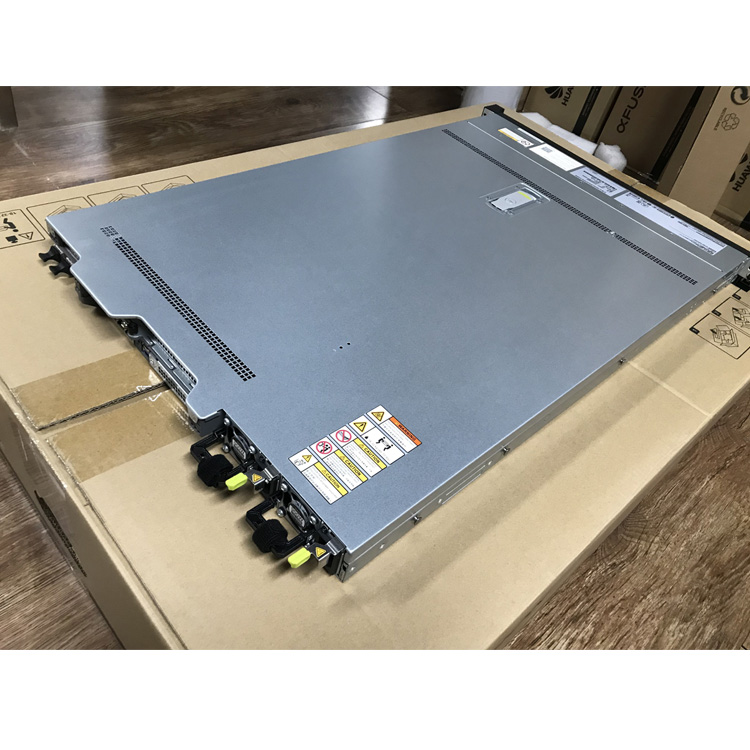

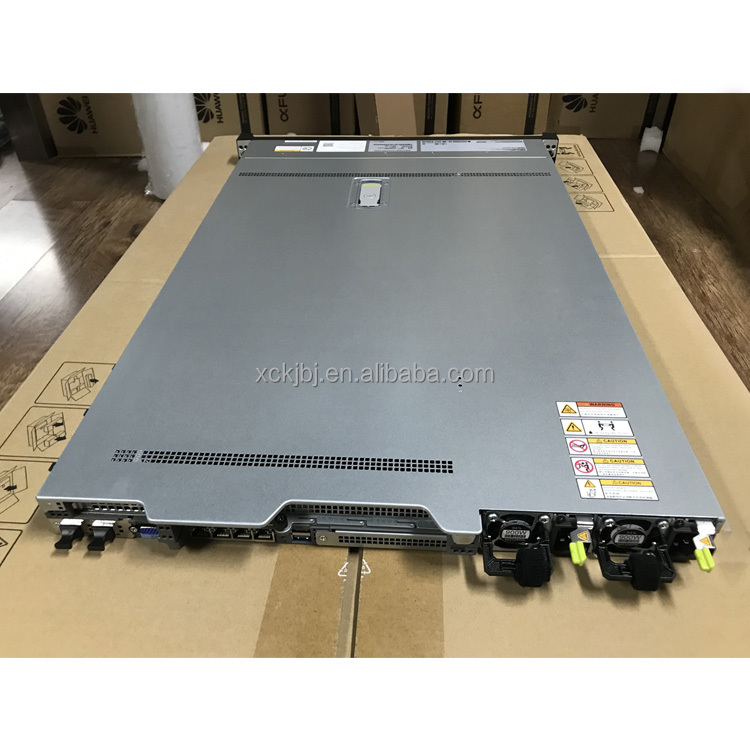

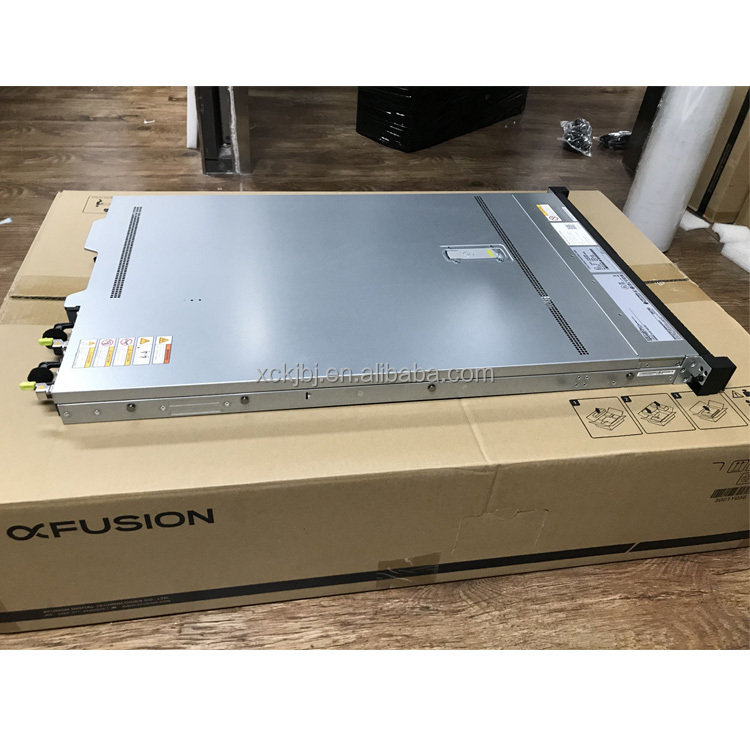

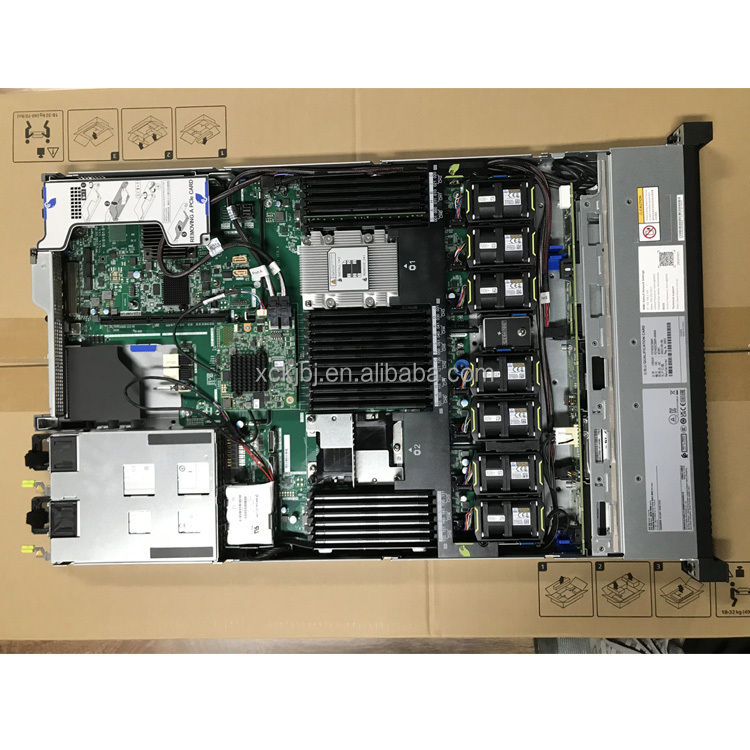

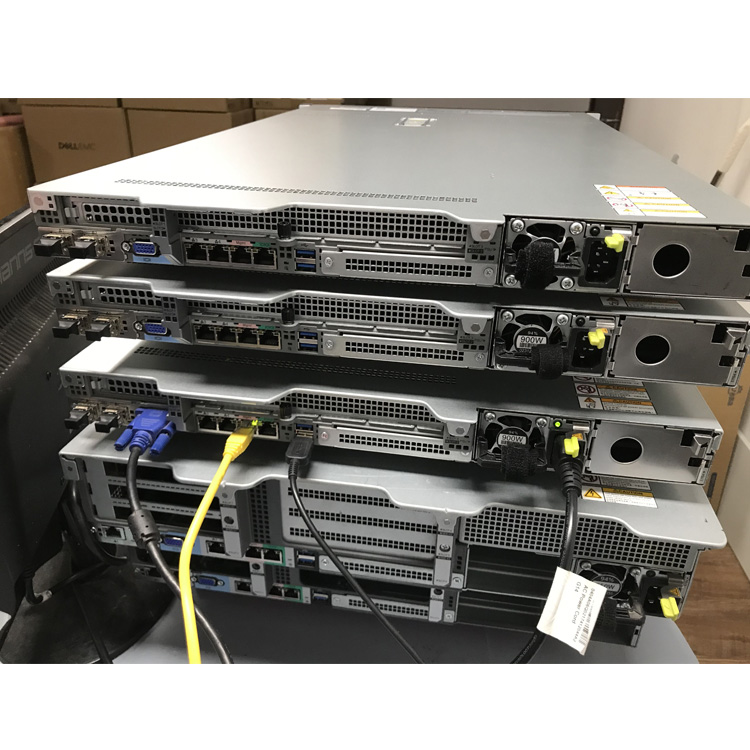

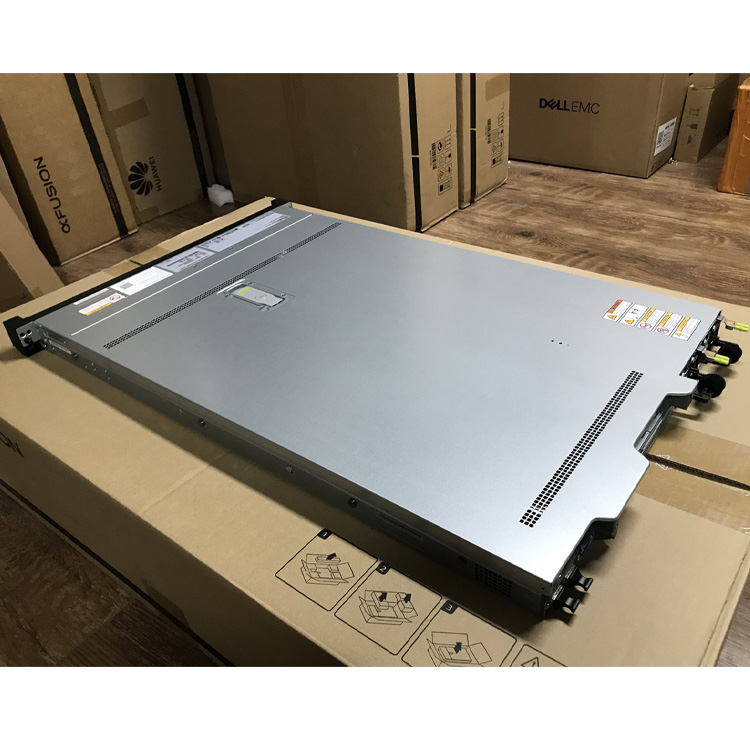

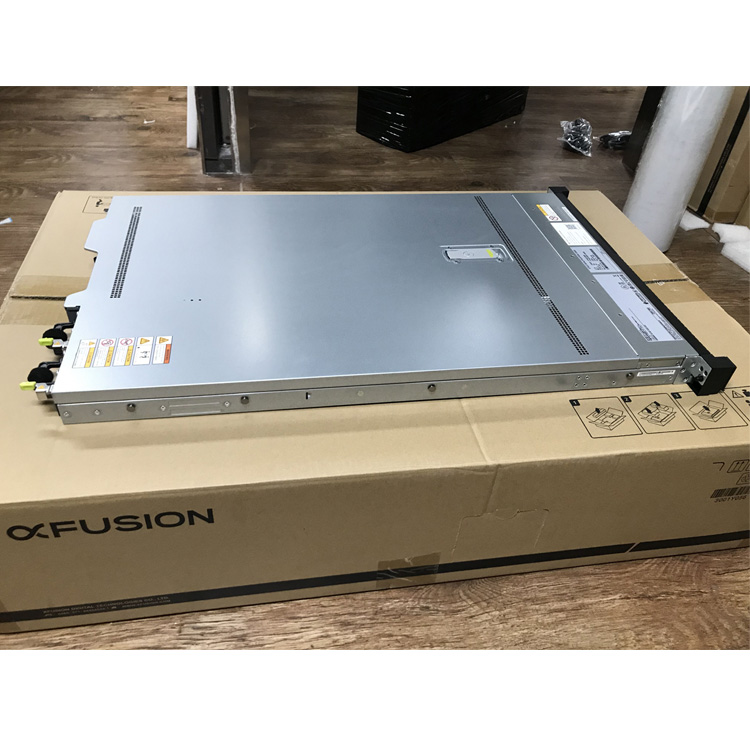

FusionServer 1288H V5 is a 1U rack server suitable for high-density deployment of loads such as cloud computing virtualization, high-performance computing (HPC), and big data processing, improving data center space utilization. The 1288H V5 can be configured with 2 Intel® Xeon® Scalable processors in 1U space, 24 DDR4 memories, and 4 3.5-inch or 10 2.5-inch local storage resources (configurable with 4/8 NVMe SSD hard drives). Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns.
FusionServer 1288H V6 is a 1U rack server suitable for high-density deployment of loads such as cloud computing, virtualization, high-performance computing, and big data processing, improving data center space utilization. The 1288H V6 can be configured with 2 Intel® Xeon® Scalable processors in 1U space, 32 DDR4 memories, and 4 3.5-inch or 10 2.5-inch local storage resources (configurable 4/10 NVMe SSD hard drives).
FusionServer 1288H V7 is designed for Internet IDCs (Internet Data Centers). A new generation of 1U rack servers with wide applications has been launched to meet the needs of cloud computing, enterprise markets, and telecommunications business applications. The 1288H V7 is suitable for IT core business, cloud computing, virtualization, high-performance computing, enterprise or telecommunications applications, and other complex workloads. It offers the advantages of low energy consumption, strong scalability, high reliability, easy management, and easy deployment.
