Vertex AI Server
1 / 5
| Model | FusionServer 2258H V7 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 AMD fourth generation EPYCTM 9004 series (Genoa) processor |
| Memory | 12*24 DDR5 memory slots available for flexible selection, up to 4800MT/s |
| Local Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping: - Can be configured with 8 2.5-inch SAS/SATA hard drives - Can be configured with 12-16 3.5-inch SAS/SATA hard drives - 24 NVMe SSD disks can be configured - Can be configured with 12 2.5-inch hard drives (including 8 NVMe hard drives) 25 2.5-inch SAS/SATA hard drives can be configured - Support Flash storage: Dual M.2 SSDs (supporting SATA/NVMe) |
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, etc Self diagnosis, web remote settings and other functions |
| Networking |
Support multiple network expansion capabilities Supports an OCP 3.0 network card and can be optionally selected as needed; Supports hot plugging and PCIe 5.0 |
| GPU | Supports 2 dual width GPU acceleration cards or 8 single width GPU acceleration cards |
| PCLs | 1 OCP3.0 dedicated FLEX IO expansion slot, supporting 8 full height standard PCIe expansion slots, including 4 PCIe 5.0 slots |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| System support | FusionOS, a hyper fusion operating system Microsoft Windows Server, SUSE Linux Enterprise Server, VMware vSphere, Red Hat Enterprise Linux, Oracle, Ubuntu, etc |
| Safety certification | Support power on password, administrator password TPM 2.0, Safety features such as safety panel, safety start, and lid opening detection |
| Power | 900 W AC Platinum/Titanium Power Supply (Input: 100V AC~240V AC or 192V DC~288V DC) 1500W AC Platinum Power Supply 1000W (input: 100V AC~127V AC) 1500W (Input: 200V AC~240V AC or 192V DC~288V DC) 1500W 380V High Voltage DC Power Supply (Input: 260V DC~400V DC) 1200W-48V~-60V DC power supply (input:- 38.4V DC) |
| Operation temperature | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE A3 and A4 standards) |
| Size | 86.1mm×447mm×798mm |

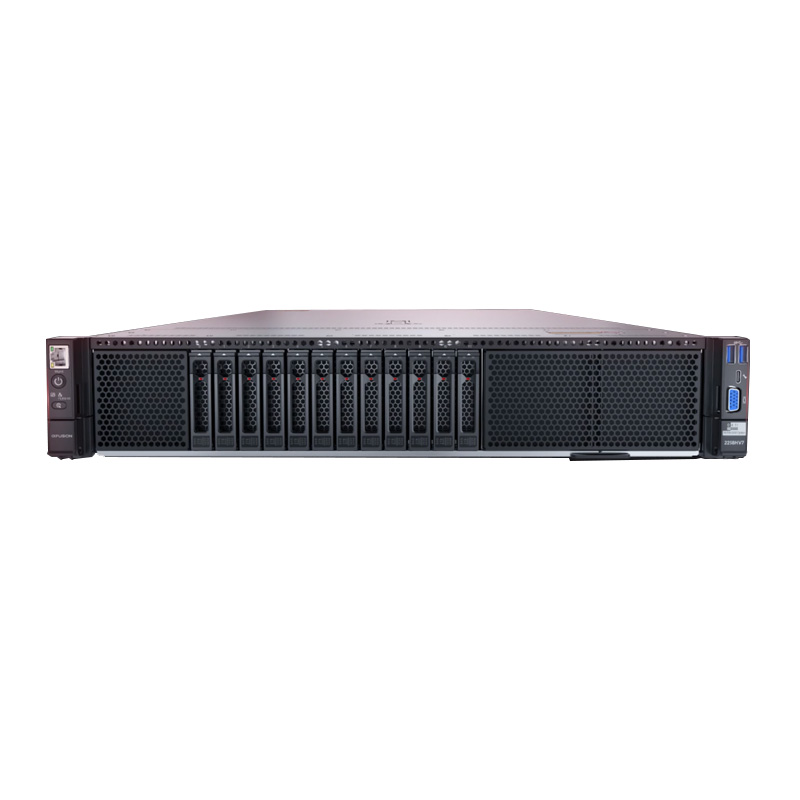

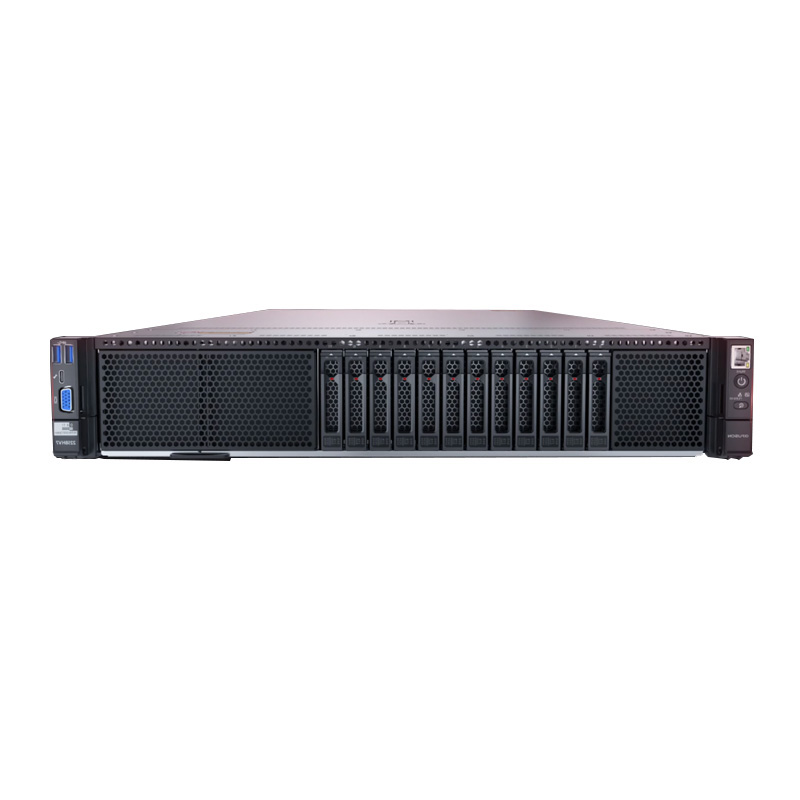

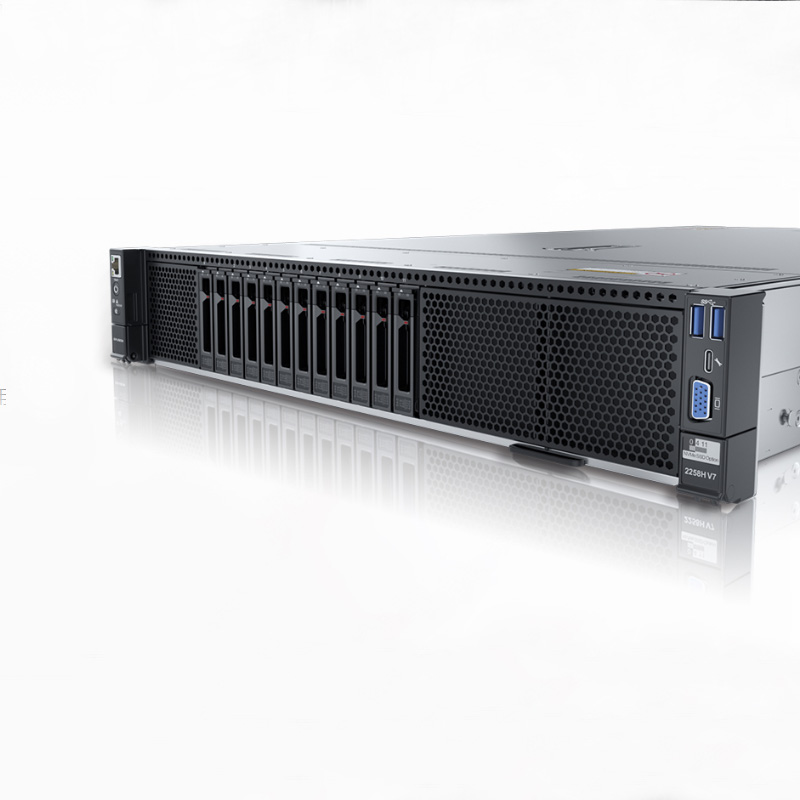

FusionServer 2258H V7 is for the Internet IDC (Internet Data Center). A new generation of 2U2 rack servers with wide applications has been launched to meet the needs of cloud computing, enterprise markets, and telecommunications business applications.
The 2258H V7 is suitable for IT core business, cloud computing, virtualization, high-performance computing, enterprise or telecommunications applications, and other complex workloads.
The 2258H V7 has the advantages of low energy consumption, strong scalability, high reliability, easy management, and easy deployment.
Based on AMD's fourth generation EPYCTM 9004 series (Genoa) processors, supporting 2 maximum specification 400WCPU and 24DIMM DDR5 memory.
Supports PCLe 5.0 protocol, supports 8 full height standard PCLe expansion slots, more flexible configuration, PCLe bandwidth increased by 100%, and ultra fast interconnection.
Supports 12 * SAS/SATA, 4 * NVMe U.2 SSD hard drives, high-speed flash memory, and excellent performance.

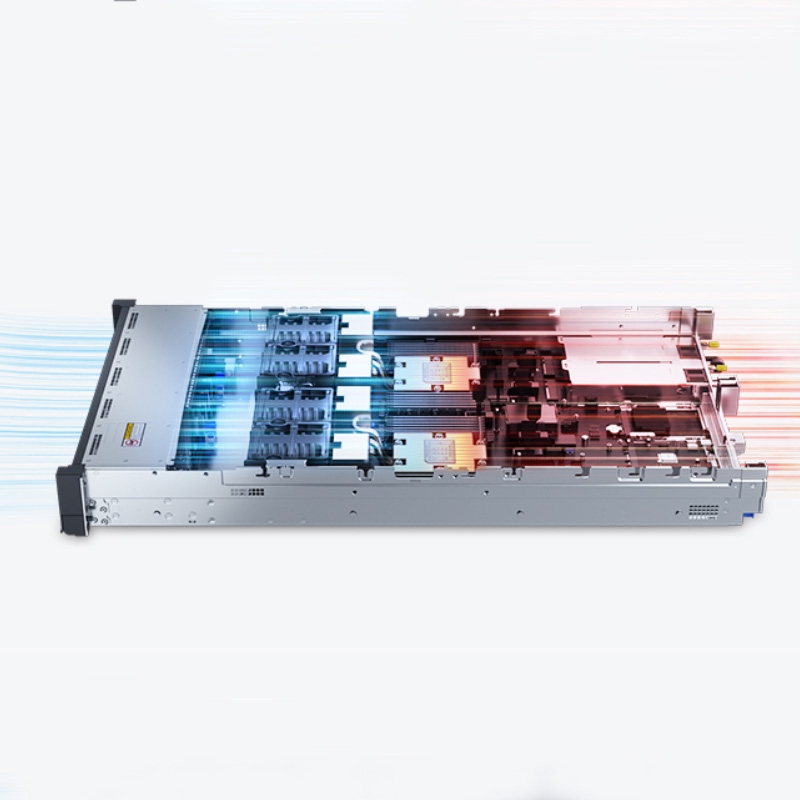

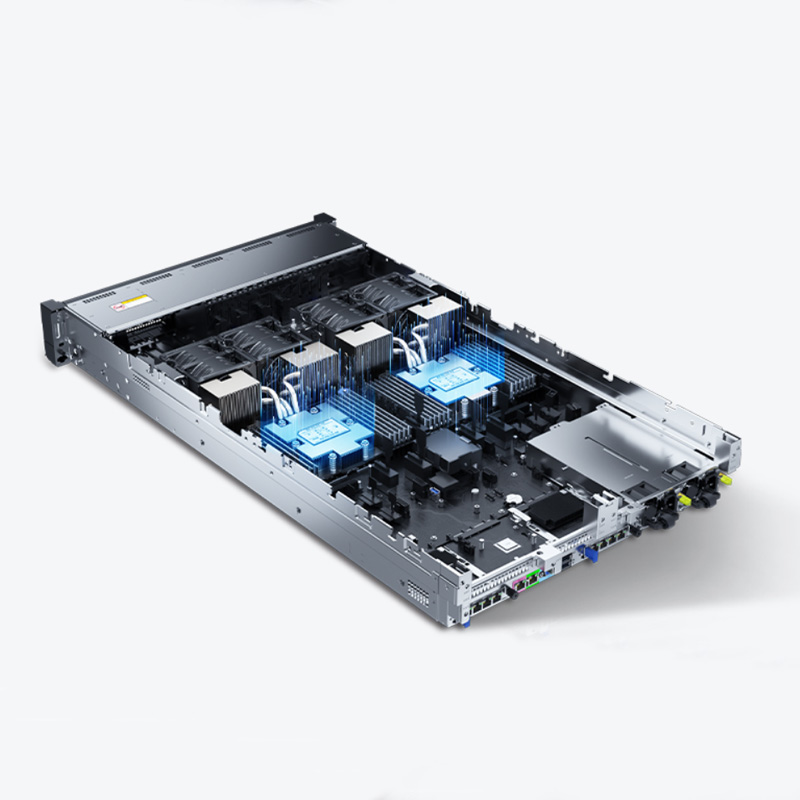

Heat pipe remote heat dissipation technology, reliable heat dissipation, stronger temperature adaptability.
Automatically collect fault information when CPU crashes, supporting rapid fault location.
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
1-3 working days after your payment.
Our different products have different warranty, if necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
Yes, we can send you a domestic freight forwarder for free.
