The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | FusionServer 2288H V6 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 of third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W |
| Chipset | Intel C621A |
| Memory | 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel Persistent memory 200 series |
| Local Storage | Supports multiple different configurations (8x 2.5-inch SAS/SATA/SSD, 12-20x 3.5-inch SAS/SATA, 4/8/16/24 NVMe SSD, up to 45x 2.5-inch or 34x NVMe SSD, 2x M.2 SSD) |
| RAID support | Optional RAID0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection. |
| Networking | OCP 3.0 network cards, 2 FLEX IO card slots, supports hot swapping. |
| PCIe | 14 PCIe 4.0 expansion slots |
| Heterogeneous acceleration | Support 4x 300W full height GPU / 11x half height GPU / 8x full height single width GPU |
| Fan | 4 hot swappable counter rotating fans, N+1 redundancy |
| Power Supply | Redundant hot swappable power supplies (900W, 1500W, 2000W, 3000W options) |
| Management | BMC chip, dedicated GE port, Redfish, SNMP, IPMI2.0, HTML5/VNC KVM, FusionDirector software optional. |
| Operating System | Windows Server, SUSE, VMware ESXi, Red Hat, CentOS, Ubuntu, Debian, openEuler, etc. |
| Security | Power on password, Administrator password, TPM 2.0, Safety panel, Lid opening detection |
| Size | 86.1mm × 447mm × 790mm |

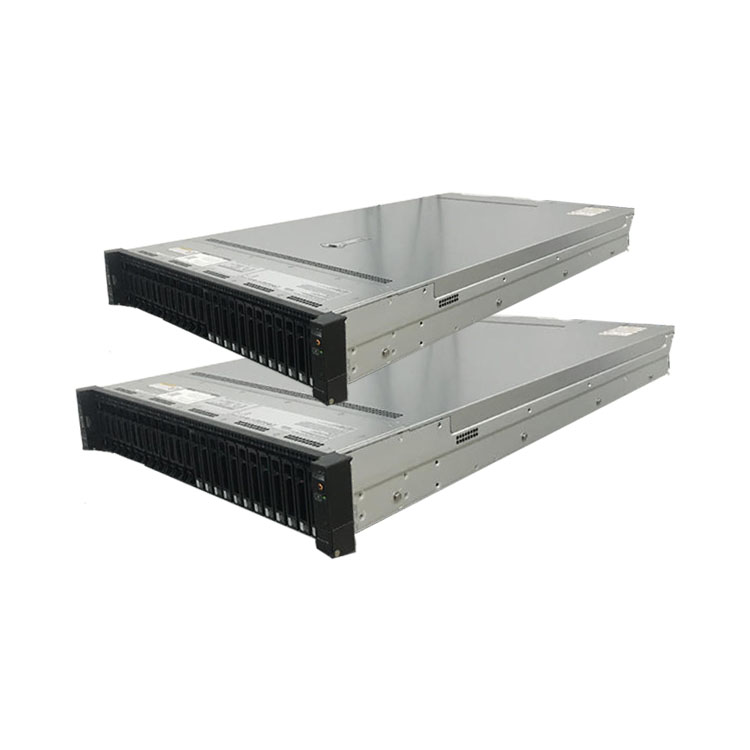

FusionServer 2288H V6 is a 2U rack mounted server with flexible configuration that can be widely used for loads such as cloud computing, virtualization, databases, and big data. It can be configured with 2 Intel® Xeon® Scalable processors, 16/32 DDR4 memory, and 14 PCIe expansion slots. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management.
45x 2.5-inch hard drives, 34x NVMe SSDs, 12TB memory capacity.
80 core computing power. Supports multiple GPU acceleration cards (up to 11 single width or 4 dual width).
Flexible selection of 32DIMM and 16DIMM models. 2x OCP3.0 network cards. 2x M.2 SSDs with hardware RAID.
The enterprise specializes in computer hardware sales, network platform construction, and maintenance of IT solutions. Main products include top-tier brands like Dell, HP, IBM, Lenovo, and Huawei. With a sound sales system, stable commodity channels, and an excellent technical support team, the business has expanded rapidly to become a leading server system integrator and solution provider. We are committed to competitive pricing for genuine products and active open cooperation with various regional partners to ensure market readiness.
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs. Welcome to Inquire!
