Original 2U 2-Socket Intel Xeon 16*DDR4 2.5/3.5" Chassis 8/12/16/24SFF XFUSION FusionServer 2288H V6 Rack Mount Server Stock

Product Description

We have 10 years of distribution experience. As a high-tech enterprise integrating system integration, IT consulting and providing professional IT services, we are the core agent and business partner of major leading brands like Huawei, Lenovo, Dell and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

Support Server
Support Server
Products Description
Model FusionServer 2288H V6
Customization Intention Customers Can Freely Choose Specific Configurations
Form Factor 2U rack server
Processor 1/2 of third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors
Chipset Intel C621A
Memory 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel® Optane™ Persistent Memory 200 series, up to 3200MT/s
Local Storage Supports multiple different hard drive configurations, and the hard drive supports hot swapping:
• Can be configured with 8 2.5-inch SAS/SATA/SSD hard drives
• Can be configured with 12-20 3.5-inch SAS/SATA hard drives
• Configurable 4/8/16/24 NVMe SSD drives
• Supports up to 45 2.5-inch hard drives or 34 full NVMe SSD
• Can configure 2 M.2 SSD hard drives
RAID support Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions
Networking Supports multiple network expansion capabilities, supports OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and supports on-demand selection. Supports hot swapping
PCIe 14 PCIe 4.0 expansion slots, supporting multiple applications
Heterogeneous acceleration card Support 4 300W full height, full length, dual width GPU acceleration cards / 11 half height, half length, single width GPU acceleration cards / 8 full height, full length, single width GPU acceleration cards
Fan 4 hot swappable counter rotating fans, supporting N+1 redundancy
Power supply Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. Optional specifications:
- 900 W AC Platinum/Titanium Power Supply (Input: 100V AC~240V AC or 192V DC~288V DC)
- 1500W AC Platinum Power Supply
- 1000W(input: 100V AC~127V AC) 1500W (Input: 200V AC~240V AC or 192V DC~288V DC)
- 1500W 380V High Voltage DC Power Supply (Input: 260V DC~400V DC)
- 1200W -48V~-60V DC power supply (input:- 38.4V DC ~ -72V DC)
- 3000W AC titanium power supply
- 2500W (input: 200V AC~220VAC)
- 2900W (input: 220V AC~230V AC)
- 3000W (input: 230V AC~240V AC)
- 2000W AC Platinum Power Supply
- 1800W (Input: 200V AC~220V AC or 192V DC~200V DC)
- 2000W (Input: 220V AC~240V AC or 200V DC~288V DC)
Manage BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features.
BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc.; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control.
FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle.
Operating system Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems
Security features Support power on password, administrator password TPM 2.0, safety panel, safety start, and lid opening detection
Operation temperature 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE Class A1/A2/A3/A4)
Product Certification CE, UL, CCC, FCC, VCCI, RoHS, etc.
Installation package Support L-shaped slide, extendable slide, and rail support
Size 86.1mm × 447mm × 790mm

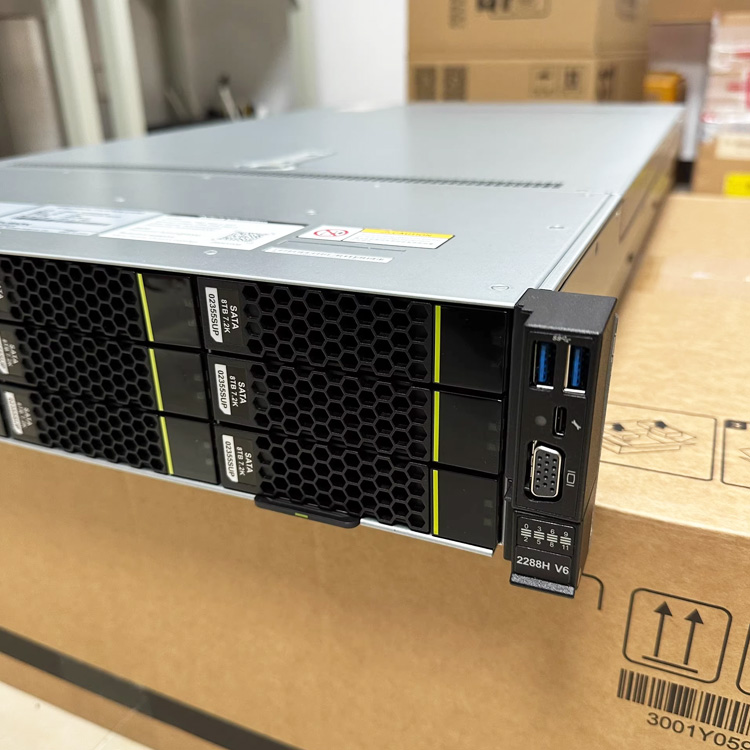

FusionServer 2288H V6
FusionServer 2288H V6
FusionServer 2288H V6 is a 2U 2-socket rack-mounted server with flexible configuration that can be widely used for workloads such as cloud computing, virtualization, databases, and big data. The 2288H V6 can be configured with 2 Intel® Xeon® Scalable processors, 16/32 DDR4 memory, and 14 PCIe expansion slots, supporting large capacity local storage resources. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns.
