We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting, and providing professional IT services. We are the core agent and business partner of major server brands. We look forward to cooperating with you. We can customize freely according to your needs!
| Model | FusionServer 2288H V5 | FusionServer 2288H V6 | FusionServer 2288H V7 |
|---|---|---|---|
| Form Factor | 2U | 2U | 2U |
| Processor |
• 1/2 of the first generation Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W, capable of supporting Lanchijin processors • 1/2 second-generation Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W, capable of supporting Lanchijin processors |
1/2 of third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors | 1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor |
| Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel® Optane™ Persistent memory 100 series, up to 2666MT/s | 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel® Optane™ Persistent memory 200 series, up to 3200MT/s | 32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 or DDR4 DIMMs supported by the CXL technology; up to 48 x DIMMs* |
| Local Storage |
Supports multiple different hard drive configurations with hot swap support: • Can be configured with 8 x 2.5-inch SAS/SATA/SSD hard drives • Configurable with 12/16/20 x 3.5-inch SAS/SATA hard drives • Configurable with 4/8/12/24/28 x NVMe SSD hard drives (up to 31 x 2.5-inch SAS/SATA/SSD hard drives can be configured) • Can be configured with 2 M.2 SATA SSD hard drives, supporting hardware RAID |
Supports multiple different hard drive configurations with hot swap support: • Can be configured with 8 x 2.5-inch SAS/SATA/SSD hard drives • Can be configured with 12-20 x 3.5-inch SAS/SATA hard drives • Configurable with 4/8/16/24 x NVMe SSD drives • Supports up to 45 x 2.5-inch hard drives or 34 full NVMe SSD • Can configure 2 M.2 SSD hard drives |
Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5" SAS/SATA/SSD drives • 12 to 20 x 3.5" SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs* • Up to 45 x 2.5" drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs, hardware RAID, and hot swap |
| RAID support | Optional configuration supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions | Optional configuration supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Networking | Onboard network card: 2 x 10GE interfaces and 2 x GE interfaces. Flexible card insertion: optional 2 * GE or 4 * GE or 2 * 10GE or 2 * 25GE or 1/2 56G FDR IB interface | Supports multiple network expansion capabilities, supports OCP 3.0 network cards. 2 x FlexIO card slots each support 2 OCP 3.0 network cards, and supports on-demand selection. Supports hot swapping | Expansion capability of multiple types of networks. OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported |
| PCIe Slots | Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card | 14 PCIe 4.0 expansion slots, supporting multiple applications | Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0 |
| Heterogeneous acceleration card |
• Up to 7 single slot half height and half length cards • Up to 2 dual slot full height and full length cards |
Supports 4 x 300W full height, full length, dual width GPU acceleration cards / 11 half height, half length, single width GPU acceleration cards / 8 full height, full length, single width GPU acceleration cards | - |
| GPU | - | - | 4 x dual-width or 14 x single-width GPU cards |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy | 4 hot swappable counter rotating fans, supporting N+1 redundancy | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| Power Supply |
Two redundant hot swappable power supplies (1+1 redundancy). Options: • 550W AC Platinum Power Supply • 900W AC Platinum/Titanium Power Supply • 1500W AC Platinum Power Supply • 1500W 380V High Voltage DC Power Supply • 1200W -48V~-60V DC Power Supply |
Two redundant hot swappable power supplies (1+1 redundancy). Options: • 900W AC Platinum/Titanium (Input: 100V-240V AC or 192V-288V DC) • 1500W AC Platinum (Input: 200V-240V AC or 192V-288V DC) • 1500W 380V High Voltage DC (Input: 260V-400V DC) • 1200W -48V~-60V DC (input: -38.4V to -72V DC) • 3000W AC Titanium (Input: 200V-240V AC) • 2000W AC Platinum (Input: 200V-240V AC or 192V-288V DC) |
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management | BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement. BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support CD free deployment and Agentless features. FusionDirector management software is optional. | BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement. BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions. FusionDirector management software is optional. | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features. The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management. It is optional to configure the FusionDirector management software. |
| Operation temperature | 5 °C to 45 °C (41 ℉ to 113 ℉) (compliant with ASHRAE A3 and A4 standards) | 5 °C to 45 °C (41 °F to 113 °F) (compliant with ASHRAE Class A1/A2/A3/A4) | 5°C to 50°C (41°F to 122°F), compliant with ASHRAE Classes A1, A2, A3, and A4 |
| Product Certification | CE, UL, FCC, CCC, RoHS, etc. | CE, UL, CCC, FCC, VCCI, RoHS, etc. | CE, UL, CCC, FCC, VCCI, and RoHS |
| Installation Package | L-shaped slide, extendable slide, and rail support | Support L-shaped slide, extendable slide, and rail support | L-shaped guide rails, adjustable guide rails, and holding rails |
| Size | 86.1mm × 447mm × 748mm | 86.1mm × 447mm × 790mm | Chassis with 3.5" drives / 2.5" drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |

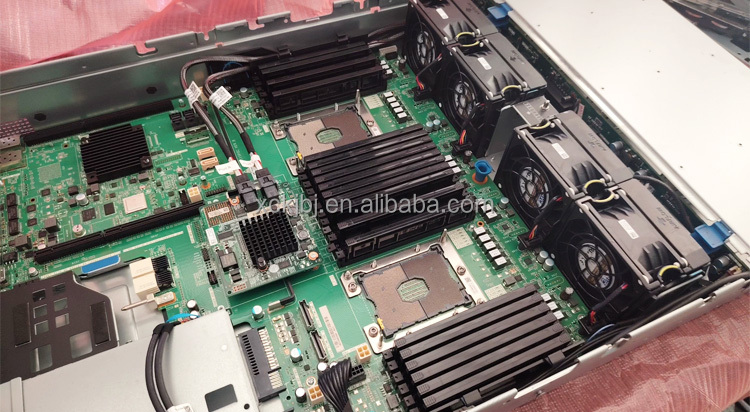

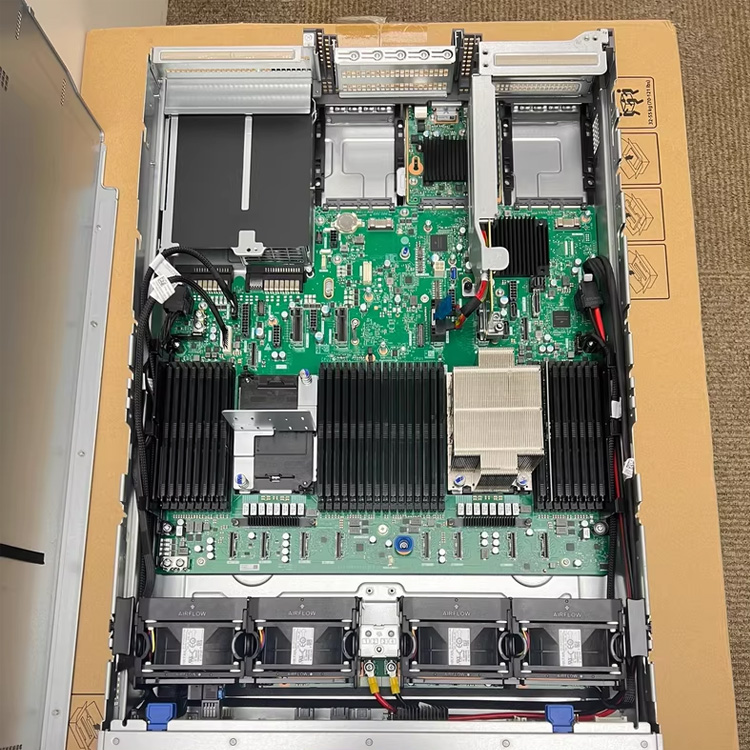

FusionServer 2288H V5 is a 2U rack server with flexible configuration, equipped with 24 DDR4 memory expansion slots and 10 PCIe expansion slots, as well as up to 20 x 3.5 inches or 31 x 2.5 inches of local storage resources (configurable with 4/8/12/24/28 NVMe SSD hard drives). Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns. Suitable for cloud computing virtualization, databases, big data, and other workloads.
FusionServer 2288H V6 is a 2U rack mounted server with flexible configuration that can be widely used for loads such as cloud computing, virtualization, databases, and big data. The 2288H V6 can be configured with 2 Intel Xeon Scalable processors, 16/32 DDR4 memory, 14 PCIe expansion slots, supports large capacity local storage resources. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns.

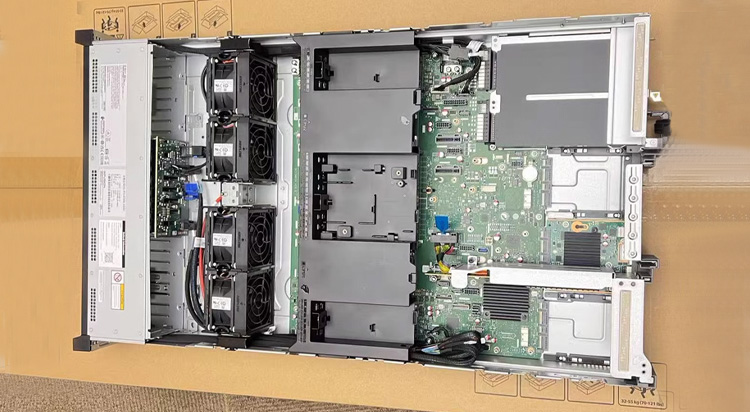

FusionServer 2288H V7 (hereinafter referred to as 2288H V7) is a new generation of 2U rack servers with a wide range of applications, designed to meet the needs of SDS, VDI, CDN, virtualization, big data, databases, cloud scenarios, AI inference, small businesses, OA, web application business applications, and other complex workloads. The 2288H V7 has the advantages of low energy consumption, strong scalability, high reliability, easy management, and easy deployment.
