Low-Price 1U 2U 2-Socket 8/12/16/24Sff Huaweis Xfusion FusionServer 1288H 2288H 2488H V5 V6 V7 Low Power Network Rack Server

Product Description

We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. We are the core partner for brands like Huawei, Lenovo, Dell and IBM. We look forward to cooperating with you. We can customize freely according to your needs!
Support Server
Support Server
Products Description
Model FusionServer 2288H V5
Customization Intention Customers Can Freely Choose Specific Configurations
Form Factor 2U rack server
Processor ● 1/2 of the first generation Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W, capable of supporting Lanchijin processors
● 1/2 second-generation Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W, capable of supporting Lanchijin processors
Memory 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel® Optane™ Persistent Memory 100 series, up to 2666MT/s
Local Storage Supports multiple different hard drive configurations, and the hard drive supports hot swapping:
● Can be configured with 8 2.5-inch SAS/SATA/SSD hard drives
● Configurable 12/16/20 3.5-inch SAS/SATA hard drives
● Configurable 4/8/12/24/28 NVMe SSD hard drives
● 31 2.5-inch SAS/SATA/SSD hard drives can be configured
● Can be configured with 2 M.2 SATA SSD hard drives, supporting hardware RAID
RAID support Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions
Networking Onboard network card: 2 10GE interfaces and 2 GE interfaces
Flexible card insertion: optional 2 * GE or 4 * GE or 2 * 10GE or 2 * 25GE or 1/2 56G FDR IB interface
PCIe Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card
Heterogeneous acceleration card Up to 7 single slot half height and half length cards
Up to 2 dual slot full height and full length cards
Fan 4 hot swappable counter rotating fans, supporting N+1 redundancy
Power supply Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows:
● 550W AC Platinum Power Supply
● 900W AC Platinum/Titanium Power Supply
● 1500W AC Platinum Power Supply
● 1500W 380V High Voltage DC Power Supply
● 1200W -48V~-60V DC Power Supply
Manage BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features.
BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc. Provides a remote management interface based on HTML5/VNC KVM. Supports CD free deployment and Agentless features to simplify management complexity.
FusionDirector management software is optional, providing advanced management features such as stateless computing, OS batch deployment, and firmware automatic upgrade, achieving intelligent and automated management throughout the entire lifecycle.
Operation temperature 5°C to 45°C (41°F to 113°F) (compliant with ASHRAE A3 and A4 standards)
Product Certification CE, UL, FCC, CCC, RoHS, etc.
Installation package L-shaped slide, extendable slide, and rail support
Size 86.1mm x 447mm x 748mm
FusionServer 2288H V5
FusionServer 2288H V5
FusionServer 2288H V5 is a 2U rack server with flexible configuration, equipped with 24 DDR4 memory expansion slots and 10 PCIe expansion slots, as well as up to 20 x 3.5 inches or 31 x 2.5 inches of local storage resources (configurable with 4/8/12/24/28 NVMe SSD hard drives).
2288H V5 Features
Intelligent Management
Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns. Suitable for cloud computing virtualization, databases, big data, and other workloads.
Details Images

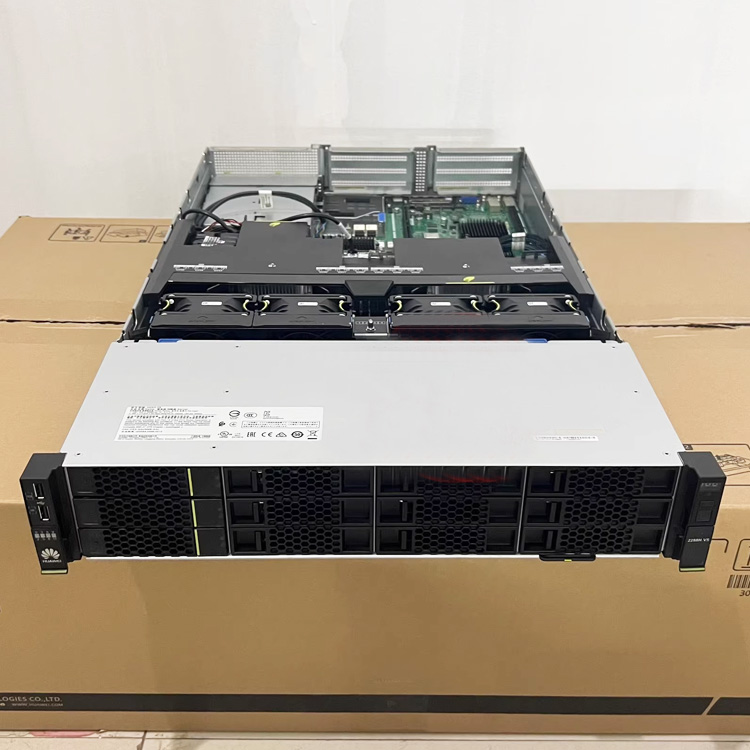

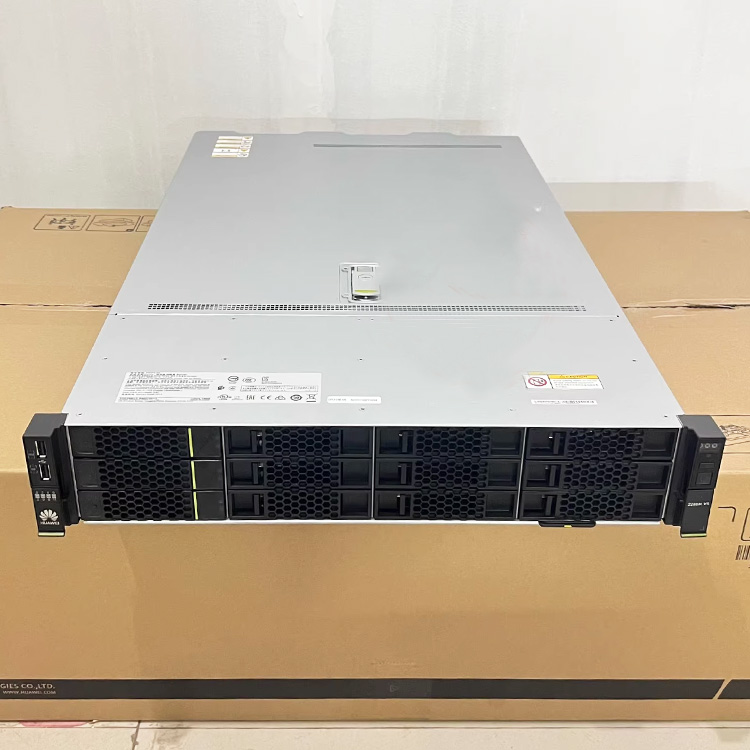

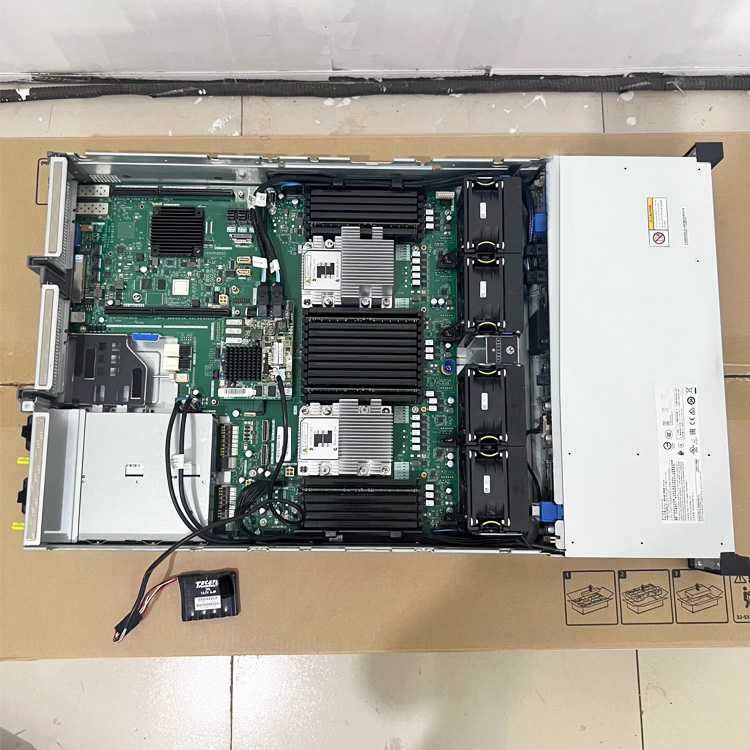

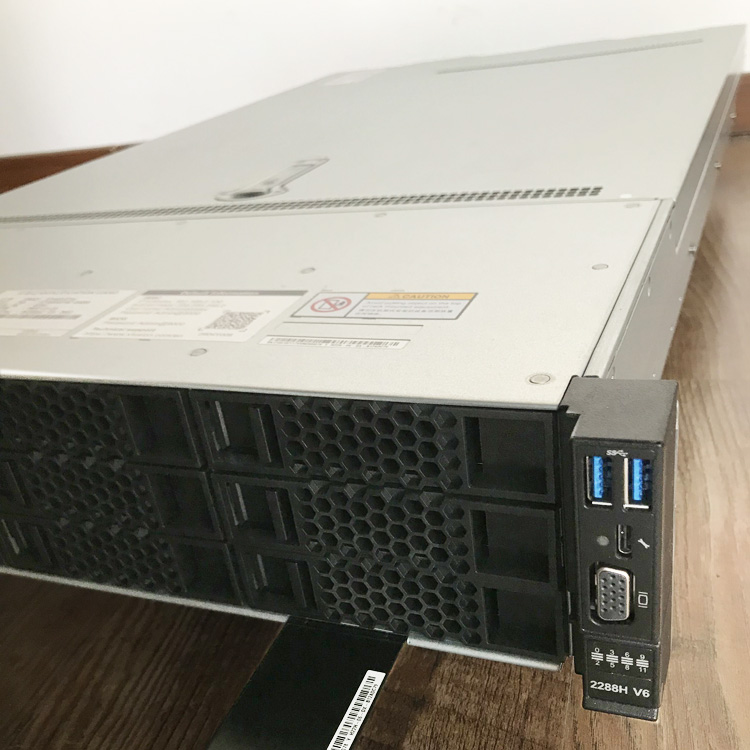

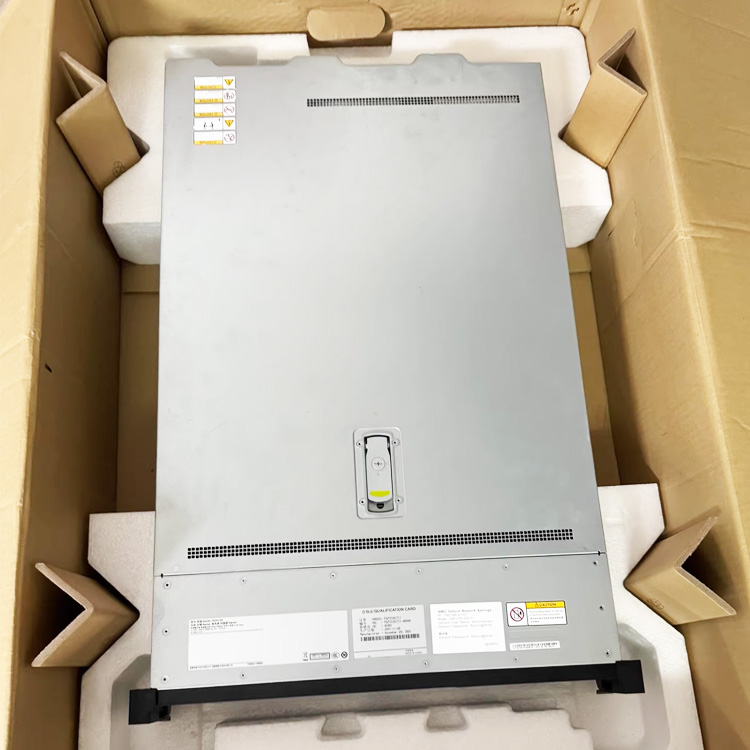

Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Company Introduction
We are specialized in computer hardware sales and network platform construction and maintenance of IT enterprises. Our main products are Dell, HP, IBM, Lenovo, Huawei, convinced, Youyou mail and other products. We have a sound sales network system, stable commodity supply channels, and an excellent technical support team. Based on this advantage, our business has expanded rapidly, and now we have become an excellent server system integrator and solution provider for well-known enterprises and institutions at home and abroad. Since our inception, we have established a good customer relationship maintenance system and support system. Committed to the real price of genuine market competition, active open cooperation, and establishing a strong supplier partnership for war preparedness. In the competitive market environment, we align with the "Customer first, honest and pragmatic, service first" business philosophy, striving to strengthen the quality of products and thoughtful service to win trust in society. We wish our professional quality and first-class service can be accepted and introduced by you and your enterprise.
Company Image 1
Company Image 2
Company Image 3
Buyer Reviews
Buyer Reviews
Our Advantages
Our Advantage 1
Our Advantage 2
FAQ
Is it brand new from the original factory?
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
Is it in stock?
We have a warehouse, and you are always welcome to visit and inspect the goods.
Can you give a discount?
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
How long is the delivery time?
1-3 working days after your payment.
How long is the warranty period?
Our different products have different warranty, if necessary, we can extend the warranty to five years.
What is the minimum order quantity?
We accept orders from 1 set, please feel free to inquire.
Additional Image 1
Additional Image 2
We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs. Welcome to Inquire!
