Vertex AI Server
1 / 5

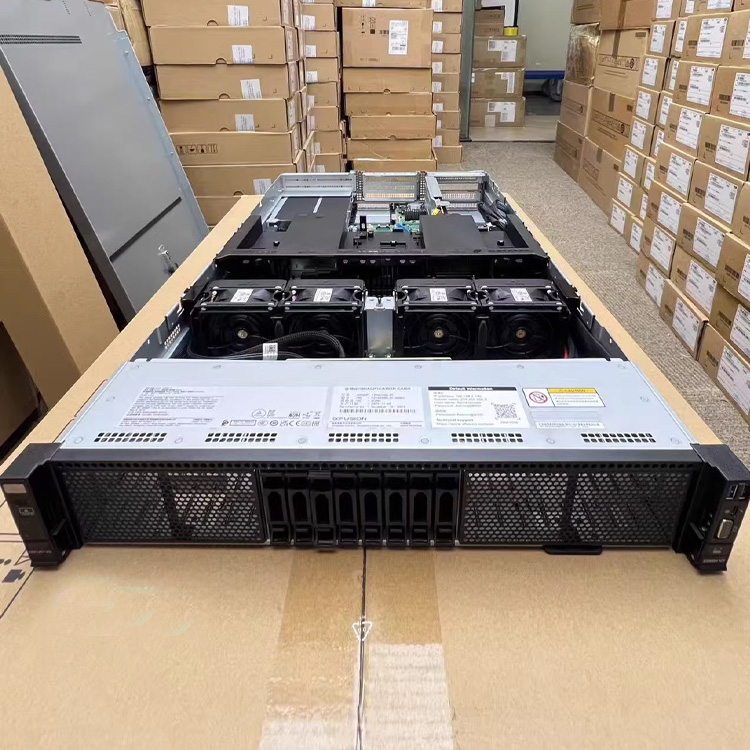

| Model | FusionServer 2288H V7 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 fourth/fifth generation Intel® xeon® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors |
| Chipset | Emmitsburg PCH |
| Memory | 32 DDR5 memory slots are flexible and optional, up to 5600MT/s, supporting CXL expansion of memory. Up to 16 DDR5 memory slots can be expanded, and the maximum number of memory slots can reach 48* |
| Local Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping: • Can be configured with 8-35 2.5-inch SAS/SATA/SSD hard drives • Can be configured with 12-18 3.5-inch SAS/SATA hard drives • Configurable 4/8/16/24 NVMe SSD drives • Supports up to 45 2.5-inch hard drives or 28 full NVMe SSD • Support Flash storage: Supports dual M.2 SSDs, hard RAID, and hot swappable |
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Support multiple network expansion capabilities Support OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0 |
| PCIe | Up to 19 PCIe expansion slots* 2 OCP3.0 dedicated FLEX IO expansion slots, supporting 17 standard PCIe expansion slots, including 8 PCIe 5.0 slots |
| GPU acceleration card | Supports 4 dual width GPU acceleration cards or 14 single width GPU acceleration cards* |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power supply | Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy |
| Manage |
BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features; BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity; FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating system | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems |
| Security features | Support power on password, administrator password TPM 2.0, Safety features such as safety panel, safety start, and lid opening detection |
| Operation temperature | 5°C ~ 50°C (41°F ~ 122°F) (compliant with ASHRAE Class A1/A2/A3/A4) |
| Product Certification | CE, UL, CCC, FCC, VCCI, RoHS etc. |
| Installation package | Support L-shaped slide, extendable slide, and rail support |
| Size | 86.1mm × 447mm × 798mm |
