Vertex AI Server
1 / 5
| Model | FusionServer 1288H V6 | FusionServer 1288H V7 |
|---|---|---|
| Form Factor | 1U rack server | 1U rack server |
| Processor | 1/2 of third-generation Intel ® xeon ® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors | 1/2 fourth/fifth generation Intel ® xeon ® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors |
| Chipset | Intel C621A | Emmitsburg PCH |
| Memory | 2 DDR4 memory slots, up to 3200MT/s, up to 16 Intel chips ® Aoteng ™ Persistent memory 200 series, up to 3200MT/s | 32 DDR5 memory slots available for flexible selection, up to 5600MT/s |
| Local Storage | Multiple different hard drive configurations, hard drives support hot swapping: Can be configured with 8-12 2.5-inch SAS/SATA/SSD hard drives. Can be configured with 10 2.5-inch hard drives (6-10 NVMe SSD hard drives and 0-4 SAS/SATA hard drives, total number of hard drives ≤ 10). Can be configured with 10 2.5-inch SAS/SATA/SSD hard drives (2-4 NVMe SSD hard drives and 6-8 SAS/SATA hard drives, total number of hard drives ≤ 10). Can be configured with 4 3.5-inch SAS/SATA/SSD hard drives. Can be configured with 2 M.2 SSDs. | Supports multiple different hard drive configurations, and the hard drive supports hot swapping: Can be configured with 4 3.5-inch SAS/SATA/SSD hard drives. Can be configured with 8-12 2.5-inch SAS/SATA/SSD hard drives. 32 E1. S hard drives can be configured. |
| RAID support | RAID support: Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions. | RAID support: Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions. |
| Networking | Support multiple network expansion capabilities. Supports OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed. Support notification based hot swapping. | Support multiple network expansion capabilities. Support OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0. |
| PCIe | Supports 6 PCIe expansion slots, including 1 PCIe expansion card dedicated to RAID cards, 2 FLEX IO expansion slots dedicated to OCP3.0 network cards, and 3 standard PCIe 4.0 expansion slots. | Supports 5 PCIe expansion slots, including 2 dedicated FLEX IO expansion slots for OCP3.0 network cards and 3 standard PCIe expansion slots, with 1 supporting PCIe 5.0. |
| Fan | 7 hot swappable counter rotating fans, supporting N+1 redundancy. | 8 hot swappable counter rotating fans, supporting N+1 redundancy. |
| Power Supply | Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. Optional: 900W AC Platinum/Titanium Power Supply (Input: 100V AC~240V AC or 192V DC~288V DC), 1500W AC Platinum Power Supply 1000W (Input: 100V AC~127V AC), 1500W (Input: 200V AC~240V AC or 192V DC~288V DC), 1500W 380V High Voltage DC Power Supply (Input: 260V DC~400V DC), 1200W -48V~-60V DC power supply (Input: -38.4V DC~-72V DC), 2000W AC Platinum Power Supply 1800W (Input: 200V AC~220V AC or 192V DC~200V DC), 2000W (Input: 220V AC~240V AC or 200V DC~288V DC). | Optional 900W/1200W/1500W/2000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy. |
| Manage | BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support CD free deployment and Agentless features to simplify management complexity. FusionDirector management software is optional, providing advanced management features such as stateless computing, OS batch deployment, and firmware automatic upgrade, achieving intelligent and automated management throughout the entire lifecycle. | IBMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. IBMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating System | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler and more compatible systems. | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler and more compatible systems. |
| Security Features | Support power on password, administrator password TPM 2.0, safety panel, safety start, and lid opening detection. | Support power on password, administrator password TPM 2.0, safety panel, safety start, and lid opening detection. |
| Operation Temp | 5 ºC to 45 ºC (41 ℉ to 113 ℉) (compliant with ASHRAE A3 and A4 standards). | 5 ºC to 45 ºC (41 ℉ to 113 ℉) (compliant with ASHRAE A3 and A4 standards). |
| Certification | CE, UL, FCC, CCC, RoHS etc. | CE, UL, FCC, CCC, RoHS etc. |
| Installation Package | L-shaped slide, extendable slide, and rail support. | L-shaped slide, extendable slide, and rail support. |
| Size | 43.5mm × 447mm × 790mm | 43.5mm × 447mm × 798mm |

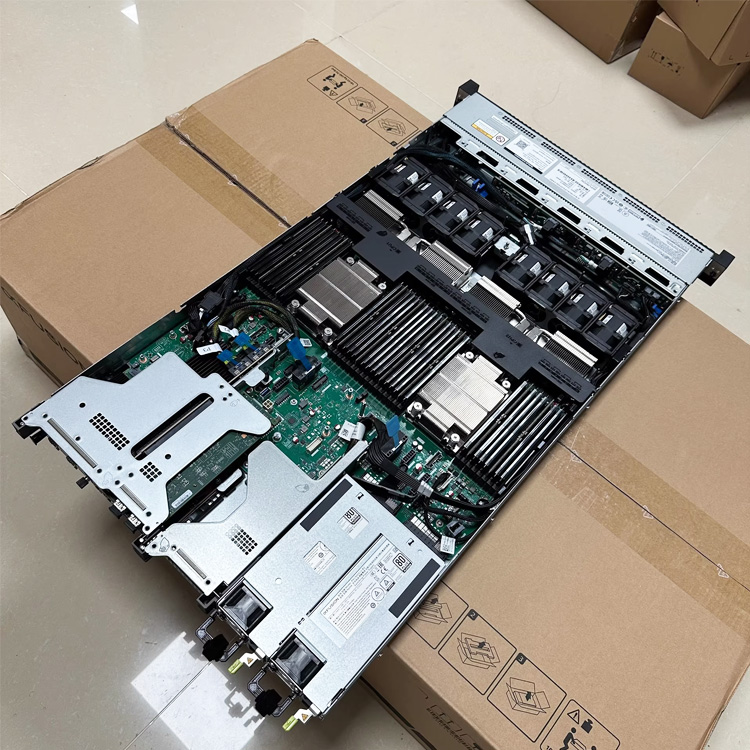

FusionServer 1288H V5 is a new generation of 1U 2-way rack servers with wide applications launched to meet the needs of cloud computing, enterprise markets, and telecommunications business applications. It is suitable for IT core business, cloud computing virtualization, high-performance computing, distributed storage, big data processing, enterprise or telecommunications business applications, and other complex workloads. This server has the advantages of low energy consumption, strong scalability, high reliability, easy management, and easy deployment.
FusionServer 1288H V6 is a 1U2 rack server suitable for high-density deployment of loads such as cloud computing, virtualization, high-performance computing, and big data processing, improving data center space utilization. 1288H V6 can be configured with 2 Intel Scalable processors in 1U space, 32 DDR4 memories, and 4 3.5-inch or 10 2.5-inch local storage resources (configurable 4/10 NVMe SSD hard drives).
FusionServer 1288H V7 is designed for a new generation of 1U2 rack servers with wide applications launched to meet the needs of cloud computing, enterprise markets, and telecommunications business applications. It is suitable for IT core business, cloud computing, virtualization, high-performance computing, enterprise or telecommunications applications, and other complex workloads. The 1288H V7 has the advantages of low energy consumption, strong scalability, high reliability, easy management, and easy deployment.
Yes, all our products are brand new from the original factory (except second-hand products specifically requested).
As a senior agent, our pricing is highly advantageous. We can offer the best discount for large order volumes.
Orders are processed quickly and generally dispatched within 1-3 working days after payment confirmation.
Different products carry different warranties. If required, we can extend the warranty service up to five years.
We accept orders starting from a single set. Please feel free to inquire.
We support standard payment methods including T/T, Western Union, and secure online platform transactions.
