Vertex AI Server
1 / 5
| Model | FusionServer 2288H V5 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | • 1/2 of the first generation Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W, capable of supporting Lanchijin processors • 1/2 second-generation Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W, capable of supporting Lanchijin processors |
| Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel® Optane™ Persistent memory 100 series, up to 2666MT/s |
| Local Storage | Supports multiple different hard drive configurations, and the hard drive supports hot swapping: • Configured with 8 2.5-inch SAS/SATA/SSD hard drives • Configurable 12/16/20 3.5-inch SAS/SATA hard drives • Configurable 4/8/12/24/28 NVMe SSD hard drives • Configured with 2 M.2 SATA SSD hard drives, supporting hard RAID |
| RAID Support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Onboard network card: 2 10GE interfaces and 2 GE interfaces; Flexible card insertion: optional 2*GE or 4*GE or 2*10GE or 2*25GE or 1/2 56G FDR IB interface |
| PCIe | Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power Supply | Two redundant hot swappable power supplies (1+1 redundancy): 550W/900W/1500W AC Platinum/Titanium, or 1500W 380V High Voltage DC, or 1200W -48V~-60V DC |
| Management | BMC chip integrates a dedicated management GE network port; Supports Redfish, SNMP, IPMI2.0; Remote management via HTML5/VNC KVM; FusionDirector management software optional |
| Operating Temperature | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CE, UL, FCC, CCC, RoHS etc. |
| Size | 86.1mm × 447mm × 748mm |

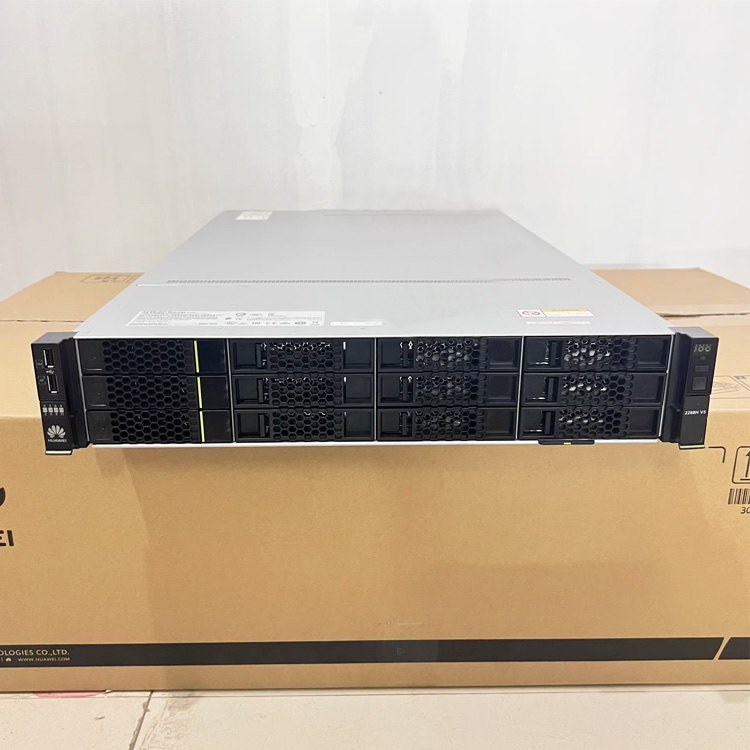

FusionServer 2288H V5 is a 2U rack server with flexible configuration, equipped with 24 DDR4 memory expansion slots and 10 PCIe expansion slots, as well as extensive local storage resources. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, it effectively reduces operating costs and improves investment returns. Suitable for cloud computing virtualization, databases, big data, and other workloads.
