We have 10 years of distribution experience. As a high-tech enterprise integrating system integration, IT consulting, and professional IT services, we act as a key business partner of leading global brands including Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. Customization is fully supported based on your specific requirements!
| Model | FusionServer 2288H V6 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 of third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors |
| Chipset | Intel C621A |
| Memory | 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel® Optane™ Persistent Memory 200 series, up to 3200MT/s |
| Local Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping:
|
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Supports multiple network expansion capabilities, supports OCP 3.0 network cards - 2 FLEX IO card slots each support 2 OCP 3.0 network cards, and supports on-demand selection. Supports hot swapping |
| PCIe | 14 PCIe 4.0 expansion slots, supporting multiple applications |
| Heterogeneous acceleration card | Support 4 300W full height, full length, dual width GPU acceleration cards / 11 half height, half length, single width GPU acceleration cards / 8 full height, full length, single width GPU acceleration cards |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows:
|
| Manage |
BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating system | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems |
| Security features | Support power on password, administrator password TPM 2.0, safety panel, safety start, and lid opening detection |
| Operation temperature | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE Class A1/A2/A3/A4) |
| Product Certification | CE, UL, CCC, FCC, VCCI, RoHS etc. |
| Installation package | Support L-shaped slide, extendable slide, and rail support |

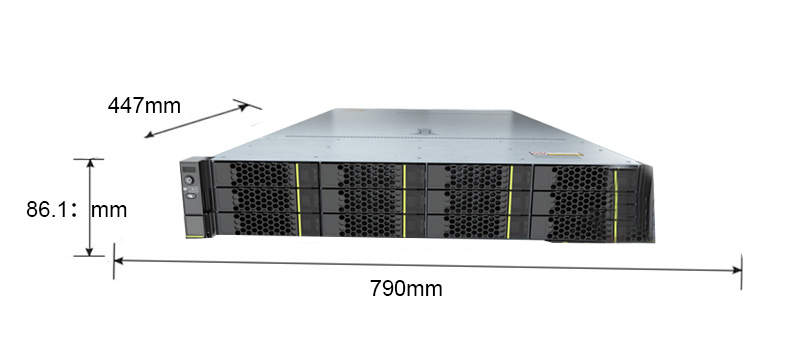

| Size | 86.1mm × 447mm × 790mm |

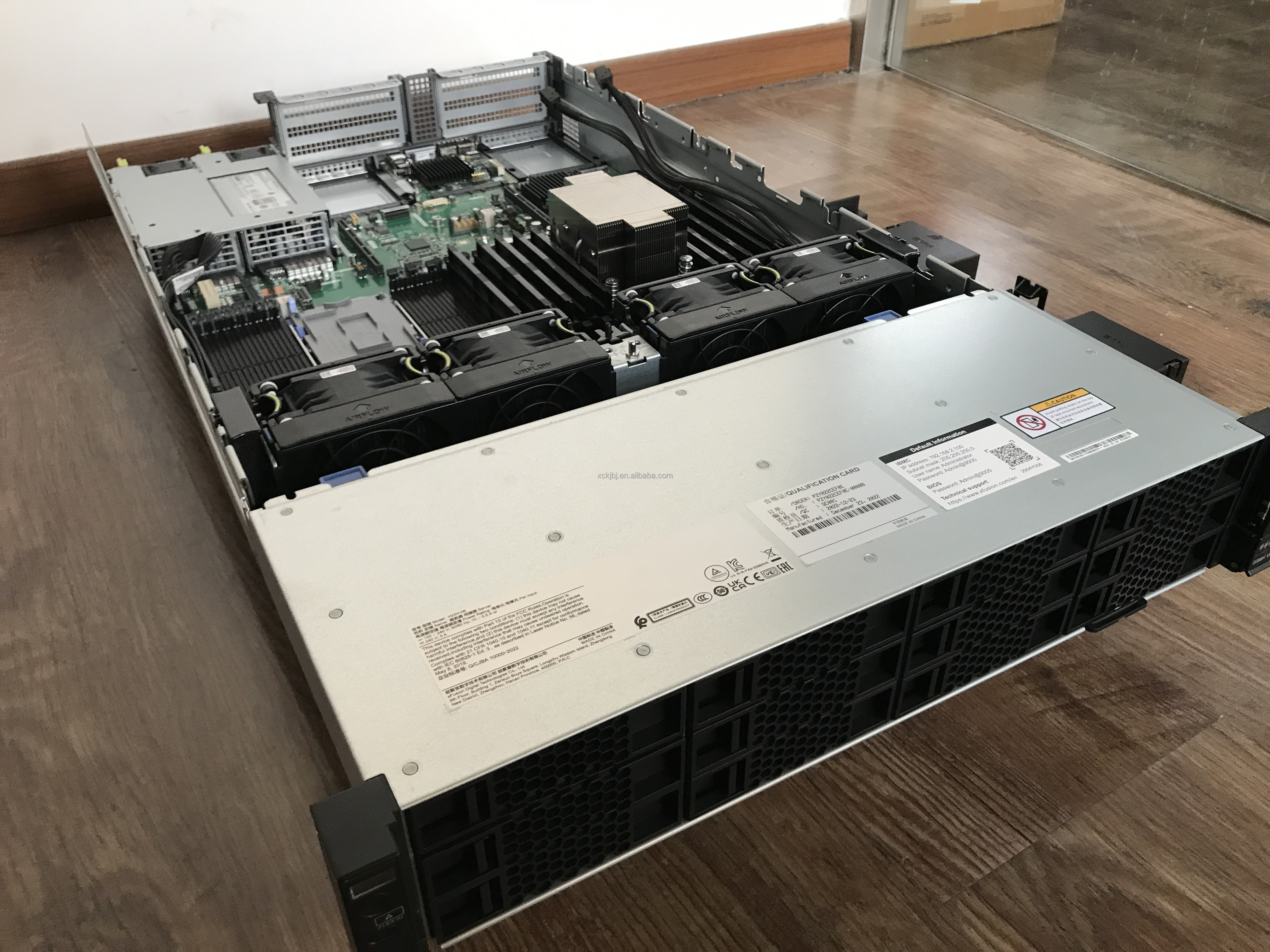

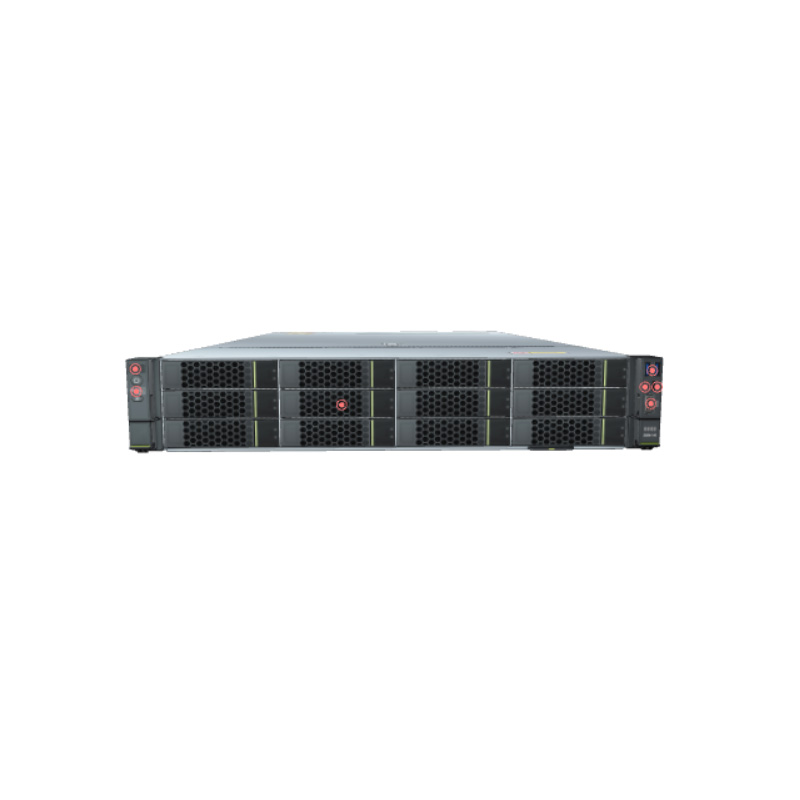

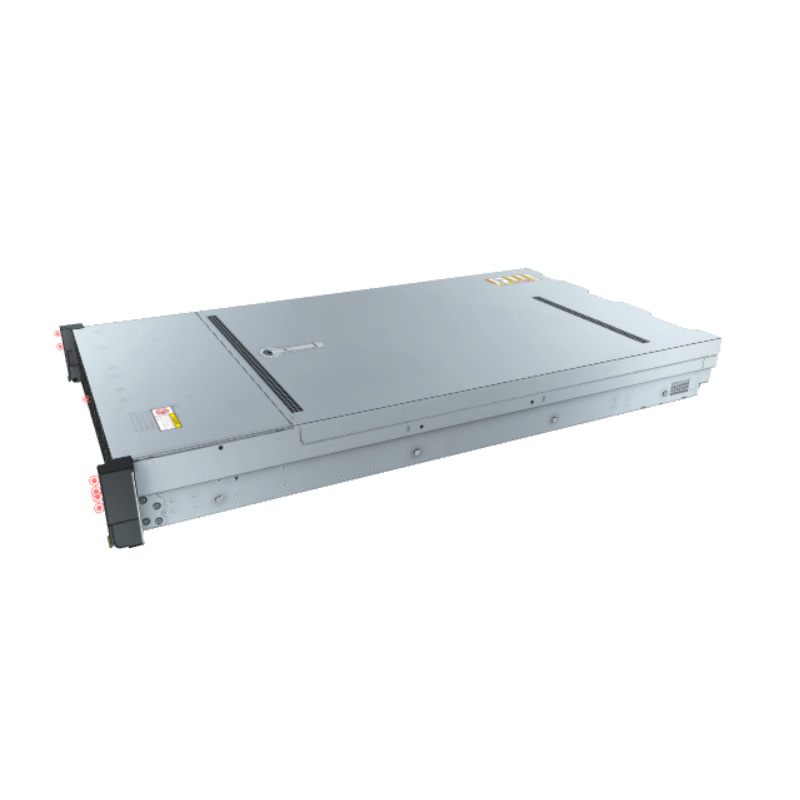

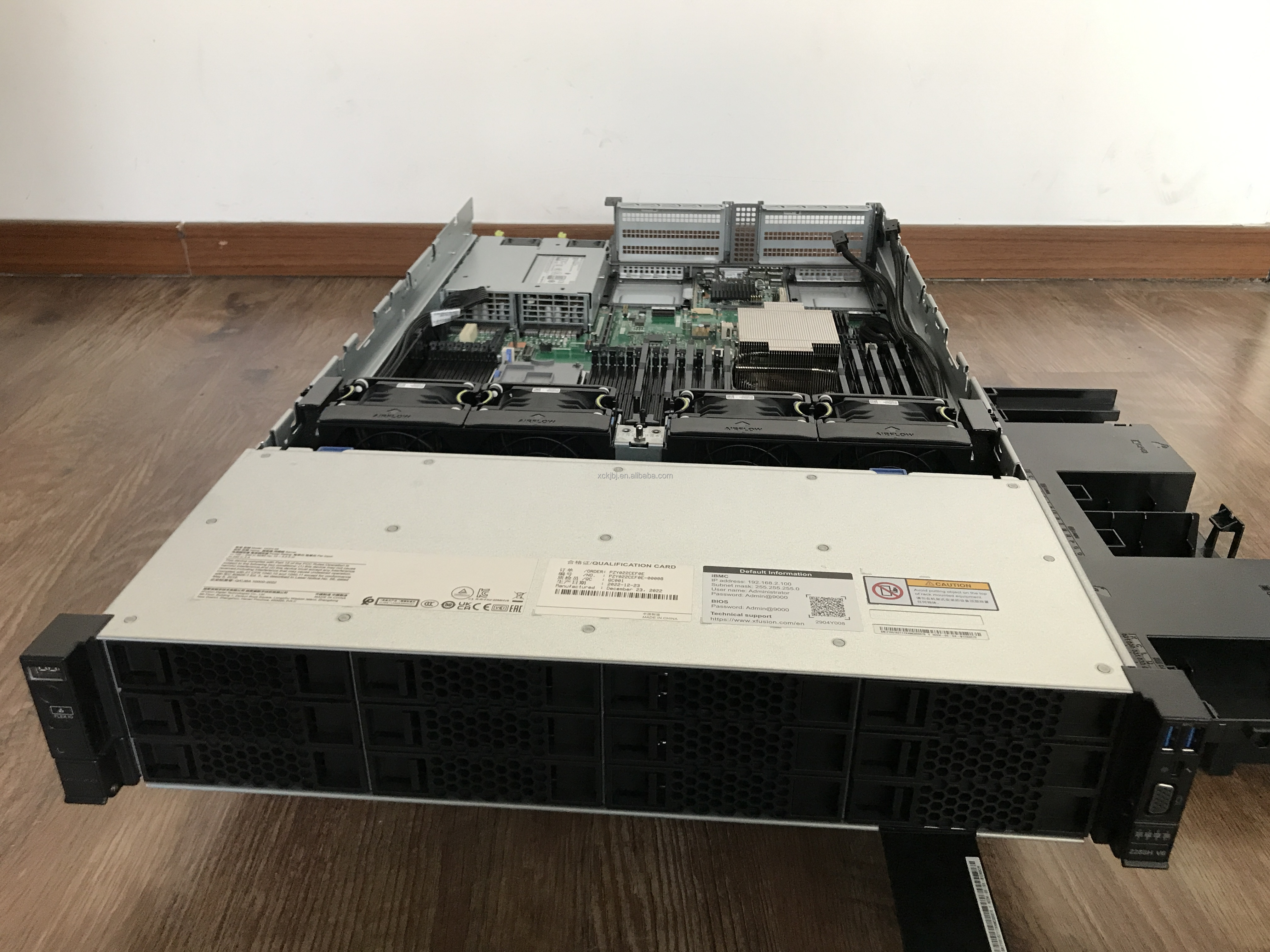

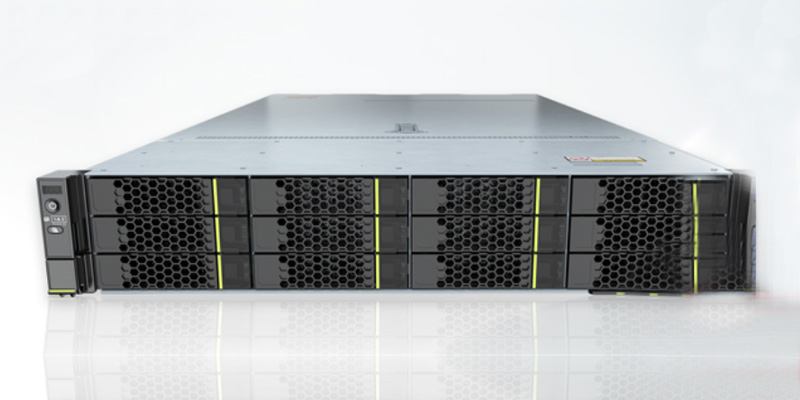

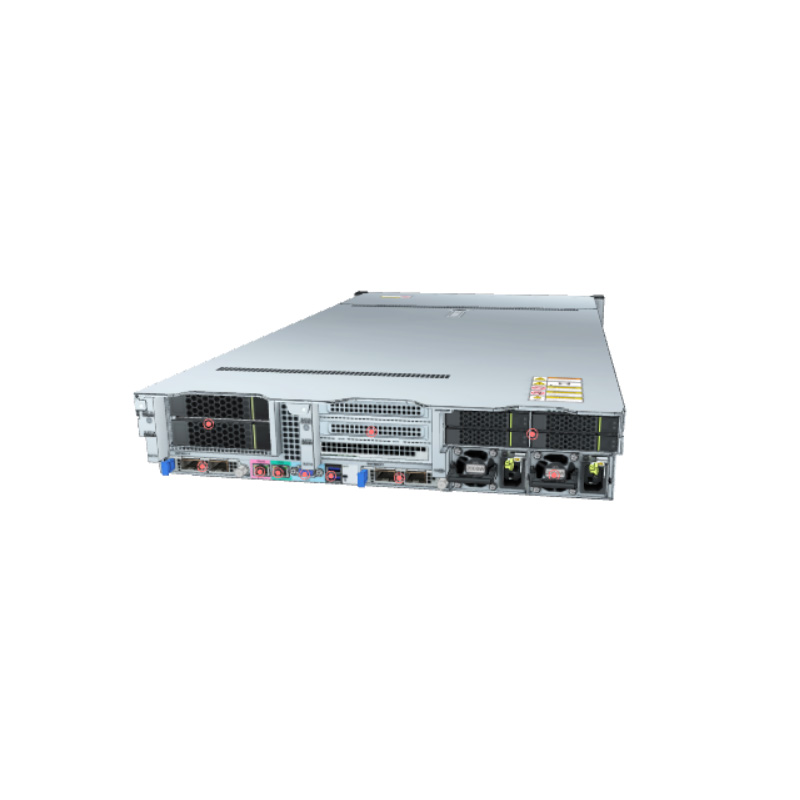

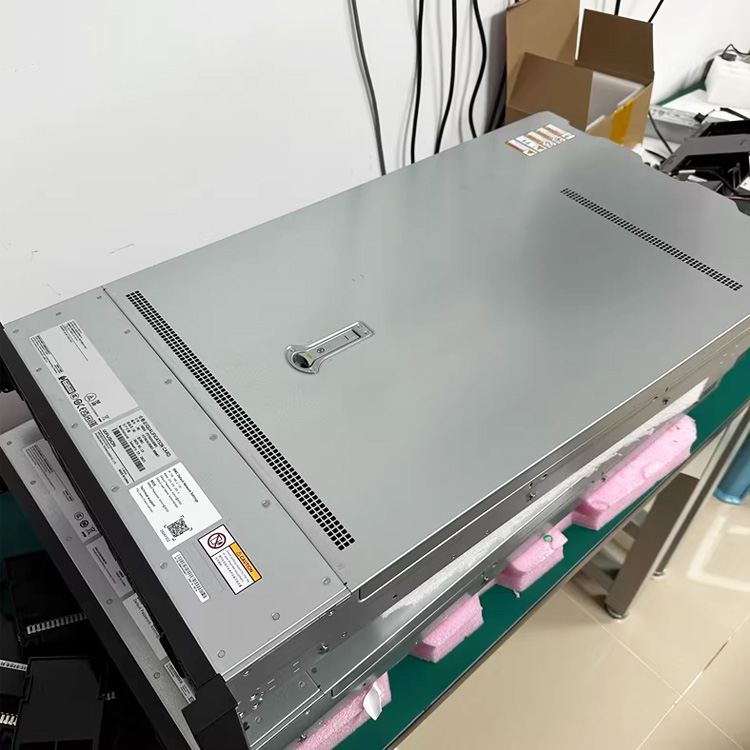

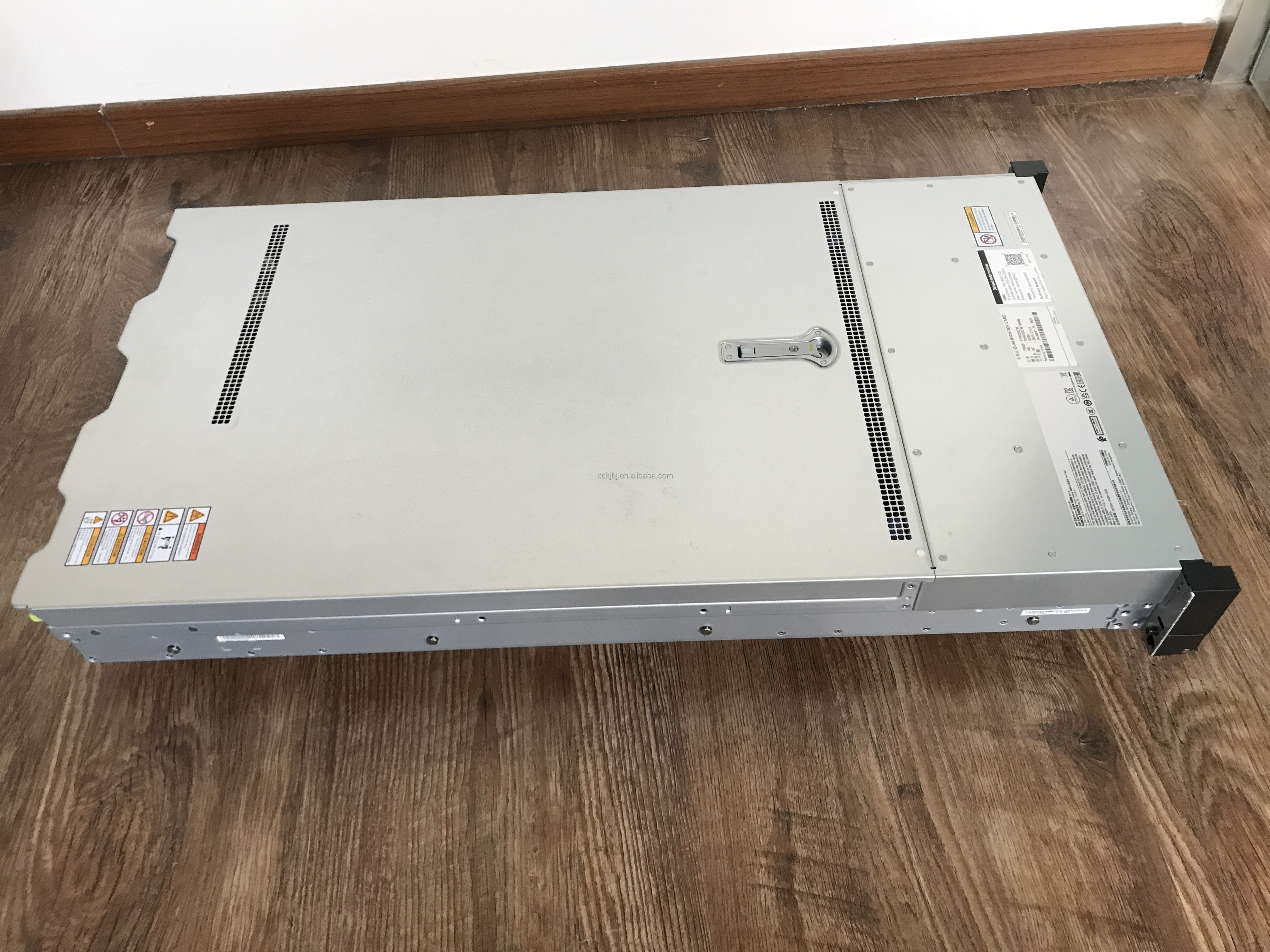

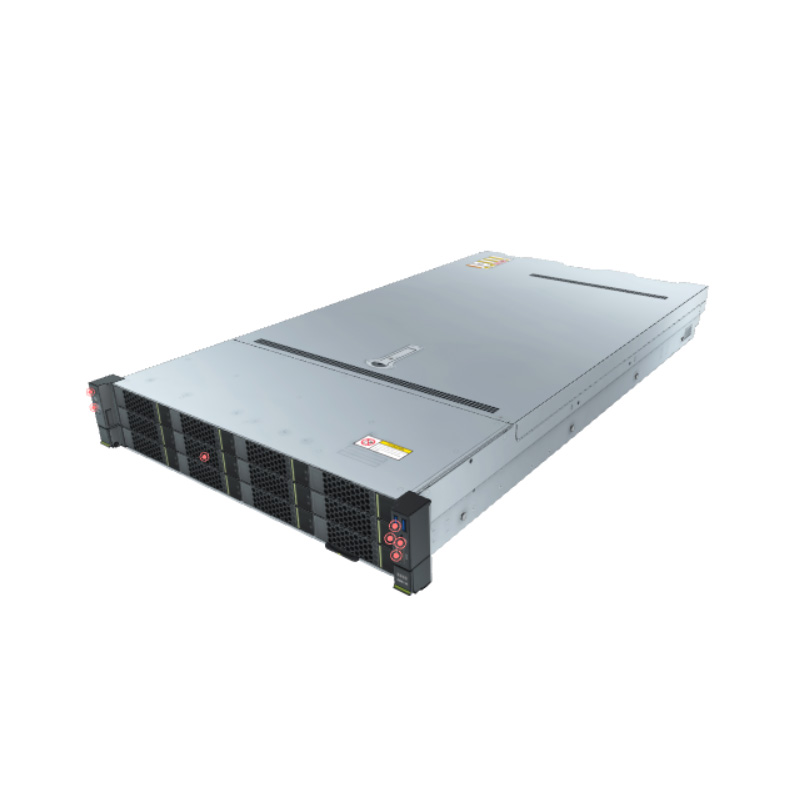

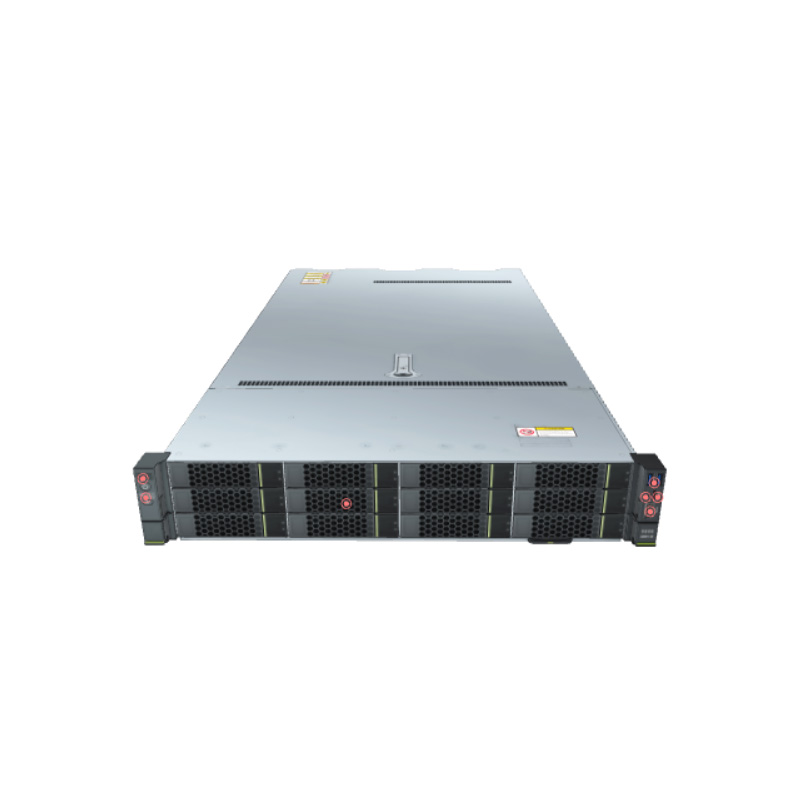

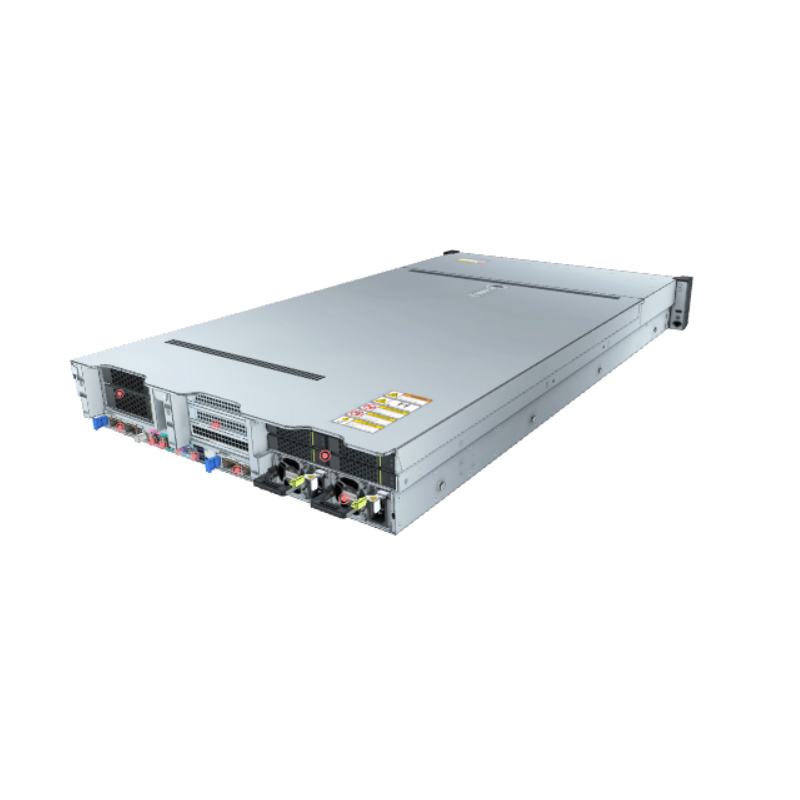

FusionServer 2288H V6 is a 2U rack-mounted server with flexible configuration that can be widely used for workloads such as cloud computing, virtualization, databases, and big data. The 2288H V6 can be configured with 2 Intel® Xeon® Scalable processors, 16/32 DDR4 memory, 14 PCIe expansion slots, and supports large capacity local storage resources. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, along with optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve return on investment.
Supports up to 45 2.5-inch hard drives, 34 NVMe SSDs, and up to 12TB memory capacity for extensive data needs.
80 core universal computing power. Supports 4 300W full-height full-length dual-width, 8 full-height single-width, or 11 half-height single-width GPU acceleration cards.

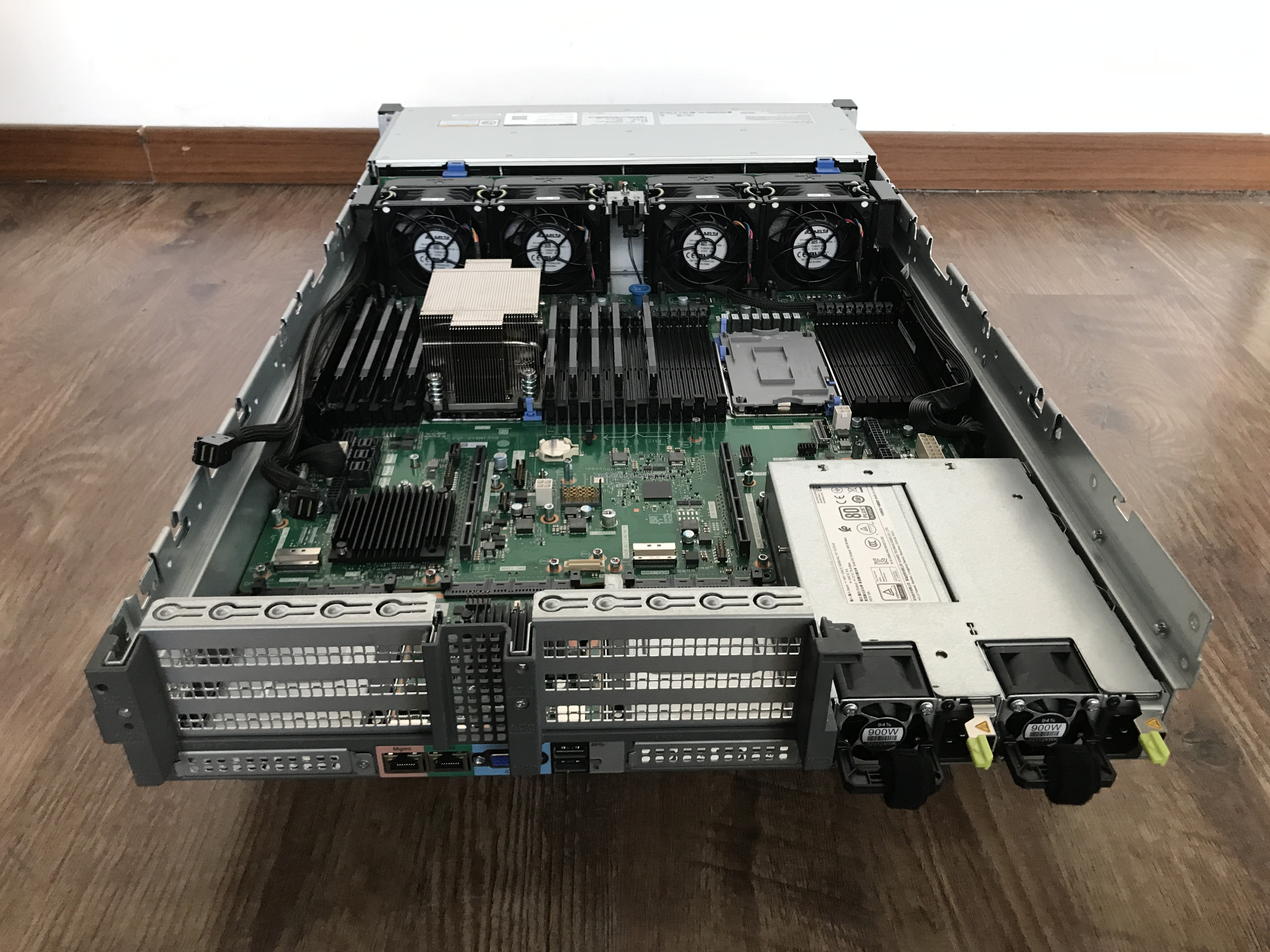

Flexible selection of 32DIMM and 16DIMM models. Features 2 hot-swappable OCP 3.0 network cards, 14 PCIe 4.0 expansion slots, and 2 M.2 SSDs with hardware RAID support.
Yes, all our products are brand new from the original factory, unless second-hand products are specifically requested by the customer.
Yes, we maintain a comprehensive warehouse stock. Customers are always welcome to visit and inspect the goods.
Orders are typically processed and shipped within 1-3 working days after payment confirmation.
Warranty periods vary by product. Upon request, we can extend the warranty service up to five years.
We accept orders starting from 1 set. Please feel free to make inquiries for any quantity.
Yes, we can arrange free delivery to your designated domestic freight forwarder.
