Product Description

We have 10 years of distribution experience. We are a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. We are the core agent and business partner of Huawei, Lenovo, Dell, and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

Support Server

Products Description

Model	FusionServer 2288H V7
Customization Intention	Customers Can Freely Choose Specific Configurations
Form Factor	2U rack server
Processor	1/2 fourth/fifth generation Intel ® Xeon ® Scalable processor, with a maximum support of 385W per processor, capable of supporting Lanchijin processors
Chipset	Emmitsburg PCH
Memory	32 DDR5 memory slots are flexible and optional, up to 5600MT/s, supporting CXL expansion of memory. Up to 16 DDR5 memory slots can be expanded, and the maximum number of memory slots can reach 48*
Local Storage	Supports multiple different hard drive configurations, and the hard drive supports hot swapping: • Can be configured with 8-35 2.5-inch SAS/SATA/SSD hard drives • Can be configured with 12-18 3.5-inch SAS/SATA hard drives • Configurable 4/8/16/24 NVMe SSD drives • Supports up to 45 2.5-inch hard drives or 28 full NVMe SSD • Support Flash storage: Supports dual M.2 SSDs, hard RAID, and hot swappable
RAID support	Optional configuration supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions
Networking	Support multiple network expansion capabilities. Support OCP 3.0 network cards - 2 FLEX IO card slots each support 2 OCP 3.0 network cards, and can be selected as needed; Supports hot plugging and PCIe 5.0
PCLs	Up to 19 PCIe expansion slots* 2 OCP3.0 dedicated FLEX IO expansion slots, supporting 17 standard PCIe expansion slots, including 8 PCIe 5.0 slots
GPU acceleration card	Supports 4 dual width GPU acceleration cards or 14 single width GPU acceleration cards*

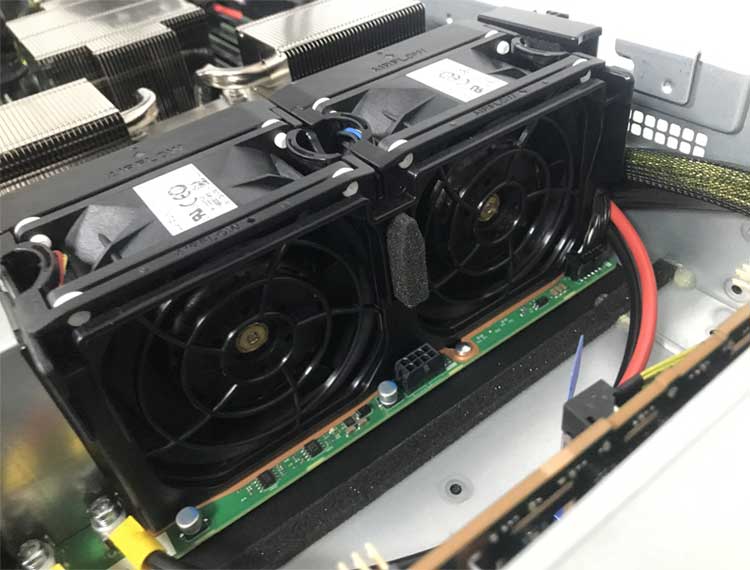

Fan	4 hot swappable counter rotating fans, supporting N+1 redundancy
power supply	Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy
Manage	BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. BMC supports standard interfaces such as Red, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle.
operating system	Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and more compatible systems
Security features	Support power on password, administrator password TPM 2.0, Safety features such as safety panel, safety start, and lid opening detection
Operation temperature	5ºC ~ 50ºC (41ºF ~ 122ºF) (compliant with ASHRAE Class A1/A2/A3/A4)
Product Certification	CE, UL, CCC, FCC, VCCI, RoHS, etc.
Installation package	Support L-shaped slide, extendable slide, and rail support

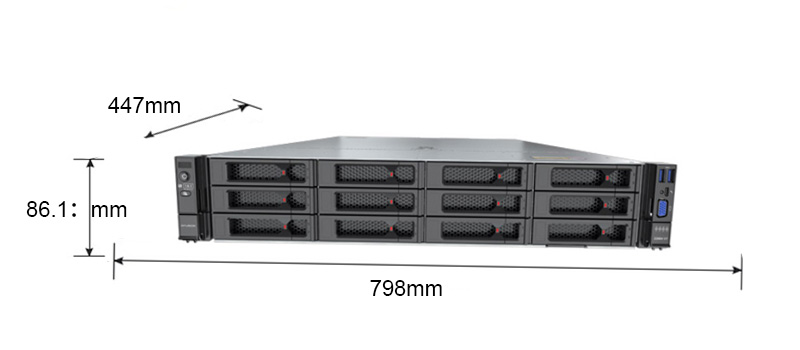

Size	86.1mm × 447mm × 798mm

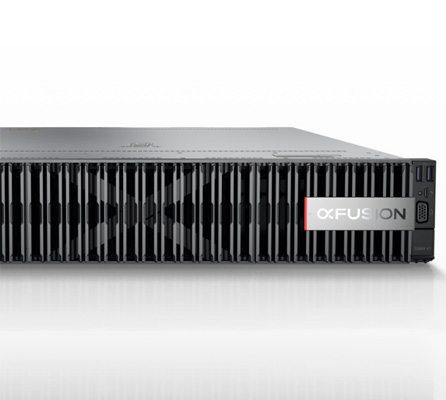

Main application scenarios:

SDS, VDI, CDN, Virtualization, big data, databases, cloud scenarios, AI inference, small businesses, OA, web applications

FusionServer 2288H V7 is designed for SDS, VDI, CDN. A new generation of 2U2 rack servers with wide applications has been launched to meet the needs of virtualization, big data, databases, cloud scenarios, AI inference, small businesses, OA, web application business applications, and other complex workloads.

The 2288H V7 has the advantages of low energy consumption, strong scalability, high reliability, easy management, and easy deployment.

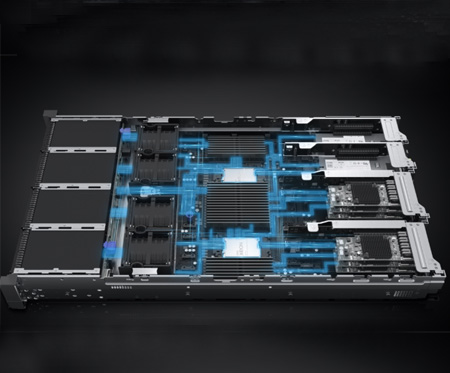

Overall performance commission

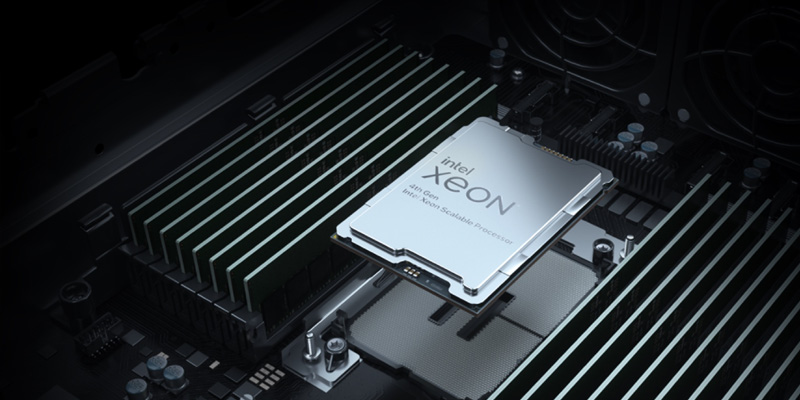

Based on the fourth/fifth generation Intel Xeon Scalable Processor, it supports up to 385W CPU and 32DIMM DDR5 memory to provide powerful computing power, and can be expanded to up to 48 memory slots through CXL.

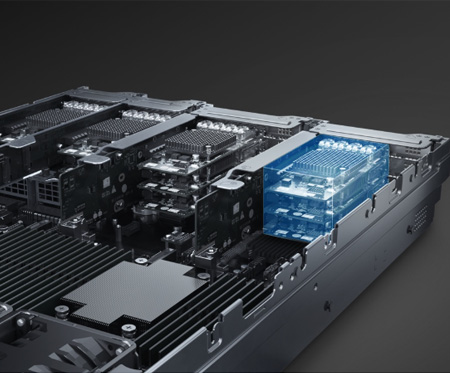

PCIe bandwidth increased by 100%

Supports PCIe 5.0 and 17 standard PCIe expansion slots for more flexible configuration.

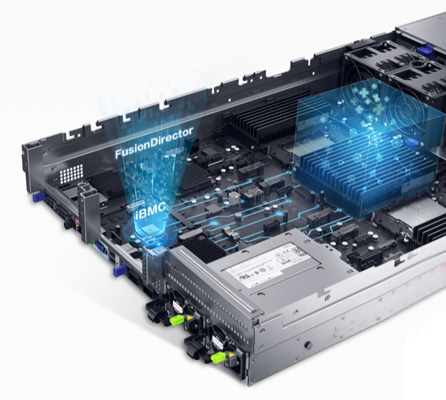

Reliable and secure

Single radiator capacity increased by 50%: The heat pipe pull away heat dissipation technology ensures reliable heat dissipation and stronger temperature adaptability.

System downtime rate reduced by 66%: Industry specific AI memory fault self-healing ensures stable system operation.

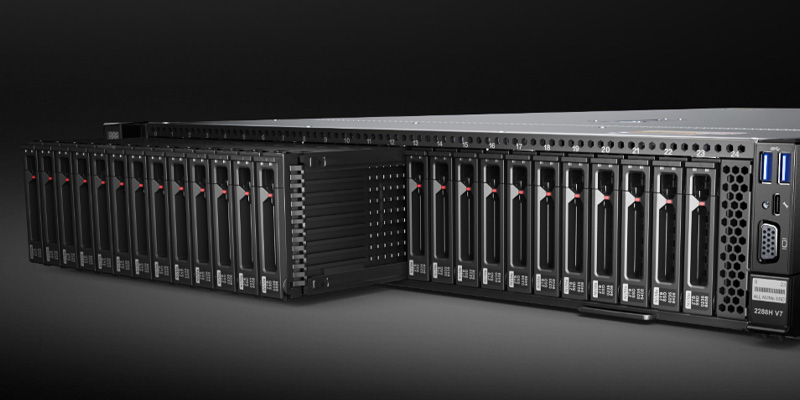

About Disk

• 28 * NVMe U.2 SSD hard drive: High speed flash memory, efficient performance.
• 45 * SAS/SATA SSD hard drive: More disk space, higher cost-effectiveness.

Intelligent perception business

Dynamically adjust the operating frequency of the CPU based on actual business load.

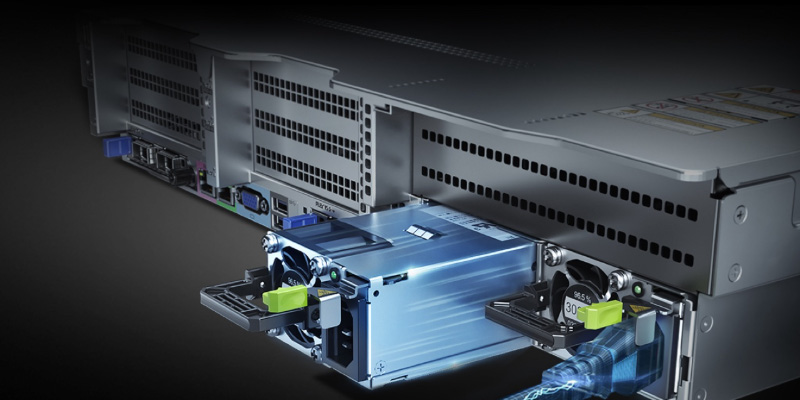

Leading power technology

The power loss is 12.5% lower than the industry, and the three core technologies improve power and efficiency, leading the industry in power conversion rate.

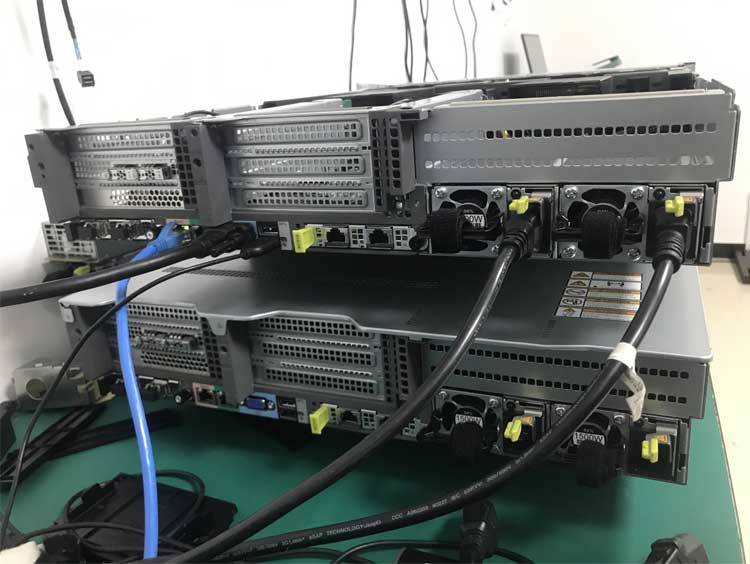

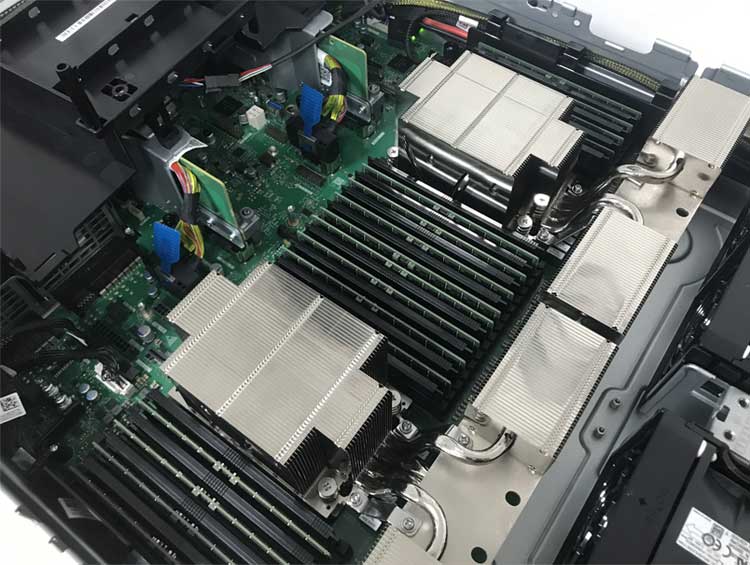

Details Images

Company Profile

We specialize in computer hardware sales, network platform construction, and IT maintenance. We have a robust sales network system, stable supply channels, and an experienced technical support team. With these key advantages, our business has expanded rapidly, enabling us to become a reliable server system integrator and solution provider. We have established a comprehensive customer relationship system and support framework. We are committed to offering competitive, genuine market prices, active open cooperation, and strong supplier partnerships. In a competitive market environment, we adhere to the philosophy of "Customer first, honest and pragmatic, service first," winning trust through product quality and dedicated service. We look forward to working with you and your enterprise.

Buyer Reviews

Customer Photo

Our Advantages

FAQ

Is it brand new from the original factory?

Yes, all our products are brand new from the original factory (except for specific second-hand requests).

Is it in stock?

Yes, we maintain regular stock in our warehouse, and you are always welcome to inspect the goods.

Can you give a discount?

As a senior agent for these brands, we offer highly competitive pricing. For large volume orders, we can negotiate the best possible discount.

How long is the delivery time?

Usually 1-3 working days after payment is confirmed.

How long is the warranty period?

Different products carry different warranties, which can be extended up to five years if required.

What is the minimum order quantity?

We accept orders starting from 1 set. Please feel free to inquire.
