Wholesale Huaweis Xfusion Server 2288H V5 Rack Server With 2*GE and 1*10GE SFP 2288H V5 Rack Server in Stock

The enterprise has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, IT consulting and providing professional IT services. It is the core agent and business partner of major global brands. We look forward to cooperating with you. We can customize freely according to your needs!

Support Server

Products Description

Model	FusionServer 2288H V5
Customization	Customers Can Freely Choose Specific Configurations
Form Factor	2U rack server
Processor	1/2 of the first generation Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W; 1/2 second-generation Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W.
Memory	24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel® Optane™ Persistent memory 100 series, up to 2666MT/s
Local Storage	Supports multiple configurations: 8 x 2.5-inch SAS/SATA/SSD; 12/16/20 x 3.5-inch SAS/SATA; 4/8/12/24/28 NVMe SSD; 31 x 2.5-inch SAS/SATA/SSD; 2 x M.2 SATA SSD supporting hard RAID.
RAID Support	Optional support for RAID0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, RAID level migration, and disk roaming.
Networking	Onboard: 2 x 10GE and 2 x GE interfaces. Flexible cards: Optional 2GE, 4GE, 210GE, 225GE or 1/2 56G FDR IB.
PCIe Slots	Up to 10 PCIe 3.0 expansion slots, including dedicated RAID card and flexible LOM card slots.
Power Supply	Two redundant hot-swappable supplies (1+1). Options: 550W/900W/1500W AC Platinum/Titanium; 1500W 380V HVDC; 1200W -48V~-60V DC.
Management	BMC chip integrates management GE port, fault diagnosis, and hardware security. Supports SNMP, IPMI2.0, HTML5/VNC KVM. Optional FusionDirector for full lifecycle automation.
Dimensions	86.1mm × 447mm × 748mm

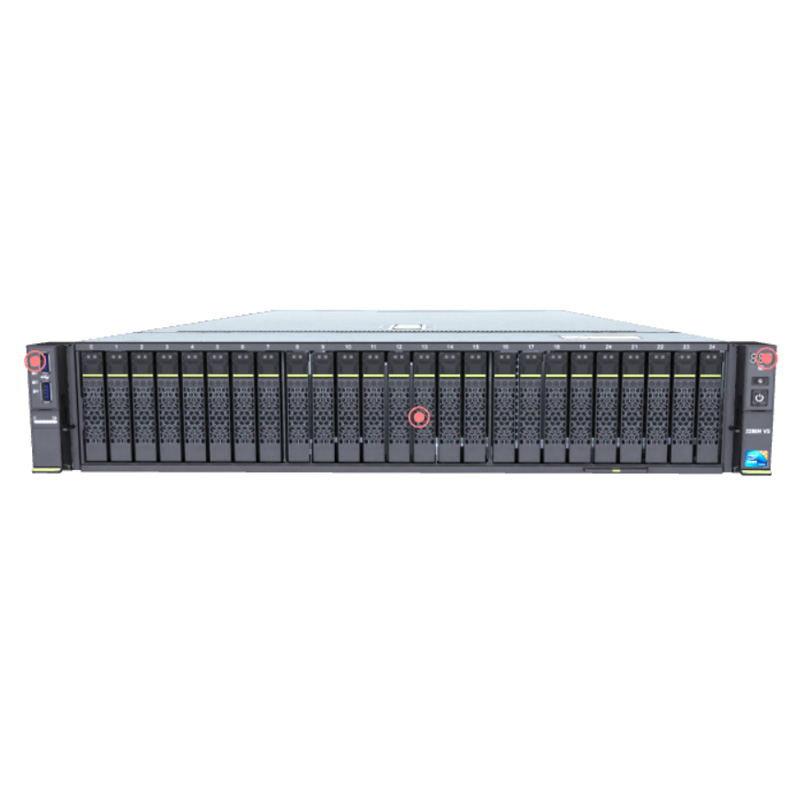

FusionServer 2288H V5

FusionServer 2288H V5 is a 2U2 rack server with flexible configuration, equipped with 24 DDR4 memory expansion slots and 10 PCIe expansion slots, as well as up to 20 x 3.5 inches or 31 x 2.5 inches of local storage resources.

Smart Efficiency & Fault Management

Integrated with patented DEMT intelligent power management and FDM fault management. Suitable for cloud computing virtualization, databases, big data, and other intensive workloads.

Product Features

Balanced configuration, large storage capacity

Supports up to two Intel® Xeon® Scalable processors and 24 DDR4 memory slots. Up to 20 x 3.5-inch or 31 x 2.5-inch SSDs can be configured, and NVMe models can support up to 28 NVMe SSDs.

Smart energy saving, higher energy efficiency

DEMT intelligent strategy including component sleep, power phase switching, and PID speed regulation. Optional power modules from 550W to 1500W utilizing HVDC technology to improve utilization efficiency.

Intelligent management, open integration

FDM deep fault diagnosis with 93% accuracy for core components. Standardized open interfaces for seamless integration with third-party management software.

Details Images

Company Profile

Specialized in computer hardware sales and network platform construction and maintenance. The main product offerings include servers from Dell, HP, IBM, Lenovo, and Huawei. With a sound sales network, stable supply channels, and an excellent technical support team, the enterprise has become a trusted system integrator and solution provider for well-known institutions. We operate under the philosophy of "Customer first, honest and pragmatic, service first."

Certifications & Advantages

FAQ

Is it brand new from the original factory?

Yes, all our products are brand new from the original factory, unless you specifically request second-hand products.

Is the product in stock?

We maintain a local warehouse, and customers are always welcome to visit and inspect the goods.

Can you provide a discount?

As a senior agent for these brands, our discounts are very competitive. For large volume orders, we can offer our best possible pricing.

How long is the delivery time?

Standard delivery takes 1-3 working days after your payment is confirmed.

What is the warranty period?

Different products carry different warranties. If required, we can offer extended warranty options up to five years.

What payment methods do you accept?

We accept T/T, Western Union, and secure online payments.

We Specialize In Various Brands of Rack Servers, Storage Servers, and Various Accessories, Customized According to Your Needs.
