Vertex AI Server
1 / 5
| Model | Dell R350 |
| Processor | One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores |
| Memory | Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s. |
| Storage controllers | Internal controllers (RAID): PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150 Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs External HBAs (non-RAID): HBA355e |
| Drive Bays | Front bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) Max 80TB for 4 HDD configurations |
| Power Supplies | 600 W Platinum 100-240 V AC or 240 V DC redundant, hot swap 700 W Titanium 100-240 V AC or 240 V DC redundant, hot swap |
| Cooling options | Air cooling |
| Fans | Up to four fans with full redundancy |
| Dimensions | Height – 42.8 mm (1.69 inches) Width – 482 mm (18.98 inches) Depth – 585.3 mm (23.04 inches) without bezel 598.94 mm (23.58 inches) with bezel |
| Form Factor | 1U rack server |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integrations and Connections |
OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager OpenManage Connections |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional |
| Embedded NIC | 2 x 1 GbE LOM |
| Network Options | NA |
| Ports |
Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0 Rear Ports: 1 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA Internal Ports: 1 x USB 3.0 (optional) |
| PCIe | 3 PCIe slots: 1x8 Gen4 (x16 connector) low profile, half length 1x8 Gen4 (x8 connector) low profile, half length 1x4 Gen4 (x8 connector) for dedicated PERC only |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS VMware ESXi Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux |

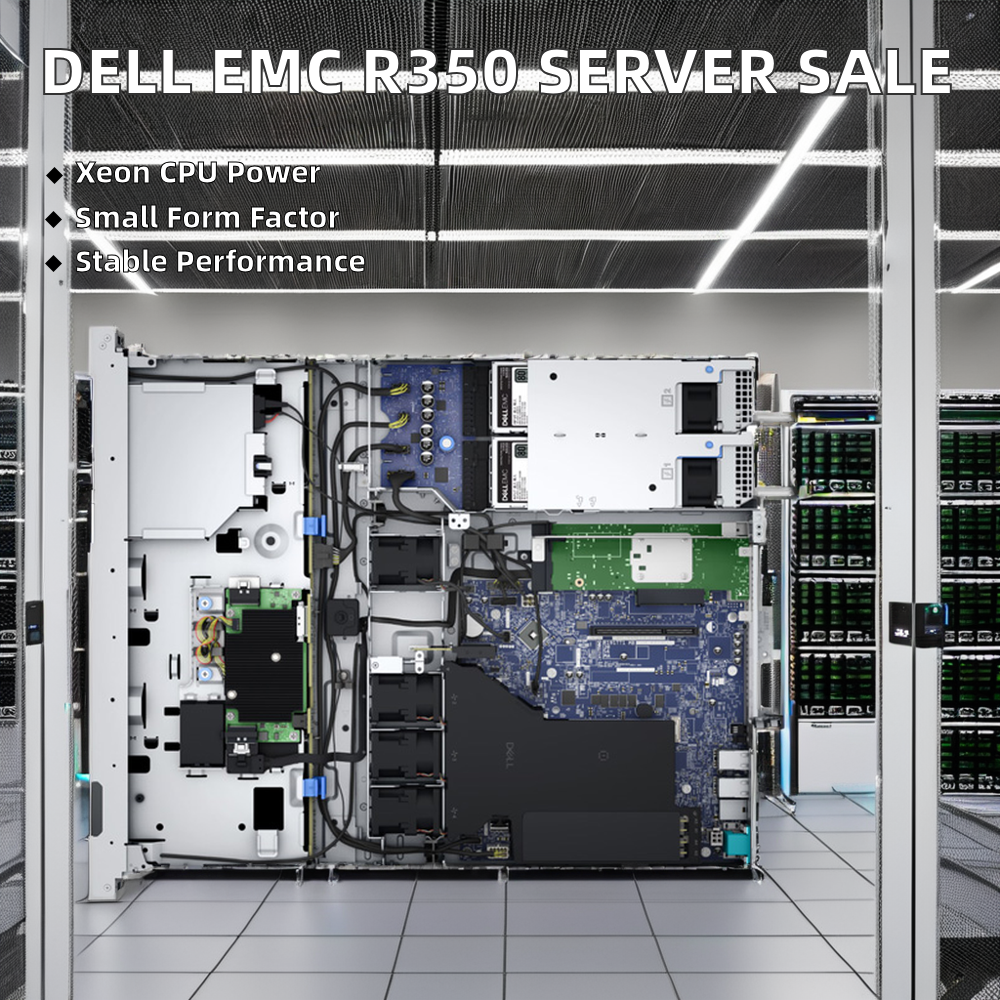

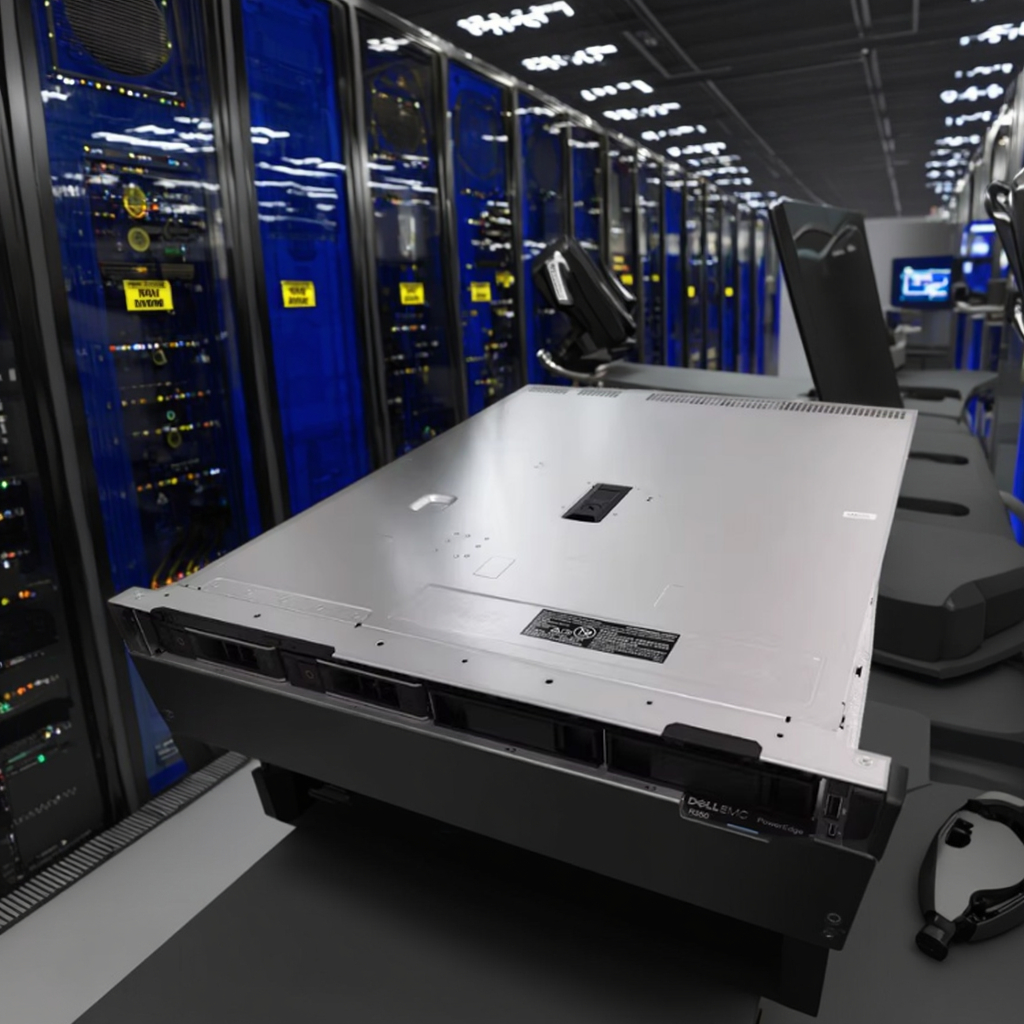

The Dell PowerEdge R350 addresses evolving compute demands with an easy to manage rack server designed for businesses looking for affordable enterprise features.
Powered by Intel® Xeon® E-2300 processors, it delivers increased performance and is designed for productivity and data intensive applications. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge R350 supports PCIe Gen 4 and offers enhanced efficiency to support increasing power and thermal requirements. This makes it a powerful and versatile server for small to mid-sized businesses to enable a variety of workloads ranging from business-critical to cloud infrastructure. It is also widely used for point-of-sale transactions and enterprise level requirements for data analysis and virtualization.
We are specialized in computer hardware sales, network platform construction, and IT system maintenance. We distribute premium products from industry-leading brands, including Dell, HP, IBM, Lenovo, and Huawei. With a comprehensive sales network system, stable supply channels, and an experienced technical support team, we provide enterprise-grade server systems integration and custom solutions.
We are committed to establishing reliable partner relations and offering competitive pricing with a strict focus on genuine products. Adhering to our core philosophy of "Customer First, Honest & Pragmatic, Service First," we strive to reinforce quality assurance and responsive technical assistance to maintain outstanding customer satisfaction.
