| Model | Thinksystem SR630 V2 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 1U rack server |
| Processor | One or two third-generation Intel Xeon Scalable processor (formerly codenamed "Ice Lake"). Supports processors up to 40 cores, core speeds of up to 3.6 GHz, and TDP ratings of up to 270W. |
| Chipset | Intel C621A "Lewisburg" chipset, part of the platform codenamed "Whitley" |
| Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported. DIMM slots are shared between standard system memory and persistent memory. DIMMs operate at up to 3200 MHz at 2 DPC. |
| Persistent memory | Supports up to 16x Intel Optane Persistent Memory 200 Series modules (8 per processor) installed in the DIMM slots. Persistent memory (Pmem) is installed in combination with system memory DIMMs. |
| Memory maximum | With RDIMMs: Up to 8TB by using 32x 256GB 3DS RDIMMs With Persistent Memory: Up to 12TB by using 16x 256GB 3DS RDIMMs and 16x 512GB Pmem modules |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Platinum or Gold processors), and memory mirroring |
| Disk drive bays |
Up to 4x 3.5-inch or 12x 2.5-inch or 16x EDSFF hot-swap drive bays: * Front bays: 10x 2.5-inch hot-swap (All AnyBay / All NVMe / 6x SAS/SATA + 4x AnyBay / 6x SAS/SATA + 4x NVMe / 6x SAS/SATA + 2x AnyBay + 2x NVMe), 8x 2.5-inch hot-swap SAS/SATA, 16x EDSFF E1.S, or 4x 3.5-inch hot-swap SAS/SATA or AnyBay. * Rear bays: 2x 2.5-inch hot-swap SAS/SATA or NVMe, or 2x 7mm 2.5-inch hot-swap SATA or NVMe. * Internal M.2 module supporting up to two M.2 drives. |
| Maximum internal storage |
* 2.5-inch drives: Up to 368.64TB using 12x 30.72TB SAS/SATA SSDs; Up to 737.28TB using 12x 61.44TB NVMe SSDs; Up to 28.8TB using 12x 2.4TB HDDs. * EDSFF drives: Up to 122.88TB using 16x 7.68TB E1.S NVMe SSDs. * 3.5-inch drives: Up to 88TB using 4x 22TB HDDs; Up to 61.44TB using 4x 15.36TB SAS/SATA SSDs. |
| Storage controller |
* 12x Onboard SATA ports (Intel VROC SATA RAID) * Up to 12x Onboard NVMe ports (includes Intel VROC NVMe RAID) * NVMe Retimer Adapter * 12 Gb SAS/SATA RAID adapters & HBA (PCIe 4.0 or PCIe 3.0) |
| Optical drive bays | No internal optical drive |
| Tape drive bays | No internal backup drive |
| Network interfaces | Dedicated OCP 3.0 SFF slot with PCIe 4.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1GbE, 10GbE and 25GbE network connectivity. |
| PCIe slots | Up to 3x PCIe 4.0 slots, all with rear access, plus a slot dedicated to the OCP adapter. |
| GPU support | Supports up to 3x single-wide GPUs |
| Ports |
Front: 1x USB 3.2 G1, 1x USB 2.0 (for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 management. Optional DB-9 COM serial port. Internal: 1x USB 3.2 G1 connector. |
| Cooling | Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans. One fan integrated in each power supply. |
| Power supply | Up to two hot-swap redundant AC power supplies (80 PLUS Platinum or Titanium). 500W, 750W, 1100W, and 1800W options. 240V DC and -48V DC options also supported in designated regions. |
| Video | G200 graphics with 16 MB memory, integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60Hz. |
| Hot-swap parts | Drives, power supplies, and fans. |
| Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset. XClarity Controller (XCC) embedded management, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager. |
| Security features | Chassis intrusion switch, Power-on password, administrator's password, Trusted Platform Module (TPM 2.0). Optional lockable front security bezel. |
| Operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Service and support | Optional upgrades: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension. |
| Weight | Maximum: 20.8 kg (45.9 lb) |
| Size | 43mm × 440mm × 773mm |

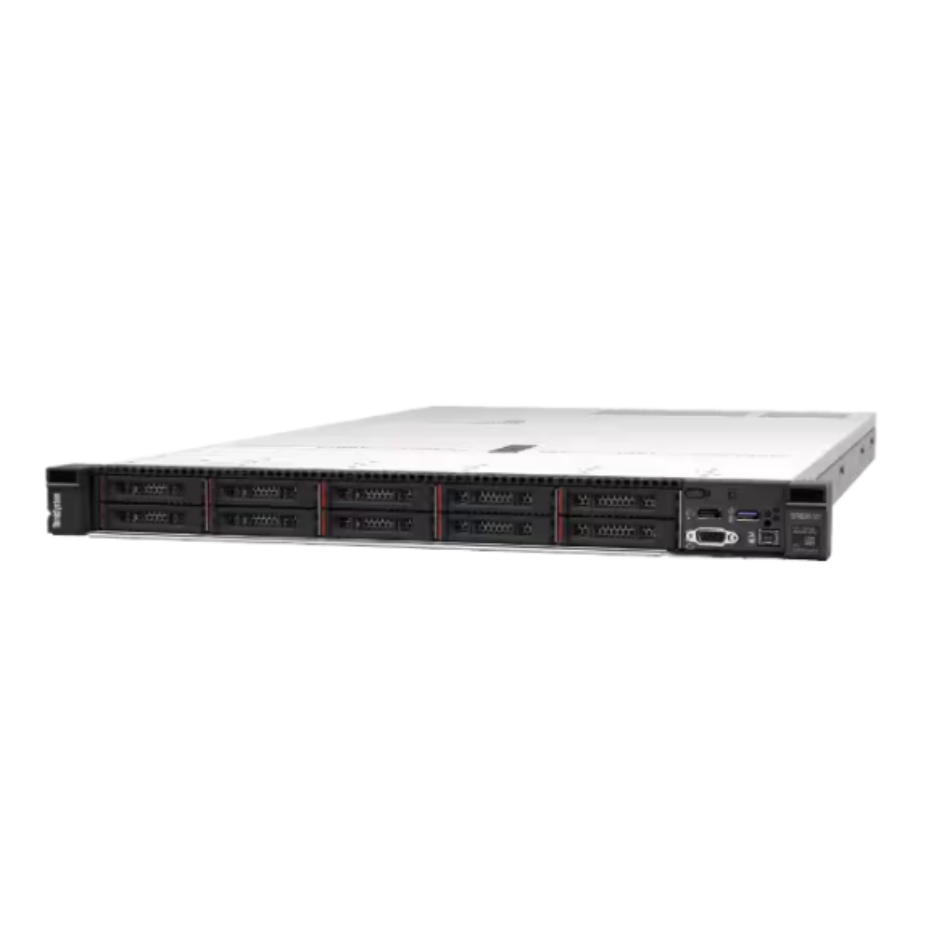

The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V2 server, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem SR630 V2 is based on the 3rd generation Intel Xeon Scalable processor family (formerly codenamed "Ice Lake") and the Intel Optane Persistent Memory 200 Series, maximizing performance and flexibility for future growth.
The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
The SR630 V2 server has been designed to take advantage of the features of the 3rd generation Intel Xeon Scalable processors, such as the full performance of 270W 40-core processors, support for 3200 MHz memory and PCIe Gen 4.0 support. The server also offers onboard NVMe PCIe ports that allow direct connections to 12x NVMe SSDs, which results in faster access to store and access data. Combining performance and flexibility, the SR630 V2 server is a great choice for enterprises of all sizes.
