The company has 10 years of distribution experience. It is a high-tech enterprise integrating system integration, it consulting and providing professional IT services. It is the core agent and business partner of Huawei, Lenovo, Dells and IBM. We look forward to cooperating with you. We can customize freely according to your needs!

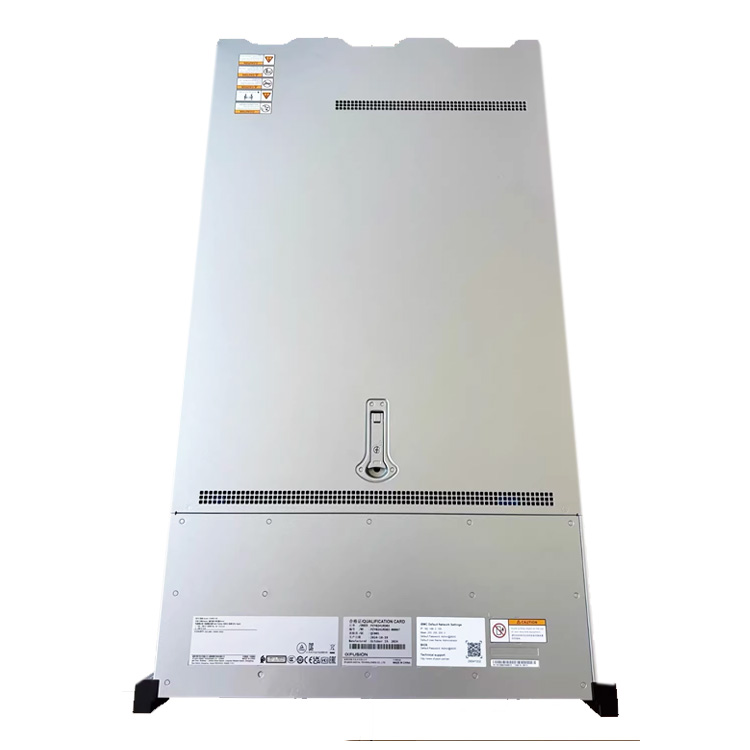

| Model | FusionServer 2288H V6 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor | 1/2 of third-generation Intel ® xeon ® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W, capable of supporting Lanchijin processors |
| Chipset | Intel C621A |
| Memory | 16/32 DDR4 memory slots, up to 3200MT/s; Up to 16 Intel products ® Aoteng ™ Persistent memory 200 series, up to 3200MT/s |
| Local Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping:
|
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Supports multiple network expansion capabilities, supports OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and supports on-demand selection. Supports hot swapping |
| PCLs | 14 PCIe 4.0 expansion slots, supporting multiple applications |
| Heterogeneous acceleration card | Support 4 300W full height, full length, dual width GPU acceleration cards/11 half height, half length, single width GPU acceleration cards/8 full height, full length, single width GPU acceleration cards |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows:
|
| Manage |
BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features.
BMC supports standard interfaces such as Red, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control, simplifying management complexity. FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle. |
| Operating system | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler Wait, more compatible systems |
| Security features | Support power on password, administrator password TPM 2.0, Safety features such as safety panel, safety start, and lid opening detection |
| Operation temperature | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE Class A1/A2/A3/A4) |
| Product Certification | CE, UL, CCC, FCC, VCCI, RoHS etc. |
| Installation package | Support L-shaped slide, extendable slide, and rail support |
| Size | 86.1mm×447mm×790mm |
Yes, all our products are brand new from the original factory. In addition to second-hand products you specifically want.
As the senior agent of this brand, our discount is very advantageous. As long as you have a large amount, we can give you the best discount.
1-3 working days after your payment.
Our different products have different warranty, if necessary, we can extend the warranty to five years.
We accept orders from 1 set, please feel free to inquire.
T/T, Western Union
