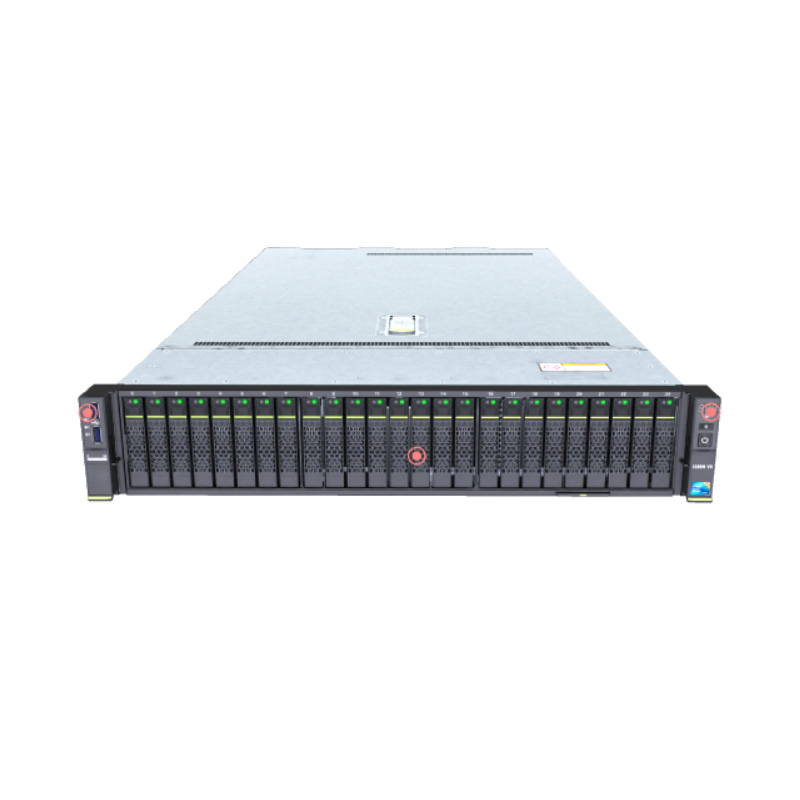

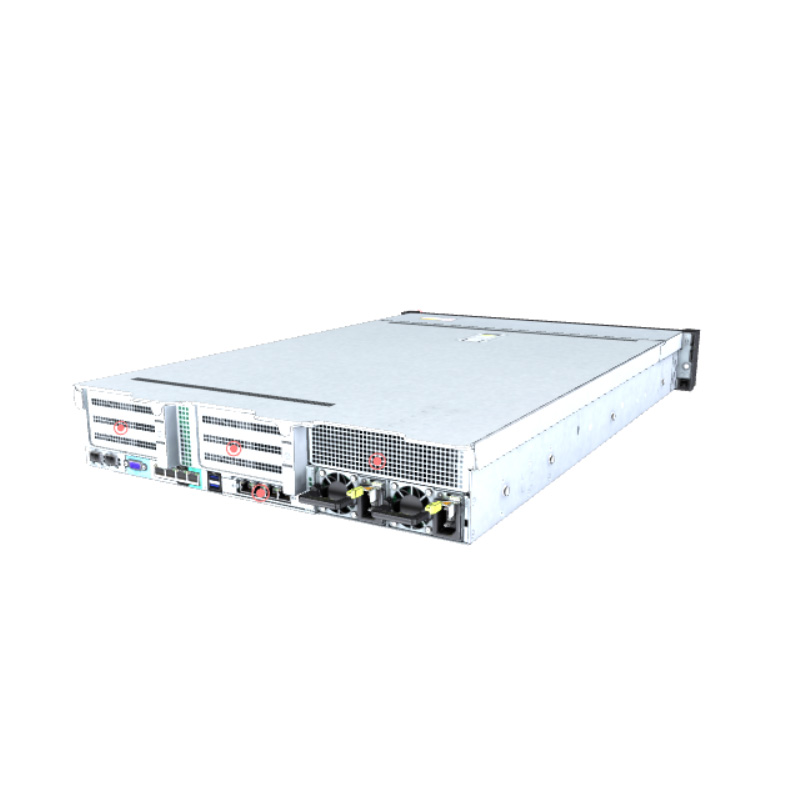

Vertex AI Server
1 / 5
| Model | FusionServer 2288H V5 |
| Customization Intention | Customers Can Freely Choose Specific Configurations |
| Form Factor | 2U rack server |
| Processor |
• 1/2 of the first generation Intel ® Xeon ® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W, capable of supporting Lanchijin processors • 1/2 second-generation Intel ® Xeon ® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W, capable of supporting Lanchijin processors |
| Memory | 24 DDR4 memory slots, up to 2933MT/s, up to 12 Intel ® Optane™ Persistent Memory 100 series, up to 2666MT/s |
| Local Storage |
Supports multiple different hard drive configurations, and the hard drive supports hot swapping: • Can be configured with 8 2.5-inch SAS/SATA/SSD hard drives • Configurable 12/16/20 3.5-inch SAS/SATA hard drives • Configurable 4/8/12/24/28 NVMe SSD hard drives; 31 2.5-inch SAS/SATA/SSD hard drives can be configured • Can be configured with 2 M.2 SATA SSD hard drives, supporting hardware RAID |
| RAID support | Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, disk roaming, self diagnosis, web remote settings and other functions |
| Networking | Onboard network card: 2 10GE interfaces and 2 GE interfaces Flexible card insertion: optional 2 * GE or 4 * GE or 2 * 10GE or 2 * 25GE or 1/2 56G FDR IB interface |
| PCIe Slots | Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card dedicated to RAID cards and 1 flexible LOM card |
| Heterogeneous acceleration card |
Up to 7 single slot half height and half length cards Up to 2 dual slot full height and full length cards |
| Fan | 4 hot swappable counter rotating fans, supporting N+1 redundancy |
| Power supply |
Two redundant hot swappable power supplies can be configured, supporting 1+1 redundancy. The optional specifications are as follows: • 550W AC Platinum Power Supply • 900W AC Platinum/Titanium Power Supply; 1500W AC Platinum Power Supply • 1500W 380V High Voltage DC Power Supply; 1200W -48V~-60V DC Power Supply |
| Manage |
• BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features • BMC supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc; Provide a remote management interface based on HTML5/VNC KVM; Support CD-free deployment and Agentless features to simplify management complexity • FusionDirector management software is optional, providing advanced management features such as stateless computing, OS batch deployment, and firmware automatic upgrade, achieving intelligent and automated management throughout the entire lifecycle |
| Operation temperature | 5 ºC to 45 ºC (41 ºF to 113 ºF) (compliant with ASHRAE A3 and A4 standards) |
| Product Certification | CE, UL, FCC, CCC, RoHS etc. |
| Installation package | L-shaped slide, extendable slide, and rail support |

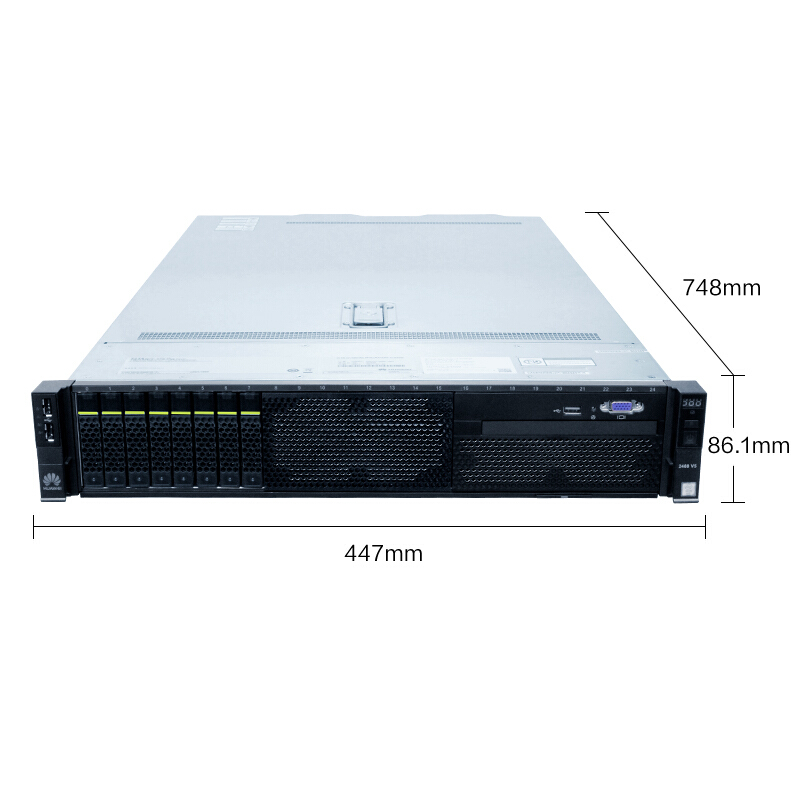

| Size | 86.1mm × 447mm × 748mm |
